Thailand -201011

< Last Update: 15 May 2013 >

SAFE Prototyping Status: November 2010 - November 2012 <Completed>

Economic Fish Larvae Mapping and Monitoring

Marine Fisheries Research and Development Bureau, Department of Fisheries (DOF)

DOF is collecting data on nutrients, water quality and amount of fish larvae by research vessels. These measurements are taken 4 times per year. This frequency is insufficient as ocean changes are more rapid and dynamic. At present, with the data available from fishing vessels larvae distribution is interpolated in controlling fishing ground for certain time of the year to protect and management fish larvae. If it is possible to use satellite data for estimate related parameters to larvae, then it is possible to provide more accurate and frequent distribution maps of fish larvae, helping sustainable fishing industry of Thailand.

The objective of this Prototype is the followings;

1) Establishing relationship of fish larvae and ocean environmental parameters observed from research vessels

2) Establishing relationships between SST, chlorophyll and salinity between vessel data and satellite data, primarily MODIS data

3) Develop a model based on the results of 2 & 3 above

4) Applying the results into fisheries conservation planning process at DOF

Final Results

1) Products

Level of Frequently Preferable Areas of Fish Larvae

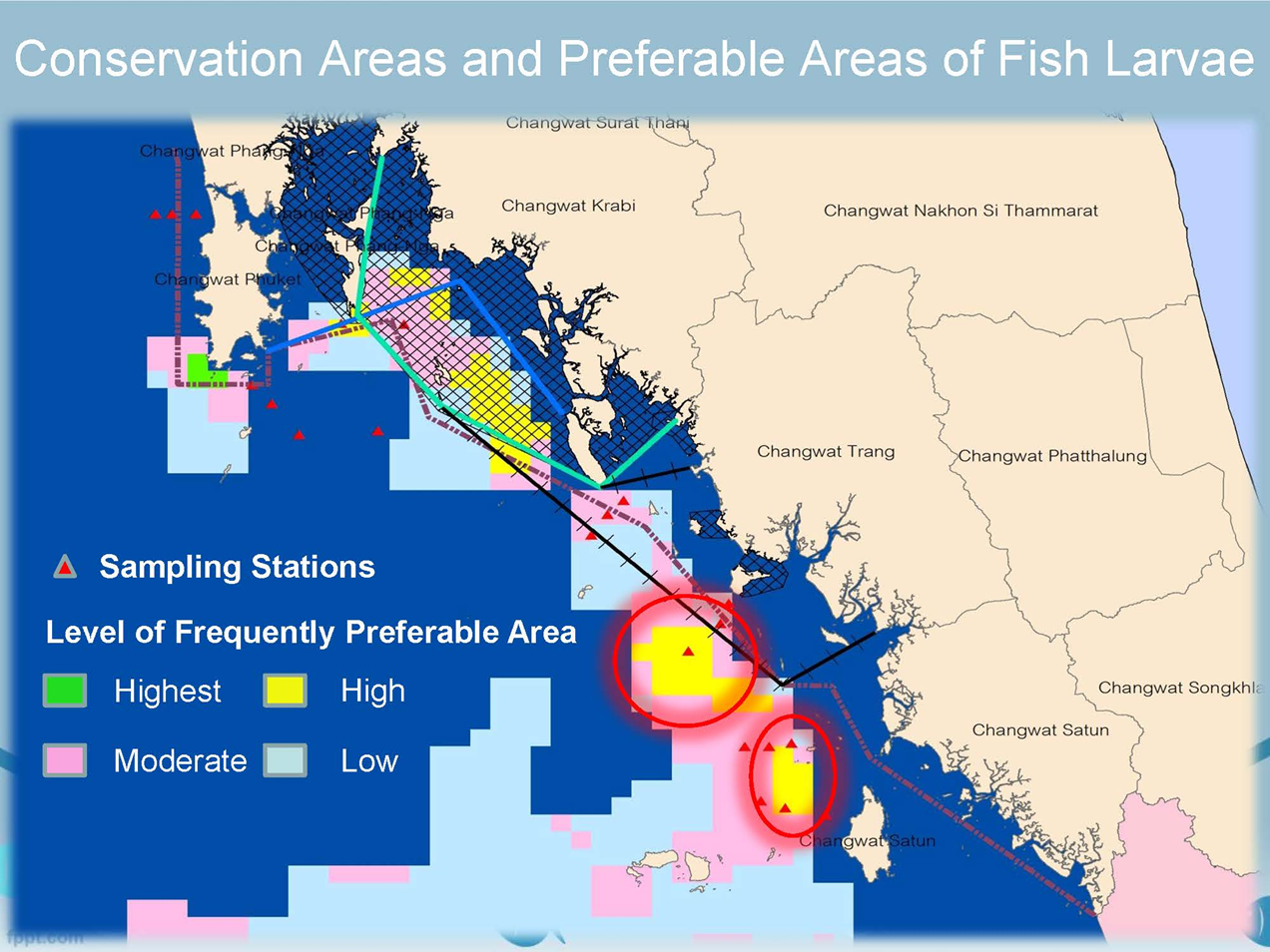

Conservation Areas and Preferable Areas of Fish Larvae

Zoom

MODIS Chlorophyll Concentration Distribution

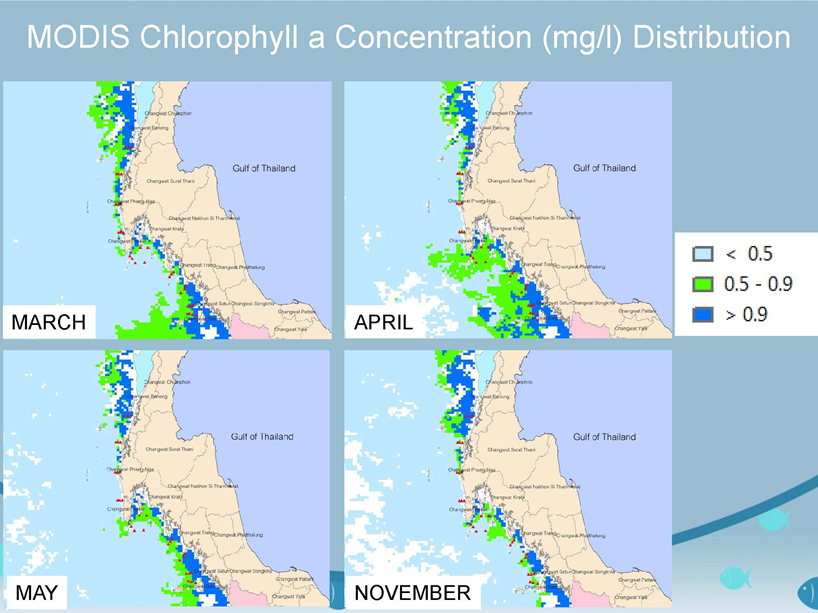

MODIS Chlorophyll Concentration (mg/l) Distribution on March, April, May and November

Zoom

MODIS SST Distribution

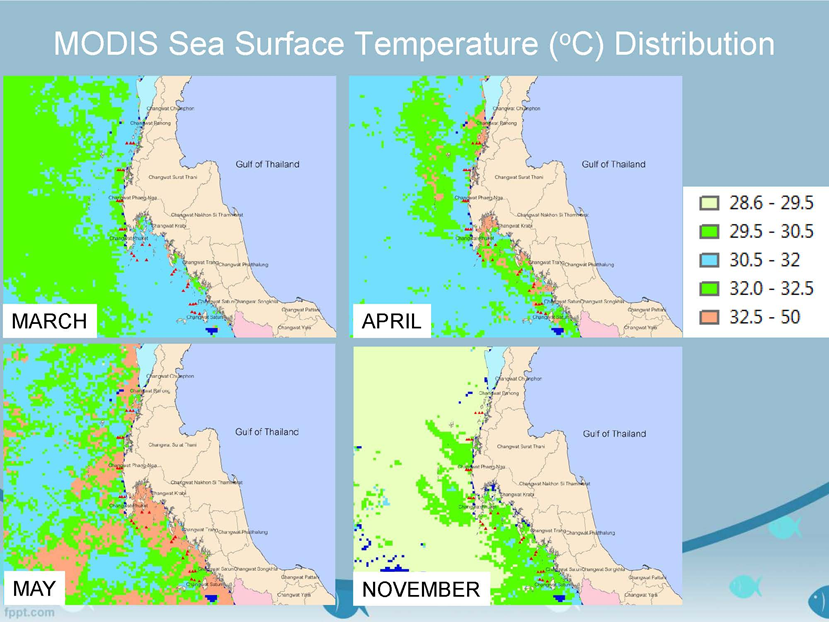

MODIS Surface Temperature (°C) Distribution on March, April, May and November

Zoom

2) Method

Analysis Methodology

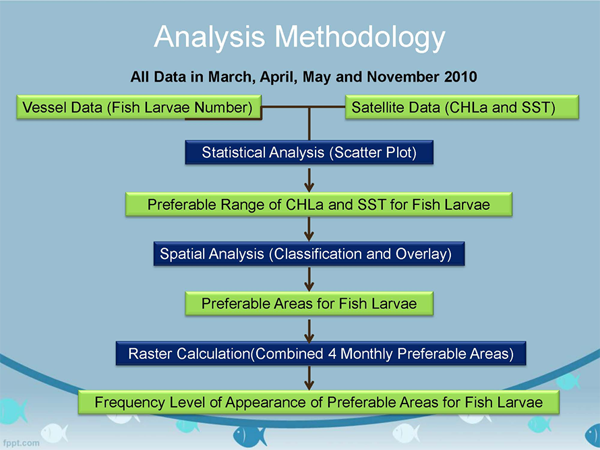

Analysis Methodology (All data in March, April, May and November 2010)

Relationship between Fish Number and MODIS Chlorophyll

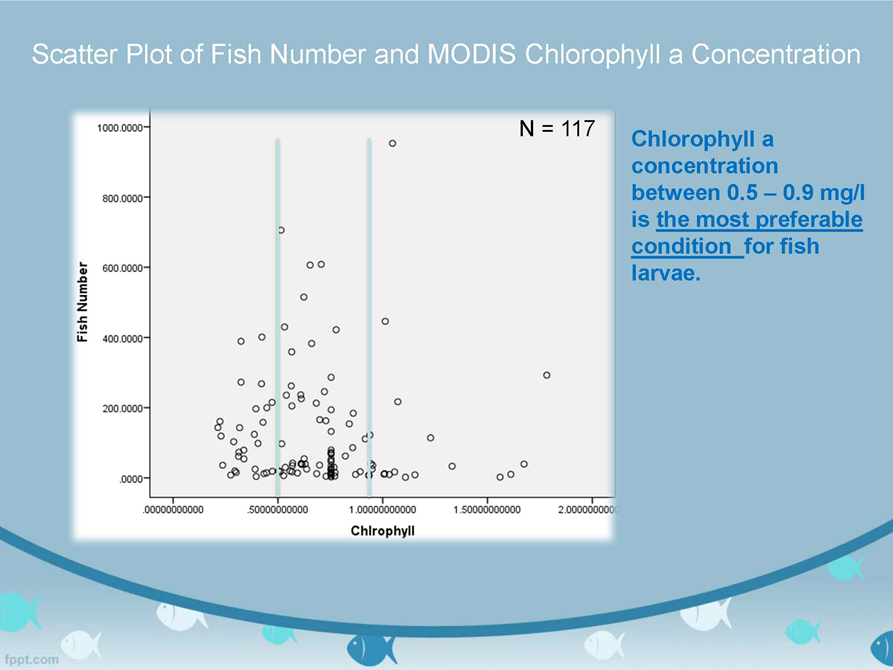

Scatter Plot of Fish Number and MODIS Chlorophyll a Concentration

Zoom

Relationship between Fish Number and MODIS SST

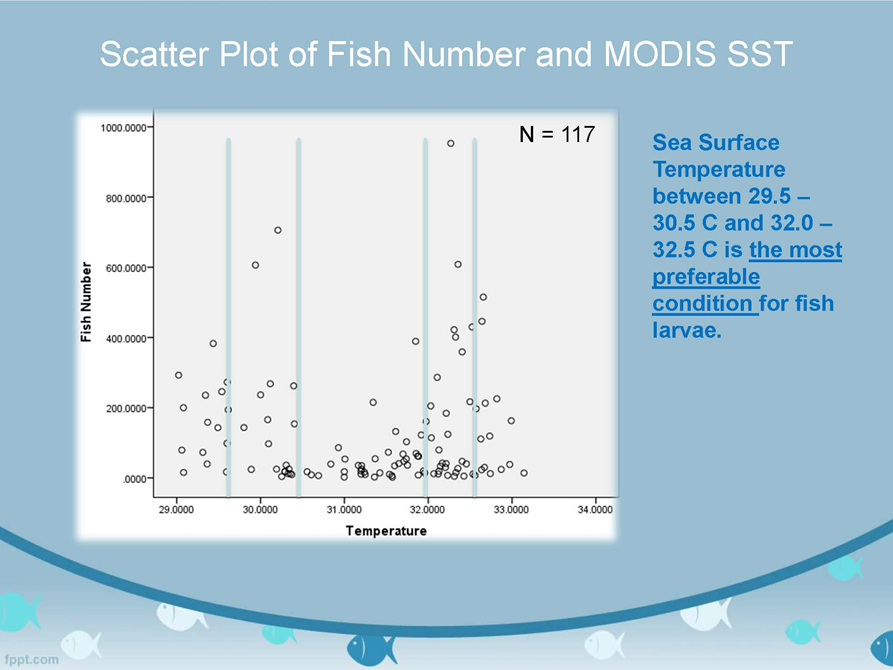

Scatter Plot of Fish Number and MODIS SST

Zoom

Formation

1) Prototyping Executor

Dr. Phutchapol Suvanachai, Senior Fishery Biologist
Marine Fisheries Research and Development Bureau, Department of Fisheries, Thailand

2) Technical Supporter

- Japan Agency for Marine-Earth Science and Technology (JAMSTEC)
- Geo-informatics Center (GIC) / Asian Institute of Technology (AIT)

3) Data & Application Provider

- GIC / AIT: MODIS
- DOF: Vessel data (Total Fish Larvae, Temperature, Chlorophyl, Sal, PH, DO, NH3, NO2, NO3, PO4)

≫ Stake holder meeting Report
