>ALOS Data Take Simulation(Mar. 26, 2010)

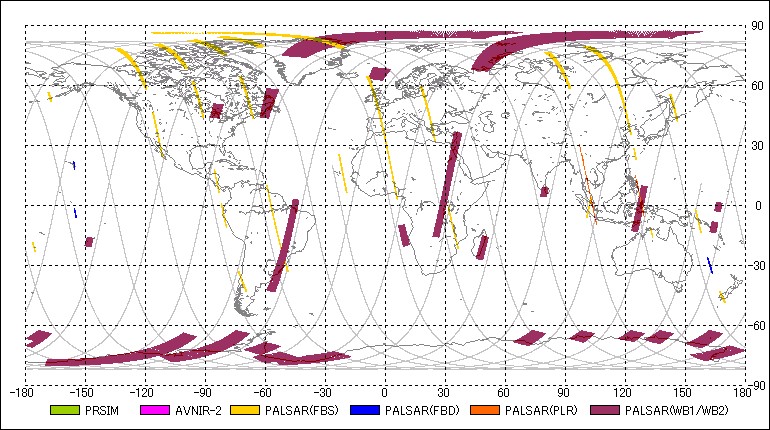

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	AV2	OBS	2010-03-26 00:00:19	2010-03-26 00:02:11	00:01:52	23	170.30	23	177.11	0.00	-
2	AV2	OBS	2010-03-26 00:05:08	2010-03-26 00:13:36	00:08:28	23	187.87	23	218.74	0.00	-
3	PSM	OB2	2010-03-26 00:09:02	2010-03-26 00:15:00	00:05:58	23	202.15	23	223.91	0.00	-
4	PSR	WB1	2010-03-26 00:20:29	2010-03-26 00:22:31	00:02:02	23	243.91	23	251.32	27.10	80
5	PSR	FBS	2010-03-26 01:13:45	2010-03-26 01:15:57	00:02:12	69	78.16	69	86.18	34.30	7
6	AV2	OBS	2010-03-26 01:27:06	2010-03-26 01:33:20	00:06:14	69	126.78	69	149.52	0.00	-
7	PSM	OB2	2010-03-26 01:27:10	2010-03-26 01:33:30	00:06:20	69	127.03	69	150.12	0.00	-
8	PSR	WB1	2010-03-26 01:38:41	2010-03-26 01:45:33	00:06:52	69	169.03	69	194.07	27.10	80
9	AV2	OBS	2010-03-26 01:39:37	2010-03-26 01:48:29	00:08:52	69	172.43	69	204.76	0.00	-
10	PSM	OB2	2010-03-26 01:40:47	2010-03-26 01:45:09	00:04:22	69	176.68	69	192.61	0.00	-
11	PSR	WB1	2010-03-26 01:59:16	2010-03-26 02:01:16	00:02:00	69	244.09	69	251.38	27.10	80
12	PSR	FBS	2010-03-26 02:21:15	2010-03-26 02:33:53	00:12:38	69	324.26	115	10.33	34.30	7
13	PSR	FBS	2010-03-26 02:42:22	2010-03-26 02:48:54	00:06:32	115	41.27	115	65.09	34.30	7
14	PSR	FBS	2010-03-26 02:51:19	2010-03-26 02:54:11	00:02:52	115	73.91	115	84.36	34.30	7
15	PSM	OB2	2010-03-26 03:06:05	2010-03-26 03:23:57	00:17:52	115	127.76	115	192.91	0.00	-
16	PSR	FBS	2010-03-26 03:19:02	2010-03-26 03:22:28	00:03:26	115	174.98	115	187.50	34.30	7
17	AV2	OBS	2010-03-26 03:19:20	2010-03-26 03:23:21	00:04:01	115	176.08	115	190.72	0.00	-
18	PSR	WB1	2010-03-26 03:37:55	2010-03-26 03:40:31	00:02:36	115	243.91	115	253.39	27.10	80
19	PSR	FBS	2010-03-26 03:57:06	2010-03-26 04:00:38	00:03:32	115	313.80	115	326.69	34.30	7
20	PSR	FBS	2010-03-26 04:06:06	2010-03-26 04:10:02	00:03:56	115	346.62	161	0.97	34.30	7
21	PSR	FBS	2010-03-26 04:10:56	2010-03-26 04:14:48	00:03:52	161	4.25	161	18.36	34.30	7
22	PSR	FBS	2010-03-26 04:21:14	2010-03-26 04:26:56	00:05:42	161	41.82	161	62.60	34.30	7
23	PSR	FBS	2010-03-26 04:28:08	2010-03-26 04:32:16	00:04:08	161	66.98	161	82.05	34.30	7
24	PSM	OB1	2010-03-26 04:44:03	2010-03-26 04:54:59	00:10:56	161	125.02	161	164.89	1.20	-
25	AV2	OBS	2010-03-26 04:47:35	2010-03-26 04:54:13	00:06:38	161	137.91	161	162.10	0.00	-
26	PSR	WB1	2010-03-26 04:56:21	2010-03-26 04:58:13	00:01:52	161	169.88	161	176.68	27.10	80
27	PSM	OB1	2010-03-26 05:11:25	2010-03-26 05:14:05	00:02:40	161	224.82	161	234.55	1.20	-
28	AV2	OBS	2010-03-26 05:12:10	2010-03-26 05:14:02	00:01:52	161	227.56	161	234.36	0.00	-
29	AV2	OBS	2010-03-26 05:18:46	2010-03-26 05:20:38	00:01:52	161	251.62	161	258.43	-34.30	-
30	PSR	FBS	2010-03-26 05:54:25	2010-03-26 06:01:21	00:06:56	207	21.64	207	46.92	34.30	7
31	PSR	FBS	2010-03-26 06:03:56	2010-03-26 06:10:16	00:06:20	207	56.34	207	79.44	34.30	7
32	PSM	OB1	2010-03-26 06:22:46	2010-03-26 06:32:02	00:09:16	207	125.02	207	158.82	1.20	-
33	AV2	OBS	2010-03-26 06:26:19	2010-03-26 06:31:51	00:05:32	207	137.97	207	158.15	0.00	-
34	PSR	WB1	2010-03-26 06:41:49	2010-03-26 06:45:35	00:03:46	207	194.43	207	208.17	27.10	80
35	AV2	OBS	2010-03-26 06:57:58	2010-03-26 06:59:50	00:01:52	207	253.39	207	260.19	34.30	-
36	PSR	WB1	2010-03-26 07:50:59	2010-03-26 07:58:11	00:07:12	253	86.73	253	112.99	27.10	80
37	PSM	OB1	2010-03-26 07:58:38	2010-03-26 08:05:46	00:07:08	253	114.63	253	140.64	1.20	-
38	PSR	WB1	2010-03-26 08:06:13	2010-03-26 08:21:11	00:14:58	253	142.28	253	196.86	27.10	80
39	PSM	OB1	2010-03-26 08:08:13	2010-03-26 08:20:25	00:12:12	253	149.58	253	194.07	1.20	-
40	AV2	OBS	2010-03-26 08:21:43	2010-03-26 08:23:35	00:01:52	253	198.81	253	205.62	-34.30	-
41	PSR	WB1	2010-03-26 08:37:57	2010-03-26 08:40:53	00:02:56	253	258.01	253	268.70	27.10	80
42	PSR	FBD	2010-03-26 09:03:38	2010-03-26 09:05:30	00:01:52	253	351.67	253	358.47	34.30	43
43	PSR	FBD	2010-03-26 09:09:59	2010-03-26 09:11:51	00:01:52	299	14.83	299	21.64	50.80	53
44	PSR	FBS	2010-03-26 09:19:42	2010-03-26 09:21:34	00:01:52	299	50.26	299	57.07	34.30	7
45	PSM	OB1	2010-03-26 09:49:20	2010-03-26 09:55:30	00:06:10	299	158.33	299	180.82	1.20	-
46	AV2	OBS	2010-03-26 09:50:06	2010-03-26 09:55:00	00:04:54	299	161.13	299	178.99	0.00	-
47	PSR	WB1	2010-03-26 10:16:48	2010-03-26 10:18:40	00:01:52	299	258.49	299	265.30	27.10	80
48	PSR	FBS	2010-03-26 10:37:38	2010-03-26 10:39:30	00:01:52	299	334.41	299	341.21	34.30	7
49	AV2	OBS	2010-03-26 11:11:18	2010-03-26 11:13:10	00:01:52	345	97.19	345	103.99	0.00	-
50	PSR	WB1	2010-03-26 11:14:41	2010-03-26 11:16:53	00:02:12	345	109.52	345	117.55	27.10	80
51	AV2	OBS	2010-03-26 11:19:37	2010-03-26 11:21:29	00:01:52	345	127.58	345	134.38	34.30	-
52	AV2	OBS	2010-03-26 11:26:29	2010-03-26 11:31:36	00:05:07	345	152.56	345	171.21	0.00	-
53	PSM	OB1	2010-03-26 11:28:03	2010-03-26 11:32:21	00:04:18	345	158.33	345	174.01	1.20	-
54	PSR	WB1	2010-03-26 11:53:31	2010-03-26 11:55:35	00:02:04	345	251.20	345	258.74	27.10	80
55	PSR	FBS	2010-03-26 12:09:12	2010-03-26 12:11:24	00:02:12	345	308.39	345	316.42	34.30	7
56	PSR	FBD	2010-03-26 12:13:16	2010-03-26 12:16:10	00:02:54	345	323.22	345	333.80	34.30	43
57	PSR	FBS	2010-03-26 12:18:58	2010-03-26 12:22:50	00:03:52	345	344.01	345	358.11	34.30	7
58	PSR	FBS	2010-03-26 12:34:19	2010-03-26 12:38:43	00:04:24	391	39.99	391	56.04	34.30	7
59	AV2	OBS	2010-03-26 12:48:52	2010-03-26 12:50:46	00:01:54	391	92.99	391	99.92	0.00	-
60	PSM	OB1	2010-03-26 12:54:20	2010-03-26 12:57:40	00:03:20	391	112.99	391	125.14	0.00	-
61	PSR	WB1	2010-03-26 13:11:34	2010-03-26 13:24:56	00:13:22	391	175.83	391	224.58	27.10	80
62	PSM	OB1	2010-03-26 13:12:06	2010-03-26 13:21:42	00:09:36	391	177.72	391	212.73	1.20	-
63	PSR	WB1	2010-03-26 13:30:15	2010-03-26 13:35:57	00:05:42	391	243.91	391	264.69	27.10	80
64	PSR	FBS	2010-03-26 13:57:05	2010-03-26 13:58:57	00:01:52	391	341.82	391	348.63	34.30	7
65	PSR	PLR	2010-03-26 14:00:02	2010-03-26 14:06:20	00:06:18	391	352.58	437	15.56	21.50	127
66	PSR	FBS	2010-03-26 14:07:49	2010-03-26 14:10:01	00:02:12	437	20.97	437	28.99	34.30	7
67	PSR	FBS	2010-03-26 14:11:13	2010-03-26 14:24:11	00:12:58	437	33.37	437	80.65	34.30	7
68	PSR	WB1	2010-03-26 14:25:42	2010-03-26 14:31:05	00:05:23	437	86.12	437	105.76	27.10	80
69	PSM	OB1	2010-03-26 14:29:19	2010-03-26 14:37:05	00:07:46	437	99.37	437	127.70	0.00	-
70	PSR	WB1	2010-03-26 14:35:00	2010-03-26 14:39:40	00:04:40	437	120.04	437	137.06	27.10	80
71	PSM	OB1	2010-03-26 14:47:06	2010-03-26 14:58:04	00:10:58	437	164.16	437	204.16	1.20	-
72	AV2	OBS	2010-03-26 14:47:51	2010-03-26 14:57:17	00:09:26	437	166.90	437	201.30	0.00	-
73	PSR	WB1	2010-03-26 15:09:26	2010-03-26 15:16:40	00:07:14	437	245.61	437	271.99	27.10	80
74	PSR	PLR	2010-03-26 15:37:36	2010-03-26 15:49:24	00:11:48	437	348.39	483	31.42	21.50	127
75	PSR	FBS	2010-03-26 15:56:22	2010-03-26 16:02:04	00:05:42	483	56.77	483	77.55	34.30	7
76	PSM	OB1	2010-03-26 16:06:24	2010-03-26 16:12:04	00:05:40	483	93.36	483	114.02	0.00	-
77	AV2	OBS	2010-03-26 16:10:22	2010-03-26 16:13:06	00:02:44	483	107.82	483	117.79	0.00	-
78	PSR	WB1	2010-03-26 16:15:51	2010-03-26 16:18:23	00:02:32	483	127.82	483	137.06	27.10	80
79	AV2	OBS	2010-03-26 16:24:16	2010-03-26 16:27:28	00:03:12	483	158.57	483	170.24	0.00	-
80	PSR	WB1	2010-03-26 19:51:43	2010-03-26 19:53:35	00:01:52	575	195.04	575	201.85	27.10	80
81	PSR	WB1	2010-03-26 20:05:07	2010-03-26 20:10:27	00:05:20	575	243.91	575	263.36	27.10	80
82	PSR	FBS	2010-03-26 20:30:24	2010-03-26 20:37:00	00:06:36	575	336.11	621	0.18	34.30	7
83	PSR	FBS	2010-03-26 20:45:19	2010-03-26 20:53:27	00:08:08	621	30.51	621	60.17	34.30	7
84	AV2	OBS	2010-03-26 21:01:12	2010-03-26 21:04:00	00:02:48	621	88.43	621	98.64	0.00	-
85	AV2	OBS	2010-03-26 21:06:10	2010-03-26 21:10:28	00:04:18	621	106.55	621	122.23	0.00	-
86	AV2	OBS	2010-03-26 21:30:54	2010-03-26 21:32:46	00:01:52	621	196.74	621	203.55	0.00	-
87	PSR	WB1	2010-03-26 21:43:50	2010-03-26 21:46:46	00:02:56	621	243.91	621	254.60	27.10	80
88	PSR	WB1	2010-03-26 22:09:31	2010-03-26 22:13:01	00:03:30	621	337.57	621	350.33	27.10	80
89	PSR	FBS	2010-03-26 22:15:51	2010-03-26 22:33:31	00:17:40	667	0.67	667	65.09	34.30	7
90	PSR	FBS	2010-03-26 22:36:56	2010-03-26 22:40:58	00:04:02	667	77.49	667	92.20	34.30	7
91	AV2	OBS	2010-03-26 22:44:28	2010-03-26 22:48:08	00:03:40	667	105.03	667	118.40	0.00	-
92	PSM	OB1	2010-03-26 22:49:10	2010-03-26 22:51:56	00:02:46	667	122.17	667	132.26	1.20	-
93	PSR	WB1	2010-03-26 23:04:20	2010-03-26 23:06:12	00:01:52	667	177.47	667	184.28	27.10	80
94	AV2	OBS	2010-03-26 23:04:40	2010-03-26 23:06:32	00:01:52	667	178.69	667	185.50	0.00	-
95	PSR	WB1	2010-03-26 23:06:58	2010-03-26 23:09:04	00:02:06	667	187.08	667	194.74	27.10	80
96	PSR	WB1	2010-03-26 23:22:33	2010-03-26 23:24:49	00:02:16	667	243.91	667	252.17	27.10	80
97	PSR	FBS	2010-03-26 23:55:36	2010-03-27 00:01:28	00:05:52	42	4.44	42	25.83	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
23	-12.09679	2010-03-25 23:13:36	155.56342	2010-03-26 00:02:57
69	-36.77637	2010-03-26 00:52:19	130.88383	2010-03-26 01:41:40
115	-61.45596	2010-03-26 02:31:02	106.20425	2010-03-26 03:20:23
161	-86.13554	2010-03-26 04:09:45	81.52467	2010-03-26 04:59:06
207	-110.81512	2010-03-26 05:48:28	56.84509	2010-03-26 06:37:50
253	-135.49470	2010-03-26 07:27:11	32.16550	2010-03-26 08:16:33
299	-160.17429	2010-03-26 09:05:54	7.48592	2010-03-26 09:55:16
345	175.14613	2010-03-26 10:44:37	-17.19366	2010-03-26 11:33:59
391	150.46655	2010-03-26 12:23:20	-41.87324	2010-03-26 13:12:42
437	125.78696	2010-03-26 14:02:03	-66.55283	2010-03-26 14:51:25
483	101.10738	2010-03-26 15:40:47	-91.23241	2010-03-26 16:30:08
529	76.42780	2010-03-26 17:19:30	-115.91199	2010-03-26 18:08:51
575	51.74822	2010-03-26 18:58:13	-140.59158	2010-03-26 19:47:34
621	27.06863	2010-03-26 20:36:56	-165.27116	2010-03-26 21:26:17
667	2.38905	2010-03-26 22:15:39	170.04926	2010-03-26 23:05:01
42	-22.29053	2010-03-26 23:54:22	145.36968	2010-03-27 00:43:44
