>ALOS Data Take Simulation(Mar. 27, 2010)

Observation Area

PRISM

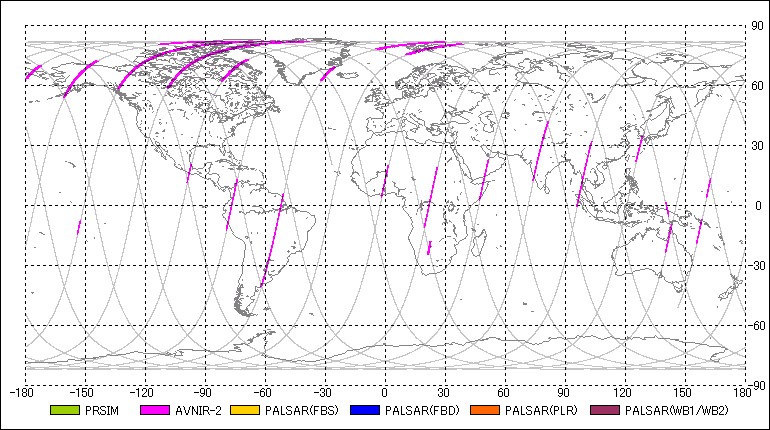

AVNIR-2

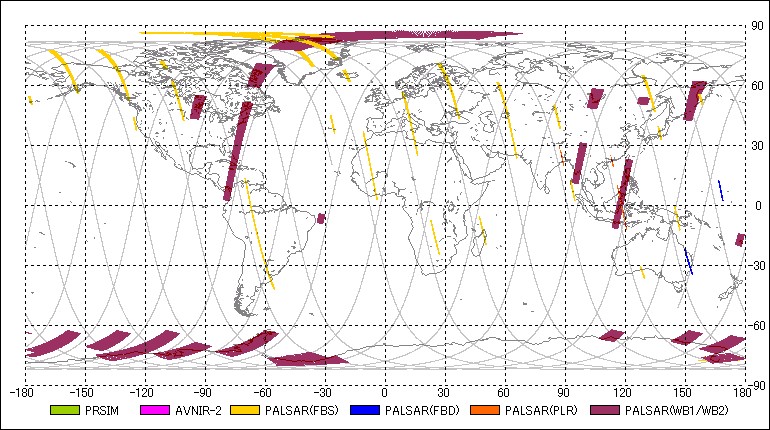

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-03-27 00:03:43	2010-03-27 00:06:51	00:03:08	42	34.04	42	45.46	34.30	7
2	PSR	FBS	2010-03-27 00:13:04	2010-03-27 00:19:18	00:06:14	42	68.07	42	90.80	34.30	7
3	PSR	WB1	2010-03-27 00:26:18	2010-03-27 00:32:18	00:06:00	42	116.39	42	138.27	27.10	80
4	AV2	OBS	2010-03-27 00:46:22	2010-03-27 00:50:14	00:03:52	42	189.57	42	203.67	0.00	-
5	PSM	OB2	2010-03-27 00:50:41	2010-03-27 00:52:41	00:02:00	42	205.31	42	212.60	0.00	-
6	PSR	WB1	2010-03-27 01:01:15	2010-03-27 01:03:15	00:02:00	42	243.85	42	251.14	27.10	80
7	PSM	OB2	2010-03-27 02:06:36	2010-03-27 02:26:22	00:19:46	88	122.10	88	194.19	0.00	-
8	PSR	WB1	2010-03-27 02:07:13	2010-03-27 02:08:51	00:01:38	88	124.41	88	130.37	27.10	80
9	AV2	OBS	2010-03-27 02:12:54	2010-03-27 02:16:28	00:03:34	88	145.14	88	158.15	0.00	-
10	PSR	WB1	2010-03-27 02:15:51	2010-03-27 02:25:57	00:10:06	88	155.90	88	192.73	27.10	80
11	PSR	FBS	2010-03-27 02:59:33	2010-03-27 03:15:37	00:16:04	88	315.26	134	13.86	34.30	7
12	PSR	WB1	2010-03-27 03:44:49	2010-03-27 03:48:07	00:03:18	134	120.28	134	132.32	27.10	80
13	PSM	OB2	2010-03-27 03:46:52	2010-03-27 04:01:54	00:15:02	134	127.76	134	182.58	0.00	-
14	PSR	WB1	2010-03-27 03:52:17	2010-03-27 03:58:29	00:06:12	134	147.51	134	170.12	27.10	80
15	AV2	OBS	2010-03-27 03:52:23	2010-03-27 04:01:21	00:08:58	134	147.88	134	180.57	0.00	-
16	PSR	FBS	2010-03-27 05:01:40	2010-03-27 05:07:42	00:06:02	180	40.60	180	62.60	34.30	7
17	PSR	FBS	2010-03-27 05:08:54	2010-03-27 05:10:30	00:01:36	180	66.98	180	72.81	34.30	7
18	PSM	OB1	2010-03-27 05:24:50	2010-03-27 05:37:16	00:12:26	180	125.02	180	170.36	1.20	-
19	AV2	OBS	2010-03-27 05:28:21	2010-03-27 05:36:29	00:08:08	180	137.91	180	167.57	0.00	-
20	PSR	FBS	2010-03-27 06:39:01	2010-03-27 06:41:27	00:02:26	226	35.62	226	44.49	34.30	7
21	PSR	FBS	2010-03-27 06:43:06	2010-03-27 06:50:54	00:07:48	226	50.45	226	78.89	34.30	7
22	PSM	OB1	2010-03-27 07:03:33	2010-03-27 07:18:49	00:15:16	226	125.02	226	180.70	1.20	-
23	AV2	OBS	2010-03-27 07:12:17	2010-03-27 07:17:59	00:05:42	226	156.93	226	177.72	0.00	-
24	PSR	WB1	2010-03-27 07:41:12	2010-03-27 07:43:44	00:02:32	226	262.32	226	271.56	27.10	80
25	PSR	FBS	2010-03-27 08:22:52	2010-03-27 08:29:30	00:06:38	272	54.28	272	78.47	34.30	7
26	PSM	OB1	2010-03-27 08:39:25	2010-03-27 08:59:49	00:20:24	272	114.63	272	189.02	1.20	-
27	AV2	OBS	2010-03-27 08:52:09	2010-03-27 09:00:25	00:08:16	272	161.06	272	191.21	0.00	-
28	AV2	OBS	2010-03-27 09:02:07	2010-03-27 09:03:59	00:01:52	272	197.41	272	204.22	34.30	-
29	PSR	WB1	2010-03-27 09:18:52	2010-03-27 09:21:14	00:02:22	272	258.49	272	267.12	27.10	80
30	PSR	FBS	2010-03-27 09:59:58	2010-03-27 10:01:50	00:01:52	318	48.38	318	55.19	34.30	7
31	PSM	OB1	2010-03-27 10:30:07	2010-03-27 10:35:49	00:05:42	318	158.33	318	179.12	1.20	-
32	AV2	OBS	2010-03-27 10:30:31	2010-03-27 10:35:02	00:04:31	318	159.79	318	176.26	0.00	-
33	PSR	FBD	2010-03-27 11:25:29	2010-03-27 11:28:55	00:03:26	364	0.24	364	12.76	34.30	43
34	PSR	FBS	2010-03-27 11:38:41	2010-03-27 11:40:43	00:02:02	364	48.38	364	55.80	34.30	7
35	PSM	OB1	2010-03-27 11:50:43	2010-03-27 11:54:19	00:03:36	364	92.26	364	105.39	1.20	-
36	AV2	OBS	2010-03-27 11:51:22	2010-03-27 11:53:30	00:02:08	364	94.63	364	102.41	0.00	-
37	PSM	OB1	2010-03-27 11:57:32	2010-03-27 12:00:30	00:02:58	364	117.12	364	127.94	0.00	-
38	PSR	WB1	2010-03-27 12:15:39	2010-03-27 12:17:35	00:01:56	364	183.19	364	190.24	27.10	80
39	PSR	WB1	2010-03-27 12:32:18	2010-03-27 12:36:50	00:04:32	364	243.91	364	260.44	27.10	80
40	PSR	FBD	2010-03-27 12:53:59	2010-03-27 12:58:01	00:04:02	364	322.98	364	337.69	34.30	43
41	PSR	FBS	2010-03-27 13:00:07	2010-03-27 13:03:59	00:03:52	364	345.35	364	359.45	34.30	7
42	AV2	OBS	2010-03-27 13:02:40	2010-03-27 13:04:32	00:01:52	364	354.65	410	1.46	0.00	-
43	PSR	FBS	2010-03-27 13:12:38	2010-03-27 13:15:04	00:02:26	410	31.00	410	39.87	34.30	7
44	PSR	FBS	2010-03-27 13:16:25	2010-03-27 13:22:11	00:05:46	410	44.79	410	65.82	34.30	7
45	PSM	OB1	2010-03-27 13:28:39	2010-03-27 13:31:33	00:02:54	410	89.41	410	99.98	1.20	-
46	AV2	OBS	2010-03-27 13:29:22	2010-03-27 13:31:14	00:01:52	410	92.02	410	98.83	0.00	-
47	PSM	OB1	2010-03-27 13:33:26	2010-03-27 13:36:52	00:03:26	410	106.85	410	119.37	0.00	-
48	AV2	OBS	2010-03-27 13:34:07	2010-03-27 13:36:09	00:02:02	410	109.34	410	116.76	0.00	-
49	PSM	OB1	2010-03-27 13:51:11	2010-03-27 14:10:05	00:18:54	410	171.58	410	240.50	1.20	-
50	AV2	OBS	2010-03-27 13:51:53	2010-03-27 14:04:43	00:12:50	410	174.13	410	220.93	0.00	-
51	PSR	WB1	2010-03-27 14:13:01	2010-03-27 14:16:07	00:03:06	410	251.20	410	262.50	27.10	80
52	PSR	FBS	2010-03-27 14:32:06	2010-03-27 14:34:22	00:02:16	410	320.79	410	329.06	34.30	7
53	PSR	PLR	2010-03-27 14:38:57	2010-03-27 14:45:49	00:06:52	410	345.77	456	10.82	21.50	127
54	PSR	PLR	2010-03-27 14:47:37	2010-03-27 14:49:49	00:02:12	456	17.38	456	25.41	21.50	127
55	PSR	WB1	2010-03-27 15:06:13	2010-03-27 15:10:46	00:04:33	456	85.21	456	101.80	27.10	80
56	PSR	WB1	2010-03-27 15:12:17	2010-03-27 15:16:09	00:03:52	456	107.34	456	121.44	27.10	80
57	PSR	WB1	2010-03-27 15:17:41	2010-03-27 15:31:51	00:14:10	456	127.03	456	178.69	27.10	80
58	PSM	OB1	2010-03-27 15:27:49	2010-03-27 15:36:25	00:08:36	456	163.98	456	195.34	1.20	-
59	AV2	OBS	2010-03-27 15:28:35	2010-03-27 15:35:39	00:07:04	456	166.78	456	192.55	0.00	-
60	PSR	WB1	2010-03-27 15:49:44	2010-03-27 15:55:10	00:05:26	456	243.91	456	263.72	27.10	80
61	PSR	FBS	2010-03-27 15:57:02	2010-03-27 15:58:54	00:01:52	456	270.53	456	277.33	34.30	7
62	PSR	FBS	2010-03-27 16:21:38	2010-03-27 16:25:04	00:03:26	502	0.24	502	12.76	34.30	7
63	PSR	PLR	2010-03-27 16:26:31	2010-03-27 16:29:49	00:03:18	502	18.05	502	30.09	21.50	127
64	PSR	FBS	2010-03-27 16:31:36	2010-03-27 16:35:28	00:03:52	502	36.59	502	50.69	34.30	7
65	PSM	OB1	2010-03-27 16:46:45	2010-03-27 16:52:15	00:05:30	502	91.84	502	111.89	0.00	-
66	AV2	OBS	2010-03-27 16:50:25	2010-03-27 16:53:41	00:03:16	502	105.21	502	117.12	0.00	-
67	PSR	WB1	2010-03-27 16:55:27	2010-03-27 16:59:19	00:03:52	502	123.56	502	137.66	27.10	80
68	AV2	OBS	2010-03-27 17:05:16	2010-03-27 17:07:48	00:02:32	502	159.36	502	168.60	0.00	-
69	PSM	OB1	2010-03-27 17:05:18	2010-03-27 17:09:08	00:03:50	502	159.42	502	173.40	0.00	-
70	PSR	WB1	2010-03-27 17:28:27	2010-03-27 17:31:53	00:03:26	502	243.91	502	256.43	27.10	80
71	PSR	FBS	2010-03-27 17:34:16	2010-03-27 17:36:08	00:01:52	502	265.12	502	271.93	34.30	7
72	PSR	FBS	2010-03-27 18:06:12	2010-03-27 18:17:20	00:11:08	548	21.58	548	62.18	34.30	7
73	AV2	OBS	2010-03-27 18:25:16	2010-03-27 18:33:24	00:08:08	548	91.11	548	120.77	0.00	-
74	PSM	OB1	2010-03-27 18:31:42	2010-03-27 18:41:54	00:10:12	548	114.51	548	151.70	1.20	-
75	PSR	WB1	2010-03-27 19:07:11	2010-03-27 19:13:13	00:06:02	548	243.97	548	265.97	27.10	80
76	PSR	FBS	2010-03-27 19:33:00	2010-03-27 19:37:28	00:04:28	548	338.11	548	354.40	34.30	7
77	PSR	FBS	2010-03-27 19:50:20	2010-03-27 19:58:42	00:08:22	594	41.33	594	71.84	34.30	7
78	AV2	OBS	2010-03-27 20:03:35	2010-03-27 20:12:07	00:08:32	594	89.59	594	120.71	0.00	-
79	PSM	OB1	2010-03-27 20:10:25	2010-03-27 20:13:59	00:03:34	594	114.51	594	127.51	1.20	-
80	AV2	OBS	2010-03-27 20:30:29	2010-03-27 20:32:21	00:01:52	594	187.69	594	194.49	0.00	-
81	PSM	OB2	2010-03-27 20:30:42	2010-03-27 20:32:34	00:01:52	594	188.54	594	195.34	0.00	-
82	PSR	WB1	2010-03-27 20:45:54	2010-03-27 20:49:50	00:03:56	594	243.91	594	258.25	27.10	80
83	PSR	FBS	2010-03-27 21:10:15	2010-03-27 21:15:39	00:05:24	594	332.76	594	352.46	34.30	7
84	PSR	FBS	2010-03-27 21:24:02	2010-03-27 21:33:24	00:09:22	640	23.04	640	57.19	34.30	7
85	PSR	FBS	2010-03-27 21:40:41	2010-03-27 21:42:57	00:02:16	640	83.75	640	92.02	34.30	7
86	AV2	OBS	2010-03-27 21:41:58	2010-03-27 21:43:50	00:01:52	640	88.43	640	95.24	0.00	-
87	AV2	OBS	2010-03-27 21:46:48	2010-03-27 21:52:06	00:05:18	640	106.00	640	125.33	0.00	-
88	PSR	WB1	2010-03-27 22:10:46	2010-03-27 22:12:58	00:02:12	640	193.40	640	201.42	27.10	80
89	PSM	OB2	2010-03-27 22:16:33	2010-03-27 22:20:25	00:03:52	640	214.55	640	228.65	0.00	-
90	PSR	WB1	2010-03-27 22:24:36	2010-03-27 22:27:06	00:02:30	640	243.91	640	253.02	27.10	80
91	PSR	FBS	2010-03-27 22:56:40	2010-03-27 23:06:38	00:09:58	15	0.79	15	37.14	34.30	7
92	PSR	FBS	2010-03-27 23:12:57	2010-03-27 23:15:13	00:02:16	15	60.17	15	68.44	34.30	7
93	PSR	FBS	2010-03-27 23:16:05	2010-03-27 23:21:37	00:05:32	15	71.66	15	91.84	34.30	7
94	AV2	OBS	2010-03-27 23:26:14	2010-03-27 23:28:12	00:01:58	15	108.61	15	115.78	0.00	-
95	AV2	OBS	2010-03-27 23:42:04	2010-03-27 23:44:42	00:02:38	15	166.35	15	175.96	0.00	-
96	AV2	OBS	2010-03-27 23:47:43	2010-03-27 23:51:07	00:03:24	15	186.96	15	199.36	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
42	-22.29053	2010-03-26 23:54:22	145.36968	2010-03-27 00:43:44
88	-46.97011	2010-03-27 01:33:05	120.69009	2010-03-27 02:22:27
134	-71.64970	2010-03-27 03:11:48	96.01051	2010-03-27 04:01:10
180	-96.32928	2010-03-27 04:50:31	71.33093	2010-03-27 05:39:53
226	-121.00886	2010-03-27 06:29:14	46.65135	2010-03-27 07:18:36
272	-145.68845	2010-03-27 08:07:58	21.97176	2010-03-27 08:57:19
318	-170.36803	2010-03-27 09:46:41	-2.70782	2010-03-27 10:36:02
364	164.95239	2010-03-27 11:25:24	-27.38740	2010-03-27 12:14:45
410	140.27281	2010-03-27 13:04:07	-52.06699	2010-03-27 13:53:28
456	115.59322	2010-03-27 14:42:50	-76.74657	2010-03-27 15:32:12
502	90.91364	2010-03-27 16:21:33	-101.42615	2010-03-27 17:10:55
548	66.23406	2010-03-27 18:00:16	-126.10573	2010-03-27 18:49:38
594	41.55448	2010-03-27 19:38:59	-150.78532	2010-03-27 20:28:21
640	16.87489	2010-03-27 21:17:42	-175.46490	2010-03-27 22:07:04
15	-7.80469	2010-03-27 22:56:25	159.85552	2010-03-27 23:45:47
