>ALOS Data Take Simulation(Jan. 24, 2010)

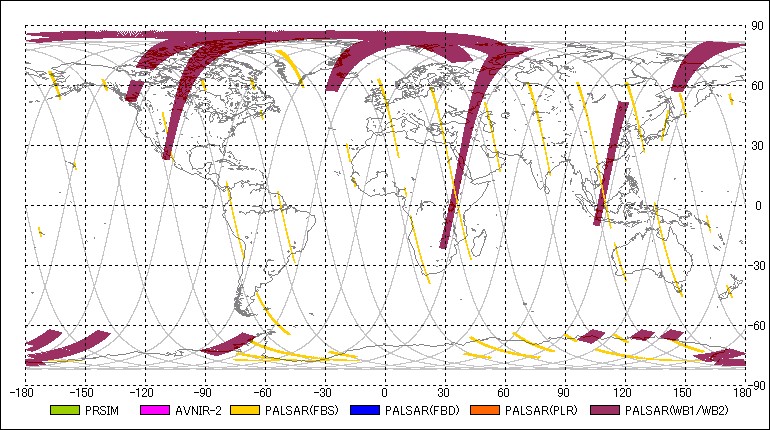

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-01-24 00:01:10	2010-01-24 00:03:02	00:01:52	14	243.85	14	250.65	27.10	80
2	PSM	OB1	2010-01-24 00:03:29	2010-01-24 00:06:05	00:02:36	14	252.29	14	261.78	1.20	-
3	AV2	OBS	2010-01-24 00:04:16	2010-01-24 00:06:08	00:01:52	14	255.15	14	261.96	0.00	-
4	PSR	FBS	2010-01-24 00:48:38	2010-01-24 00:54:32	00:05:54	60	57.01	60	78.53	34.30	7
5	PSR	WB1	2010-01-24 00:55:28	2010-01-24 01:06:55	00:11:27	60	81.87	60	123.62	27.10	80
6	PSR	FBS	2010-01-24 01:09:01	2010-01-24 01:13:47	00:04:46	60	131.28	60	148.67	34.30	7
7	AV2	OBS	2010-01-24 01:09:29	2010-01-24 01:13:57	00:04:28	60	132.98	60	149.27	-34.30	-
8	AV2	OBS	2010-01-24 01:16:22	2010-01-24 01:25:54	00:09:32	60	158.09	60	192.85	-34.30	-
9	PSM	OB2	2010-01-24 01:19:08	2010-01-24 01:32:26	00:13:18	60	168.18	60	216.68	0.00	-
10	PSR	WB1	2010-01-24 01:39:53	2010-01-24 01:42:05	00:02:12	60	243.85	60	251.87	27.10	80
11	PSR	FBS	2010-01-24 02:03:15	2010-01-24 02:13:45	00:10:30	60	329.06	106	7.35	34.30	7
12	PSR	FBS	2010-01-24 02:23:02	2010-01-24 02:24:54	00:01:52	106	41.21	106	48.02	34.30	7
13	PSR	FBS	2010-01-24 02:27:12	2010-01-24 02:29:12	00:02:00	106	56.34	106	63.64	34.30	7
14	PSR	WB1	2010-01-24 02:46:29	2010-01-24 03:04:09	00:17:40	106	126.72	106	191.15	27.10	80
15	PSM	OB2	2010-01-24 02:49:57	2010-01-24 02:55:55	00:05:58	106	139.37	106	161.13	0.00	-
16	AV2	OBS	2010-01-24 02:53:53	2010-01-24 02:56:37	00:02:44	106	153.71	106	163.68	0.00	-
17	AV2	OBS	2010-01-24 02:58:37	2010-01-24 03:03:59	00:05:22	106	170.97	106	190.54	0.00	-
18	PSM	OB2	2010-01-24 02:59:29	2010-01-24 03:04:35	00:05:06	106	174.13	106	192.73	0.00	-
19	PSR	FBS	2010-01-24 03:27:11	2010-01-24 03:29:03	00:01:52	106	275.15	106	281.95	34.30	7
20	PSR	FBS	2010-01-24 03:31:25	2010-01-24 03:38:15	00:06:50	106	290.58	106	315.50	34.30	7
21	PSR	FBS	2010-01-24 03:42:28	2010-01-24 03:53:50	00:11:22	106	330.88	152	12.34	34.30	7
22	PSR	FBS	2010-01-24 04:05:47	2010-01-24 04:07:47	00:02:00	152	55.86	152	63.15	34.30	7
23	AV2	OBS	2010-01-24 04:27:28	2010-01-24 04:35:15	00:07:47	152	134.99	152	163.37	0.00	-
24	AV2	OBS	2010-01-24 04:49:46	2010-01-24 04:51:38	00:01:52	152	216.31	152	223.12	0.00	-
25	PSR	FBS	2010-01-24 05:04:13	2010-01-24 05:10:45	00:06:32	152	269.01	152	292.83	34.30	7
26	PSR	FBS	2010-01-24 05:34:41	2010-01-24 05:42:03	00:07:22	198	20.12	198	46.98	34.30	7
27	PSM	OB1	2010-01-24 06:06:14	2010-01-24 06:13:02	00:06:48	198	135.17	198	159.97	1.20	-
28	AV2	OBS	2010-01-24 06:06:59	2010-01-24 06:12:15	00:05:16	198	137.91	198	157.11	0.00	-
29	PSM	OB1	2010-01-24 06:22:51	2010-01-24 06:25:27	00:02:36	198	195.77	198	205.25	1.20	-
30	PSR	FBS	2010-01-24 06:42:22	2010-01-24 06:46:10	00:03:48	198	266.94	198	280.80	34.30	7
31	PSR	FBS	2010-01-24 07:23:08	2010-01-24 07:25:20	00:02:12	244	55.55	244	63.57	34.30	7
32	PSR	WB1	2010-01-24 07:34:49	2010-01-24 08:03:31	00:28:42	244	98.16	244	202.82	27.10	80
33	PSM	OB1	2010-01-24 07:51:21	2010-01-24 08:01:11	00:09:50	244	158.51	244	194.37	1.20	-
34	AV2	OBS	2010-01-24 07:52:08	2010-01-24 07:54:16	00:02:08	244	161.31	244	169.09	0.00	-
35	PSR	FBS	2010-01-24 08:21:05	2010-01-24 08:23:07	00:02:02	244	266.94	244	274.36	34.30	7
36	PSR	FBS	2010-01-24 08:50:54	2010-01-24 08:52:46	00:01:52	290	15.62	290	22.43	34.30	7
37	PSR	FBS	2010-01-24 09:00:38	2010-01-24 09:05:10	00:04:32	290	51.18	290	67.71	34.30	7
38	PSM	OB1	2010-01-24 09:30:01	2010-01-24 09:38:49	00:08:48	290	158.33	290	190.42	1.20	-
39	AV2	OBS	2010-01-24 09:30:47	2010-01-24 09:38:03	00:07:16	290	161.13	290	187.62	0.00	-
40	PSR	FBS	2010-01-24 10:20:27	2010-01-24 10:22:19	00:01:52	290	342.25	290	349.05	34.30	7
41	PSR	FBS	2010-01-24 10:38:39	2010-01-24 10:40:45	00:02:06	336	48.56	336	56.22	34.30	7
42	AV2	OBS	2010-01-24 11:01:56	2010-01-24 11:13:23	00:11:27	336	133.47	336	175.23	0.00	-
43	PSM	OB1	2010-01-24 11:08:44	2010-01-24 11:14:08	00:05:24	336	158.33	336	178.02	1.20	-
44	PSR	FBS	2010-01-24 11:50:34	2010-01-24 11:52:54	00:02:20	336	310.82	336	319.33	34.30	7
45	PSR	FBS	2010-01-24 11:59:40	2010-01-24 12:02:38	00:02:58	336	344.01	336	354.83	34.30	7
46	PSR	FBS	2010-01-24 12:15:41	2010-01-24 12:19:31	00:03:50	382	42.42	382	56.40	34.30	7
47	PSR	WB1	2010-01-24 12:29:25	2010-01-24 12:37:53	00:08:28	382	92.51	382	123.38	27.10	80
48	PSM	OB1	2010-01-24 12:42:51	2010-01-24 12:45:43	00:02:52	382	141.49	382	151.95	0.00	-
49	PSM	OB1	2010-01-24 12:53:13	2010-01-24 13:01:03	00:07:50	382	179.30	382	207.86	1.20	-
50	AV2	OBS	2010-01-24 12:53:56	2010-01-24 13:00:16	00:06:20	382	181.91	382	205.01	0.00	-
51	PSR	WB1	2010-01-24 13:11:23	2010-01-24 13:15:15	00:03:52	382	245.61	382	259.71	27.10	80
52	PSR	FBS	2010-01-24 13:29:24	2010-01-24 13:43:12	00:13:48	382	311.25	428	1.58	34.30	7
53	PSR	FBS	2010-01-24 13:49:23	2010-01-24 13:59:49	00:10:26	428	24.13	428	62.18	34.30	7
54	PSM	OB1	2010-01-24 14:28:19	2010-01-24 14:37:21	00:09:02	428	166.11	428	199.05	1.20	-
55	AV2	OBS	2010-01-24 14:29:02	2010-01-24 14:38:14	00:09:12	428	168.72	428	202.27	0.00	-
56	PSR	FBS	2010-01-24 14:55:57	2010-01-24 14:57:49	00:01:52	428	266.94	428	273.75	34.30	7
57	PSR	FBS	2010-01-24 14:59:28	2010-01-24 15:02:56	00:03:28	428	279.70	428	292.35	34.30	7
58	PSR	FBS	2010-01-24 15:10:21	2010-01-24 15:16:25	00:06:04	428	319.39	428	341.52	34.30	7
59	PSR	FBS	2010-01-24 15:17:45	2010-01-24 15:38:33	00:20:48	428	346.38	474	62.24	34.30	7
60	PSM	OB1	2010-01-24 15:58:46	2010-01-24 16:01:22	00:02:36	474	135.96	474	145.44	1.20	-
61	AV2	OBS	2010-01-24 16:05:50	2010-01-24 16:09:42	00:03:52	474	161.73	474	175.83	0.00	-
62	PSM	OB2	2010-01-24 16:05:53	2010-01-24 16:09:25	00:03:32	474	161.92	474	174.80	0.00	-
63	PSR	WB1	2010-01-24 16:34:26	2010-01-24 16:36:20	00:01:54	474	266.09	474	273.02	27.10	80
64	PSR	FBS	2010-01-24 16:39:52	2010-01-24 16:41:54	00:02:02	474	285.84	474	293.26	34.30	7
65	PSR	FBS	2010-01-24 17:03:42	2010-01-24 17:17:16	00:13:34	520	12.76	520	62.24	34.30	7
66	PSR	WB1	2010-01-24 17:20:10	2010-01-24 17:43:29	00:23:19	520	72.81	520	157.84	27.10	80
67	PSM	OB2	2010-01-24 17:41:25	2010-01-24 17:45:01	00:03:36	520	150.31	520	163.43	0.00	-
68	PSR	WB1	2010-01-24 18:07:05	2010-01-24 18:12:31	00:05:26	520	243.91	520	263.72	27.10	80
69	PSR	FBS	2010-01-24 18:13:24	2010-01-24 18:18:00	00:04:36	520	266.94	520	283.72	34.30	7
70	PSR	FBS	2010-01-24 18:18:48	2010-01-24 18:20:34	00:01:46	520	286.63	520	293.08	34.30	7
71	PSR	FBS	2010-01-24 18:42:55	2010-01-24 18:53:09	00:10:14	566	14.59	566	51.91	34.30	7
72	PSR	WB1	2010-01-24 18:58:16	2010-01-24 19:09:35	00:11:19	566	70.56	566	111.83	27.10	80
73	PSR	WB1	2010-01-24 19:10:48	2010-01-24 19:14:14	00:03:26	566	116.27	566	128.79	27.10	80
74	AV2	OBS	2010-01-24 19:15:19	2010-01-24 19:17:11	00:01:52	566	132.74	566	139.55	0.00	-
75	PSM	OB2	2010-01-24 19:15:19	2010-01-24 19:17:33	00:02:14	566	132.74	566	140.89	0.00	-
76	PSR	WB1	2010-01-24 19:45:47	2010-01-24 19:51:25	00:05:38	566	243.85	566	264.39	27.10	80
77	PSR	FBS	2010-01-24 19:55:41	2010-01-24 19:59:33	00:03:52	566	279.95	566	294.05	34.30	7
78	PSR	FBS	2010-01-24 20:09:30	2010-01-24 20:33:56	00:24:26	566	330.33	612	59.44	34.30	7
79	PSM	OB1	2010-01-24 21:00:01	2010-01-24 21:02:47	00:02:46	612	154.50	612	164.59	1.20	-
80	AV2	OBS	2010-01-24 21:00:43	2010-01-24 21:02:35	00:01:52	612	157.11	612	163.92	0.00	-
81	PSM	OB1	2010-01-24 21:04:30	2010-01-24 21:07:10	00:02:40	612	170.91	612	180.64	1.20	-
82	AV2	OBS	2010-01-24 21:05:16	2010-01-24 21:07:08	00:01:52	612	173.71	612	180.51	0.00	-
83	PSM	OB1	2010-01-24 21:09:20	2010-01-24 21:12:04	00:02:44	612	188.54	612	198.50	1.20	-
84	AV2	OBS	2010-01-24 21:10:06	2010-01-24 21:11:58	00:01:52	612	191.33	612	198.14	0.00	-
85	PSR	FBS	2010-01-24 21:32:52	2010-01-24 21:37:32	00:04:40	612	274.36	612	291.37	34.30	7
86	PSR	FBS	2010-01-24 21:44:55	2010-01-24 21:54:59	00:10:04	612	318.30	612	355.01	34.30	7
87	PSR	FBS	2010-01-24 21:56:58	2010-01-24 21:58:50	00:01:52	658	2.25	658	9.06	34.30	7
88	PSR	FBS	2010-01-24 22:02:23	2010-01-24 22:13:51	00:11:28	658	22.00	658	63.82	34.30	7
89	AV2	OBS	2010-01-24 22:45:12	2010-01-24 22:47:04	00:01:52	658	178.08	658	184.89	0.00	-
90	AV2	OBS	2010-01-24 22:52:56	2010-01-24 22:55:12	00:02:16	658	206.34	658	214.61	0.00	-
91	AV2	OBS	2010-01-24 23:00:26	2010-01-24 23:02:18	00:01:52	658	233.70	658	240.50	0.00	-
92	PSR	WB1	2010-01-24 23:03:12	2010-01-24 23:05:00	00:01:48	658	243.78	658	250.35	27.10	80
93	PSR	FBS	2010-01-24 23:11:33	2010-01-24 23:13:17	00:01:44	658	274.23	658	280.56	34.30	7
94	PSR	FBS	2010-01-24 23:37:07	2010-01-24 23:38:59	00:01:52	33	7.42	33	14.22	34.30	7
95	PSR	FBS	2010-01-24 23:40:28	2010-01-24 23:43:40	00:03:12	33	19.69	33	31.36	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
14	-7.26818	2010-01-23 22:54:17	160.39203	2010-01-23 23:43:38
60	-31.94776	2010-01-24 00:33:00	135.71245	2010-01-24 01:22:21
106	-56.62734	2010-01-24 02:11:43	111.03287	2010-01-24 03:01:04
152	-81.30693	2010-01-24 03:50:26	86.35328	2010-01-24 04:39:48
198	-105.98651	2010-01-24 05:29:09	61.67370	2010-01-24 06:18:31
244	-130.66609	2010-01-24 07:07:52	36.99412	2010-01-24 07:57:14
290	-155.34567	2010-01-24 08:46:35	12.31454	2010-01-24 09:35:57
336	179.97474	2010-01-24 10:25:18	-12.36505	2010-01-24 11:14:40
382	155.29516	2010-01-24 12:04:01	-37.04463	2010-01-24 12:53:23
428	130.61558	2010-01-24 13:42:45	-61.72421	2010-01-24 14:32:06
474	105.93600	2010-01-24 15:21:28	-86.40380	2010-01-24 16:10:49
520	81.25641	2010-01-24 17:00:11	-111.08338	2010-01-24 17:49:32
566	56.57683	2010-01-24 18:38:54	-135.76296	2010-01-24 19:28:15
612	31.89725	2010-01-24 20:17:37	-160.44254	2010-01-24 21:06:59
658	7.21766	2010-01-24 21:56:20	174.87787	2010-01-24 22:45:42
33	-17.46192	2010-01-24 23:35:03	150.19829	2010-01-25 00:24:25
