>ALOS Data Take Simulation(Jan. 23, 2010)

Observation Area

PRISM

AVNIR-2

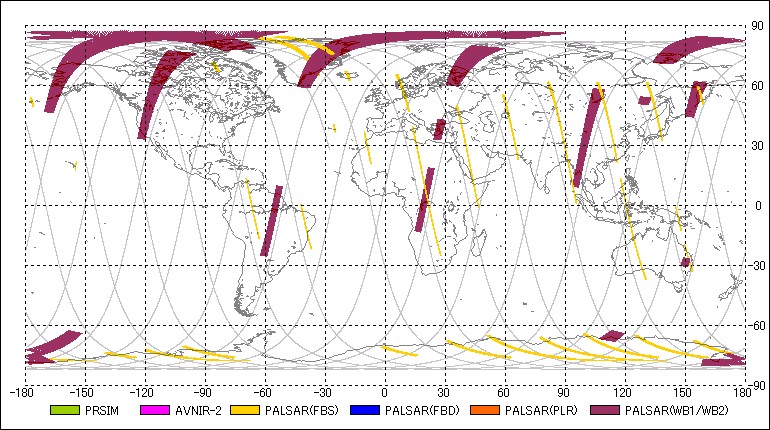

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-01-23 00:01:37	2010-01-23 00:03:29	00:01:52	41	34.22	41	41.03	34.30	7
2	PSR	FBS	2010-01-23 00:09:36	2010-01-23 00:15:44	00:06:08	41	63.33	41	85.70	34.30	7
3	PSR	WB1	2010-01-23 00:24:16	2010-01-23 00:29:42	00:05:26	41	116.76	41	136.57	27.10	80
4	AV2	OBS	2010-01-23 00:38:43	2010-01-23 00:44:27	00:05:44	41	169.45	41	190.36	0.00	-
5	PSM	OB2	2010-01-23 00:38:49	2010-01-23 00:45:33	00:06:44	41	169.82	41	194.37	0.00	-
6	PSM	OB1	2010-01-23 00:48:21	2010-01-23 00:50:57	00:02:36	41	204.58	41	214.06	1.20	-
7	PSR	WB1	2010-01-23 00:59:07	2010-01-23 01:01:07	00:02:00	41	243.91	41	251.20	27.10	80
8	PSR	FBS	2010-01-23 01:08:05	2010-01-23 01:10:33	00:02:28	41	276.54	41	285.54	34.30	7
9	PSR	FBS	2010-01-23 01:24:23	2010-01-23 01:31:13	00:06:50	41	335.99	87	0.91	34.30	7
10	PSR	WB1	2010-01-23 01:52:04	2010-01-23 02:00:53	00:08:49	87	77.01	87	109.16	27.10	80
11	AV2	OBS	2010-01-23 02:04:28	2010-01-23 02:11:36	00:07:08	87	122.17	87	148.18	0.00	-
12	PSM	OB2	2010-01-23 02:04:28	2010-01-23 02:12:26	00:07:58	87	122.17	87	151.22	0.00	-
13	PSR	WB1	2010-01-23 02:05:04	2010-01-23 02:06:42	00:01:38	87	124.35	87	130.31	27.10	80
14	PSM	OB2	2010-01-23 02:15:10	2010-01-23 02:30:12	00:15:02	87	161.19	87	216.01	0.00	-
15	AV2	OBS	2010-01-23 02:15:48	2010-01-23 02:23:32	00:07:44	87	163.50	87	191.70	0.00	-
16	PSR	FBS	2010-01-23 03:04:29	2010-01-23 03:13:27	00:08:58	87	341.03	133	13.74	34.30	7
17	PSR	FBS	2010-01-23 03:27:33	2010-01-23 03:29:29	00:01:56	133	65.16	133	72.21	34.30	7
18	PSR	WB1	2010-01-23 03:42:40	2010-01-23 03:56:48	00:14:08	133	120.28	133	171.82	27.10	80
19	PSM	OB2	2010-01-23 03:47:30	2010-01-23 03:57:54	00:10:24	133	137.91	133	175.83	0.00	-
20	AV2	OBS	2010-01-23 03:50:50	2010-01-23 03:57:32	00:06:42	133	150.06	133	174.50	0.00	-
21	PSR	FBS	2010-01-23 07:42:22	2010-01-23 07:45:30	00:03:08	225	274.42	225	285.84	34.30	7
22	PSR	WB1	2010-01-23 08:32:44	2010-01-23 08:38:56	00:06:12	271	98.10	271	120.71	27.10	80
23	PSR	WB1	2010-01-23 08:43:03	2010-01-23 08:46:25	00:03:22	271	135.72	271	148.00	27.10	80
24	PSR	WB1	2010-01-23 08:49:43	2010-01-23 08:59:07	00:09:24	271	160.03	271	194.31	27.10	80
25	PSR	FBS	2010-01-23 09:19:03	2010-01-23 09:23:31	00:04:28	271	267.00	271	283.29	34.30	7
26	PSR	FBS	2010-01-23 09:57:36	2010-01-23 09:59:28	00:01:52	317	47.59	317	54.40	34.30	7
27	PSM	OB1	2010-01-23 10:17:37	2010-01-23 10:20:13	00:02:36	317	120.59	317	130.07	1.20	-
28	PSM	OB1	2010-01-23 10:27:58	2010-01-23 10:33:40	00:05:42	317	158.33	317	179.12	1.20	-
29	AV2	OBS	2010-01-23 10:28:30	2010-01-23 10:32:54	00:04:24	317	160.27	317	176.32	0.00	-
30	PSR	FBS	2010-01-23 10:59:48	2010-01-23 11:01:44	00:01:56	317	274.42	317	281.47	34.30	7
31	PSR	FBS	2010-01-23 11:36:36	2010-01-23 11:39:44	00:03:08	363	48.56	363	59.99	34.30	7
32	PSR	FBS	2010-01-23 12:52:13	2010-01-23 12:56:37	00:04:24	363	324.38	363	340.42	34.30	7
33	PSR	FBS	2010-01-23 12:57:55	2010-01-23 13:01:49	00:03:54	363	345.16	363	359.39	34.30	7
34	PSR	FBS	2010-01-23 13:10:19	2010-01-23 13:19:01	00:08:42	409	30.39	409	62.12	34.30	7
35	PSR	WB1	2010-01-23 13:25:27	2010-01-23 13:35:18	00:09:51	409	85.58	409	121.50	27.10	80
36	PSR	WB1	2010-01-23 13:48:23	2010-01-23 13:58:39	00:10:16	409	169.21	409	206.65	27.10	80
37	PSR	FBS	2010-01-23 14:15:24	2010-01-23 14:17:30	00:02:06	409	267.67	409	275.33	34.30	7
38	PSR	FBS	2010-01-23 14:18:16	2010-01-23 14:21:22	00:03:06	409	278.19	409	289.49	34.30	7
39	PSR	FBS	2010-01-23 14:29:50	2010-01-23 14:44:30	00:14:40	409	320.37	455	13.86	34.30	7
40	PSR	FBS	2010-01-23 14:45:58	2010-01-23 14:57:44	00:11:46	455	19.21	455	62.12	34.30	7
41	PSM	OB1	2010-01-23 15:25:36	2010-01-23 15:34:18	00:08:42	455	163.74	455	195.47	1.20	-
42	AV2	OBS	2010-01-23 15:26:18	2010-01-23 15:33:32	00:07:14	455	166.29	455	192.67	0.00	-
43	PSR	FBS	2010-01-23 15:55:58	2010-01-23 16:01:00	00:05:02	455	274.42	455	292.77	34.30	7
44	PSR	FBS	2010-01-23 16:19:05	2010-01-23 16:36:31	00:17:26	455	358.78	501	62.36	34.30	7
45	AV2	OBS	2010-01-23 17:02:04	2010-01-23 17:04:44	00:02:40	501	155.53	501	165.26	0.00	-
46	PSM	OB2	2010-01-23 17:02:11	2010-01-23 17:05:31	00:03:20	501	155.90	501	168.05	0.00	-
47	PSR	WB1	2010-01-23 17:31:19	2010-01-23 17:33:55	00:02:36	501	262.14	501	271.62	27.10	80
48	PSR	FBS	2010-01-23 17:34:41	2010-01-23 17:39:57	00:05:16	501	274.48	501	293.68	34.30	7
49	PSR	FBS	2010-01-23 18:03:50	2010-01-23 18:13:30	00:09:40	547	20.79	547	56.04	34.30	7
50	PSR	WB1	2010-01-23 18:25:49	2010-01-23 18:38:38	00:12:49	547	100.89	547	147.63	27.10	80
51	PSM	OB1	2010-01-23 18:35:35	2010-01-23 18:38:11	00:02:36	547	136.57	547	146.05	1.20	-
52	PSR	WB1	2010-01-23 19:05:01	2010-01-23 19:10:15	00:05:14	547	243.91	547	262.99	27.10	80
53	PSR	FBS	2010-01-23 19:11:33	2010-01-23 19:18:05	00:06:32	547	267.67	547	291.50	34.30	7
54	PSR	FBS	2010-01-23 19:35:54	2010-01-23 19:50:38	00:14:44	547	356.53	593	50.26	34.30	7
55	PSR	FBS	2010-01-23 20:20:02	2010-01-23 20:21:54	00:01:52	593	157.42	593	164.22	50.80	17
56	PSR	FBS	2010-01-23 20:50:03	2010-01-23 20:57:07	00:07:04	593	266.94	593	292.71	34.30	7
57	PSR	FBS	2010-01-23 21:08:01	2010-01-23 21:26:27	00:18:26	593	332.40	639	39.63	34.30	7
58	PSR	FBS	2010-01-23 21:27:58	2010-01-23 21:33:40	00:05:42	639	45.16	639	65.95	34.30	7
59	PSR	WB1	2010-01-23 21:39:22	2010-01-23 21:52:25	00:13:03	639	86.73	639	134.32	27.10	80
60	PSM	OB1	2010-01-23 22:13:58	2010-01-23 22:17:54	00:03:56	639	212.91	639	227.25	1.20	-
61	AV2	OBS	2010-01-23 22:14:41	2010-01-23 22:17:19	00:02:38	639	215.52	639	225.13	0.00	-
62	PSR	FBS	2010-01-23 22:30:48	2010-01-23 22:34:56	00:04:08	639	274.36	639	289.43	34.30	7
63	PSR	FBS	2010-01-23 22:59:24	2010-01-23 23:04:28	00:05:04	14	18.60	14	37.08	34.30	7
64	PSR	FBS	2010-01-23 23:10:58	2010-01-23 23:12:50	00:01:52	14	60.78	14	67.59	34.30	7
65	PSR	FBS	2010-01-23 23:14:39	2010-01-23 23:17:59	00:03:20	14	74.27	14	86.43	34.30	7
66	AV2	OBS	2010-01-23 23:40:05	2010-01-23 23:42:33	00:02:28	14	166.96	14	175.96	0.00	-
67	AV2	OBS	2010-01-23 23:44:44	2010-01-23 23:49:00	00:04:16	14	183.92	14	199.48	0.00	-
68	PSM	OB2	2010-01-23 23:44:48	2010-01-23 23:48:04	00:03:16	14	184.16	14	196.07	0.00	-
69	PSR	WB1	2010-01-23 23:50:36	2010-01-23 23:52:22	00:01:46	14	205.31	14	211.75	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
41	-21.75402	2010-01-22 23:52:13	145.90619	2010-01-23 00:41:35
87	-46.43360	2010-01-23 01:30:56	121.22661	2010-01-23 02:20:18
133	-71.11318	2010-01-23 03:09:39	96.54702	2010-01-23 03:59:01
179	-95.79277	2010-01-23 04:48:23	71.86744	2010-01-23 05:37:44
225	-120.47235	2010-01-23 06:27:06	47.18786	2010-01-23 07:16:27
271	-145.15193	2010-01-23 08:05:49	22.50828	2010-01-23 08:55:10
317	-169.83152	2010-01-23 09:44:32	-2.17131	2010-01-23 10:33:53
363	165.48890	2010-01-23 11:23:15	-26.85089	2010-01-23 12:12:37
409	140.80932	2010-01-23 13:01:58	-51.53047	2010-01-23 13:51:20
455	116.12974	2010-01-23 14:40:41	-76.21006	2010-01-23 15:30:03
501	91.45015	2010-01-23 16:19:24	-100.88964	2010-01-23 17:08:46
547	66.77057	2010-01-23 17:58:07	-125.56922	2010-01-23 18:47:29
593	42.09099	2010-01-23 19:36:50	-150.24880	2010-01-23 20:26:12
639	17.41141	2010-01-23 21:15:34	-174.92839	2010-01-23 22:04:55
14	-7.26818	2010-01-23 22:54:17	160.39203	2010-01-23 23:43:38
