>ALOS Data Take Simulation(Jan. 25, 2010)

Observation Area

PRISM

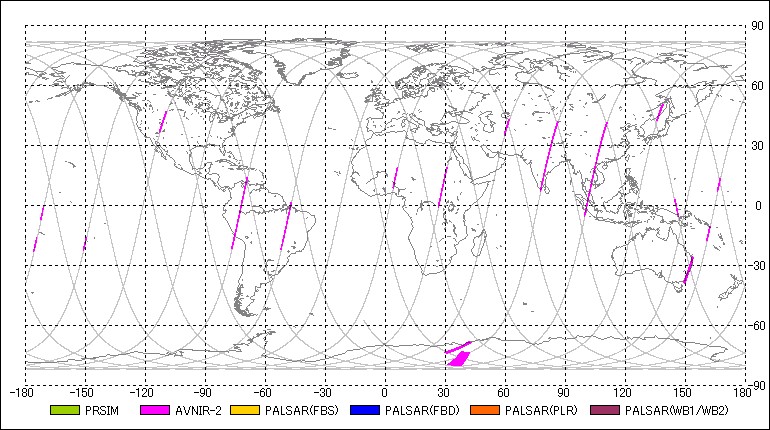

AVNIR-2

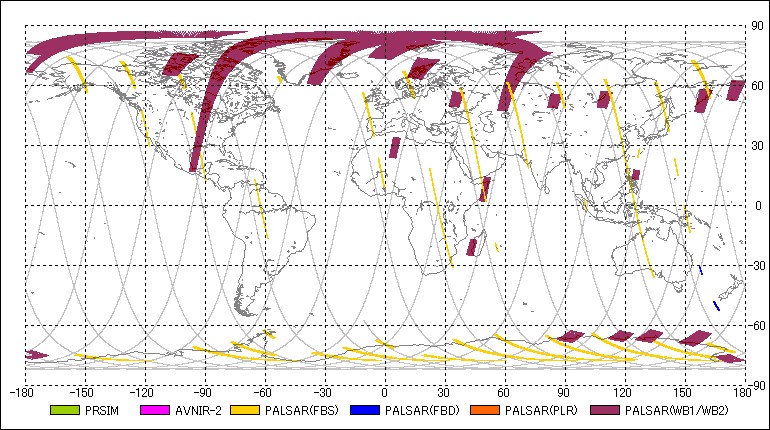

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-01-25 00:08:05	2010-01-25 00:11:51	00:03:46	33	120.40	33	134.14	27.10	80
2	PSM	OB2	2010-01-25 00:21:31	2010-01-25 00:36:29	00:14:58	33	169.39	33	223.97	0.00	-
3	PSR	WB1	2010-01-25 00:41:57	2010-01-25 00:43:57	00:02:00	33	243.91	33	251.20	27.10	80
4	PSR	FBS	2010-01-25 00:48:15	2010-01-25 00:51:41	00:03:26	33	266.88	33	279.40	34.30	7
5	PSR	FBS	2010-01-25 00:52:30	2010-01-25 00:54:34	00:02:04	33	282.38	33	289.92	34.30	7
6	PSR	FBS	2010-01-25 01:30:11	2010-01-25 01:31:41	00:01:30	79	59.75	79	65.22	34.30	7
7	PSM	OB1	2010-01-25 01:46:49	2010-01-25 01:54:37	00:07:48	79	120.40	79	148.85	1.20	-
8	AV2	OBS	2010-01-25 01:49:14	2010-01-25 01:51:26	00:02:12	79	129.22	79	137.24	0.00	-
9	PSR	FBS	2010-01-25 01:55:02	2010-01-25 01:56:54	00:01:52	79	150.43	79	157.24	34.30	7
10	PSR	WB1	2010-01-25 01:57:58	2010-01-25 01:59:54	00:01:56	79	161.06	79	168.11	27.10	80
11	PSM	OB2	2010-01-25 02:00:22	2010-01-25 02:14:10	00:13:48	79	169.82	79	220.14	0.00	-
12	PSR	WB1	2010-01-25 02:20:41	2010-01-25 02:22:51	00:02:10	79	243.91	79	251.81	27.10	80
13	PSR	FBS	2010-01-25 02:27:13	2010-01-25 02:31:57	00:04:44	79	267.79	79	285.05	34.30	7
14	PSR	FBS	2010-01-25 02:47:19	2010-01-25 02:56:07	00:08:48	79	341.03	125	13.13	34.30	7
15	PSR	WB1	2010-01-25 03:25:49	2010-01-25 03:28:43	00:02:54	125	121.44	125	132.01	27.10	80
16	PSM	OB2	2010-01-25 03:30:20	2010-01-25 03:44:04	00:13:44	125	137.91	125	187.99	0.00	-
17	AV2	OBS	2010-01-25 03:30:24	2010-01-25 03:43:22	00:12:58	125	138.15	125	185.44	0.00	-
18	PSR	FBS	2010-01-25 04:06:29	2010-01-25 04:09:37	00:03:08	125	269.80	125	281.22	34.30	7
19	PSR	FBS	2010-01-25 04:11:39	2010-01-25 04:13:35	00:01:56	125	288.58	125	295.63	34.30	7
20	PSR	FBS	2010-01-25 04:33:52	2010-01-25 04:44:06	00:10:14	171	9.66	171	46.98	34.30	7
21	PSR	FBS	2010-01-25 04:46:48	2010-01-25 04:51:02	00:04:14	171	56.77	171	72.21	34.30	7
22	PSR	WB1	2010-01-25 05:04:50	2010-01-25 05:07:26	00:02:36	171	122.59	171	132.07	27.10	80
23	PSM	OB1	2010-01-25 05:08:20	2010-01-25 05:19:30	00:11:10	171	135.29	171	176.02	1.20	-
24	AV2	OBS	2010-01-25 05:09:03	2010-01-25 05:18:41	00:09:38	171	137.97	171	173.10	0.00	-
25	AV2	OBS	2010-01-25 05:40:03	2010-01-25 05:41:55	00:01:52	171	250.96	171	257.76	-21.50	-
26	PSR	FBS	2010-01-25 05:47:08	2010-01-25 05:50:24	00:03:16	171	276.79	171	288.70	34.30	7
27	PSR	FBS	2010-01-25 06:17:31	2010-01-25 06:23:05	00:05:34	217	27.59	217	47.89	34.30	7
28	PSR	FBS	2010-01-25 06:25:33	2010-01-25 06:29:57	00:04:24	217	56.89	217	72.93	34.30	7
29	PSR	WB1	2010-01-25 06:37:28	2010-01-25 06:46:34	00:09:06	217	100.35	217	133.53	27.10	80
30	PSM	OB1	2010-01-25 06:47:02	2010-01-25 06:50:16	00:03:14	217	135.23	217	147.02	1.20	-
31	AV2	OBS	2010-01-25 06:47:26	2010-01-25 06:49:38	00:02:12	217	136.75	217	144.78	0.00	-
32	PSR	WB1	2010-01-25 06:55:07	2010-01-25 06:59:01	00:03:54	217	164.71	217	178.93	27.10	80
33	PSM	OB1	2010-01-25 07:01:27	2010-01-25 07:07:35	00:06:08	217	187.81	217	210.17	1.20	-
34	PSR	WB1	2010-01-25 07:03:42	2010-01-25 07:06:30	00:02:48	217	196.01	217	206.22	27.10	80
35	AV2	OBS	2010-01-25 07:19:23	2010-01-25 07:21:15	00:01:52	217	253.21	217	260.01	41.50	-
36	PSR	FBS	2010-01-25 07:23:23	2010-01-25 07:28:15	00:04:52	217	267.79	217	285.54	34.30	7
37	PSR	FBS	2010-01-25 08:03:41	2010-01-25 08:09:15	00:05:34	263	54.76	263	75.06	34.30	7
38	PSR	WB1	2010-01-25 08:22:01	2010-01-25 08:24:43	00:02:42	263	121.62	263	131.46	27.10	80
39	PSM	OB1	2010-01-25 08:25:45	2010-01-25 08:29:07	00:03:22	263	135.23	263	147.51	1.20	-
40	PSM	OB1	2010-01-25 08:32:06	2010-01-25 08:41:54	00:09:48	263	158.39	263	194.13	1.20	-
41	AV2	OBS	2010-01-25 08:32:51	2010-01-25 08:38:19	00:05:28	263	161.13	263	181.06	0.00	-
42	PSM	OB1	2010-01-25 08:45:33	2010-01-25 08:48:49	00:03:16	263	207.44	263	219.35	1.20	-
43	PSR	WB1	2010-01-25 09:56:03	2010-01-25 09:59:29	00:03:26	309	104.54	309	117.06	27.10	80
44	PSR	WB1	2010-01-25 10:07:03	2010-01-25 10:10:29	00:03:26	309	144.65	309	157.17	27.10	80
45	AV2	OBS	2010-01-25 10:11:34	2010-01-25 10:14:22	00:02:48	309	161.13	309	171.34	0.00	-
46	PSR	FBS	2010-01-25 11:20:11	2010-01-25 11:26:15	00:06:04	355	51.36	355	73.48	34.30	7
47	PSR	WB1	2010-01-25 11:31:54	2010-01-25 11:35:22	00:03:28	355	94.09	355	106.73	27.10	80
48	PSR	FBS	2010-01-25 12:19:31	2010-01-25 12:22:47	00:03:16	355	267.67	355	279.58	34.30	7
49	PSR	FBD	2010-01-25 12:29:24	2010-01-25 12:31:24	00:02:00	355	303.77	355	311.07	34.30	43
50	PSR	FBD	2010-01-25 12:34:37	2010-01-25 12:36:29	00:01:52	355	322.80	355	329.60	34.30	43
51	PSR	FBS	2010-01-25 12:40:29	2010-01-25 12:44:53	00:04:24	355	344.19	401	0.24	34.30	7
52	AV2	OBS	2010-01-25 12:43:20	2010-01-25 12:45:38	00:02:18	355	354.58	401	2.98	0.00	-
53	PSR	FBS	2010-01-25 12:48:16	2010-01-25 12:51:18	00:03:02	401	12.58	401	23.64	34.30	7
54	PSR	FBS	2010-01-25 12:54:21	2010-01-25 13:01:51	00:07:30	401	34.77	401	62.12	34.30	7
55	PSR	WB1	2010-01-25 13:08:37	2010-01-25 13:17:43	00:09:06	401	86.79	401	119.98	27.10	80
56	PSM	OB1	2010-01-25 13:33:04	2010-01-25 13:39:40	00:06:36	401	175.89	401	199.96	1.20	-
57	AV2	OBS	2010-01-25 13:33:49	2010-01-25 13:40:17	00:06:28	401	178.69	401	202.27	0.00	-
58	PSR	FBS	2010-01-25 14:01:24	2010-01-25 14:03:46	00:02:22	401	279.22	401	287.85	34.30	7
59	PSR	FBS	2010-01-25 14:12:54	2010-01-25 14:41:02	00:28:08	401	321.22	447	63.82	34.30	7
60	PSM	OB1	2010-01-25 15:08:19	2010-01-25 15:18:07	00:09:48	447	163.31	447	199.05	1.20	-
61	AV2	OBS	2010-01-25 15:09:05	2010-01-25 15:18:52	00:09:47	447	166.11	447	201.79	0.00	-
62	PSR	FBS	2010-01-25 15:38:48	2010-01-25 15:43:50	00:05:02	447	274.42	447	292.77	34.30	7
63	PSR	FBS	2010-01-25 16:01:06	2010-01-25 16:03:04	00:01:58	447	355.80	493	2.98	34.30	7
64	PSR	FBS	2010-01-25 16:15:05	2010-01-25 16:19:17	00:04:12	493	46.80	493	62.12	34.30	7
65	PSR	WB1	2010-01-25 16:23:03	2010-01-25 16:47:15	00:24:12	493	75.85	493	164.10	27.10	80
66	PSM	OB1	2010-01-25 16:41:53	2010-01-25 16:44:29	00:02:36	493	144.53	493	154.01	1.20	-
67	PSR	FBS	2010-01-25 17:15:41	2010-01-25 17:22:49	00:07:08	493	267.79	493	293.81	34.30	7
68	PSR	FBS	2010-01-25 17:45:25	2010-01-25 17:58:01	00:12:36	539	16.23	539	62.18	34.30	7
69	PSR	WB1	2010-01-25 18:08:58	2010-01-25 18:12:37	00:03:39	539	102.11	539	115.42	27.10	80
70	AV2	OBS	2010-01-25 18:17:23	2010-01-25 18:20:19	00:02:56	539	132.74	539	143.44	0.00	-
71	PSM	OB2	2010-01-25 18:21:22	2010-01-25 18:23:50	00:02:28	539	147.33	539	156.32	0.00	-
72	PSR	WB1	2010-01-25 18:51:27	2010-01-25 18:53:43	00:02:16	539	257.03	539	265.30	27.10	80
73	PSR	FBS	2010-01-25 18:55:33	2010-01-25 19:01:13	00:05:40	539	271.93	539	292.59	34.30	7
74	PSR	FBS	2010-01-25 19:12:39	2010-01-25 19:14:35	00:01:56	539	334.35	539	341.40	34.30	7
75	PSR	FBS	2010-01-25 19:19:34	2010-01-25 19:35:56	00:16:22	539	359.57	585	59.26	34.30	7
76	PSM	OB1	2010-01-25 20:12:39	2010-01-25 20:15:15	00:02:36	585	193.09	585	202.58	1.20	-
77	AV2	OBS	2010-01-25 20:13:25	2010-01-25 20:15:17	00:01:52	585	195.89	585	202.70	0.00	-
78	PSR	FBS	2010-01-25 20:32:53	2010-01-25 20:40:03	00:07:10	585	266.94	585	293.08	34.30	7
79	PSR	FBS	2010-01-25 20:49:09	2010-01-25 21:03:31	00:14:22	585	326.26	631	18.66	34.30	7
80	PSR	FBS	2010-01-25 21:12:36	2010-01-25 21:17:02	00:04:26	631	51.72	631	67.89	34.30	7
81	AV2	OBS	2010-01-25 21:47:55	2010-01-25 21:49:47	00:01:52	631	180.51	631	187.32	0.00	-
82	PSM	OB1	2010-01-25 21:51:29	2010-01-25 21:54:53	00:03:24	631	193.52	631	205.92	1.20	-
83	AV2	OBS	2010-01-25 21:52:15	2010-01-25 21:54:07	00:01:52	631	196.32	631	203.12	0.00	-
84	PSR	WB1	2010-01-25 22:05:17	2010-01-25 22:07:59	00:02:42	631	243.91	631	253.75	27.10	80
85	PSR	FBS	2010-01-25 22:11:49	2010-01-25 22:17:57	00:06:08	631	267.73	631	290.10	34.30	7
86	PSR	FBS	2010-01-25 22:38:52	2010-01-25 22:43:44	00:04:52	6	6.32	6	24.07	34.30	7
87	PSR	FBS	2010-01-25 22:45:57	2010-01-25 22:52:43	00:06:46	6	32.21	6	56.89	34.30	7
88	PSR	WB1	2010-01-25 23:00:55	2010-01-25 23:12:14	00:11:19	6	86.73	6	128.00	27.10	80
89	AV2	OBS	2010-01-25 23:22:44	2010-01-25 23:24:36	00:01:52	6	166.29	6	173.10	0.00	-
90	PSM	OB2	2010-01-25 23:28:48	2010-01-25 23:30:56	00:02:08	6	188.41	6	196.19	0.00	-
91	AV2	OBS	2010-01-25 23:29:25	2010-01-25 23:31:19	00:01:54	6	190.66	6	197.59	0.00	-
92	AV2	OBS	2010-01-25 23:33:49	2010-01-25 23:37:31	00:03:42	6	206.71	6	220.20	-34.30	-
93	PSR	WB1	2010-01-25 23:44:00	2010-01-25 23:46:10	00:02:10	6	243.85	6	251.75	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
33	-17.46192	2010-01-24 23:35:03	150.19829	2010-01-25 00:24:25
79	-42.14150	2010-01-25 01:13:46	125.51871	2010-01-25 02:03:08
125	-66.82108	2010-01-25 02:52:29	100.83913	2010-01-25 03:41:51
171	-91.50067	2010-01-25 04:31:12	76.15954	2010-01-25 05:20:34
217	-116.18025	2010-01-25 06:09:56	51.47996	2010-01-25 06:59:17
263	-140.85983	2010-01-25 07:48:39	26.80038	2010-01-25 08:38:00
309	-165.53941	2010-01-25 09:27:22	2.12079	2010-01-25 10:16:43
355	169.78100	2010-01-25 11:06:05	-22.55879	2010-01-25 11:55:26
401	145.10142	2010-01-25 12:44:48	-47.23837	2010-01-25 13:34:10
447	120.42184	2010-01-25 14:23:31	-71.91795	2010-01-25 15:12:53
493	95.74225	2010-01-25 16:02:14	-96.59754	2010-01-25 16:51:36
539	71.06267	2010-01-25 17:40:57	-121.27712	2010-01-25 18:30:19
585	46.38309	2010-01-25 19:19:40	-145.95670	2010-01-25 20:09:02
631	21.70351	2010-01-25 20:58:23	-170.63628	2010-01-25 21:47:45
6	-2.97608	2010-01-25 22:37:07	164.68413	2010-01-25 23:26:28
