>ALOS Data Take Simulation(Jan. 18, 2010)

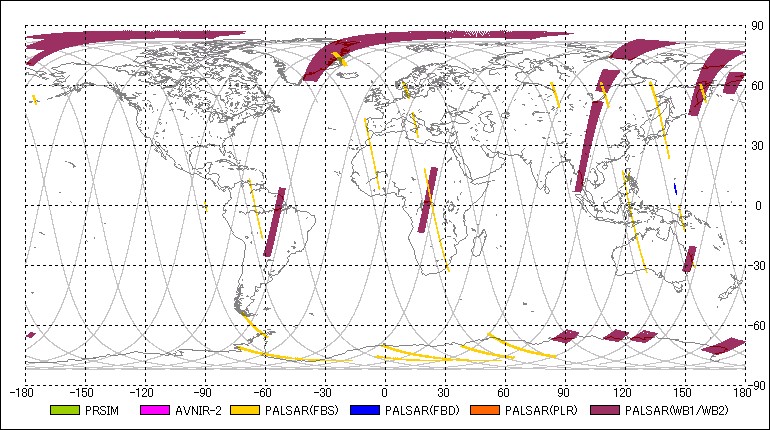

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-01-18 00:09:15	2010-01-18 00:23:01	00:13:46	38	85.52	38	135.72	27.10	80
2	PSM	OB2	2010-01-18 00:32:08	2010-01-18 00:46:46	00:14:38	38	168.97	38	222.33	0.00	-
3	PSR	WB1	2010-01-18 00:52:40	2010-01-18 00:54:40	00:02:00	38	243.85	38	251.14	27.10	80
4	PSR	FBS	2010-01-18 00:58:59	2010-01-18 01:04:19	00:05:20	38	266.88	38	286.33	34.30	7
5	PSM	OB1	2010-01-18 01:57:26	2010-01-18 02:06:46	00:09:20	84	119.98	84	154.01	1.20	-
6	AV2	OBS	2010-01-18 02:06:24	2010-01-18 02:08:16	00:01:52	84	152.74	84	159.54	-34.30	-
7	PSR	FBS	2010-01-18 02:09:02	2010-01-18 02:10:54	00:01:52	84	162.28	84	169.09	34.30	7
8	PSM	OB2	2010-01-18 02:11:21	2010-01-18 02:24:51	00:13:30	84	170.73	84	219.96	0.00	-
9	PSR	WB1	2010-01-18 02:31:24	2010-01-18 02:33:36	00:02:12	84	243.85	84	251.87	27.10	80
10	PSR	FBS	2010-01-18 02:37:43	2010-01-18 02:40:47	00:03:04	84	266.88	84	278.06	34.30	7
11	PSR	FBS	2010-01-18 02:58:02	2010-01-18 03:06:56	00:08:54	84	341.03	130	13.49	34.30	7
12	PSR	WB1	2010-01-18 03:29:14	2010-01-18 03:32:34	00:03:20	130	94.82	130	106.97	27.10	80
13	PSR	WB1	2010-01-18 03:33:30	2010-01-18 03:37:10	00:03:40	130	110.37	130	123.75	27.10	80
14	PSR	WB1	2010-01-18 03:37:56	2010-01-18 03:51:02	00:13:06	130	126.48	130	174.25	27.10	80
15	AV2	OBS	2010-01-18 03:41:03	2010-01-18 03:53:13	00:12:10	130	137.91	130	182.28	0.00	-
16	PSM	OB2	2010-01-18 03:41:04	2010-01-18 03:53:58	00:12:54	130	137.91	130	184.95	0.00	-
17	PSR	FBS	2010-01-18 04:22:32	2010-01-18 04:26:54	00:04:22	130	289.13	130	305.05	34.30	7
18	PSR	FBS	2010-01-18 04:40:33	2010-01-18 04:42:35	00:02:02	130	354.83	176	2.25	34.30	7
19	AV2	OBS	2010-01-18 05:16:59	2010-01-18 05:19:47	00:02:48	176	127.76	176	137.97	0.00	-
20	PSR	FBS	2010-01-18 05:55:09	2010-01-18 06:00:13	00:05:04	176	266.94	176	285.42	34.30	7
21	AV2	OBS	2010-01-18 06:55:43	2010-01-18 06:58:21	00:02:38	222	127.76	222	137.36	0.00	-
22	AV2	OBS	2010-01-18 07:06:14	2010-01-18 07:08:06	00:01:52	222	166.11	222	172.92	0.00	-
23	PSM	OB1	2010-01-18 07:12:55	2010-01-18 07:18:03	00:05:08	222	190.54	222	209.26	1.20	-
24	PSR	WB1	2010-01-18 08:43:13	2010-01-18 08:52:47	00:09:34	268	159.79	268	194.68	27.10	80
25	AV2	CA2	2010-01-18 09:37:43	2010-01-18 09:45:31	00:07:48	268	358.54	314	26.99	0.00	-
26	PSR	FBS	2010-01-18 09:51:25	2010-01-18 09:53:23	00:01:58	314	48.50	314	55.67	34.30	7
27	AV2	OBS	2010-01-18 10:22:17	2010-01-18 10:26:23	00:04:06	314	161.06	314	176.02	0.00	-
28	PSR	FBS	2010-01-18 11:30:26	2010-01-18 11:33:34	00:03:08	360	49.60	360	61.02	34.30	7
29	PSR	FBS	2010-01-18 12:46:23	2010-01-18 12:49:25	00:03:02	360	326.57	360	337.63	34.30	7
30	PSR	FBS	2010-01-18 12:51:23	2010-01-18 12:55:39	00:04:16	360	344.80	406	0.36	34.30	7
31	AV2	OBS	2010-01-18 12:54:04	2010-01-18 12:56:22	00:02:18	360	354.58	406	2.98	0.00	-
32	PSR	FBD	2010-01-18 12:56:25	2010-01-18 12:58:35	00:02:10	406	3.16	406	11.06	34.30	43
33	PSR	FBS	2010-01-18 13:01:21	2010-01-18 13:12:39	00:11:18	406	21.15	406	62.36	34.30	7
34	PSR	WB1	2010-01-18 13:18:57	2010-01-18 13:27:58	00:09:01	406	85.33	406	118.22	27.10	80
35	PSR	WB1	2010-01-18 13:42:13	2010-01-18 13:52:17	00:10:04	406	170.18	406	206.89	27.10	80
36	PSM	OB1	2010-01-18 13:43:14	2010-01-18 13:50:08	00:06:54	406	173.89	406	199.05	1.20	-
37	PSR	FBS	2010-01-18 14:24:18	2010-01-18 14:39:08	00:14:50	406	323.65	452	17.75	34.30	7
38	PSR	FBS	2010-01-18 14:47:14	2010-01-18 14:51:14	00:04:00	452	47.29	452	61.87	34.30	7
39	PSM	OB1	2010-01-18 15:18:57	2010-01-18 15:28:21	00:09:24	452	162.95	452	197.23	1.20	-
40	AV2	OBS	2010-01-18 15:19:43	2010-01-18 15:27:35	00:07:52	452	165.74	452	194.43	0.00	-
41	PSR	FBS	2010-01-18 16:25:49	2010-01-18 16:30:01	00:04:12	498	46.80	498	62.12	34.30	7
42	PSM	OB1	2010-01-18 18:29:55	2010-01-18 18:32:31	00:02:36	544	139.37	544	148.85	1.20	-
43	PSM	OB1	2010-01-18 20:21:08	2010-01-18 20:23:48	00:02:40	590	184.89	590	194.61	1.20	-
44	AV2	OBS	2010-01-18 20:21:54	2010-01-18 20:24:12	00:02:18	590	187.69	590	196.07	0.00	-
45	PSR	WB1	2010-01-18 20:37:19	2010-01-18 20:41:21	00:04:02	590	243.97	590	258.68	27.10	80
46	PSR	FBS	2010-01-18 20:45:55	2010-01-18 20:50:59	00:05:04	590	275.33	590	293.81	34.30	7
47	PSR	FBS	2010-01-18 20:59:21	2010-01-18 21:14:17	00:14:56	590	324.32	636	18.78	34.30	7
48	PSR	FBS	2010-01-18 21:17:55	2010-01-18 21:21:57	00:04:02	636	32.03	636	46.74	34.30	7
49	PSR	FBS	2010-01-18 21:23:20	2010-01-18 21:26:08	00:02:48	636	51.78	636	61.99	34.30	7
50	PSM	OB1	2010-01-18 21:58:06	2010-01-18 22:01:10	00:03:04	636	178.51	636	189.69	1.20	-
51	AV2	OBS	2010-01-18 21:58:52	2010-01-18 22:00:44	00:01:52	636	181.30	636	188.11	0.00	-
52	PSM	OB1	2010-01-18 22:07:42	2010-01-18 22:10:52	00:03:10	636	213.52	636	225.06	1.20	-
53	PSR	FBS	2010-01-18 22:24:21	2010-01-18 22:27:39	00:03:18	636	274.30	636	286.33	34.30	7
54	PSR	FBS	2010-01-18 22:49:29	2010-01-18 22:59:53	00:10:24	11	5.96	11	43.88	34.30	7
55	PSR	FBS	2010-01-18 23:06:33	2010-01-18 23:09:05	00:02:32	11	68.13	11	77.37	34.30	7
56	PSR	WB1	2010-01-18 23:11:37	2010-01-18 23:22:02	00:10:25	11	86.61	11	124.60	27.10	80
57	PSM	OB1	2010-01-18 23:30:34	2010-01-18 23:33:14	00:02:40	11	155.72	11	165.44	1.20	-
58	AV2	OBS	2010-01-18 23:31:20	2010-01-18 23:33:12	00:01:52	11	158.51	11	165.32	0.00	-
59	AV2	OBS	2010-01-18 23:35:07	2010-01-18 23:36:59	00:01:52	11	172.31	11	179.12	0.00	-
60	PSM	OB2	2010-01-18 23:38:31	2010-01-18 23:41:37	00:03:06	11	184.71	11	196.01	0.00	-
61	PSR	WB1	2010-01-18 23:42:37	2010-01-18 23:46:39	00:04:02	11	199.66	11	214.37	27.10	80
62	PSR	WB1	2010-01-18 23:54:44	2010-01-18 23:56:54	00:02:10	11	243.91	11	251.81	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
38	-20.14448	2010-01-17 23:45:47	147.51573	2010-01-18 00:35:09
84	-44.82406	2010-01-18 01:24:30	122.83614	2010-01-18 02:13:52
130	-69.50365	2010-01-18 03:03:13	98.15656	2010-01-18 03:52:35
176	-94.18323	2010-01-18 04:41:56	73.47698	2010-01-18 05:31:18
222	-118.86281	2010-01-18 06:20:39	48.79740	2010-01-18 07:10:01
268	-143.54239	2010-01-18 07:59:23	24.11781	2010-01-18 08:48:44
314	-168.22198	2010-01-18 09:38:06	-0.56177	2010-01-18 10:27:27
360	167.09844	2010-01-18 11:16:49	-25.24135	2010-01-18 12:06:10
406	142.41886	2010-01-18 12:55:32	-49.92093	2010-01-18 13:44:53
452	117.73927	2010-01-18 14:34:15	-74.60052	2010-01-18 15:23:36
498	93.05969	2010-01-18 16:12:58	-99.28010	2010-01-18 17:02:20
544	68.38011	2010-01-18 17:51:41	-123.95968	2010-01-18 18:41:03
590	43.70053	2010-01-18 19:30:24	-148.63927	2010-01-18 20:19:46
636	19.02094	2010-01-18 21:09:07	-173.31885	2010-01-18 21:58:29
11	-5.65864	2010-01-18 22:47:50	162.00157	2010-01-18 23:37:12
