>ALOS Data Take Simulation(Jan. 19, 2010)

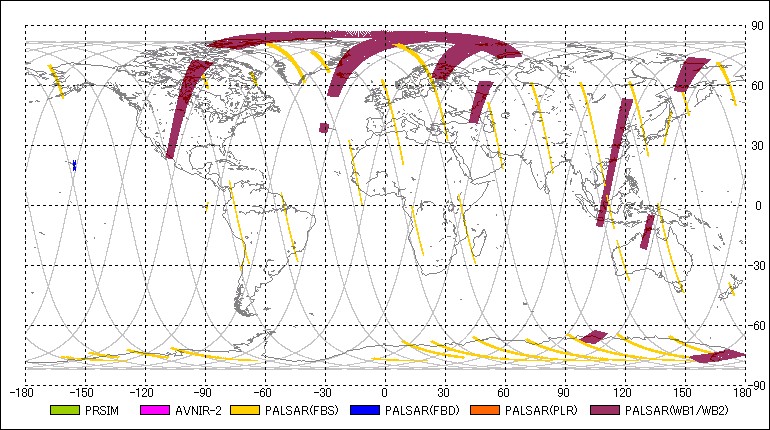

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-01-19 00:03:06	2010-01-19 00:07:08	00:04:02	11	274.42	11	289.13	34.30	7
2	PSR	FBS	2010-01-19 00:42:54	2010-01-19 00:50:04	00:07:10	57	59.56	57	85.70	34.30	7
3	PSR	WB1	2010-01-19 00:55:13	2010-01-19 01:00:29	00:05:16	57	104.48	57	123.69	27.10	80
4	PSR	FBS	2010-01-19 01:02:39	2010-01-19 01:08:05	00:05:26	57	131.53	57	151.34	34.30	7
5	PSM	OB2	2010-01-19 01:02:49	2010-01-19 01:04:41	00:01:52	57	132.13	57	138.94	0.00	-
6	AV2	OBS	2010-01-19 01:03:06	2010-01-19 01:10:30	00:07:24	57	133.17	57	160.15	-34.30	-
7	PSM	OB2	2010-01-19 01:15:47	2010-01-19 01:26:01	00:10:14	57	179.42	57	216.74	0.00	-
8	PSR	WB1	2010-01-19 01:16:55	2010-01-19 01:22:13	00:05:18	57	183.55	57	202.88	27.10	80
9	PSR	WB1	2010-01-19 01:33:28	2010-01-19 01:35:46	00:02:18	57	243.91	57	252.29	27.10	80
10	PSR	FBS	2010-01-19 01:56:55	2010-01-19 02:07:05	00:10:10	57	329.42	103	6.50	34.30	7
11	PSR	FBS	2010-01-19 02:21:12	2010-01-19 02:23:42	00:02:30	103	57.98	103	67.10	34.30	7
12	PSR	WB1	2010-01-19 02:39:41	2010-01-19 02:57:49	00:18:08	103	125.39	103	191.51	27.10	80
13	AV2	OBS	2010-01-19 02:40:09	2010-01-19 02:45:37	00:05:28	103	127.09	103	147.02	0.00	-
14	AV2	OBS	2010-01-19 02:52:17	2010-01-19 02:57:11	00:04:54	103	171.34	103	189.20	0.00	-
15	PSM	OB2	2010-01-19 02:52:30	2010-01-19 02:58:20	00:05:50	103	172.13	103	193.40	0.00	-
16	PSR	FBS	2010-01-19 03:18:36	2010-01-19 03:20:58	00:02:22	103	267.31	103	275.94	34.30	7
17	PSR	FBS	2010-01-19 03:35:22	2010-01-19 03:47:30	00:12:08	103	328.45	149	12.70	34.30	7
18	PSR	FBS	2010-01-19 03:59:37	2010-01-19 04:03:17	00:03:40	149	56.89	149	70.26	34.30	7
19	AV2	OBS	2010-01-19 04:21:03	2010-01-19 04:22:55	00:01:52	149	135.05	149	141.86	0.00	-
20	AV2	OBS	2010-01-19 04:25:05	2010-01-19 04:28:23	00:03:18	149	149.76	149	161.79	0.00	-
21	AV2	OBS	2010-01-19 04:53:27	2010-01-19 04:55:25	00:01:58	149	253.21	149	260.38	-41.50	-
22	PSM	OB1	2010-01-19 05:59:47	2010-01-19 06:06:53	00:07:06	195	135.11	195	161.00	1.20	-
23	PSM	OB1	2010-01-19 06:23:42	2010-01-19 06:26:18	00:02:36	195	222.33	195	231.81	1.20	-
24	AV2	OBS	2010-01-19 06:24:28	2010-01-19 06:26:20	00:01:52	195	225.13	195	231.93	0.00	-
25	PSR	WB1	2010-01-19 07:33:21	2010-01-19 07:39:43	00:06:22	241	116.33	241	139.55	27.10	80
26	AV2	OBS	2010-01-19 07:46:08	2010-01-19 07:48:46	00:02:38	241	162.95	241	172.55	0.00	-
27	AV2	OBS	2010-01-19 07:51:40	2010-01-19 07:53:54	00:02:14	241	183.13	241	191.27	0.00	-
28	PSR	FBS	2010-01-19 08:15:24	2010-01-19 08:19:32	00:04:08	241	269.68	241	284.75	34.30	7
29	PSR	FBD	2010-01-19 08:44:24	2010-01-19 08:46:26	00:02:02	287	15.44	287	22.85	21.50	39
30	PSR	FBS	2010-01-19 08:54:19	2010-01-19 08:59:39	00:05:20	287	51.54	287	70.99	34.30	7
31	PSR	WB1	2010-01-19 09:06:43	2010-01-19 09:12:16	00:05:33	287	96.82	287	117.06	27.10	80
32	AV2	OBS	2010-01-19 09:24:21	2010-01-19 09:32:17	00:07:56	287	161.13	287	190.06	0.00	-
33	PSR	FBS	2010-01-19 09:55:25	2010-01-19 09:57:55	00:02:30	287	274.42	287	283.53	34.30	7
34	PSR	FBS	2010-01-19 10:32:06	2010-01-19 10:38:46	00:06:40	333	48.20	333	72.51	34.30	7
35	PSM	OB1	2010-01-19 10:53:22	2010-01-19 10:55:58	00:02:36	333	125.75	333	135.23	1.20	-
36	AV2	OBS	2010-01-19 11:01:15	2010-01-19 11:07:21	00:06:06	333	154.44	333	176.68	0.00	-
37	PSM	OB1	2010-01-19 11:02:18	2010-01-19 11:08:06	00:05:48	333	158.33	333	179.48	1.20	-
38	PSR	FBS	2010-01-19 11:34:08	2010-01-19 11:36:00	00:01:52	333	274.42	333	281.22	34.30	7
39	PSR	FBS	2010-01-19 11:44:23	2010-01-19 11:46:51	00:02:28	333	311.80	333	320.79	34.30	7
40	PSR	FBS	2010-01-19 12:09:23	2010-01-19 12:13:17	00:03:54	379	42.97	379	57.19	34.30	7
41	PSR	WB1	2010-01-19 12:23:02	2010-01-19 12:32:13	00:09:11	379	92.69	379	126.18	27.10	80
42	PSR	WB1	2010-01-19 12:35:21	2010-01-19 12:37:13	00:01:52	379	137.66	379	144.47	27.10	80
43	PSM	OB1	2010-01-19 12:47:00	2010-01-19 12:53:24	00:06:24	379	180.15	379	203.49	1.20	-
44	AV2	OBS	2010-01-19 12:47:43	2010-01-19 12:52:59	00:05:16	379	182.70	379	201.91	0.00	-
45	PSR	FBS	2010-01-19 13:11:02	2010-01-19 13:13:48	00:02:46	379	267.73	379	277.82	34.30	7
46	PSR	FBS	2010-01-19 13:23:33	2010-01-19 13:36:37	00:13:04	379	313.44	425	1.09	34.30	7
47	PSR	FBS	2010-01-19 13:42:24	2010-01-19 13:53:26	00:11:02	425	22.18	425	62.42	34.30	7
48	PSM	OB1	2010-01-19 14:22:19	2010-01-19 14:30:55	00:08:36	425	167.69	425	199.05	1.20	-
49	AV2	OBS	2010-01-19 14:22:58	2010-01-19 14:30:10	00:07:12	425	170.12	425	196.38	0.00	-
50	PSR	FBS	2010-01-19 14:33:09	2010-01-19 14:35:01	00:01:52	425	207.20	425	214.00	34.30	7
51	PSR	FBS	2010-01-19 14:52:00	2010-01-19 14:56:24	00:04:24	425	276.00	425	292.04	34.30	7
52	PSR	FBS	2010-01-19 15:03:57	2010-01-19 15:10:13	00:06:16	425	319.58	425	342.43	34.30	7
53	PSR	FBS	2010-01-19 15:11:11	2010-01-19 15:16:27	00:05:16	425	345.95	471	5.17	34.30	7
54	PSR	FBS	2010-01-19 15:17:13	2010-01-19 15:32:05	00:14:52	471	7.96	471	62.18	34.30	7
55	AV2	OBS	2010-01-19 15:59:56	2010-01-19 16:02:34	00:02:38	471	163.74	471	173.34	0.00	-
56	PSR	FBS	2010-01-19 16:03:38	2010-01-19 16:05:34	00:01:56	471	177.23	471	184.28	34.30	7
57	PSR	FBS	2010-01-19 16:30:17	2010-01-19 16:35:29	00:05:12	471	274.36	471	293.32	34.30	7
58	PSR	FBS	2010-01-19 16:57:36	2010-01-19 17:10:48	00:13:12	517	14.04	517	62.18	34.30	7
59	PSR	WB1	2010-01-19 17:13:45	2010-01-19 17:21:27	00:07:42	517	72.93	517	101.01	27.10	80
60	PSR	WB1	2010-01-19 17:22:51	2010-01-19 17:36:55	00:14:04	517	106.06	517	157.36	27.10	80
61	PSR	FBS	2010-01-19 18:07:11	2010-01-19 18:14:11	00:07:00	517	267.79	517	293.32	34.30	7
62	PSR	FBS	2010-01-19 18:36:55	2010-01-19 18:46:43	00:09:48	563	16.17	563	51.91	34.30	7
63	AV2	OBS	2010-01-19 19:08:53	2010-01-19 19:11:17	00:02:24	563	132.74	563	141.49	0.00	-
64	PSR	WB1	2010-01-19 19:42:44	2010-01-19 19:45:16	00:02:32	563	256.18	563	265.42	27.10	80
65	PSR	FBS	2010-01-19 19:46:14	2010-01-19 19:52:04	00:05:50	563	269.01	563	290.28	34.30	7
66	PSR	FBS	2010-01-19 20:02:34	2010-01-19 20:12:44	00:10:10	563	328.51	609	5.59	34.30	7
67	PSR	FBS	2010-01-19 20:19:35	2010-01-19 20:33:43	00:14:08	609	30.57	609	82.11	34.30	7
68	PSR	FBD	2010-01-19 20:53:56	2010-01-19 20:55:58	00:02:02	609	155.84	609	163.25	9.90	36
69	AV2	OBS	2010-01-19 20:54:40	2010-01-19 20:56:32	00:01:52	609	158.51	609	165.32	0.00	-
70	AV2	OBS	2010-01-19 21:02:40	2010-01-19 21:04:32	00:01:52	609	187.69	609	194.49	0.00	-
71	PSM	OB1	2010-01-19 21:04:09	2010-01-19 21:06:53	00:02:44	609	193.09	609	203.06	1.20	-
72	PSR	FBS	2010-01-19 21:24:23	2010-01-19 21:31:11	00:06:48	609	266.88	609	291.68	34.30	7
73	PSR	FBS	2010-01-19 21:42:26	2010-01-19 21:49:56	00:07:30	609	332.70	655	0.06	34.30	7
74	PSR	FBS	2010-01-19 21:54:58	2010-01-19 22:07:20	00:12:22	655	18.42	655	63.51	34.30	7
75	PSM	OB1	2010-01-19 22:30:12	2010-01-19 22:32:48	00:02:36	655	146.96	655	156.45	1.20	-
76	AV2	OBS	2010-01-19 22:30:58	2010-01-19 22:32:50	00:01:52	655	149.76	655	156.57	0.00	-
77	PSM	OB1	2010-01-19 22:38:13	2010-01-19 22:41:49	00:03:36	655	176.14	655	189.27	1.20	-
78	AV2	OBS	2010-01-19 22:38:59	2010-01-19 22:41:07	00:02:08	655	178.93	655	186.71	0.00	-
79	PSR	FBS	2010-01-19 23:03:19	2010-01-19 23:09:11	00:05:52	655	267.67	655	289.06	34.30	7
80	PSR	FBS	2010-01-19 23:28:12	2010-01-19 23:37:34	00:09:22	655	358.41	30	32.58	34.30	7
81	PSM	OB1	2010-01-19 23:38:53	2010-01-19 23:41:49	00:02:56	30	37.38	30	48.08	0.00	-
82	PSR	FBS	2010-01-19 23:46:28	2010-01-19 23:50:00	00:03:32	30	65.03	30	77.92	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
11	-5.65864	2010-01-18 22:47:50	162.00157	2010-01-18 23:37:12
57	-30.33822	2010-01-19 00:26:33	137.32199	2010-01-19 01:15:55
103	-55.01780	2010-01-19 02:05:17	112.64240	2010-01-19 02:54:38
149	-79.69739	2010-01-19 03:44:00	87.96282	2010-01-19 04:33:21
195	-104.37697	2010-01-19 05:22:43	63.28324	2010-01-19 06:12:04
241	-129.05655	2010-01-19 07:01:26	38.60366	2010-01-19 07:50:47
287	-153.73614	2010-01-19 08:40:09	13.92407	2010-01-19 09:29:31
333	-178.41572	2010-01-19 10:18:52	-10.75551	2010-01-19 11:08:14
379	156.90470	2010-01-19 11:57:35	-35.43509	2010-01-19 12:46:57
425	132.22512	2010-01-19 13:36:18	-60.11468	2010-01-19 14:25:40
471	107.54553	2010-01-19 15:15:01	-84.79426	2010-01-19 16:04:23
517	82.86595	2010-01-19 16:53:44	-109.47384	2010-01-19 17:43:06
563	58.18637	2010-01-19 18:32:28	-134.15342	2010-01-19 19:21:49
609	33.50679	2010-01-19 20:11:11	-158.83301	2010-01-19 21:00:32
655	8.82720	2010-01-19 21:49:54	176.48741	2010-01-19 22:39:15
30	-15.85238	2010-01-19 23:28:37	151.80783	2010-01-20 00:17:58
