>ALOS Data Take Simulation(Jan. 17, 2010)

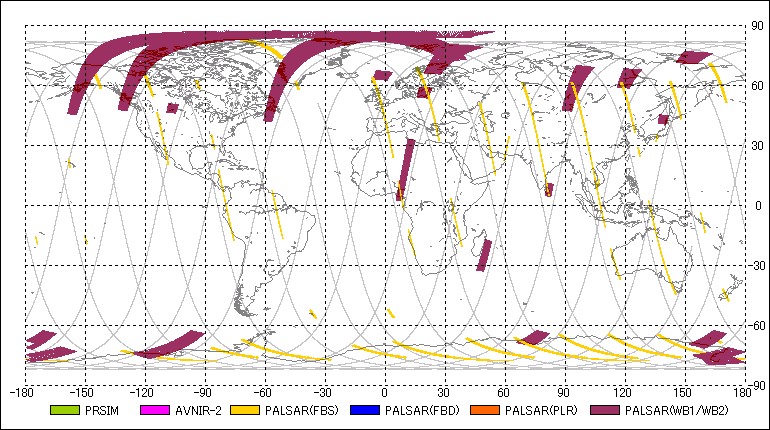

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	AV2	OBS	2010-01-17 00:14:53	2010-01-17 00:16:45	00:01:52	19	254.72	19	261.53	0.00	-
2	PSR	FBS	2010-01-17 00:18:26	2010-01-17 00:24:18	00:05:52	19	267.73	19	289.13	34.30	7
3	PSR	FBS	2010-01-17 00:59:06	2010-01-17 01:00:58	00:01:52	65	55.98	65	62.78	34.30	7
4	PSR	FBS	2010-01-17 01:03:31	2010-01-17 01:06:53	00:03:22	65	72.14	65	84.42	34.30	7
5	PSR	WB1	2010-01-17 01:11:28	2010-01-17 01:13:40	00:02:12	65	101.08	65	109.10	27.10	80
6	PSM	OB1	2010-01-17 01:20:00	2010-01-17 01:22:36	00:02:36	65	132.19	65	141.68	1.20	-
7	PSR	WB1	2010-01-17 01:20:17	2010-01-17 01:22:09	00:01:52	65	133.29	65	140.10	27.10	80
8	PSR	FBS	2010-01-17 01:23:04	2010-01-17 01:24:38	00:01:34	65	143.38	65	149.09	34.30	7
9	AV2	OBS	2010-01-17 01:23:50	2010-01-17 01:25:42	00:01:52	65	146.23	65	153.04	0.00	-
10	PSM	OB2	2010-01-17 01:30:16	2010-01-17 01:43:26	00:13:10	65	169.63	65	217.65	0.00	-
11	AV2	OBS	2010-01-17 01:30:30	2010-01-17 01:35:50	00:05:20	65	170.55	65	190.00	0.00	-
12	PSR	FBS	2010-01-17 01:58:59	2010-01-17 02:02:19	00:03:20	65	274.42	65	286.57	34.30	7
13	PSR	FBS	2010-01-17 02:05:57	2010-01-17 02:07:49	00:01:52	65	299.82	65	306.63	34.30	7
14	PSR	FBS	2010-01-17 02:17:16	2010-01-17 02:24:38	00:07:22	65	341.03	111	7.90	34.30	7
15	PSR	WB1	2010-01-17 02:52:34	2010-01-17 02:55:54	00:03:20	111	109.77	111	121.92	27.10	80
16	AV2	OBS	2010-01-17 02:57:14	2010-01-17 03:07:08	00:09:54	111	126.78	111	162.89	0.00	-
17	PSM	OB2	2010-01-17 02:57:17	2010-01-17 03:07:27	00:10:10	111	126.97	111	164.04	0.00	-
18	PSR	FBS	2010-01-17 03:07:55	2010-01-17 03:10:03	00:02:08	111	165.74	111	173.52	34.30	7
19	PSM	OB2	2010-01-17 03:10:30	2010-01-17 03:16:08	00:05:38	111	175.17	111	195.71	0.00	-
20	AV2	OBS	2010-01-17 03:10:45	2010-01-17 03:14:25	00:03:40	111	176.14	111	189.51	0.00	-
21	PSR	WB1	2010-01-17 03:29:20	2010-01-17 03:32:02	00:02:42	111	243.91	111	253.75	27.10	80
22	PSR	FBS	2010-01-17 03:55:43	2010-01-17 04:06:13	00:10:30	111	340.06	157	18.36	34.30	7
23	PSR	FBS	2010-01-17 04:08:13	2010-01-17 04:10:59	00:02:46	157	25.65	157	35.74	34.30	7
24	PSR	FBS	2010-01-17 04:16:45	2010-01-17 04:18:33	00:01:48	157	56.77	157	63.33	34.30	7
25	PSR	WB1	2010-01-17 04:30:57	2010-01-17 04:37:47	00:06:50	157	108.55	157	133.47	27.10	80
26	PSM	OB1	2010-01-17 04:38:15	2010-01-17 04:45:49	00:07:34	157	135.17	157	162.77	1.20	-
27	AV2	OBS	2010-01-17 04:42:21	2010-01-17 04:45:05	00:02:44	157	150.12	157	160.09	0.00	-
28	PSR	WB1	2010-01-17 04:47:12	2010-01-17 04:49:34	00:02:22	157	167.81	157	176.44	27.10	80
29	AV2	OBS	2010-01-17 05:00:27	2010-01-17 05:02:19	00:01:52	157	216.13	157	222.94	21.50	-
30	AV2	OBS	2010-01-17 05:10:26	2010-01-17 05:12:18	00:01:52	157	252.60	157	259.40	-34.30	-
31	PSR	FBS	2010-01-17 05:15:38	2010-01-17 05:20:44	00:05:06	157	271.50	157	290.10	34.30	7
32	PSR	FBS	2010-01-17 05:44:54	2010-01-17 05:52:46	00:07:52	203	18.23	203	46.92	34.30	7
33	PSR	FBS	2010-01-17 05:54:23	2010-01-17 05:59:43	00:05:20	203	52.82	203	72.27	34.30	7
34	PSM	OB1	2010-01-17 06:16:58	2010-01-17 06:23:34	00:06:36	203	135.17	203	159.24	1.20	-
35	AV2	OBS	2010-01-17 06:17:44	2010-01-17 06:22:48	00:05:04	203	137.97	203	156.45	0.00	-
36	PSR	FBS	2010-01-17 06:19:30	2010-01-17 06:23:22	00:03:52	203	144.41	203	158.51	34.30	7
37	PSR	WB1	2010-01-17 06:33:48	2010-01-17 06:38:40	00:04:52	203	196.50	203	214.25	27.10	80
38	AV2	OBS	2010-01-17 06:47:53	2010-01-17 06:49:55	00:02:02	203	247.92	203	255.33	21.50	-
39	PSR	FBS	2010-01-17 06:55:09	2010-01-17 06:58:01	00:02:52	203	274.42	203	284.87	34.30	7
40	PSR	FBS	2010-01-17 07:34:08	2010-01-17 07:38:40	00:04:32	249	56.59	249	73.12	34.30	7
41	PSM	OB1	2010-01-17 08:02:04	2010-01-17 08:11:52	00:09:48	249	158.45	249	194.19	1.20	-
42	AV2	OBS	2010-01-17 08:02:48	2010-01-17 08:11:04	00:08:16	249	161.13	249	191.27	0.00	-
43	PSR	FBS	2010-01-17 08:51:22	2010-01-17 08:53:14	00:01:52	249	338.24	249	345.04	34.30	7
44	PSR	FBS	2010-01-17 09:02:00	2010-01-17 09:03:52	00:01:52	295	17.02	295	23.83	34.30	7
45	PSR	WB1	2010-01-17 09:24:03	2010-01-17 09:28:47	00:04:44	295	97.43	295	114.69	27.10	80
46	PSR	WB1	2010-01-17 09:30:06	2010-01-17 09:32:08	00:02:02	295	119.43	295	126.85	27.10	80
47	PSR	WB1	2010-01-17 09:37:19	2010-01-17 09:46:23	00:09:04	295	145.81	295	178.87	27.10	80
48	PSR	FBS	2010-01-17 10:10:45	2010-01-17 10:14:55	00:04:10	295	267.73	295	282.93	34.30	7
49	PSR	FBS	2010-01-17 10:29:59	2010-01-17 10:31:51	00:01:52	295	337.81	295	344.62	34.30	7
50	PSR	FBS	2010-01-17 10:49:36	2010-01-17 10:55:48	00:06:12	341	49.41	341	72.02	34.30	7
51	PSR	WB1	2010-01-17 11:06:29	2010-01-17 11:08:21	00:01:52	341	110.98	341	117.79	27.10	80
52	AV2	OBS	2010-01-17 11:18:47	2010-01-17 11:23:31	00:04:44	341	155.78	341	173.04	0.00	-
53	PSM	OB1	2010-01-17 11:19:28	2010-01-17 11:24:16	00:04:48	341	158.33	341	175.83	1.20	-
54	PSR	FBS	2010-01-17 12:00:47	2010-01-17 12:03:09	00:02:22	341	309.00	341	317.63	34.30	7
55	PSR	FBS	2010-01-17 12:10:23	2010-01-17 12:13:47	00:03:24	341	344.01	341	356.41	34.30	7
56	PSR	FBS	2010-01-17 12:26:04	2010-01-17 12:31:56	00:05:52	387	41.21	387	62.60	34.30	7
57	PSM	OB1	2010-01-17 13:03:40	2010-01-17 13:11:52	00:08:12	387	178.33	387	208.23	1.20	-
58	AV2	OBS	2010-01-17 13:04:23	2010-01-17 13:11:11	00:06:48	387	180.94	387	205.74	0.00	-
59	PSR	FBS	2010-01-17 13:33:07	2010-01-17 13:34:59	00:01:52	387	285.72	387	292.53	34.30	7
60	PSR	FBS	2010-01-17 13:40:25	2010-01-17 13:54:13	00:13:48	387	312.34	433	2.67	34.30	7
61	PSR	FBS	2010-01-17 13:59:40	2010-01-17 14:01:32	00:01:52	433	22.55	433	29.36	34.30	7
62	PSR	FBS	2010-01-17 14:02:57	2010-01-17 14:10:29	00:07:32	433	34.52	433	61.99	34.30	7
63	PSR	WB1	2010-01-17 14:17:24	2010-01-17 14:31:34	00:14:10	433	87.16	433	138.82	27.10	80
64	PSM	OB1	2010-01-17 14:38:33	2010-01-17 14:48:47	00:10:14	433	164.35	433	201.66	1.20	-
65	AV2	OBS	2010-01-17 14:39:19	2010-01-17 14:48:49	00:09:30	433	167.14	433	201.79	0.00	-
66	PSR	WB1	2010-01-17 15:00:22	2010-01-17 15:05:16	00:04:54	433	243.91	433	261.78	27.10	80
67	PSR	FBS	2010-01-17 15:06:54	2010-01-17 15:13:54	00:07:00	433	267.73	433	293.26	34.30	7
68	PSR	FBS	2010-01-17 15:21:14	2010-01-17 15:26:20	00:05:06	433	320.00	433	338.60	34.30	7
69	PSR	FBS	2010-01-17 15:28:34	2010-01-17 15:49:16	00:20:42	433	346.74	479	62.24	34.30	7
70	AV2	OBS	2010-01-17 16:15:44	2010-01-17 16:18:32	00:02:48	479	158.69	479	168.90	0.00	-
71	PSM	OB2	2010-01-17 16:16:41	2010-01-17 16:19:39	00:02:58	479	162.22	479	173.04	0.00	-
72	PSR	FBS	2010-01-17 16:47:29	2010-01-17 16:52:41	00:05:12	479	274.48	479	293.44	34.30	7
73	PSR	FBS	2010-01-17 17:11:37	2010-01-17 17:27:57	00:16:20	525	2.55	525	62.12	34.30	7
74	PSR	WB1	2010-01-17 17:45:57	2010-01-17 17:47:49	00:01:52	525	127.76	525	134.56	27.10	80
75	AV2	OBS	2010-01-17 17:49:15	2010-01-17 17:52:33	00:03:18	525	139.73	525	151.77	0.00	-
76	PSM	OB1	2010-01-17 17:50:01	2010-01-17 17:52:37	00:02:36	525	142.53	525	152.01	1.20	-
77	PSR	WB1	2010-01-17 18:20:41	2010-01-17 18:24:37	00:03:56	525	254.36	525	268.70	27.10	80
78	PSR	FBS	2010-01-17 18:26:00	2010-01-17 18:31:18	00:05:18	525	273.75	525	293.08	34.30	7
79	PSR	FBS	2010-01-17 18:53:12	2010-01-17 19:03:52	00:10:40	571	12.95	571	51.84	34.30	7
80	PSR	WB1	2010-01-17 19:09:11	2010-01-17 19:26:09	00:16:58	571	71.23	571	133.11	27.10	80
81	PSR	WB1	2010-01-17 19:56:32	2010-01-17 20:01:58	00:05:26	571	243.91	571	263.72	27.10	80
82	PSR	FBS	2010-01-17 20:02:50	2010-01-17 20:09:32	00:06:42	571	266.88	571	291.31	34.30	7
83	PSR	FBS	2010-01-17 20:22:02	2010-01-17 20:29:20	00:07:18	571	336.90	617	3.53	34.30	7
84	PSR	FBS	2010-01-17 20:36:44	2010-01-17 20:47:30	00:10:46	617	30.51	617	69.77	34.30	7
85	PSR	WB1	2010-01-17 20:52:09	2010-01-17 21:05:27	00:13:18	617	86.73	617	135.23	27.10	80
86	PSM	OB1	2010-01-17 21:10:28	2010-01-17 21:13:04	00:02:36	617	153.53	617	163.01	1.20	-
87	AV2	OBS	2010-01-17 21:11:14	2010-01-17 21:13:06	00:01:52	617	156.32	617	163.13	0.00	-
88	PSM	OB1	2010-01-17 21:19:21	2010-01-17 21:22:11	00:02:50	617	185.92	617	196.26	1.20	-
89	AV2	OBS	2010-01-17 21:20:07	2010-01-17 21:21:59	00:01:52	617	188.72	617	195.53	0.00	-
90	PSR	WB1	2010-01-17 21:35:15	2010-01-17 21:38:17	00:03:02	617	243.91	617	254.97	27.10	80
91	PSR	FBS	2010-01-17 21:43:36	2010-01-17 21:48:10	00:04:34	617	274.36	617	291.01	34.30	7
92	PSR	FBS	2010-01-17 21:59:36	2010-01-17 22:03:46	00:04:10	617	332.70	617	347.90	34.30	7
93	PSR	FBS	2010-01-17 22:05:59	2010-01-17 22:10:23	00:04:24	617	355.98	663	12.03	34.30	7
94	PSR	FBS	2010-01-17 22:13:01	2010-01-17 22:24:51	00:11:50	663	21.64	663	64.79	34.30	7
95	AV2	OBS	2010-01-17 22:54:53	2010-01-17 22:56:45	00:01:52	663	174.31	663	181.12	0.00	-
96	PSM	OB1	2010-01-17 22:59:41	2010-01-17 23:03:47	00:04:06	663	191.82	663	206.77	1.20	-
97	AV2	OBS	2010-01-17 23:00:20	2010-01-17 23:03:40	00:03:20	663	194.19	663	206.34	0.00	-
98	PSR	FBS	2010-01-17 23:29:21	2010-01-17 23:31:13	00:01:52	663	300.01	663	306.81	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
19	-9.95074	2010-01-16 23:05:01	157.70947	2010-01-16 23:54:22
65	-34.63032	2010-01-17 00:43:44	133.02989	2010-01-17 01:33:05
111	-59.30991	2010-01-17 02:22:27	108.35030	2010-01-17 03:11:48
157	-83.98949	2010-01-17 04:01:10	83.67072	2010-01-17 04:50:31
203	-108.66907	2010-01-17 05:39:53	58.99114	2010-01-17 06:29:14
249	-133.34865	2010-01-17 07:18:36	34.31155	2010-01-17 08:07:58
295	-158.02824	2010-01-17 08:57:19	9.63197	2010-01-17 09:46:41
341	177.29218	2010-01-17 10:36:02	-15.04761	2010-01-17 11:25:24
387	152.61260	2010-01-17 12:14:45	-39.72719	2010-01-17 13:04:07
433	127.93301	2010-01-17 13:53:28	-64.40678	2010-01-17 14:42:50
479	103.25343	2010-01-17 15:32:12	-89.08636	2010-01-17 16:21:33
525	78.57385	2010-01-17 17:10:55	-113.76594	2010-01-17 18:00:16
571	53.89427	2010-01-17 18:49:38	-138.44552	2010-01-17 19:38:59
617	29.21468	2010-01-17 20:28:21	-163.12511	2010-01-17 21:17:42
663	4.53510	2010-01-17 22:07:04	172.19531	2010-01-17 22:56:25
38	-20.14448	2010-01-17 23:45:47	147.51573	2010-01-18 00:35:09
