  • Tanegashima Island observed by the Advanced Visible and Near Infrared Radiometer type-2 (AVNIR-2) aboard the ALOS.

Tanegashima Island observed by the Advanced Visible and Near Infrared Radiometer type-2 (AVNIR-2) aboard the ALOS.

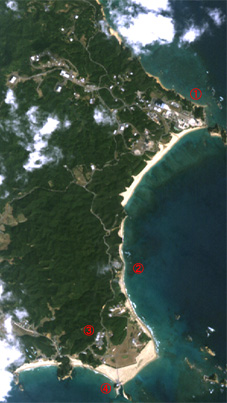

図1: 陸域観測技術衛星「だいち」(ALOS)高性能可視近赤外放射計2型(AVNIR-2)が観測した種子島
Fig.1: Tanegashima Island in Kagoshima Prefecture observed by the AVNIR-2 aboard the ALOS.
(Click to view enlarged image)

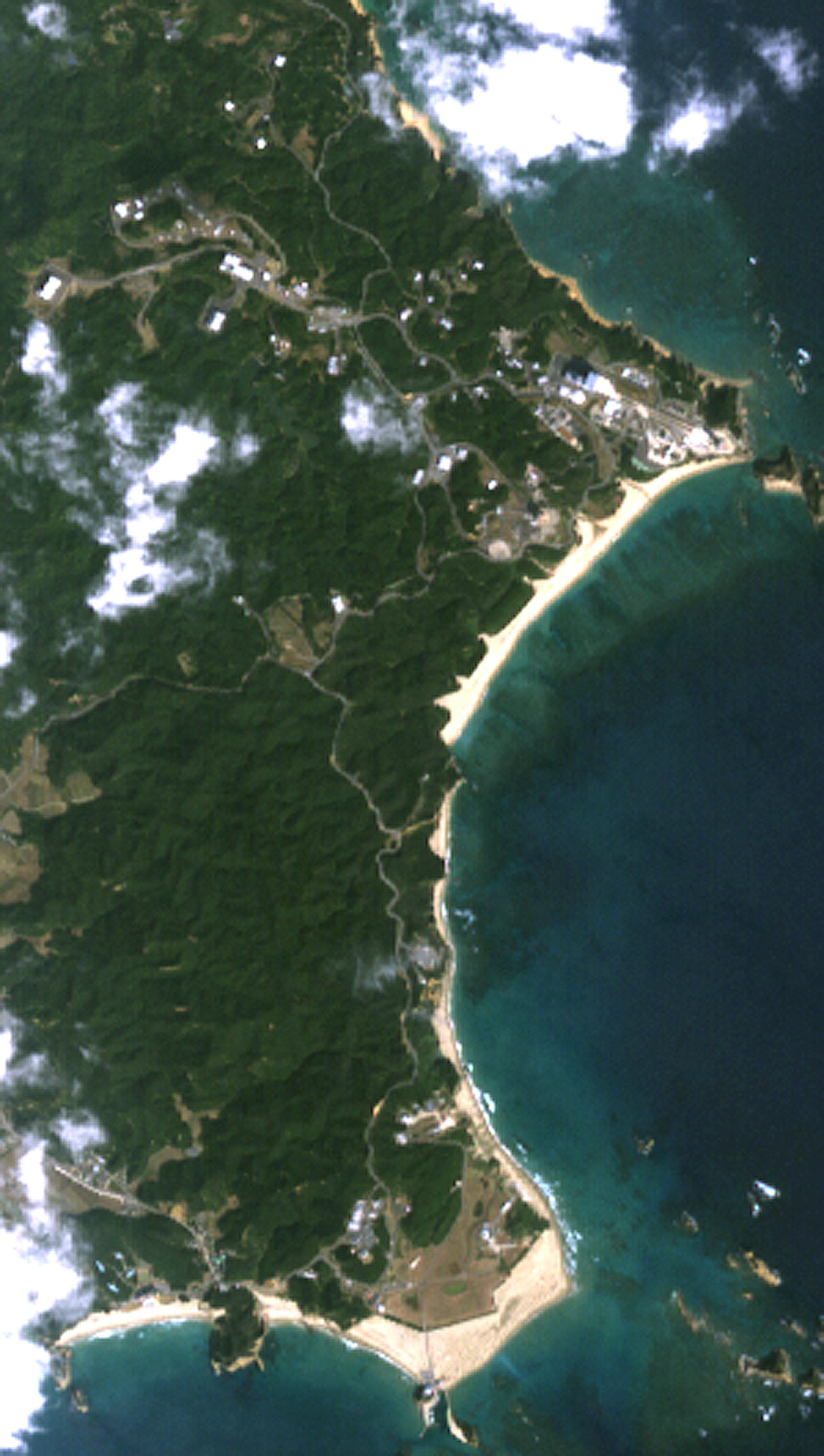

図2: 種子島(左図枠内部分拡大)

1.Yoshinobu Launch (H-II) Complex 2.Tanegashima Lighthouse 3.Range Control Center 4.Takesaki Observation Deck

Fig.2: The area of Tanegashima Island was enlarged
(Click to view enlarged image)

The diagram is image data on Tanegashima Island in Kagoshima Prefecture observed by the Advanced Visible and Near Infrared Radiometer type-2 (AVNIR-2) onboard the Advanced Land Observing Satellite "Daichi" during the day time (around 10:50 a.m.) on February 17, 2006 (JST). The color of the image is close to what the human eye can see, and the spatial resolution is 10 meters. For example, you can identify sand beaches and shallows along the seashores, vegetation and buildings. The Takesaki Observation Deck in Minami-tane cho and the Yoshinobu Launch (H-II) Complex from which the H-IIA Launch Vehicle will be launched are also clearly seen. By combining information of four observation bands from visible light to near infrared light, we can learn the health of agricultural products and forests, land usage, and local environmental conditions.

Note: Spatial resolution indicates the physical size of an object that can be distinguished in an image.
