>ALOS Data Take Simulation(Feb. 24, 2011)

Observation Area

PRISM

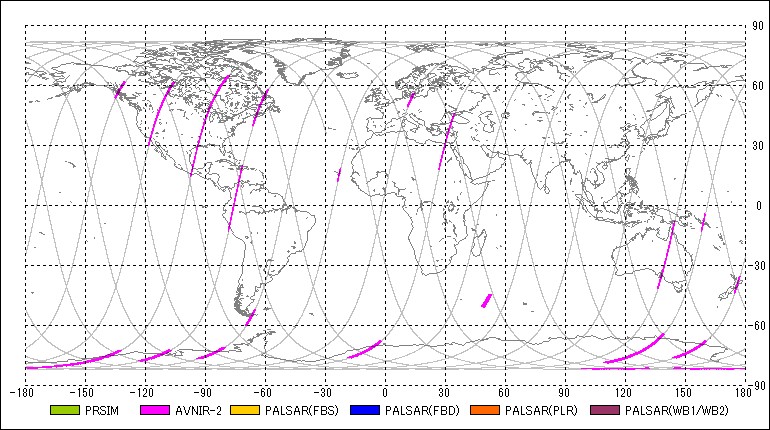

AVNIR-2

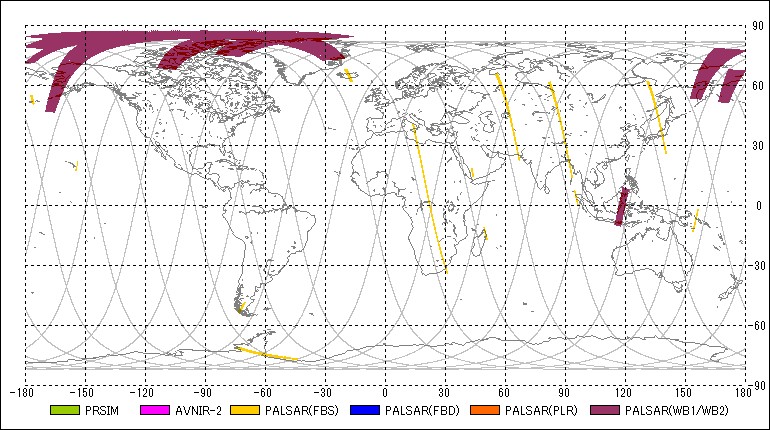

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2011-02-24 00:13:12	2011-02-24 00:25:04	00:11:52	40	84.24	40	127.51	27.10	80
2	AV2	OBS	2011-02-24 00:41:37	2011-02-24 00:51:01	00:09:24	40	187.87	40	222.15	0.00	-
3	PSR	WB1	2011-02-24 02:15:33	2011-02-24 02:21:19	00:05:46	86	170.42	86	191.45	27.10	80
4	PSM	OB2	2011-02-24 03:42:33	2011-02-24 03:58:05	00:15:32	132	127.70	132	184.34	0.00	-
5	AV2	OBS	2011-02-24 05:48:26	2011-02-24 05:50:18	00:01:52	178	226.77	178	233.57	-41.50	-
6	PSR	FBS	2011-02-24 06:01:03	2011-02-24 06:04:23	00:03:20	178	272.78	178	284.93	34.30	7
7	AV2	OBS	2011-02-24 08:40:21	2011-02-24 08:48:07	00:07:46	270	133.71	270	162.04	0.00	-
8	AV2	OBS	2011-02-24 09:12:01	2011-02-24 09:14:39	00:02:38	270	249.19	270	258.80	0.00	-
9	PSR	FBS	2011-02-24 09:55:44	2011-02-24 09:57:36	00:01:52	316	48.62	316	55.43	34.30	7
10	PSM	OB1	2011-02-24 10:15:31	2011-02-24 10:18:07	00:02:36	316	120.77	316	130.25	-1.20	-
11	AV2	OBS	2011-02-24 10:16:17	2011-02-24 10:18:09	00:01:52	316	123.56	316	130.37	0.00	-
12	PSM	OB1	2011-02-24 12:04:36	2011-02-24 12:07:12	00:02:36	362	158.51	362	167.99	-1.20	-
13	AV2	OBS	2011-02-24 12:05:22	2011-02-24 12:07:14	00:01:52	362	161.31	362	168.11	0.00	-
14	PSR	FBS	2011-02-24 13:06:19	2011-02-24 13:16:55	00:10:36	408	23.64	408	62.30	34.30	7
15	PSR	FBS	2011-02-24 14:02:29	2011-02-24 14:04:39	00:02:10	408	228.47	408	236.37	34.30	7
16	AV2	OBS	2011-02-24 14:03:40	2011-02-24 14:05:56	00:02:16	408	232.78	408	241.05	0.00	-
17	AV2	OBS	2011-02-24 14:09:06	2011-02-24 14:10:58	00:01:52	408	252.60	408	259.40	0.00	-
18	AV2	OBS	2011-02-24 15:11:47	2011-02-24 15:16:51	00:05:04	454	121.13	454	139.61	0.00	-
19	AV2	OBS	2011-02-24 15:22:28	2011-02-24 15:31:30	00:09:02	454	160.15	454	193.09	0.00	-
20	PSM	OB1	2011-02-24 15:47:30	2011-02-24 15:53:46	00:06:16	454	251.38	454	274.23	-1.20	-
21	AV2	OBS	2011-02-24 15:48:15	2011-02-24 15:50:07	00:01:52	454	254.18	454	260.98	0.00	-
22	PSR	FBS	2011-02-24 16:16:41	2011-02-24 16:19:21	00:02:40	454	357.81	500	7.54	34.30	7
23	PSR	FBS	2011-02-24 16:20:25	2011-02-24 16:34:21	00:13:56	500	11.43	500	62.24	34.30	7
24	PSR	WB1	2011-02-24 16:42:42	2011-02-24 16:46:08	00:03:26	500	92.69	500	105.21	27.10	80
25	AV2	OBS	2011-02-24 16:48:34	2011-02-24 17:02:40	00:14:06	500	114.08	500	165.50	0.00	-
26	PSM	OB1	2011-02-24 17:26:26	2011-02-24 17:32:28	00:06:02	500	252.17	500	274.17	-1.20	-
27	AV2	OBS	2011-02-24 17:27:05	2011-02-24 17:32:07	00:05:02	500	254.54	500	272.90	0.00	-
28	PSR	FBS	2011-02-24 18:01:31	2011-02-24 18:14:11	00:12:40	546	20.18	546	66.37	34.30	7
29	PSR	WB1	2011-02-24 18:21:49	2011-02-24 18:26:41	00:04:52	546	94.15	546	111.89	27.10	80
30	PSM	OB1	2011-02-24 18:27:24	2011-02-24 18:37:50	00:10:26	546	114.57	546	152.62	-1.20	-
31	AV2	OBS	2011-02-24 18:28:10	2011-02-24 18:37:06	00:08:56	546	117.36	546	149.94	0.00	-
32	PSM	OB1	2011-02-24 19:06:19	2011-02-24 19:11:11	00:04:52	546	256.43	546	274.17	-1.20	-
33	PSR	FBS	2011-02-24 19:29:17	2011-02-24 19:31:37	00:02:20	546	340.18	546	348.69	34.30	7
34	PSR	FBS	2011-02-24 19:37:57	2011-02-24 19:39:49	00:01:52	592	11.79	592	18.60	34.30	7
35	PSM	OB1	2011-02-24 20:06:08	2011-02-24 20:09:50	00:03:42	592	114.57	592	128.06	-1.20	-
36	AV2	OBS	2011-02-24 20:06:54	2011-02-24 20:09:12	00:02:18	592	117.36	592	125.75	0.00	-
37	PSR	FBS	2011-02-24 20:17:59	2011-02-24 20:19:51	00:01:52	592	157.84	592	164.65	50.80	17
38	PSM	OB1	2011-02-24 20:44:41	2011-02-24 20:49:51	00:05:10	592	255.15	592	273.99	-1.20	-
39	AV2	OBS	2011-02-24 20:48:03	2011-02-24 20:49:25	00:01:22	592	267.43	592	272.41	0.00	-
40	PSR	FBS	2011-02-24 21:03:22	2011-02-24 21:24:38	00:21:16	592	323.28	638	40.84	34.30	7
41	PSR	WB1	2011-02-24 21:36:14	2011-02-24 21:50:15	00:14:01	638	83.15	638	134.26	27.10	80
42	PSM	OB1	2011-02-24 22:11:53	2011-02-24 22:15:43	00:03:50	638	213.15	638	227.13	-1.20	-
43	AV2	OBS	2011-02-24 22:12:39	2011-02-24 22:14:57	00:02:18	638	215.95	638	224.34	0.00	-
44	PSM	OB1	2011-02-24 22:20:59	2011-02-24 22:28:47	00:07:48	638	246.34	638	274.78	-1.20	-
45	AV2	OBS	2011-02-24 22:21:46	2011-02-24 22:24:24	00:02:38	638	249.19	638	258.80	0.00	-
46	PSR	FBS	2011-02-24 23:08:36	2011-02-24 23:10:58	00:02:22	13	59.99	13	68.62	34.30	7
47	PSR	WB1	2011-02-24 23:11:52	2011-02-24 23:27:36	00:15:44	13	71.90	13	129.28	27.10	80
48	PSR	FBS	2011-02-24 23:41:51	2011-02-24 23:45:33	00:03:42	13	181.18	13	194.68	34.30	7
49	PSM	OB2	2011-02-24 23:42:41	2011-02-24 23:45:55	00:03:14	13	184.28	13	196.07	0.00	-
50	AV2	OBS	2011-02-24 23:42:42	2011-02-24 23:45:10	00:02:28	13	184.28	13	193.28	0.00	-
51	PSM	OB1	2011-02-24 23:58:39	2011-02-25 00:05:31	00:06:52	13	242.51	13	267.55	-1.20	-
52	AV2	OBS	2011-02-24 23:59:26	2011-02-25 00:04:00	00:04:34	13	245.36	13	262.02	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
40	-21.21751	2011-02-23 23:50:05	146.44270	2011-02-24 00:39:26
86	-45.89709	2011-02-24 01:28:48	121.76312	2011-02-24 02:18:09
132	-70.57667	2011-02-24 03:07:31	97.08354	2011-02-24 03:56:52
178	-95.25625	2011-02-24 04:46:14	72.40395	2011-02-24 05:35:35
224	-119.93584	2011-02-24 06:24:57	47.72437	2011-02-24 07:14:18
270	-144.61542	2011-02-24 08:03:40	23.04479	2011-02-24 08:53:02
316	-169.29500	2011-02-24 09:42:23	-1.63479	2011-02-24 10:31:45
362	166.02541	2011-02-24 11:21:06	-26.31438	2011-02-24 12:10:28
408	141.34583	2011-02-24 12:59:49	-50.99396	2011-02-24 13:49:11
454	116.66625	2011-02-24 14:38:32	-75.67354	2011-02-24 15:27:54
500	91.98667	2011-02-24 16:17:16	-100.35313	2011-02-24 17:06:37
546	67.30708	2011-02-24 17:55:59	-125.03271	2011-02-24 18:45:20
592	42.62750	2011-02-24 19:34:42	-149.71229	2011-02-24 20:24:03
638	17.94792	2011-02-24 21:13:25	-174.39187	2011-02-24 22:02:46
13	-6.73166	2011-02-24 22:52:08	160.92854	2011-02-24 23:41:29
