>ALOS Data Take Simulation(Feb. 23, 2011)

Observation Area

PRISM

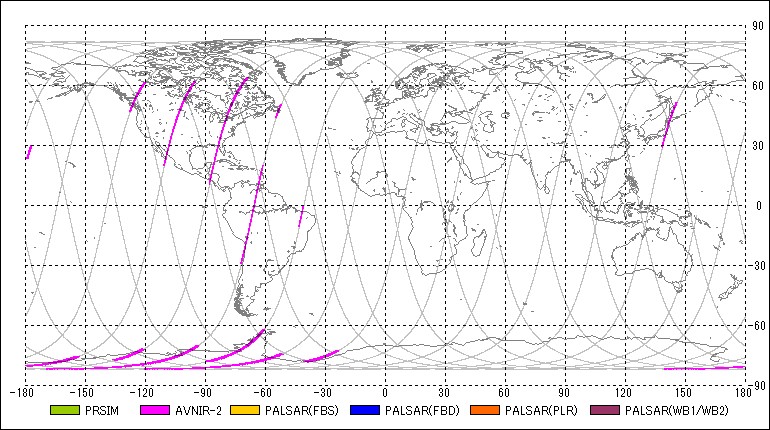

AVNIR-2

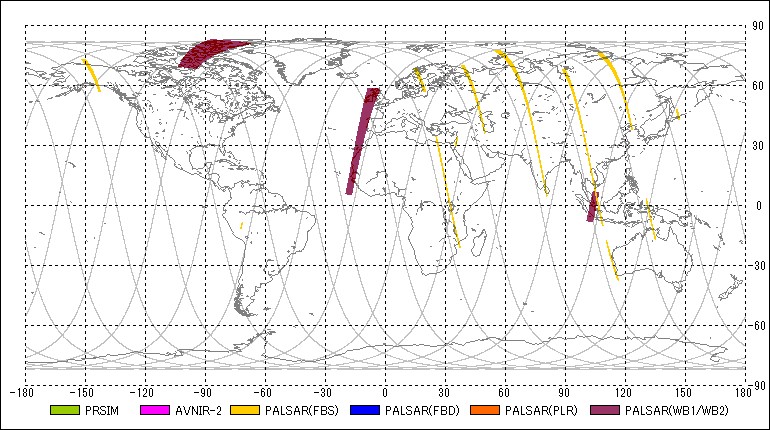

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	AV2	OBS	2011-02-23 01:23:08	2011-02-23 01:29:22	00:06:14	67	128.00	67	150.73	0.00	-
2	PSM	OB2	2011-02-23 01:23:13	2011-02-23 01:29:31	00:06:18	67	128.30	67	151.28	0.00	-
3	PSR	WB1	2011-02-23 03:14:02	2011-02-23 03:18:40	00:04:38	113	172.43	113	189.33	27.10	80
4	PSR	FBS	2011-02-23 07:37:59	2011-02-23 07:43:09	00:05:10	251	54.94	251	73.79	34.30	7
5	PSR	FBS	2011-02-23 08:02:41	2011-02-23 08:04:33	00:01:52	251	145.02	251	151.83	34.30	7
6	AV2	OBS	2011-02-23 10:11:26	2011-02-23 10:13:18	00:01:52	297	254.54	297	261.35	0.00	-
7	PSR	WB1	2011-02-23 11:13:15	2011-02-23 11:28:32	00:15:17	343	120.04	343	175.77	27.10	80
8	AV2	OBS	2011-02-23 11:50:38	2011-02-23 11:54:44	00:04:06	343	256.37	343	271.32	0.00	-
9	PSR	FBS	2011-02-23 12:30:14	2011-02-23 12:32:16	00:02:02	389	40.72	389	48.14	34.30	7
10	PSM	OB1	2011-02-23 13:07:51	2011-02-23 13:15:49	00:07:58	389	177.90	389	206.95	-1.20	-
11	AV2	OBS	2011-02-23 13:08:37	2011-02-23 13:11:25	00:02:48	389	180.70	389	190.91	0.00	-
12	PSM	OB1	2011-02-23 13:25:03	2011-02-23 13:30:47	00:05:44	389	240.62	389	261.53	-1.20	-
13	AV2	OBS	2011-02-23 13:25:45	2011-02-23 13:30:41	00:04:56	389	243.18	389	261.17	0.00	-
14	PSR	FBS	2011-02-23 13:52:24	2011-02-23 13:58:38	00:06:14	389	340.36	435	3.10	34.30	7
15	PSR	FBS	2011-02-23 14:07:31	2011-02-23 14:18:57	00:11:26	435	35.49	435	77.19	34.30	7
16	PSM	OB1	2011-02-23 14:32:26	2011-02-23 14:35:20	00:02:54	435	126.36	435	136.94	-1.20	-
17	AV2	OBS	2011-02-23 14:33:12	2011-02-23 14:35:04	00:01:52	435	129.16	435	135.96	0.00	-
18	AV2	OBS	2011-02-23 14:41:41	2011-02-23 14:55:13	00:13:32	435	160.09	435	209.44	0.00	-
19	PSR	FBS	2011-02-23 14:49:14	2011-02-23 14:50:48	00:01:34	435	187.62	435	193.34	34.30	7
20	PSM	OB1	2011-02-23 15:06:07	2011-02-23 15:09:31	00:03:24	435	249.19	435	261.59	-1.20	-
21	AV2	OBS	2011-02-23 15:06:50	2011-02-23 15:12:10	00:05:20	435	251.81	435	271.26	0.00	-
22	PSR	FBS	2011-02-23 15:25:19	2011-02-23 15:31:39	00:06:20	435	319.21	435	342.31	34.30	7
23	PSR	FBS	2011-02-23 15:33:03	2011-02-23 15:55:21	00:22:18	435	347.41	481	68.74	34.30	7
24	AV2	OBS	2011-02-23 16:08:02	2011-02-23 16:23:00	00:14:58	481	114.93	481	169.51	0.00	-
25	PSM	OB1	2011-02-23 16:45:16	2011-02-23 16:48:12	00:02:56	481	250.77	481	261.47	-1.20	-
26	AV2	OBS	2011-02-23 16:46:02	2011-02-23 16:47:54	00:01:52	481	253.57	481	260.38	0.00	-
27	PSR	FBS	2011-02-23 17:15:49	2011-02-23 17:36:45	00:20:56	527	2.19	527	78.53	34.30	7
28	PSR	WB1	2011-02-23 17:41:18	2011-02-23 17:45:44	00:04:26	527	95.12	527	111.29	27.10	80
29	PSM	OB1	2011-02-23 17:46:38	2011-02-23 17:59:24	00:12:46	527	114.51	527	161.06	-1.20	-
30	AV2	OBS	2011-02-23 17:47:24	2011-02-23 17:59:06	00:11:42	527	117.30	527	159.97	0.00	-
31	AV2	OBS	2011-02-23 18:25:55	2011-02-23 18:29:39	00:03:44	527	257.82	527	271.44	0.00	-
32	PSR	FBS	2011-02-23 19:03:14	2011-02-23 19:13:18	00:10:04	573	33.91	573	70.63	34.30	7
33	PSM	OB1	2011-02-23 19:25:23	2011-02-23 19:31:01	00:05:38	573	114.63	573	135.17	-1.20	-
34	AV2	OBS	2011-02-23 19:26:11	2011-02-23 19:30:21	00:04:10	573	117.55	573	132.74	0.00	-
35	PSR	FBS	2011-02-23 20:26:07	2011-02-23 20:42:07	00:16:00	573	336.17	619	34.52	34.30	7
36	PSR	FBS	2011-02-23 20:47:40	2011-02-23 20:51:34	00:03:54	619	54.76	619	68.98	34.30	7
37	AV2	OBS	2011-02-23 22:52:10	2011-02-23 22:54:02	00:01:52	665	148.73	665	155.53	34.30	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
21	-11.02377	2011-02-22 23:09:18	156.63644	2011-02-22 23:58:40
67	-35.70335	2011-02-23 00:48:01	131.95686	2011-02-23 01:37:23
113	-60.38293	2011-02-23 02:26:44	107.27728	2011-02-23 03:16:06
159	-85.06251	2011-02-23 04:05:27	82.59769	2011-02-23 04:54:49
205	-109.74210	2011-02-23 05:44:10	57.91811	2011-02-23 06:33:32
251	-134.42168	2011-02-23 07:22:54	33.23853	2011-02-23 08:12:15
297	-159.10126	2011-02-23 09:01:37	8.55895	2011-02-23 09:50:58
343	176.21915	2011-02-23 10:40:20	-16.12064	2011-02-23 11:29:41
389	151.53957	2011-02-23 12:19:03	-40.80022	2011-02-23 13:08:24
435	126.85999	2011-02-23 13:57:46	-65.47980	2011-02-23 14:47:07
481	102.18041	2011-02-23 15:36:29	-90.15938	2011-02-23 16:25:51
527	77.50082	2011-02-23 17:15:12	-114.83897	2011-02-23 18:04:34
573	52.82124	2011-02-23 18:53:55	-139.51855	2011-02-23 19:43:17
619	28.14166	2011-02-23 20:32:38	-164.19813	2011-02-23 21:22:00
665	3.46208	2011-02-23 22:11:21	171.12228	2011-02-23 23:00:43
40	-21.21751	2011-02-23 23:50:05	146.44270	2011-02-24 00:39:26
