>ALOS Data Take Simulation(Feb. 13, 2011)

Observation Area

PRISM

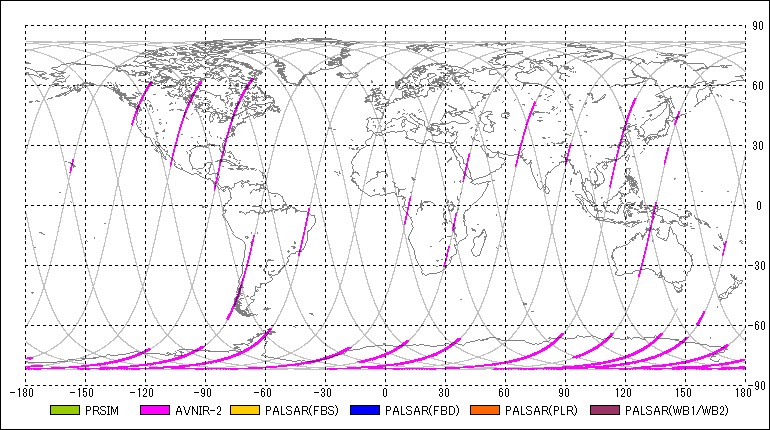

AVNIR-2

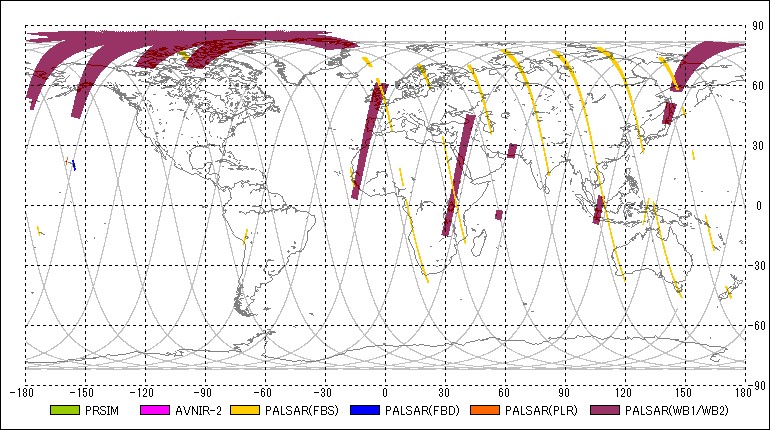

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB1	2011-02-13 00:02:54	2011-02-13 00:11:36	00:08:42	15	242.33	15	274.05	-1.20	-
2	AV2	OBS	2011-02-13 00:03:41	2011-02-13 00:10:53	00:07:12	15	245.18	15	271.44	0.00	-
3	PSR	WB1	2011-02-13 00:57:30	2011-02-13 01:09:07	00:11:37	61	81.44	61	123.81	27.10	80
4	PSR	WB1	2011-02-13 01:10:09	2011-02-13 01:13:39	00:03:30	61	127.58	61	140.34	27.10	80
5	PSM	OB1	2011-02-13 01:10:49	2011-02-13 01:13:43	00:02:54	61	130.01	61	140.58	-1.20	-
6	AV2	OBS	2011-02-13 01:11:31	2011-02-13 01:13:23	00:01:52	61	132.56	61	139.37	0.00	-
7	PSM	OB1	2011-02-13 01:15:45	2011-02-13 01:18:21	00:02:36	61	148.00	61	157.48	-1.20	-
8	AV2	OBS	2011-02-13 01:16:30	2011-02-13 01:18:52	00:02:22	61	150.73	61	159.36	0.00	-
9	PSR	FBS	2011-02-13 01:23:19	2011-02-13 01:27:33	00:04:14	61	175.59	61	191.03	34.30	7
10	AV2	OBS	2011-02-13 01:24:07	2011-02-13 01:34:19	00:10:12	61	178.51	61	215.70	0.00	-
11	PSM	OB2	2011-02-13 01:24:09	2011-02-13 01:34:37	00:10:28	61	178.63	61	216.80	0.00	-
12	PSM	OB1	2011-02-13 01:41:38	2011-02-13 01:46:52	00:05:14	61	242.39	61	261.47	-1.20	-
13	AV2	OBS	2011-02-13 01:42:20	2011-02-13 01:46:06	00:03:46	61	244.94	61	258.68	0.00	-
14	AV2	OBS	2011-02-13 02:48:24	2011-02-13 03:00:42	00:12:18	107	125.93	107	170.79	0.00	-
15	PSM	OB2	2011-02-13 02:48:29	2011-02-13 02:58:07	00:09:38	107	126.18	107	161.31	0.00	-
16	PSR	WB1	2011-02-13 03:01:43	2011-02-13 03:06:07	00:04:24	107	174.44	107	190.48	27.10	80
17	PSM	OB1	2011-02-13 03:20:27	2011-02-13 03:25:35	00:05:08	107	242.75	107	261.47	-1.20	-
18	AV2	OBS	2011-02-13 03:21:09	2011-02-13 03:29:03	00:07:54	107	245.30	107	274.11	0.00	-
19	PSR	FBS	2011-02-13 04:11:14	2011-02-13 04:15:12	00:03:58	153	67.95	153	82.42	34.30	7
20	PSM	OB1	2011-02-13 04:26:53	2011-02-13 04:37:05	00:10:12	153	125.02	153	162.22	-1.20	-
21	AV2	OBS	2011-02-13 04:33:29	2011-02-13 04:36:17	00:02:48	153	149.09	153	159.30	0.00	-
22	PSM	OB1	2011-02-13 04:59:23	2011-02-13 05:04:19	00:04:56	153	243.54	153	261.53	-1.20	-
23	PSM	OB1	2011-02-13 06:05:35	2011-02-13 06:15:01	00:09:26	199	124.96	199	159.36	-1.20	-
24	AV2	OBS	2011-02-13 06:06:21	2011-02-13 06:15:19	00:08:58	199	127.76	199	160.46	0.00	-
25	PSR	WB1	2011-02-13 06:11:56	2011-02-13 06:14:30	00:02:34	199	148.12	199	157.48	27.10	80
26	PSR	WB1	2011-02-13 06:21:09	2011-02-13 06:23:01	00:01:52	199	181.73	199	188.54	27.10	80
27	AV2	OBS	2011-02-13 06:39:19	2011-02-13 06:45:09	00:05:50	199	247.98	199	269.25	0.00	-
28	PSM	OB1	2011-02-13 07:46:32	2011-02-13 07:56:44	00:10:12	245	133.11	245	170.30	-1.20	-
29	PSR	WB1	2011-02-13 07:46:39	2011-02-13 08:03:59	00:17:20	245	133.53	245	196.74	27.10	80
30	AV2	OBS	2011-02-13 07:52:12	2011-02-13 07:56:08	00:03:56	245	153.77	245	168.11	0.00	-
31	AV2	OBS	2011-02-13 08:00:38	2011-02-13 08:02:54	00:02:16	245	184.53	245	192.79	0.00	-
32	AV2	OBS	2011-02-13 08:05:03	2011-02-13 08:07:47	00:02:44	245	200.63	245	210.60	0.00	-
33	PSM	OB1	2011-02-13 08:17:33	2011-02-13 08:21:43	00:04:10	245	246.22	245	261.41	-1.20	-
34	AV2	OBS	2011-02-13 08:18:19	2011-02-13 08:21:47	00:03:28	245	249.01	245	261.65	0.00	-
35	PSR	FBD	2011-02-13 08:52:56	2011-02-13 08:54:58	00:02:02	291	15.26	291	22.67	34.30	43
36	PSM	OB1	2011-02-13 09:32:13	2011-02-13 09:35:39	00:03:26	291	158.51	291	171.03	-1.20	-
37	AV2	OBS	2011-02-13 09:36:56	2011-02-13 09:40:48	00:03:52	291	175.71	291	189.81	0.00	-
38	PSM	OB1	2011-02-13 09:57:28	2011-02-13 10:00:28	00:03:00	291	250.59	291	261.53	-1.20	-
39	AV2	OBS	2011-02-13 09:58:01	2011-02-13 10:03:57	00:05:56	291	252.60	291	274.23	0.00	-
40	PSR	FBS	2011-02-13 10:22:36	2011-02-13 10:24:28	00:01:52	291	342.25	291	349.05	34.30	7
41	PSR	WB1	2011-02-13 10:59:39	2011-02-13 11:16:17	00:16:38	337	117.36	337	178.02	27.10	80
42	PSM	OB1	2011-02-13 11:10:57	2011-02-13 11:16:09	00:05:12	337	158.51	337	177.47	-1.20	-
43	PSR	FBS	2011-02-13 11:52:35	2011-02-13 11:54:55	00:02:20	337	310.40	337	318.91	34.30	7
44	PSR	FBS	2011-02-13 11:59:13	2011-02-13 12:04:55	00:05:42	337	334.59	337	355.37	34.30	7
45	PSR	FBS	2011-02-13 12:11:50	2011-02-13 12:13:42	00:01:52	383	20.60	383	27.41	34.30	7
46	PSR	FBS	2011-02-13 12:17:49	2011-02-13 12:19:41	00:01:52	383	42.42	383	49.23	34.30	7
47	PSR	FBS	2011-02-13 12:21:29	2011-02-13 12:26:39	00:05:10	383	55.80	383	74.64	34.30	7
48	PSM	OB1	2011-02-13 12:55:15	2011-02-13 13:03:11	00:07:56	383	178.93	383	207.86	-1.20	-
49	AV2	OBS	2011-02-13 12:56:01	2011-02-13 13:02:29	00:06:28	383	181.73	383	205.31	0.00	-
50	PSM	OB1	2011-02-13 13:12:01	2011-02-13 13:17:55	00:05:54	383	240.02	383	261.53	-1.20	-
51	AV2	OBS	2011-02-13 13:12:43	2011-02-13 13:20:37	00:07:54	383	242.57	383	271.38	0.00	-
52	PSR	FBS	2011-02-13 13:31:24	2011-02-13 13:45:22	00:13:58	383	310.76	429	1.70	34.30	7
53	PSR	FBS	2011-02-13 13:51:21	2011-02-13 14:06:51	00:15:30	429	23.52	429	80.05	34.30	7
54	PSR	FBS	2011-02-13 14:37:21	2011-02-13 14:40:05	00:02:44	429	191.21	429	201.18	34.30	7
55	AV2	OBS	2011-02-13 14:38:22	2011-02-13 14:50:03	00:11:41	429	194.98	429	237.59	0.00	-
56	PSM	OB1	2011-02-13 14:53:17	2011-02-13 14:56:37	00:03:20	429	249.38	429	261.53	-1.20	-
57	AV2	OBS	2011-02-13 14:54:00	2011-02-13 14:58:48	00:04:48	429	251.99	429	269.49	0.00	-
58	PSR	FBS	2011-02-13 15:12:25	2011-02-13 15:45:03	00:32:38	429	319.15	475	78.16	34.30	7
59	AV2	OBS	2011-02-13 15:55:22	2011-02-13 16:10:56	00:15:34	475	115.72	475	172.49	0.00	-
60	PSM	OB1	2011-02-13 16:32:27	2011-02-13 16:35:21	00:02:54	475	250.96	475	261.53	-1.20	-
61	AV2	OBS	2011-02-13 16:33:10	2011-02-13 16:39:00	00:05:50	475	253.57	475	274.84	0.00	-
62	PSR	FBS	2011-02-13 17:05:43	2011-02-13 17:23:57	00:18:14	521	12.34	521	78.83	34.30	7
63	PSR	WB1	2011-02-13 17:28:30	2011-02-13 17:32:56	00:04:26	521	95.36	521	111.53	27.10	80
64	PSM	OB1	2011-02-13 17:33:45	2011-02-13 17:47:05	00:13:20	521	114.51	521	163.13	-1.20	-
65	AV2	OBS	2011-02-13 17:34:31	2011-02-13 17:46:19	00:11:48	521	117.30	521	160.33	0.00	-
66	PSM	OB1	2011-02-13 18:13:08	2011-02-13 18:17:32	00:04:24	521	258.13	521	274.17	-1.20	-
67	AV2	OBS	2011-02-13 18:14:48	2011-02-13 18:16:46	00:01:58	521	264.21	521	271.38	0.00	-
68	PSR	FBS	2011-02-13 18:50:13	2011-02-13 19:00:31	00:10:18	567	33.37	567	70.93	34.30	7
69	PSR	WB1	2011-02-13 19:06:46	2011-02-13 19:11:42	00:04:56	567	93.72	567	111.71	27.10	80
70	PSM	OB1	2011-02-13 19:12:29	2011-02-13 19:19:05	00:06:36	567	114.57	567	138.64	-1.20	-
71	AV2	OBS	2011-02-13 19:13:15	2011-02-13 19:19:21	00:06:06	567	117.36	567	139.61	0.00	-
72	AV2	OBS	2011-02-13 19:52:01	2011-02-13 19:56:19	00:04:18	567	258.74	567	274.42	0.00	-
73	PSR	FBS	2011-02-13 20:13:47	2011-02-13 20:29:19	00:15:32	567	338.11	613	34.77	34.30	7
74	PSR	FBS	2011-02-13 20:35:20	2011-02-13 20:39:20	00:04:00	613	56.71	613	71.29	34.30	7
75	PSR	WB1	2011-02-13 20:43:25	2011-02-13 20:57:24	00:13:59	613	86.18	613	137.18	27.10	80
76	PSR	PLR	2011-02-13 21:02:11	2011-02-13 21:04:03	00:01:52	613	154.62	613	161.43	26.20	131
77	AV2	OBS	2011-02-13 21:02:49	2011-02-13 21:04:41	00:01:52	613	156.93	613	163.74	0.00	-
78	PSM	OB1	2011-02-13 21:27:57	2011-02-13 21:31:29	00:03:32	613	248.59	613	261.47	-1.20	-
79	AV2	OBS	2011-02-13 21:28:43	2011-02-13 21:32:57	00:04:14	613	251.38	613	266.82	0.00	-
80	PSR	FBS	2011-02-13 21:47:04	2011-02-13 21:59:18	00:12:14	613	318.30	659	2.92	34.30	7
81	PSR	FBS	2011-02-13 22:00:36	2011-02-13 22:03:38	00:03:02	659	7.66	659	18.72	34.30	7
82	PSR	FBS	2011-02-13 22:08:12	2011-02-13 22:16:04	00:07:52	659	35.37	659	64.06	34.30	7
83	PSR	FBS	2011-02-13 22:17:08	2011-02-13 22:19:00	00:01:52	659	67.95	659	74.76	34.30	7
84	PSR	WB1	2011-02-13 22:19:48	2011-02-13 22:34:56	00:15:08	659	77.68	659	132.86	27.10	80
85	PSM	OB1	2011-02-13 22:52:07	2011-02-13 22:54:47	00:02:40	659	195.53	659	205.25	-1.20	-
86	AV2	OBS	2011-02-13 22:52:53	2011-02-13 22:54:45	00:01:52	659	198.32	659	205.13	0.00	-
87	AV2	OBS	2011-02-13 23:02:36	2011-02-13 23:04:28	00:01:52	659	233.76	659	240.56	0.00	-
88	AV2	OBS	2011-02-13 23:06:18	2011-02-13 23:12:54	00:06:36	659	247.25	659	271.32	0.00	-
89	PSR	FBS	2011-02-13 23:39:06	2011-02-13 23:42:26	00:03:20	34	6.81	34	18.96	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
15	-7.80469	2011-02-12 22:56:25	159.85552	2011-02-12 23:45:47
61	-32.48427	2011-02-13 00:35:09	135.17594	2011-02-13 01:24:30
107	-57.16386	2011-02-13 02:13:52	110.49635	2011-02-13 03:03:13
153	-81.84344	2011-02-13 03:52:35	85.81677	2011-02-13 04:41:56
199	-106.52302	2011-02-13 05:31:18	61.13719	2011-02-13 06:20:39
245	-131.20260	2011-02-13 07:10:01	36.45761	2011-02-13 07:59:23
291	-155.88219	2011-02-13 08:48:44	11.77802	2011-02-13 09:38:06
337	179.43823	2011-02-13 10:27:27	-12.90156	2011-02-13 11:16:49
383	154.75865	2011-02-13 12:06:10	-37.58114	2011-02-13 12:55:32
429	130.07907	2011-02-13 13:44:53	-62.26073	2011-02-13 14:34:15
475	105.39948	2011-02-13 15:23:36	-86.94031	2011-02-13 16:12:58
521	80.71990	2011-02-13 17:02:20	-111.61989	2011-02-13 17:51:41
567	56.04032	2011-02-13 18:41:03	-136.29947	2011-02-13 19:30:24
613	31.36073	2011-02-13 20:19:46	-160.97906	2011-02-13 21:09:07
659	6.68115	2011-02-13 21:58:29	174.34136	2011-02-13 22:47:50
34	-17.99843	2011-02-13 23:37:12	149.66178	2011-02-14 00:26:33
