>ALOS Data Take Simulation(Feb. 10, 2011)

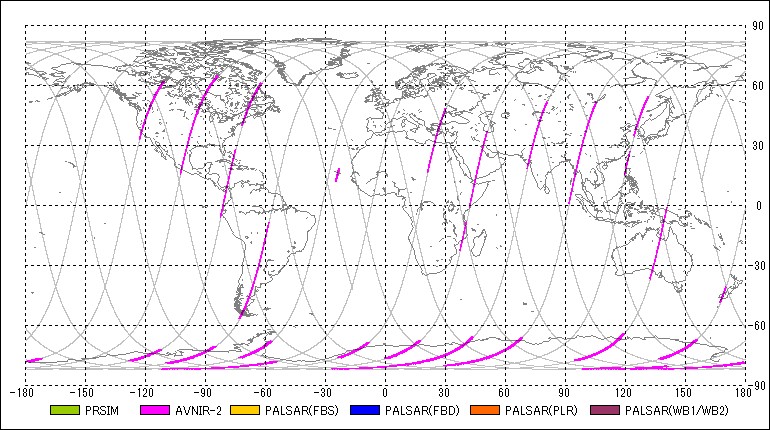

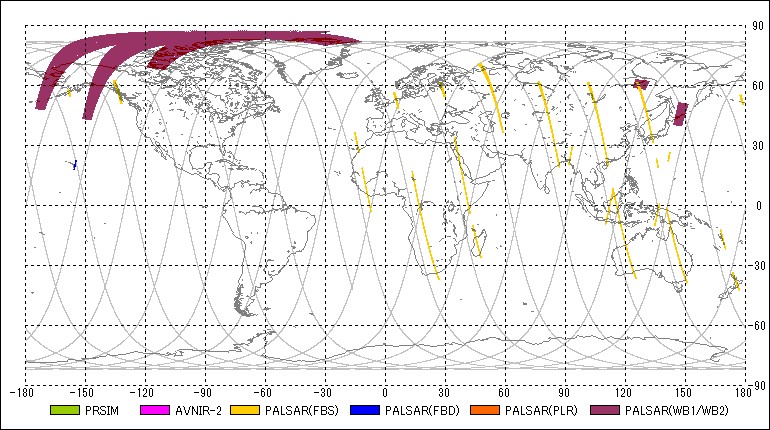

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2011-02-10 00:46:32	2011-02-10 00:50:12	00:03:40	50	127.58	50	140.95	27.10	80
2	PSR	FBS	2011-02-10 00:53:21	2011-02-10 00:55:13	00:01:52	50	152.43	50	159.24	34.30	7
3	PSM	OB2	2011-02-10 00:54:56	2011-02-10 00:56:52	00:01:56	50	158.21	50	165.26	0.00	-
4	PSR	FBS	2011-02-10 01:00:22	2011-02-10 01:04:04	00:03:42	50	178.02	50	191.51	34.30	7
5	AV2	OBS	2011-02-10 01:01:11	2011-02-10 01:11:07	00:09:56	50	180.94	50	217.16	0.00	-
6	PSM	OB2	2011-02-10 01:01:11	2011-02-10 01:11:19	00:10:08	50	181.00	50	217.95	0.00	-
7	PSM	OB1	2011-02-10 01:18:05	2011-02-10 01:26:45	00:08:40	50	242.63	50	274.23	-1.20	-
8	AV2	OBS	2011-02-10 01:18:47	2011-02-10 01:22:59	00:04:12	50	245.18	50	260.50	0.00	-
9	PSR	WB1	2011-02-10 02:22:03	2011-02-10 02:23:49	00:01:46	96	115.84	96	122.29	27.10	80
10	PSM	OB2	2011-02-10 02:24:17	2011-02-10 02:30:21	00:06:04	96	123.99	96	146.11	0.00	-
11	AV2	OBS	2011-02-10 02:24:32	2011-02-10 02:30:06	00:05:34	96	124.90	96	145.20	0.00	-
12	AV2	OBS	2011-02-10 02:32:10	2011-02-10 02:35:36	00:03:26	96	152.74	96	165.26	0.00	-
13	PSM	OB2	2011-02-10 02:32:14	2011-02-10 02:36:58	00:04:44	96	152.98	96	170.24	0.00	-
14	PSR	FBS	2011-02-10 02:37:25	2011-02-10 02:42:45	00:05:20	96	171.88	96	191.33	34.30	7
15	PSM	OB1	2011-02-10 02:56:45	2011-02-10 03:05:27	00:08:42	96	242.39	96	274.11	-1.20	-
16	AV2	OBS	2011-02-10 04:04:02	2011-02-10 04:18:06	00:14:04	142	127.76	142	179.05	0.00	-
17	PSM	OB2	2011-02-10 04:04:02	2011-02-10 04:08:22	00:04:20	142	127.76	142	143.56	0.00	-
18	PSR	FBS	2011-02-10 04:09:53	2011-02-10 04:13:11	00:03:18	142	149.09	142	161.13	34.30	7
19	PSM	OB1	2011-02-10 04:36:01	2011-02-10 04:44:09	00:08:08	142	244.45	142	274.11	-1.20	-
20	AV2	OBS	2011-02-10 04:36:46	2011-02-10 04:41:34	00:04:48	142	247.19	142	264.69	0.00	-
21	PSM	OB1	2011-02-10 05:42:00	2011-02-10 05:52:50	00:10:50	188	125.02	188	164.53	-1.20	-
22	AV2	OBS	2011-02-10 05:42:44	2011-02-10 05:51:58	00:09:14	188	127.76	188	161.43	0.00	-
23	PSM	OB1	2011-02-10 06:14:41	2011-02-10 06:22:55	00:08:14	188	244.21	188	274.23	-1.20	-
24	AV2	OBS	2011-02-10 06:15:27	2011-02-10 06:21:43	00:06:16	188	247.01	188	269.86	0.00	-
25	PSR	FBS	2011-02-10 06:59:48	2011-02-10 07:03:42	00:03:54	234	48.74	234	62.97	34.30	7
26	PSM	OB1	2011-02-10 07:24:23	2011-02-10 07:36:33	00:12:10	234	138.39	234	182.76	-1.20	-
27	AV2	OBS	2011-02-10 07:25:31	2011-02-10 07:36:07	00:10:36	234	142.59	234	181.24	0.00	-
28	AV2	OBS	2011-02-10 07:38:01	2011-02-10 07:41:59	00:03:58	234	188.17	234	202.64	0.00	-
29	AV2	OBS	2011-02-10 07:54:42	2011-02-10 07:57:32	00:02:50	234	248.95	234	259.28	0.00	-
30	PSR	FBS	2011-02-10 08:39:34	2011-02-10 08:41:06	00:01:32	280	52.57	280	58.17	34.30	7
31	AV2	OBS	2011-02-10 09:01:01	2011-02-10 09:09:56	00:08:55	280	130.86	280	163.37	0.00	-
32	PSM	OB1	2011-02-10 09:01:52	2011-02-10 09:18:22	00:16:30	280	133.90	280	194.07	-1.20	-
33	AV2	OBS	2011-02-10 09:33:42	2011-02-10 09:36:06	00:02:24	280	249.98	280	258.74	0.00	-
34	PSM	OB1	2011-02-10 09:37:34	2011-02-10 09:40:20	00:02:46	280	264.08	280	274.17	-1.20	-
35	PSR	FBS	2011-02-10 10:17:08	2011-02-10 10:19:06	00:01:58	326	48.38	326	55.55	34.30	7
36	PSM	OB1	2011-02-10 10:47:20	2011-02-10 10:53:08	00:05:48	326	158.51	326	179.66	-1.20	-
37	PSM	OB1	2011-02-10 11:13:41	2011-02-10 11:19:01	00:05:20	326	254.60	326	274.05	-1.20	-
38	AV2	OBS	2011-02-10 11:15:27	2011-02-10 11:18:17	00:02:50	326	261.05	326	271.38	0.00	-
39	PSR	FBS	2011-02-10 11:30:07	2011-02-10 11:33:15	00:03:08	326	314.53	326	325.96	34.30	7
40	PSR	FBS	2011-02-10 11:35:51	2011-02-10 11:39:13	00:03:22	326	335.44	326	347.72	34.30	7
41	AV2	OBS	2011-02-10 12:26:36	2011-02-10 12:28:28	00:01:52	372	160.52	372	167.32	34.30	-
42	PSM	OB1	2011-02-10 12:50:09	2011-02-10 12:57:47	00:07:38	372	246.40	372	274.23	-1.20	-
43	AV2	OBS	2011-02-10 12:50:55	2011-02-10 12:53:33	00:02:38	372	249.19	372	258.80	0.00	-
44	PSR	FBS	2011-02-10 13:09:49	2011-02-10 13:21:03	00:11:14	372	318.12	372	359.08	34.30	7
45	PSR	FBS	2011-02-10 13:25:50	2011-02-10 13:27:42	00:01:52	418	16.53	418	23.34	34.30	7
46	PSR	FBS	2011-02-10 13:29:20	2011-02-10 13:38:18	00:08:58	418	29.30	418	61.99	34.30	7
47	AV2	OBS	2011-02-10 14:13:02	2011-02-10 14:26:26	00:13:24	418	188.66	418	237.52	0.00	-
48	PSM	OB1	2011-02-10 14:29:44	2011-02-10 14:36:28	00:06:44	418	249.56	418	274.11	-1.20	-
49	AV2	OBS	2011-02-10 14:30:27	2011-02-10 14:33:17	00:02:50	418	252.17	418	262.50	0.00	-
50	PSR	FBS	2011-02-10 14:49:13	2011-02-10 15:02:19	00:13:06	418	320.61	464	8.39	34.30	7
51	PSR	FBS	2011-02-10 15:04:47	2011-02-10 15:17:03	00:12:16	464	17.38	464	62.12	34.30	7
52	PSM	OB1	2011-02-10 15:31:36	2011-02-10 15:39:10	00:07:34	464	115.18	464	142.77	-1.20	-
53	AV2	OBS	2011-02-10 15:32:21	2011-02-10 15:38:23	00:06:02	464	117.91	464	139.91	0.00	-
54	AV2	OBS	2011-02-10 15:41:37	2011-02-10 15:51:01	00:09:24	464	151.70	464	185.98	0.00	-
55	PSM	OB1	2011-02-10 16:08:53	2011-02-10 16:15:11	00:06:18	464	251.14	464	274.11	-1.20	-
56	AV2	OBS	2011-02-10 16:09:40	2011-02-10 16:11:32	00:01:52	464	254.00	464	260.80	0.00	-
57	PSR	FBS	2011-02-10 16:43:14	2011-02-10 16:55:48	00:12:34	510	16.41	510	62.24	34.30	7
58	AV2	OBS	2011-02-10 17:10:03	2011-02-10 17:23:49	00:13:46	510	114.14	510	164.35	0.00	-
59	PSR	FBS	2011-02-10 18:26:49	2011-02-10 18:37:03	00:10:14	556	34.16	556	71.48	34.30	7
60	PSR	WB1	2011-02-10 18:42:09	2011-02-10 18:48:09	00:06:00	556	90.07	556	111.95	27.10	80
61	PSM	OB1	2011-02-10 18:48:53	2011-02-10 18:57:51	00:08:58	556	114.63	556	147.33	-1.20	-
62	AV2	OBS	2011-02-10 18:49:38	2011-02-10 18:57:46	00:08:08	556	117.30	556	146.96	0.00	-
63	PSM	OB1	2011-02-10 19:27:46	2011-02-10 19:32:38	00:04:52	556	256.43	556	274.17	-1.20	-
64	AV2	OBS	2011-02-10 19:28:29	2011-02-10 19:32:35	00:04:06	556	259.04	556	273.99	0.00	-
65	PSR	FBS	2011-02-10 19:48:15	2011-02-10 19:53:27	00:05:12	556	331.12	556	350.09	34.30	7
66	PSR	FBS	2011-02-10 19:54:21	2011-02-10 20:05:33	00:11:12	556	353.37	602	34.22	34.30	7
67	PSR	FBS	2011-02-10 20:10:34	2011-02-10 20:13:08	00:02:34	602	52.51	602	61.87	34.30	7
68	PSR	WB1	2011-02-10 20:19:57	2011-02-10 20:34:01	00:14:04	602	86.67	602	137.97	27.10	80
69	PSR	FBD	2011-02-10 20:39:04	2011-02-10 20:41:04	00:02:00	602	156.45	602	163.74	34.30	43
70	PSM	OB1	2011-02-10 21:05:36	2011-02-10 21:11:22	00:05:46	602	253.14	602	274.17	-1.20	-
71	AV2	OBS	2011-02-10 21:08:49	2011-02-10 21:10:39	00:01:50	602	264.94	602	271.62	0.00	-
72	PSR	FBS	2011-02-10 21:23:56	2011-02-10 21:39:34	00:15:38	602	320.06	648	17.08	34.30	7
73	PSR	FBS	2011-02-10 21:47:39	2011-02-10 21:50:31	00:02:52	648	46.56	648	57.01	34.30	7
74	PSR	WB1	2011-02-10 21:56:56	2011-02-10 22:11:19	00:14:23	648	80.35	648	132.80	27.10	80
75	PSM	OB1	2011-02-10 22:34:52	2011-02-10 22:38:26	00:03:34	648	218.68	648	231.69	-1.20	-
76	AV2	OBS	2011-02-10 22:35:32	2011-02-10 22:37:40	00:02:08	648	221.11	648	228.89	0.00	-
77	PSM	OB1	2011-02-10 22:42:13	2011-02-10 22:50:03	00:07:50	648	245.49	648	274.05	-1.20	-
78	AV2	OBS	2011-02-10 22:43:00	2011-02-10 22:46:04	00:03:04	648	248.34	648	259.53	0.00	-
79	PSR	FBS	2011-02-10 23:12:02	2011-02-10 23:18:44	00:06:42	648	354.22	23	18.66	34.30	7
80	PSR	FBS	2011-02-10 23:20:12	2011-02-10 23:23:36	00:03:24	23	24.01	23	36.41	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
4	-1.90305	2011-02-09 22:32:49	165.75716	2011-02-09 23:22:11
50	-26.58263	2011-02-10 00:11:32	141.07758	2011-02-10 01:00:54
96	-51.26222	2011-02-10 01:50:15	116.39799	2011-02-10 02:39:37
142	-75.94180	2011-02-10 03:28:58	91.71841	2011-02-10 04:18:20
188	-100.62138	2011-02-10 05:07:41	67.03883	2011-02-10 05:57:03
234	-125.30096	2011-02-10 06:46:25	42.35924	2011-02-10 07:35:46
280	-149.98055	2011-02-10 08:25:08	17.67966	2011-02-10 09:14:29
326	-174.66013	2011-02-10 10:03:51	-6.99992	2011-02-10 10:53:12
372	160.66029	2011-02-10 11:42:34	-31.67950	2011-02-10 12:31:55
418	135.98070	2011-02-10 13:21:17	-56.35909	2011-02-10 14:10:39
464	111.30112	2011-02-10 15:00:00	-81.03867	2011-02-10 15:49:22
510	86.62154	2011-02-10 16:38:43	-105.71825	2011-02-10 17:28:05
556	61.94196	2011-02-10 18:17:26	-130.39783	2011-02-10 19:06:48
602	37.26237	2011-02-10 19:56:09	-155.07742	2011-02-10 20:45:31
648	12.58279	2011-02-10 21:34:52	-179.75700	2011-02-10 22:24:14
23	-12.09679	2011-02-10 23:13:36	155.56342	2011-02-11 00:02:57
