>ALOS Data Take Simulation(Feb. 01, 2011)

Observation Area

PRISM

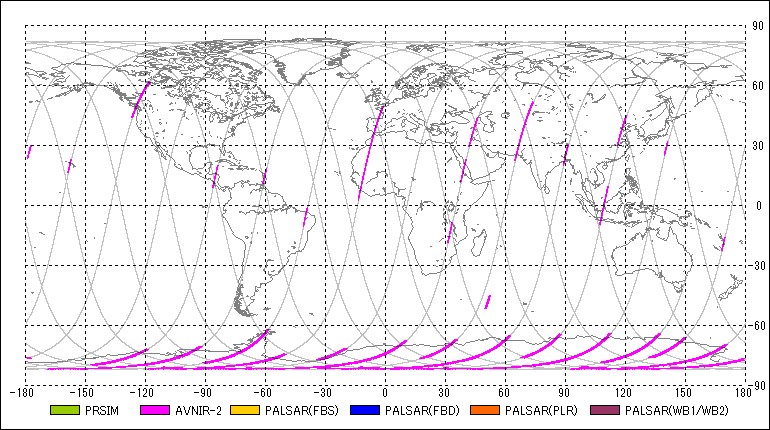

AVNIR-2

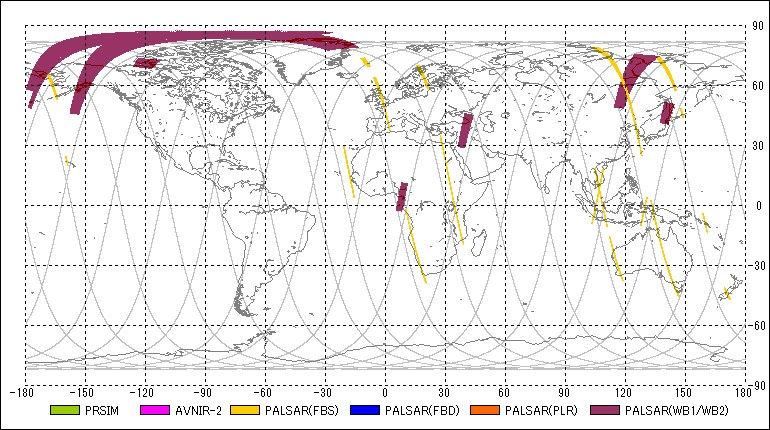

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB1	2011-02-01 00:07:08	2011-02-01 00:12:30	00:05:22	17	242.14	17	261.71	-1.20	-
2	AV2	OBS	2011-02-01 00:07:55	2011-02-01 00:12:33	00:04:38	17	245.00	17	261.90	0.00	-
3	PSR	WB1	2011-02-01 01:14:26	2011-02-01 01:17:54	00:03:28	63	127.58	63	140.22	27.10	80
4	PSM	OB1	2011-02-01 01:15:15	2011-02-01 01:21:55	00:06:40	63	130.55	63	154.86	-1.20	-
5	AV2	OBS	2011-02-01 01:20:04	2011-02-01 01:21:56	00:01:52	63	148.12	63	154.93	0.00	-
6	PSR	FBS	2011-02-01 01:27:30	2011-02-01 01:31:58	00:04:28	63	175.23	63	191.51	34.30	7
7	PSM	OB2	2011-02-01 01:28:19	2011-02-01 01:38:57	00:10:38	63	178.20	63	216.98	0.00	-
8	AV2	OBS	2011-02-01 01:46:37	2011-02-01 01:53:51	00:07:14	63	244.94	63	271.32	0.00	-
9	PSM	OB1	2011-02-01 01:47:52	2011-02-01 01:52:12	00:04:20	63	249.50	63	265.30	-1.20	-
10	PSR	WB1	2011-02-01 02:46:21	2011-02-01 02:54:25	00:08:04	109	102.72	109	132.13	27.10	80
11	PSM	OB2	2011-02-01 02:52:53	2011-02-01 03:01:39	00:08:46	109	126.60	109	158.57	0.00	-
12	AV2	OBS	2011-02-01 02:55:07	2011-02-01 02:59:17	00:04:10	109	134.75	109	149.94	0.00	-
13	PSR	FBS	2011-02-01 03:02:07	2011-02-01 03:10:25	00:08:18	109	160.27	109	190.54	34.30	7
14	AV2	OBS	2011-02-01 03:04:53	2011-02-01 03:10:11	00:05:18	109	170.36	109	189.69	0.00	-
15	PSM	OB2	2011-02-01 03:06:15	2011-02-01 03:10:59	00:04:44	109	175.35	109	192.61	0.00	-
16	PSM	OB1	2011-02-01 03:24:44	2011-02-01 03:29:52	00:05:08	109	242.75	109	261.47	-1.20	-
17	AV2	OBS	2011-02-01 03:25:27	2011-02-01 03:29:07	00:03:40	109	245.36	109	258.74	0.00	-
18	AV2	OBS	2011-02-01 03:31:28	2011-02-01 03:33:20	00:01:52	109	267.31	109	274.11	0.00	-
19	PSM	OB1	2011-02-01 04:31:12	2011-02-01 04:41:30	00:10:18	155	125.08	155	162.64	-1.20	-
20	AV2	OBS	2011-02-01 04:37:51	2011-02-01 04:40:43	00:02:52	155	149.33	155	159.79	0.00	-
21	AV2	OBS	2011-02-01 05:04:24	2011-02-01 05:11:56	00:07:32	155	246.22	155	273.69	0.00	-
22	AV2	OBS	2011-02-01 06:10:38	2011-02-01 06:18:46	00:08:08	201	127.76	201	157.42	0.00	-
23	AV2	OBS	2011-02-01 06:37:14	2011-02-01 06:39:06	00:01:52	201	224.76	201	231.57	21.50	-
24	AV2	OBS	2011-02-01 06:43:40	2011-02-01 06:46:44	00:03:04	201	248.16	201	259.34	0.00	-
25	PSR	WB1	2011-02-01 07:50:52	2011-02-01 07:56:02	00:05:10	247	133.23	247	152.07	27.10	80
26	AV2	OBS	2011-02-01 07:51:30	2011-02-01 07:55:32	00:04:02	247	135.54	247	150.25	0.00	-
27	AV2	OBS	2011-02-01 07:57:25	2011-02-01 08:00:25	00:03:00	247	157.11	247	168.05	0.00	-
28	AV2	OBS	2011-02-01 08:06:01	2011-02-01 08:08:53	00:02:52	247	188.48	247	198.93	0.00	-
29	AV2	OBS	2011-02-01 08:22:35	2011-02-01 08:28:45	00:06:10	247	248.95	247	271.44	0.00	-
30	PSR	FBS	2011-02-01 08:57:59	2011-02-01 08:59:51	00:01:52	293	18.05	293	24.86	21.50	3
31	PSR	FBS	2011-02-01 09:06:58	2011-02-01 09:12:14	00:05:16	293	50.75	293	69.96	34.30	7
32	PSM	OB1	2011-02-01 09:36:31	2011-02-01 09:42:11	00:05:40	293	158.51	293	179.18	-1.20	-
33	PSR	WB1	2011-02-01 09:39:04	2011-02-01 09:43:32	00:04:28	293	167.81	293	184.10	27.10	80
34	PSM	OB1	2011-02-01 10:01:59	2011-02-01 10:04:45	00:02:46	293	251.38	293	261.47	-1.20	-
35	AV2	OBS	2011-02-01 10:02:28	2011-02-01 10:04:20	00:01:52	293	253.14	293	259.95	0.00	-
36	AV2	OBS	2011-02-01 10:06:19	2011-02-01 10:08:11	00:01:52	293	267.25	293	274.05	0.00	-
37	AV2	OBS	2011-02-01 11:07:24	2011-02-01 11:20:24	00:13:00	339	130.01	339	177.41	0.00	-
38	PSM	OB1	2011-02-01 11:15:14	2011-02-01 11:20:10	00:04:56	339	158.51	339	176.50	-1.20	-
39	AV2	OBS	2011-02-01 11:42:07	2011-02-01 11:46:11	00:04:04	339	256.55	339	271.38	0.00	-
40	PSR	FBS	2011-02-01 11:56:39	2011-02-01 11:59:01	00:02:22	339	309.55	339	318.18	34.30	7
41	PSR	FBS	2011-02-01 12:06:05	2011-02-01 12:09:21	00:03:16	339	343.95	339	355.86	34.30	7
42	PSR	FBS	2011-02-01 12:21:53	2011-02-01 12:23:53	00:02:00	385	41.57	385	48.87	34.30	7
43	PSR	FBS	2011-02-01 12:25:43	2011-02-01 12:30:57	00:05:14	385	55.55	385	74.64	34.30	7
44	PSM	OB1	2011-02-01 12:59:26	2011-02-01 13:04:02	00:04:36	385	178.51	385	195.28	-1.20	-
45	AV2	OBS	2011-02-01 13:00:12	2011-02-01 13:02:46	00:02:34	385	181.30	385	190.66	0.00	-
46	PSM	OB1	2011-02-01 13:16:18	2011-02-01 13:22:26	00:06:08	385	240.02	385	262.38	-1.20	-
47	AV2	OBS	2011-02-01 13:17:04	2011-02-01 13:22:26	00:05:22	385	242.81	385	262.38	0.00	-
48	PSR	FBS	2011-02-01 13:35:47	2011-02-01 13:49:51	00:14:04	385	311.07	431	2.37	34.30	7
49	PSR	FBS	2011-02-01 13:55:23	2011-02-01 14:11:13	00:15:50	431	22.55	431	80.29	34.30	7
50	PSM	OB1	2011-02-01 14:32:40	2011-02-01 14:36:20	00:03:40	431	158.51	431	171.88	-1.20	-
51	AV2	OBS	2011-02-01 14:33:26	2011-02-01 14:35:34	00:02:08	431	161.31	431	169.09	0.00	-
52	PSM	OB1	2011-02-01 14:57:32	2011-02-01 15:00:56	00:03:24	431	249.19	431	261.59	-1.20	-
53	AV2	OBS	2011-02-01 14:58:18	2011-02-01 15:03:38	00:05:20	431	251.99	431	271.44	0.00	-
54	PSR	FBS	2011-02-01 15:16:44	2011-02-01 15:23:36	00:06:52	431	319.21	431	344.25	34.30	7
55	PSR	FBS	2011-02-01 15:24:21	2011-02-01 15:33:03	00:08:42	431	346.99	477	18.72	34.30	7
56	AV2	OBS	2011-02-01 16:11:46	2011-02-01 16:14:50	00:03:04	477	159.91	477	171.09	0.00	-
57	PSM	OB1	2011-02-01 16:36:44	2011-02-01 16:39:38	00:02:54	477	250.96	477	261.53	-1.20	-
58	AV2	OBS	2011-02-01 16:37:27	2011-02-01 16:40:17	00:02:50	477	253.57	477	263.90	0.00	-
59	PSM	OB1	2011-02-01 17:38:07	2011-02-01 17:51:09	00:13:02	523	114.75	523	162.28	-1.20	-
60	PSR	WB1	2011-02-01 19:14:04	2011-02-01 19:16:00	00:01:56	569	104.66	569	111.71	27.10	80
61	PSM	OB1	2011-02-01 19:16:47	2011-02-01 19:23:01	00:06:14	569	114.57	569	137.30	-1.20	-
62	AV2	OBS	2011-02-01 19:17:33	2011-02-01 19:22:37	00:05:04	569	117.36	569	135.84	0.00	-
63	PSM	OB1	2011-02-01 19:55:34	2011-02-01 20:00:36	00:05:02	569	256.00	569	274.36	-1.20	-
64	AV2	OBS	2011-02-01 19:56:16	2011-02-01 20:00:38	00:04:22	569	258.55	569	274.48	0.00	-
65	PSR	FBS	2011-02-01 20:17:58	2011-02-01 20:33:36	00:15:38	569	337.75	615	34.77	34.30	7
66	PSR	FBS	2011-02-01 20:39:31	2011-02-01 20:43:25	00:03:54	615	56.34	615	70.56	34.30	7
67	PSR	WB1	2011-02-01 20:47:40	2011-02-01 21:01:09	00:13:29	615	86.06	615	135.23	27.10	80
68	PSM	OB1	2011-02-01 21:06:17	2011-02-01 21:08:53	00:02:36	615	153.95	615	163.43	-1.20	-
69	AV2	OBS	2011-02-01 21:07:03	2011-02-01 21:08:55	00:01:52	615	156.75	615	163.56	0.00	-
70	PSM	OB1	2011-02-01 21:32:11	2011-02-01 21:35:47	00:03:36	615	248.34	615	261.47	-1.20	-
71	AV2	OBS	2011-02-01 21:32:57	2011-02-01 21:38:29	00:05:32	615	251.20	615	271.38	0.00	-
72	PSR	FBS	2011-02-01 21:51:14	2011-02-01 22:02:12	00:10:58	615	317.87	615	357.87	34.30	7
73	PSR	FBS	2011-02-01 22:12:24	2011-02-01 22:20:28	00:08:04	661	35.01	661	64.43	34.30	7
74	PSR	FBS	2011-02-01 22:21:22	2011-02-01 22:23:14	00:01:52	661	67.77	661	74.58	34.30	7
75	PSR	WB1	2011-02-01 22:24:02	2011-02-01 22:38:59	00:14:57	661	77.43	661	131.95	27.10	80
76	AV2	OBS	2011-02-01 22:43:41	2011-02-01 22:45:33	00:01:52	661	149.15	661	155.96	21.50	-
77	PSM	OB1	2011-02-01 22:55:48	2011-02-01 22:58:36	00:02:48	661	193.34	661	203.55	-1.20	-
78	AV2	OBS	2011-02-01 22:56:34	2011-02-01 22:58:26	00:01:52	661	196.13	661	202.94	0.00	-
79	PSM	OB1	2011-02-01 23:09:47	2011-02-01 23:14:29	00:04:42	661	244.33	661	261.47	-1.20	-
80	AV2	OBS	2011-02-01 23:10:34	2011-02-01 23:13:44	00:03:10	661	247.19	661	258.74	0.00	-
81	PSR	FBS	2011-02-01 23:41:54	2011-02-01 23:49:38	00:07:44	36	1.40	36	29.60	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
17	-8.87772	2011-01-31 23:00:43	158.78249	2011-01-31 23:50:05
63	-33.55730	2011-02-01 00:39:26	134.10291	2011-02-01 01:28:48
109	-58.23688	2011-02-01 02:18:09	109.42333	2011-02-01 03:07:31
155	-82.91646	2011-02-01 03:56:52	84.74375	2011-02-01 04:46:14
201	-107.59605	2011-02-01 05:35:35	60.06416	2011-02-01 06:24:57
247	-132.27563	2011-02-01 07:14:18	35.38458	2011-02-01 08:03:40
293	-156.95521	2011-02-01 08:53:02	10.70500	2011-02-01 09:42:23
339	178.36521	2011-02-01 10:31:45	-13.97459	2011-02-01 11:21:06
385	153.68562	2011-02-01 12:10:28	-38.65417	2011-02-01 12:59:49
431	129.00604	2011-02-01 13:49:11	-63.33375	2011-02-01 14:38:32
477	104.32646	2011-02-01 15:27:54	-88.01333	2011-02-01 16:17:16
523	79.64687	2011-02-01 17:06:37	-112.69292	2011-02-01 17:55:59
569	54.96729	2011-02-01 18:45:20	-137.37250	2011-02-01 19:34:42
615	30.28771	2011-02-01 20:24:03	-162.05208	2011-02-01 21:13:25
661	5.60813	2011-02-01 22:02:46	173.26834	2011-02-01 22:52:08
36	-19.07146	2011-02-01 23:41:29	148.58875	2011-02-02 00:30:51
