>ALOS Data Take Simulation(Jan. 05, 2011)

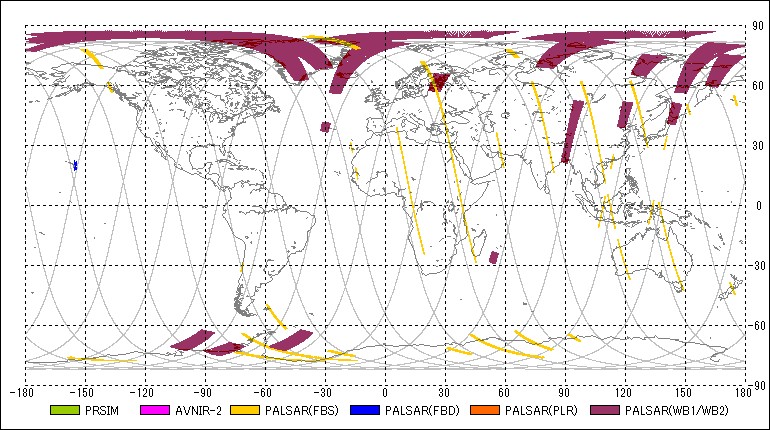

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2011-01-05 00:41:08	2011-01-05 00:58:35	00:17:27	56	60.90	56	124.54	27.10	80
2	PSR	WB1	2011-01-05 00:59:25	2011-01-05 01:02:59	00:03:34	56	127.58	56	140.58	27.10	80
3	PSR	FBS	2011-01-05 01:04:03	2011-01-05 01:06:29	00:02:26	56	144.47	56	153.35	34.30	7
4	AV2	OBS	2011-01-05 01:06:35	2011-01-05 01:08:27	00:01:52	56	153.71	56	160.52	-13.92	-
5	PSM	OB2	2011-01-05 01:10:26	2011-01-05 01:23:50	00:13:24	56	167.75	56	216.62	0.00	-
6	PSR	FBS	2011-01-05 01:12:52	2011-01-05 01:16:54	00:04:02	56	176.62	56	191.33	34.30	7
7	AV2	OBS	2011-01-05 01:13:43	2011-01-05 01:25:11	00:11:28	56	179.72	56	221.54	0.00	-
8	PSR	WB1	2011-01-05 02:31:21	2011-01-05 02:34:51	00:03:30	102	102.84	102	115.60	27.10	80
9	AV2	OBS	2011-01-05 02:37:25	2011-01-05 02:46:17	00:08:52	102	124.96	102	157.30	0.00	-
10	PSM	OB2	2011-01-05 02:37:28	2011-01-05 02:47:04	00:09:36	102	125.14	102	160.15	0.00	-
11	PSR	WB1	2011-01-05 02:37:56	2011-01-05 02:42:08	00:04:12	102	126.85	102	142.16	27.10	80
12	PSR	FBS	2011-01-05 02:45:17	2011-01-05 02:47:47	00:02:30	102	153.65	102	162.77	34.30	7
13	AV2	OBS	2011-01-05 02:50:02	2011-01-05 02:56:08	00:06:06	102	170.97	102	193.22	0.00	-
14	PSM	OB2	2011-01-05 02:50:08	2011-01-05 02:56:14	00:06:06	102	171.34	102	193.58	0.00	-
15	PSR	FBS	2011-01-05 02:50:59	2011-01-05 02:55:59	00:05:00	102	174.44	102	192.67	34.30	7
16	PSR	FBS	2011-01-05 03:18:51	2011-01-05 03:20:43	00:01:52	102	276.06	102	282.87	34.30	7
17	PSR	FBS	2011-01-05 03:23:41	2011-01-05 03:27:57	00:04:16	102	293.68	102	309.24	34.30	7
18	PSR	WB1	2011-01-05 04:16:33	2011-01-05 04:25:41	00:09:08	148	126.48	148	159.79	27.10	80
19	AV2	OBS	2011-01-05 04:16:54	2011-01-05 04:25:24	00:08:30	148	127.76	148	158.75	0.00	-
20	PSM	OB2	2011-01-05 04:16:54	2011-01-05 04:24:34	00:07:40	148	127.76	148	155.72	0.00	-
21	PSR	FBS	2011-01-05 04:55:50	2011-01-05 05:02:24	00:06:34	148	269.68	148	293.62	34.30	7
22	PSR	WB1	2011-01-05 05:46:22	2011-01-05 05:51:10	00:04:48	194	93.96	194	111.47	27.10	80
23	PSM	OB1	2011-01-05 05:54:51	2011-01-05 06:04:53	00:10:02	194	124.96	194	161.55	1.20	-
24	AV2	OBS	2011-01-05 05:55:37	2011-01-05 06:04:07	00:08:30	194	127.70	194	158.69	0.00	-
25	PSR	WB1	2011-01-05 06:16:10	2011-01-05 06:18:18	00:02:08	194	202.64	194	210.42	27.10	80
26	PSM	OB1	2011-01-05 06:21:34	2011-01-05 06:24:10	00:02:36	194	222.39	194	231.87	1.20	-
27	AV2	OBS	2011-01-05 06:22:19	2011-01-05 06:24:11	00:01:52	194	225.13	194	231.93	0.00	-
28	PSR	FBS	2011-01-05 06:34:01	2011-01-05 06:37:51	00:03:50	194	267.79	194	281.77	34.30	7
29	PSR	FBS	2011-01-05 07:14:13	2011-01-05 07:16:19	00:02:06	240	54.40	240	62.06	34.30	7
30	PSR	FBS	2011-01-05 07:17:33	2011-01-05 07:20:59	00:03:26	240	66.55	240	79.07	34.30	7
31	PSR	WB1	2011-01-05 07:23:05	2011-01-05 07:25:53	00:02:48	240	86.73	240	96.94	27.10	80
32	PSM	OB1	2011-01-05 07:36:04	2011-01-05 07:57:40	00:21:36	240	134.08	240	212.85	1.20	-
33	AV2	OBS	2011-01-05 07:36:42	2011-01-05 07:55:24	00:18:42	240	136.33	240	204.52	0.00	-
34	PSR	FBD	2011-01-05 08:42:22	2011-01-05 08:44:14	00:01:52	286	15.80	286	22.61	21.50	39
35	PSR	WB1	2011-01-05 09:08:53	2011-01-05 09:11:55	00:03:02	286	112.50	286	123.56	27.10	80
36	PSM	OB1	2011-01-05 09:17:03	2011-01-05 09:31:05	00:14:02	286	142.34	286	193.52	1.20	-
37	AV2	OBS	2011-01-05 09:17:49	2011-01-05 09:30:19	00:12:30	286	145.14	286	190.72	0.00	-
38	PSR	FBS	2011-01-05 10:29:54	2011-01-05 10:31:56	00:02:02	332	48.02	332	55.43	34.30	7
39	PSM	OB1	2011-01-05 10:51:20	2011-01-05 10:53:56	00:02:36	332	126.18	332	135.66	1.20	-
40	AV2	OBS	2011-01-05 10:52:03	2011-01-05 10:53:55	00:01:52	332	128.79	332	135.60	0.00	-
41	AV2	OBS	2011-01-05 10:55:37	2011-01-05 10:58:15	00:02:38	332	141.74	332	151.34	0.00	-
42	PSM	OB1	2011-01-05 10:56:35	2011-01-05 11:06:03	00:09:28	332	145.32	332	179.85	1.20	-
43	PSR	WB1	2011-01-05 11:23:37	2011-01-05 11:27:03	00:03:26	332	243.91	332	256.43	27.10	80
44	PSR	FBS	2011-01-05 11:42:21	2011-01-05 11:44:41	00:02:20	332	312.22	332	320.73	34.30	7
45	PSR	FBS	2011-01-05 12:07:21	2011-01-05 12:09:21	00:02:00	378	43.40	378	50.69	34.30	7
46	PSR	WB1	2011-01-05 12:21:33	2011-01-05 12:29:41	00:08:08	378	95.18	378	124.84	27.10	80
47	PSR	WB1	2011-01-05 12:33:09	2011-01-05 12:35:01	00:01:52	378	137.42	378	144.23	27.10	80
48	PSM	OB1	2011-01-05 12:44:54	2011-01-05 12:50:48	00:05:54	378	180.27	378	201.79	1.20	-
49	AV2	OBS	2011-01-05 12:45:41	2011-01-05 12:50:29	00:04:48	378	183.13	378	200.63	0.00	-
50	PSR	WB1	2011-01-05 13:04:24	2011-01-05 13:06:44	00:02:20	378	251.38	378	259.89	27.10	80
51	PSR	FBS	2011-01-05 13:08:39	2011-01-05 13:11:27	00:02:48	378	266.94	378	277.15	34.30	7
52	PSR	FBS	2011-01-05 13:21:37	2011-01-05 13:34:29	00:12:52	378	314.17	424	1.09	34.30	7
53	PSR	FBS	2011-01-05 13:41:28	2011-01-05 13:51:22	00:09:54	424	26.56	424	62.66	34.30	7
54	PSR	WB1	2011-01-05 13:57:58	2011-01-05 14:01:16	00:03:18	424	86.73	424	98.77	27.10	80
55	AV2	OBS	2011-01-05 14:03:06	2011-01-05 14:08:08	00:05:02	424	105.51	424	123.87	0.00	-
56	AV2	OBS	2011-01-05 14:22:59	2011-01-05 14:25:11	00:02:12	424	178.02	424	186.04	0.00	-
57	AV2	OBS	2011-01-05 14:29:39	2011-01-05 14:39:20	00:09:41	424	202.27	424	237.59	0.00	-
58	PSR	FBS	2011-01-05 14:31:16	2011-01-05 14:33:08	00:01:52	424	208.23	424	215.04	34.30	7
59	PSR	WB1	2011-01-05 14:41:03	2011-01-05 14:44:29	00:03:26	424	243.91	424	256.43	27.10	80
60	PSR	FBS	2011-01-05 15:01:52	2011-01-05 15:08:08	00:06:16	424	319.82	424	342.67	34.30	7
61	PSR	FBS	2011-01-05 15:09:02	2011-01-05 15:14:26	00:05:24	424	345.95	470	5.65	34.30	7
62	PSR	FBS	2011-01-05 15:15:14	2011-01-05 15:29:58	00:14:44	470	8.57	470	62.30	34.30	7
63	AV2	OBS	2011-01-05 15:44:51	2011-01-05 16:00:37	00:15:46	470	116.57	470	174.07	0.00	-
64	PSR	FBS	2011-01-05 16:55:31	2011-01-05 17:08:41	00:13:10	516	14.22	516	62.24	34.30	7
65	PSR	FBS	2011-01-05 17:11:27	2011-01-05 17:13:19	00:01:52	516	72.33	516	79.13	34.30	7
66	AV2	OBS	2011-01-05 17:19:30	2011-01-05 17:21:24	00:01:54	516	101.68	516	108.61	0.00	-
67	PSM	OB1	2011-01-05 17:23:01	2011-01-05 17:36:53	00:13:52	516	114.57	516	165.14	1.20	-
68	AV2	OBS	2011-01-05 17:23:47	2011-01-05 17:36:05	00:12:18	516	117.30	516	162.16	0.00	-
69	PSR	FBS	2011-01-05 18:10:14	2011-01-05 18:12:02	00:01:48	516	286.69	516	293.26	34.30	7
70	PSR	FBS	2011-01-05 18:34:53	2011-01-05 18:40:23	00:05:30	562	16.59	562	36.65	34.30	7
71	AV2	OBS	2011-01-05 18:57:02	2011-01-05 18:58:54	00:01:52	562	97.37	562	104.18	0.00	-
72	PSM	OB1	2011-01-05 19:01:45	2011-01-05 19:10:01	00:08:16	562	114.57	562	144.71	1.20	-
73	AV2	OBS	2011-01-05 19:02:31	2011-01-05 19:09:15	00:06:44	562	117.36	562	141.92	0.00	-
74	PSR	FBS	2011-01-05 19:47:22	2011-01-05 19:51:14	00:03:52	562	280.92	562	295.02	34.30	7
75	PSR	FBS	2011-01-05 20:00:28	2011-01-05 20:29:00	00:28:32	562	328.69	608	72.75	34.30	7
76	PSR	FBD	2011-01-05 20:51:57	2011-01-05 20:53:49	00:01:52	608	156.45	608	163.25	9.90	36
77	AV2	OBS	2011-01-05 20:57:15	2011-01-05 21:02:25	00:05:10	608	175.71	608	194.55	0.00	-
78	PSM	OB2	2011-01-05 21:00:32	2011-01-05 21:02:42	00:02:10	608	187.69	608	195.59	0.00	-
79	PSR	FBS	2011-01-05 21:24:17	2011-01-05 21:29:23	00:05:06	608	274.36	608	292.95	34.30	7
80	PSR	FBS	2011-01-05 21:40:19	2011-01-05 21:58:33	00:18:14	608	332.83	654	39.32	34.30	7
81	PSR	FBS	2011-01-05 22:08:52	2011-01-05 22:11:34	00:02:42	654	76.95	654	86.79	34.30	7
82	AV2	OBS	2011-01-05 22:36:50	2011-01-05 22:39:24	00:02:34	654	178.93	654	188.29	0.00	-
83	PSM	OB2	2011-01-05 22:36:50	2011-01-05 22:40:10	00:03:20	654	178.93	654	191.09	0.00	-
84	PSR	FBS	2011-01-05 23:03:57	2011-01-05 23:05:53	00:01:56	654	277.76	654	284.81	34.30	7
85	PSR	FBS	2011-01-05 23:29:26	2011-01-05 23:31:38	00:02:12	29	10.76	29	18.78	34.30	7
86	PSR	FBS	2011-01-05 23:33:07	2011-01-05 23:35:07	00:02:00	29	24.19	29	31.48	34.30	7
87	PSR	WB1	2011-01-05 23:44:50	2011-01-05 23:59:43	00:14:53	29	66.92	29	121.19	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
10	-5.12213	2011-01-04 22:45:42	162.53808	2011-01-04 23:35:03
56	-29.80171	2011-01-05 00:24:25	137.85850	2011-01-05 01:13:46
102	-54.48129	2011-01-05 02:03:08	113.17892	2011-01-05 02:52:29
148	-79.16087	2011-01-05 03:41:51	88.49933	2011-01-05 04:31:12
194	-103.84046	2011-01-05 05:20:34	63.81975	2011-01-05 06:09:56
240	-128.52004	2011-01-05 06:59:17	39.14017	2011-01-05 07:48:39
286	-153.19962	2011-01-05 08:38:00	14.46059	2011-01-05 09:27:22
332	-177.87921	2011-01-05 10:16:43	-10.21900	2011-01-05 11:06:05
378	157.44121	2011-01-05 11:55:26	-34.89858	2011-01-05 12:44:48
424	132.76163	2011-01-05 13:34:10	-59.57816	2011-01-05 14:23:31
470	108.08205	2011-01-05 15:12:53	-84.25775	2011-01-05 16:02:14
516	83.40246	2011-01-05 16:51:36	-108.93733	2011-01-05 17:40:57
562	58.72288	2011-01-05 18:30:19	-133.61691	2011-01-05 19:19:40
608	34.04330	2011-01-05 20:09:02	-158.29649	2011-01-05 20:58:23
654	9.36372	2011-01-05 21:47:45	177.02392	2011-01-05 22:37:07
29	-15.31587	2011-01-05 23:26:28	152.34434	2011-01-06 00:15:50
