>ALOS Data Take Simulation(Jan. 06, 2011)

Observation Area

PRISM

AVNIR-2

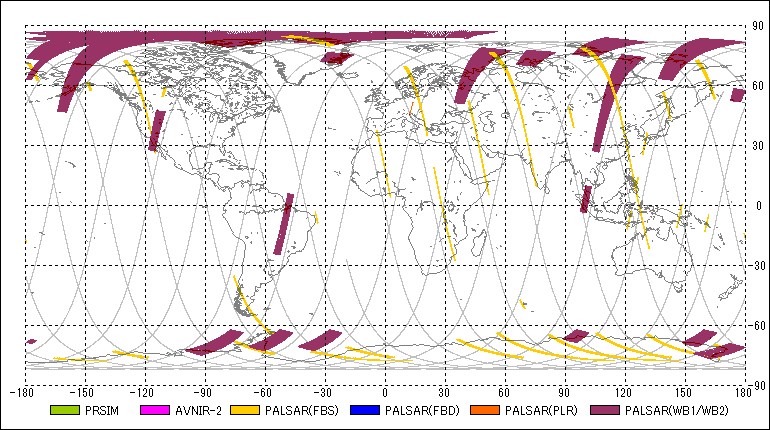

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB2	2011-01-06 00:12:57	2011-01-06 00:28:19	00:15:22	29	169.39	29	225.43	0.00	-
2	AV2	OBS	2011-01-06 00:13:56	2011-01-06 00:27:55	00:13:59	29	172.98	29	223.97	0.00	-
3	PSR	FBS	2011-01-06 00:15:28	2011-01-06 00:19:22	00:03:54	29	178.63	29	192.85	34.30	7
4	PSM	OB1	2011-01-06 00:36:02	2011-01-06 00:38:38	00:02:36	29	253.57	29	263.05	1.20	-
5	AV2	OBS	2011-01-06 00:36:47	2011-01-06 00:38:39	00:01:52	29	256.37	29	263.17	0.00	-
6	PSR	FBS	2011-01-06 01:02:05	2011-01-06 01:04:21	00:02:16	29	348.63	29	356.89	34.30	7
7	PSR	WB1	2011-01-06 01:26:57	2011-01-06 01:37:29	00:10:32	75	79.26	75	117.67	27.10	80
8	PSM	OB1	2011-01-06 01:38:20	2011-01-06 01:46:28	00:08:08	75	120.77	75	150.43	1.20	-
9	AV2	OBS	2011-01-06 01:43:39	2011-01-06 01:47:53	00:04:14	75	140.16	75	155.59	0.00	-
10	PSR	FBS	2011-01-06 01:44:19	2011-01-06 01:47:55	00:03:36	75	142.65	75	155.78	34.30	7
11	PSR	FBS	2011-01-06 01:50:29	2011-01-06 01:52:55	00:02:26	75	165.08	75	173.95	34.30	7
12	PSM	OB2	2011-01-06 01:53:22	2011-01-06 02:05:32	00:12:10	75	175.59	75	219.96	0.00	-
13	PSR	FBS	2011-01-06 01:55:09	2011-01-06 01:58:15	00:03:06	75	182.15	75	193.46	34.30	7
14	AV2	OBS	2011-01-06 01:58:09	2011-01-06 02:04:43	00:06:34	75	193.09	75	217.04	0.00	-
15	PSR	WB1	2011-01-06 02:12:05	2011-01-06 02:14:11	00:02:06	75	243.91	75	251.56	27.10	80
16	PSR	FBS	2011-01-06 02:20:30	2011-01-06 02:23:26	00:02:56	75	274.60	75	285.30	34.30	7
17	PSR	WB1	2011-01-06 03:12:12	2011-01-06 03:26:14	00:14:02	121	103.08	121	154.26	27.10	80
18	AV2	OBS	2011-01-06 03:18:58	2011-01-06 03:29:52	00:10:54	121	127.76	121	167.51	0.00	-
19	PSM	OB2	2011-01-06 03:21:45	2011-01-06 03:25:29	00:03:44	121	137.97	121	151.58	0.00	-
20	PSR	WB1	2011-01-06 03:30:20	2011-01-06 03:34:34	00:04:14	121	169.21	121	184.65	27.10	80
21	PSM	OB2	2011-01-06 03:31:27	2011-01-06 03:33:23	00:01:56	121	173.34	121	180.39	0.00	-
22	PSR	FBS	2011-01-06 03:57:07	2011-01-06 04:01:17	00:04:10	121	266.94	121	282.14	34.30	7
23	PSR	FBS	2011-01-06 04:03:16	2011-01-06 04:12:48	00:09:32	121	289.31	121	324.07	34.30	7
24	PSR	WB1	2011-01-06 04:48:25	2011-01-06 04:51:31	00:03:06	167	94.03	167	105.33	27.10	80
25	PSM	OB1	2011-01-06 04:56:56	2011-01-06 05:11:18	00:14:22	167	125.02	167	177.41	1.20	-
26	AV2	OBS	2011-01-06 04:57:40	2011-01-06 05:10:44	00:13:04	167	127.76	167	175.41	0.00	-
27	AV2	OBS	2011-01-06 05:21:46	2011-01-06 05:23:38	00:01:52	167	215.58	167	222.39	41.50	-
28	AV2	OBS	2011-01-06 05:32:44	2011-01-06 05:34:36	00:01:52	167	255.58	167	262.38	0.00	-
29	PSR	FBS	2011-01-06 05:38:47	2011-01-06 05:41:53	00:03:06	167	277.64	167	288.94	34.30	7
30	PSR	FBS	2011-01-06 06:07:53	2011-01-06 06:21:25	00:13:32	213	23.76	213	73.12	34.30	7
31	PSR	WB1	2011-01-06 06:28:56	2011-01-06 06:31:38	00:02:42	213	100.53	213	110.37	27.10	80
32	PSM	OB1	2011-01-06 06:35:39	2011-01-06 06:46:41	00:11:02	213	125.02	213	165.26	1.20	-
33	AV2	OBS	2011-01-06 06:36:23	2011-01-06 06:45:55	00:09:32	213	127.70	213	162.46	0.00	-
34	PSM	OB1	2011-01-06 06:53:22	2011-01-06 06:56:46	00:03:24	213	189.63	213	202.03	1.20	-
35	AV2	OBS	2011-01-06 06:54:03	2011-01-06 06:56:49	00:02:46	213	192.12	213	202.21	0.00	-
36	PSR	FBS	2011-01-06 07:55:16	2011-01-06 07:57:08	00:01:52	259	55.37	259	62.18	34.30	7
37	PSR	WB1	2011-01-06 08:07:20	2011-01-06 08:15:40	00:08:20	259	99.37	259	129.76	27.10	80
38	PSM	OB1	2011-01-06 08:16:07	2011-01-06 08:40:13	00:24:06	259	131.40	259	219.29	1.20	-
39	AV2	OBS	2011-01-06 08:16:51	2011-01-06 08:32:33	00:15:42	259	134.08	259	191.33	0.00	-
40	PSR	FBS	2011-01-06 09:35:24	2011-01-06 09:38:26	00:03:02	305	60.54	305	71.60	34.30	7
41	PSR	PLR	2011-01-06 09:53:32	2011-01-06 09:55:58	00:02:26	305	126.66	305	135.54	23.10	128
42	PSM	OB1	2011-01-06 09:57:44	2011-01-06 10:07:58	00:10:14	305	141.98	305	179.30	1.20	-
43	AV2	OBS	2011-01-06 09:58:20	2011-01-06 10:07:12	00:08:52	305	144.17	305	176.50	0.00	-
44	PSR	WB1	2011-01-06 10:25:40	2011-01-06 10:29:06	00:03:26	305	243.91	305	256.43	27.10	80
45	PSR	FBS	2011-01-06 10:34:03	2011-01-06 10:36:13	00:02:10	305	274.42	305	282.32	34.30	7
46	PSR	FBS	2011-01-06 10:51:46	2011-01-06 10:53:38	00:01:52	305	339.03	305	345.83	34.30	7
47	PSR	FBS	2011-01-06 11:11:33	2011-01-06 11:17:41	00:06:08	351	51.18	351	73.54	34.30	7
48	PSM	OB1	2011-01-06 11:38:08	2011-01-06 11:44:16	00:06:08	351	148.12	351	170.49	1.20	-
49	AV2	OBS	2011-01-06 11:38:50	2011-01-06 11:45:23	00:06:33	351	150.67	351	174.56	0.00	-
50	PSR	WB1	2011-01-06 12:04:24	2011-01-06 12:07:50	00:03:26	351	243.91	351	256.43	27.10	80
51	PSR	FBS	2011-01-06 12:47:33	2011-01-06 12:51:59	00:04:26	397	41.27	397	57.44	34.30	7
52	PSR	WB1	2011-01-06 13:04:10	2011-01-06 13:06:06	00:01:56	397	101.87	397	108.92	27.10	80
53	PSR	WB1	2011-01-06 13:23:47	2011-01-06 13:32:41	00:08:54	397	173.40	397	205.86	27.10	80
54	PSM	OB1	2011-01-06 13:28:13	2011-01-06 13:36:03	00:07:50	397	189.57	397	218.14	1.20	-
55	PSR	WB1	2011-01-06 13:43:07	2011-01-06 13:47:21	00:04:14	397	243.91	397	259.34	27.10	80
56	PSR	FBS	2011-01-06 13:49:39	2011-01-06 13:52:01	00:02:22	397	267.67	397	276.30	34.30	7
57	PSR	FBS	2011-01-06 13:52:57	2011-01-06 13:54:57	00:02:00	397	279.77	397	287.06	34.30	7
58	PSR	FBS	2011-01-06 14:08:18	2011-01-06 14:36:56	00:28:38	397	335.74	443	80.17	34.30	7
59	PSR	WB1	2011-01-06 14:38:44	2011-01-06 14:42:00	00:03:16	443	86.73	443	98.64	27.10	80
60	AV2	OBS	2011-01-06 14:43:05	2011-01-06 14:51:46	00:08:41	443	102.59	443	134.26	0.00	-
61	PSM	OB1	2011-01-06 14:48:24	2011-01-06 14:52:30	00:04:06	443	121.98	443	136.94	1.20	-
62	AV2	OBS	2011-01-06 14:58:12	2011-01-06 15:10:17	00:12:05	443	157.72	443	201.79	0.00	-
63	PSR	FBS	2011-01-06 15:30:12	2011-01-06 15:35:16	00:05:04	443	274.42	443	292.89	34.30	7
64	PSR	FBS	2011-01-06 16:03:43	2011-01-06 16:07:09	00:03:26	489	36.59	489	49.11	34.30	7
65	AV2	OBS	2011-01-06 16:24:58	2011-01-06 16:39:32	00:14:34	489	114.14	489	167.26	0.00	-
66	PSR	FBS	2011-01-06 17:08:55	2011-01-06 17:14:13	00:05:18	489	274.42	489	293.74	34.30	7
67	PSR	FBS	2011-01-06 17:34:15	2011-01-06 17:53:37	00:19:22	535	6.81	535	77.43	34.30	7
68	PSR	WB1	2011-01-06 17:56:53	2011-01-06 17:58:45	00:01:52	535	89.28	535	96.09	27.10	80
69	AV2	OBS	2011-01-06 17:59:44	2011-01-06 18:01:36	00:01:52	535	99.74	535	106.55	0.00	-
70	PSR	FBS	2011-01-06 18:05:15	2011-01-06 18:07:07	00:01:52	535	119.86	535	126.66	34.30	7
71	PSM	OB1	2011-01-06 18:08:02	2011-01-06 18:15:52	00:07:50	535	129.95	535	158.51	1.20	-
72	PSR	WB1	2011-01-06 18:08:28	2011-01-06 18:14:34	00:06:06	535	131.53	535	153.77	27.10	80
73	PSR	FBS	2011-01-06 18:45:48	2011-01-06 18:52:40	00:06:52	535	267.73	535	292.77	34.30	7
74	PSR	FBS	2011-01-06 18:56:00	2011-01-06 18:57:52	00:01:52	535	304.93	535	311.74	34.30	7
75	PSR	FBS	2011-01-06 19:11:58	2011-01-06 19:25:30	00:13:32	581	3.16	581	52.51	34.30	7
76	PSM	OB1	2011-01-06 19:42:33	2011-01-06 19:47:09	00:04:36	581	114.63	581	131.40	1.20	-
77	AV2	OBS	2011-01-06 19:43:17	2011-01-06 19:47:11	00:03:54	581	117.30	581	131.53	0.00	-
78	PSR	WB1	2011-01-06 20:19:12	2011-01-06 20:22:56	00:03:44	581	248.28	581	261.90	27.10	80
79	PSR	FBS	2011-01-06 20:25:00	2011-01-06 20:31:42	00:06:42	581	269.49	581	293.93	34.30	7
80	PSR	FBS	2011-01-06 20:41:28	2011-01-06 20:54:58	00:13:30	581	329.54	627	18.78	34.30	7
81	PSR	FBS	2011-01-06 20:58:46	2011-01-06 21:09:08	00:10:22	627	32.58	627	70.38	34.30	7
82	PSR	WB1	2011-01-06 21:12:53	2011-01-06 21:26:37	00:13:44	627	84.12	627	134.20	27.10	80
83	AV2	OBS	2011-01-06 21:41:34	2011-01-06 21:44:22	00:02:48	627	188.72	627	198.93	0.00	-
84	PSM	OB1	2011-01-06 21:41:48	2011-01-06 21:44:24	00:02:36	627	189.51	627	198.99	1.20	-
85	AV2	OBS	2011-01-06 21:51:47	2011-01-06 21:54:13	00:02:26	627	225.98	627	234.85	0.00	-
86	PSM	OB2	2011-01-06 21:51:47	2011-01-06 21:53:47	00:02:00	627	225.98	627	233.27	0.00	-
87	PSR	WB1	2011-01-06 21:56:42	2011-01-06 21:59:28	00:02:46	627	243.91	627	254.00	27.10	80
88	PSR	FBS	2011-01-06 22:05:04	2011-01-06 22:09:24	00:04:20	627	274.42	627	290.22	34.30	7
89	PSR	FBS	2011-01-06 22:29:00	2011-01-06 22:38:54	00:09:54	2	1.64	2	37.74	34.30	7
90	AV2	OBS	2011-01-06 22:33:24	2011-01-06 22:35:16	00:01:52	2	17.75	2	24.55	0.00	-
91	PSR	FBS	2011-01-06 22:50:06	2011-01-06 22:52:20	00:02:14	2	78.65	2	86.79	34.30	7
92	PSR	WB1	2011-01-06 22:53:09	2011-01-06 23:03:52	00:10:43	2	89.71	2	128.79	27.10	80
93	AV2	OBS	2011-01-06 23:17:33	2011-01-06 23:18:29	00:00:56	2	178.69	2	182.09	0.00	-
94	PSR	FBS	2011-01-06 23:18:57	2011-01-06 23:21:55	00:02:58	2	183.80	2	194.61	34.30	7
95	AV2	OBS	2011-01-06 23:25:54	2011-01-06 23:28:00	00:02:06	2	209.14	2	216.80	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
29	-15.31587	2011-01-05 23:26:28	152.34434	2011-01-06 00:15:50
75	-39.99545	2011-01-06 01:05:11	127.66476	2011-01-06 01:54:33
121	-64.67503	2011-01-06 02:43:54	102.98518	2011-01-06 03:33:16
167	-89.35462	2011-01-06 04:22:37	78.30559	2011-01-06 05:11:59
213	-114.03420	2011-01-06 06:01:21	53.62601	2011-01-06 06:50:42
259	-138.71378	2011-01-06 07:40:04	28.94643	2011-01-06 08:29:25
305	-163.39336	2011-01-06 09:18:47	4.26685	2011-01-06 10:08:08
351	171.92705	2011-01-06 10:57:30	-20.41274	2011-01-06 11:46:51
397	147.24747	2011-01-06 12:36:13	-45.09232	2011-01-06 13:25:34
443	122.56789	2011-01-06 14:14:56	-69.77190	2011-01-06 15:04:18
489	97.88831	2011-01-06 15:53:39	-94.45149	2011-01-06 16:43:01
535	73.20872	2011-01-06 17:32:22	-119.13107	2011-01-06 18:21:44
581	48.52914	2011-01-06 19:11:05	-143.81065	2011-01-06 20:00:27
627	23.84956	2011-01-06 20:49:48	-168.49023	2011-01-06 21:39:10
2	-0.83003	2011-01-06 22:28:32	166.83018	2011-01-06 23:17:53
