>ALOS Data Take Simulation(Jan. 04, 2011)

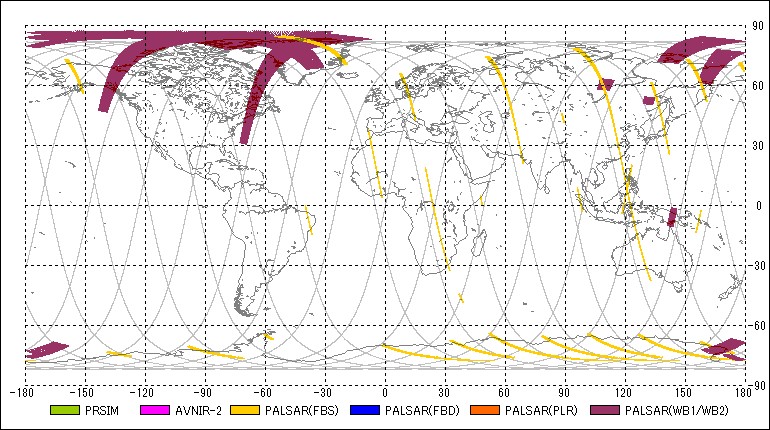

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2011-01-04 00:02:01	2011-01-04 00:16:28	00:14:27	37	66.98	37	119.67	27.10	80
2	AV2	OBS	2011-01-04 00:25:45	2011-01-04 00:27:37	00:01:52	37	153.53	37	160.33	0.00	-
3	PSM	OB2	2011-01-04 00:29:57	2011-01-04 00:44:57	00:15:00	37	168.78	37	223.48	0.00	-
4	PSR	WB1	2011-01-04 00:33:08	2011-01-04 00:36:16	00:03:08	37	180.39	37	191.82	27.10	80
5	PSR	FBS	2011-01-04 00:57:05	2011-01-04 01:02:15	00:05:10	37	267.73	37	286.57	34.30	7
6	PSR	FBS	2011-01-04 01:17:43	2011-01-04 01:22:19	00:04:36	37	342.98	37	359.75	34.30	7
7	PSR	WB1	2011-01-04 01:43:45	2011-01-04 01:52:17	00:08:32	83	77.92	83	109.04	27.10	80
8	PSM	OB1	2011-01-04 01:55:17	2011-01-04 02:04:33	00:09:16	83	119.98	83	153.77	1.20	-
9	PSR	WB1	2011-01-04 01:56:29	2011-01-04 01:58:07	00:01:38	83	124.41	83	130.37	27.10	80
10	AV2	OBS	2011-01-04 02:04:12	2011-01-04 02:06:30	00:02:18	83	152.56	83	160.94	-34.30	-
11	PSR	FBS	2011-01-04 02:05:56	2011-01-04 02:13:18	00:07:22	83	158.82	83	185.68	34.30	7
12	PSM	OB2	2011-01-04 02:08:04	2011-01-04 02:22:42	00:14:38	83	166.60	83	219.96	0.00	-
13	AV2	OBS	2011-01-04 03:29:50	2011-01-04 03:31:42	00:01:52	129	104.84	129	111.65	0.00	-
14	PSR	WB1	2011-01-04 03:32:42	2011-01-04 03:34:50	00:02:08	129	115.30	129	123.08	27.10	80
15	AV2	OBS	2011-01-04 03:36:08	2011-01-04 03:49:12	00:13:04	129	127.76	129	175.41	0.00	-
16	AV2	OBS	2011-01-04 03:53:10	2011-01-04 03:55:02	00:01:52	129	189.93	129	196.74	0.00	-
17	PSR	FBS	2011-01-04 04:19:57	2011-01-04 04:21:27	00:01:30	129	287.61	129	293.08	34.30	7
18	AV2	OBS	2011-01-04 05:14:51	2011-01-04 05:26:57	00:12:06	175	127.76	175	171.88	0.00	-
19	PSM	OB1	2011-01-04 06:52:49	2011-01-04 07:04:27	00:11:38	221	125.02	221	167.45	1.20	-
20	AV2	OBS	2011-01-04 07:11:23	2011-01-04 07:14:11	00:02:48	221	192.73	221	202.94	0.00	-
21	PSR	FBS	2011-01-04 07:33:35	2011-01-04 07:36:53	00:03:18	221	273.75	221	285.78	34.30	7
22	AV2	OBS	2011-01-04 08:05:04	2011-01-04 08:06:56	00:01:52	267	28.51	267	35.31	0.00	-
23	AV2	OBS	2011-01-04 08:09:11	2011-01-04 08:11:03	00:01:52	267	43.52	267	50.33	0.00	-
24	PSR	FBS	2011-01-04 08:12:06	2011-01-04 08:17:30	00:05:24	267	54.15	267	73.85	34.30	7
25	AV2	OBS	2011-01-04 08:13:17	2011-01-04 08:15:09	00:01:52	267	58.47	267	65.28	0.00	-
26	PSM	OB1	2011-01-04 08:33:01	2011-01-04 08:56:47	00:23:46	267	130.43	267	217.10	1.20	-
27	AV2	OBS	2011-01-04 08:33:45	2011-01-04 08:53:19	00:19:34	267	133.17	267	204.52	0.00	-
28	AV2	CA1	2011-01-04 09:35:34	2011-01-04 09:43:22	00:07:48	267	358.54	313	26.99	0.00	-
29	PSR	FBS	2011-01-04 09:53:39	2011-01-04 09:55:43	00:02:04	313	64.49	313	72.02	34.30	7
30	AV2	OBS	2011-01-04 10:06:46	2011-01-04 10:24:18	00:17:32	313	112.32	313	176.26	0.00	-
31	PSM	OB1	2011-01-04 10:13:44	2011-01-04 10:24:58	00:11:14	313	137.73	313	178.69	1.20	-
32	PSR	FBS	2011-01-04 10:51:33	2011-01-04 10:53:15	00:01:42	313	275.63	313	281.83	34.30	7
33	PSR	FBS	2011-01-04 11:28:23	2011-01-04 11:34:55	00:06:32	359	49.96	359	73.79	34.30	7
34	PSR	FBS	2011-01-04 12:59:42	2011-01-04 13:10:26	00:10:44	405	22.97	405	62.12	34.30	7
35	AV2	OBS	2011-01-04 13:41:58	2011-01-04 13:54:33	00:12:35	405	177.11	405	223.00	0.00	-
36	PSR	FBS	2011-01-04 14:09:47	2011-01-04 14:12:33	00:02:46	405	278.55	405	288.64	34.30	7
37	PSR	FBS	2011-01-04 14:20:57	2011-01-04 14:53:57	00:33:00	405	319.27	451	79.62	34.30	7
38	PSR	WB1	2011-01-04 14:57:15	2011-01-04 15:13:20	00:16:05	451	91.65	451	150.31	27.10	80
39	PSM	OB1	2011-01-04 15:04:51	2011-01-04 15:10:27	00:05:36	451	119.31	451	139.73	1.20	-
40	AV2	OBS	2011-01-04 15:19:12	2011-01-04 15:21:32	00:02:20	451	171.70	451	180.21	0.00	-
41	AV2	OBS	2011-01-04 15:23:37	2011-01-04 15:25:39	00:02:02	451	187.81	451	195.22	0.00	-
42	PSR	FBS	2011-01-04 15:45:59	2011-01-04 15:52:27	00:06:28	451	269.31	451	292.89	34.30	7
43	PSR	FBS	2011-01-04 16:09:19	2011-01-04 16:13:13	00:03:54	451	354.46	497	8.69	34.30	7
44	PSR	FBS	2011-01-04 16:21:39	2011-01-04 16:23:31	00:01:52	497	39.38	497	46.19	34.30	7
45	AV2	OBS	2011-01-04 16:54:23	2011-01-04 16:56:21	00:01:58	497	158.75	497	165.93	0.00	-
46	PSR	FBS	2011-01-04 17:26:07	2011-01-04 17:31:23	00:05:16	497	274.48	497	293.68	34.30	7
47	PSR	FBS	2011-01-04 17:54:36	2011-01-04 18:10:16	00:15:40	543	18.42	543	75.55	34.30	7
48	AV2	OBS	2011-01-04 18:16:44	2011-01-04 18:18:36	00:01:52	543	99.13	543	105.94	0.00	-
49	PSM	OB1	2011-01-04 18:20:57	2011-01-04 18:31:53	00:10:56	543	114.51	543	154.38	1.20	-
50	AV2	OBS	2011-01-04 18:21:43	2011-01-04 18:31:51	00:10:08	543	117.30	543	154.26	0.00	-
51	PSR	WB1	2011-01-04 18:58:26	2011-01-04 19:01:52	00:03:26	543	251.20	543	263.72	27.10	80
52	PSR	FBS	2011-01-04 19:02:45	2011-01-04 19:09:39	00:06:54	543	266.94	543	292.10	34.30	7
53	PSR	FBS	2011-01-04 19:27:42	2011-01-04 19:29:34	00:01:52	543	357.93	589	4.74	34.30	7
54	PSR	WB1	2011-01-04 19:52:08	2011-01-04 20:05:03	00:12:55	589	86.97	589	134.08	27.10	80
55	PSM	OB1	2011-01-04 19:59:42	2011-01-04 20:03:54	00:04:12	589	114.57	589	129.88	1.20	-
56	AV2	OBS	2011-01-04 20:19:45	2011-01-04 20:21:37	00:01:52	589	187.69	589	194.49	0.00	-
57	PSM	OB2	2011-01-04 20:19:45	2011-01-04 20:21:43	00:01:58	589	187.69	589	194.86	0.00	-
58	PSR	WB1	2011-01-04 20:36:11	2011-01-04 20:39:21	00:03:10	589	247.61	589	259.16	27.10	80
59	PSR	FBS	2011-01-04 20:41:47	2011-01-04 20:48:51	00:07:04	589	268.10	589	293.87	34.30	7
60	PSR	FBS	2011-01-04 20:52:45	2011-01-04 20:54:37	00:01:52	589	308.09	589	314.90	34.30	7
61	PSR	FBS	2011-01-04 20:57:18	2011-01-04 21:12:08	00:14:50	589	324.68	635	18.78	34.30	7
62	PSR	FBS	2011-01-04 21:18:01	2011-01-04 21:25:17	00:07:16	635	40.17	635	66.67	34.30	7
63	PSM	OB1	2011-01-04 22:05:36	2011-01-04 22:08:30	00:02:54	635	213.76	635	224.34	1.20	-
64	AV2	OBS	2011-01-04 22:06:19	2011-01-04 22:08:11	00:01:52	635	216.31	635	223.12	0.00	-
65	PSR	FBS	2011-01-04 22:22:14	2011-01-04 22:26:24	00:04:10	635	274.42	635	289.61	34.30	7
66	PSR	FBS	2011-01-04 22:46:02	2011-01-04 22:56:04	00:10:02	10	1.22	10	37.80	34.30	7
67	PSR	FBS	2011-01-04 23:04:34	2011-01-04 23:09:28	00:04:54	10	68.74	10	86.61	34.30	7
68	PSM	OB2	2011-01-04 23:29:15	2011-01-04 23:31:07	00:01:52	10	158.75	10	165.56	0.00	-
69	AV2	OBS	2011-01-04 23:32:59	2011-01-04 23:34:51	00:01:52	10	172.37	10	179.18	0.00	-
70	PSR	FBS	2011-01-04 23:35:34	2011-01-04 23:39:16	00:03:42	10	181.79	10	195.28	34.30	7
71	AV2	OBS	2011-01-04 23:36:25	2011-01-04 23:38:43	00:02:18	10	184.89	10	193.28	0.00	-
72	PSM	OB2	2011-01-04 23:36:26	2011-01-04 23:39:30	00:03:04	10	184.95	10	196.13	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
37	-19.60797	2011-01-03 23:43:38	148.05224	2011-01-04 00:33:00
83	-44.28755	2011-01-04 01:22:21	123.37266	2011-01-04 02:11:43
129	-68.96713	2011-01-04 03:01:04	98.69307	2011-01-04 03:50:26
175	-93.64672	2011-01-04 04:39:48	74.01349	2011-01-04 05:29:09
221	-118.32630	2011-01-04 06:18:31	49.33391	2011-01-04 07:07:52
267	-143.00588	2011-01-04 07:57:14	24.65433	2011-01-04 08:46:35
313	-167.68546	2011-01-04 09:35:57	-0.02526	2011-01-04 10:25:18
359	167.63495	2011-01-04 11:14:40	-24.70484	2011-01-04 12:04:01
405	142.95537	2011-01-04 12:53:23	-49.38442	2011-01-04 13:42:45
451	118.27579	2011-01-04 14:32:06	-74.06400	2011-01-04 15:21:28
497	93.59620	2011-01-04 16:10:49	-98.74359	2011-01-04 17:00:11
543	68.91662	2011-01-04 17:49:32	-123.42317	2011-01-04 18:38:54
589	44.23704	2011-01-04 19:28:15	-148.10275	2011-01-04 20:17:37
635	19.55746	2011-01-04 21:06:59	-172.78234	2011-01-04 21:56:20
10	-5.12213	2011-01-04 22:45:42	162.53808	2011-01-04 23:35:03
