>ALOS Data Take Simulation(Dec. 14, 2010)

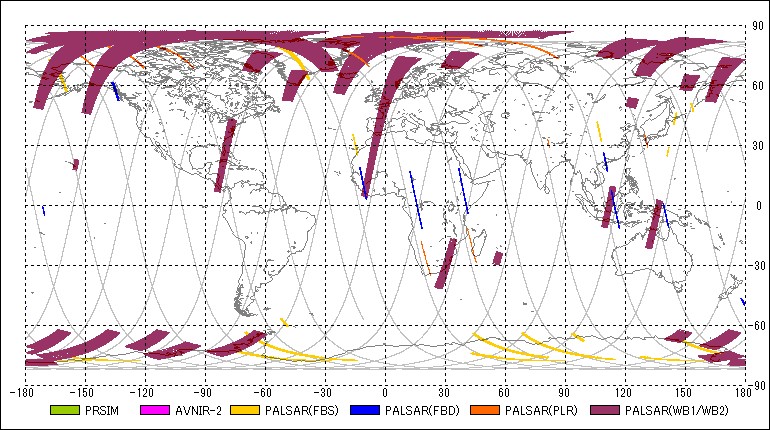

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-12-14 00:32:37	2010-12-14 00:38:03	00:05:26	52	61.14	52	80.96	34.30	7
2	PSR	WB1	2010-12-14 00:39:38	2010-12-14 00:41:30	00:01:52	52	86.73	52	93.54	27.10	80
3	PSR	WB1	2010-12-14 00:46:51	2010-12-14 00:49:37	00:02:46	52	113.05	52	123.14	27.10	80
4	PSR	FBS	2010-12-14 00:52:11	2010-12-14 00:54:25	00:02:14	52	132.50	52	140.64	34.30	7
5	PSR	FBS	2010-12-14 00:56:57	2010-12-14 00:58:49	00:01:52	52	149.88	52	156.69	34.30	7
6	PSR	WB1	2010-12-14 01:04:16	2010-12-14 01:11:28	00:07:12	52	176.56	52	202.82	27.10	80
7	PSM	OB2	2010-12-14 01:05:06	2010-12-14 01:15:32	00:10:26	52	179.60	52	217.65	0.00	-
8	PSR	WB1	2010-12-14 02:20:13	2010-12-14 02:26:19	00:06:06	98	93.54	98	115.78	27.10	80
9	AV2	OBS	2010-12-14 02:28:36	2010-12-14 02:38:16	00:09:40	98	124.17	98	159.42	0.00	-
10	PSM	OB2	2010-12-14 02:28:40	2010-12-14 02:38:50	00:10:10	98	124.35	98	161.43	0.00	-
11	PSR	WB1	2010-12-14 02:28:51	2010-12-14 02:30:45	00:01:54	98	125.02	98	131.95	27.10	80
12	AV2	OBS	2010-12-14 02:40:30	2010-12-14 02:46:58	00:06:28	98	167.57	98	191.15	0.00	-
13	PSM	OB2	2010-12-14 02:40:34	2010-12-14 02:47:40	00:07:06	98	167.75	98	193.64	0.00	-
14	PSR	WB1	2010-12-14 02:41:05	2010-12-14 02:47:19	00:06:14	98	169.63	98	192.37	27.10	80
15	PSR	FBS	2010-12-14 03:15:28	2010-12-14 03:17:20	00:01:52	98	295.02	98	301.83	34.30	7
16	PSR	PLR	2010-12-14 03:51:48	2010-12-14 03:55:52	00:04:04	144	67.53	144	82.36	21.50	127
17	PSR	WB1	2010-12-14 03:59:10	2010-12-14 04:02:24	00:03:14	144	94.39	144	106.18	27.10	80
18	PSM	OB2	2010-12-14 04:05:57	2010-12-14 04:17:09	00:11:12	144	119.13	144	159.97	0.00	-
19	AV2	OBS	2010-12-14 04:08:42	2010-12-14 04:16:48	00:08:06	144	129.16	144	158.69	0.00	-
20	AV2	OBS	2010-12-14 04:19:57	2010-12-14 04:22:20	00:02:23	144	170.18	144	178.87	0.00	-
21	AV2	OBS	2010-12-14 04:32:50	2010-12-14 04:34:42	00:01:52	144	217.10	144	223.91	-21.50	-
22	PSR	FBS	2010-12-14 04:47:21	2010-12-14 04:53:59	00:06:38	144	270.10	144	294.29	34.30	7
23	PSR	PLR	2010-12-14 05:30:31	2010-12-14 05:34:41	00:04:10	190	67.53	190	82.72	21.50	127
24	PSM	OB1	2010-12-14 05:46:16	2010-12-14 05:56:52	00:10:36	190	124.96	190	163.62	-1.20	-
25	AV2	OBS	2010-12-14 05:47:02	2010-12-14 05:56:04	00:09:02	190	127.76	190	160.70	0.00	-
26	PSR	WB1	2010-12-14 06:07:35	2010-12-14 06:09:53	00:02:18	190	202.64	190	211.02	27.10	80
27	AV2	OBS	2010-12-14 06:21:41	2010-12-14 06:23:33	00:01:52	190	254.12	190	260.92	21.50	-
28	PSR	FBS	2010-12-14 06:25:24	2010-12-14 06:29:30	00:04:06	190	267.67	190	282.62	34.30	7
29	PSR	FBD	2010-12-14 07:04:32	2010-12-14 07:07:40	00:03:08	236	50.39	236	61.81	34.30	43
30	PSR	PLR	2010-12-14 07:09:15	2010-12-14 07:12:45	00:03:30	236	67.59	236	80.35	21.50	127
31	PSM	OB1	2010-12-14 07:22:09	2010-12-14 07:33:27	00:11:18	236	114.63	236	155.84	-1.20	-
32	AV2	OBS	2010-12-14 07:29:16	2010-12-14 07:32:42	00:03:26	236	140.52	236	153.04	0.00	-
33	PSM	OB1	2010-12-14 07:35:32	2010-12-14 07:44:00	00:08:28	236	163.43	236	194.31	-1.20	-
34	AV2	OBS	2010-12-14 07:36:16	2010-12-14 07:39:36	00:03:20	236	166.11	236	178.26	0.00	-
35	PSR	WB1	2010-12-14 07:44:28	2010-12-14 07:51:56	00:07:28	236	196.01	236	223.24	27.10	80
36	AV2	OBS	2010-12-14 07:47:23	2010-12-14 07:49:15	00:01:52	236	206.59	236	213.40	0.00	-
37	PSR	FBS	2010-12-14 08:44:31	2010-12-14 08:49:41	00:05:10	282	54.94	282	73.79	34.30	7
38	PSR	WB1	2010-12-14 08:57:13	2010-12-14 09:00:05	00:02:52	282	101.32	282	111.77	27.10	80
39	AV2	OBS	2010-12-14 09:01:38	2010-12-14 09:04:12	00:02:34	282	117.36	282	126.72	0.00	-
40	PSM	OB1	2010-12-14 09:06:20	2010-12-14 09:10:00	00:03:40	282	134.56	282	147.94	-1.20	-
41	AV2	OBS	2010-12-14 09:07:03	2010-12-14 09:21:55	00:14:52	282	137.12	282	191.33	0.00	-
42	PSR	FBD	2010-12-14 10:06:05	2010-12-14 10:07:57	00:01:52	282	352.46	282	359.26	34.30	43
43	PSR	WB1	2010-12-14 10:36:37	2010-12-14 10:56:41	00:20:04	328	103.81	328	176.99	27.10	80
44	AV2	OBS	2010-12-14 10:43:54	2010-12-14 10:53:10	00:09:16	328	130.37	328	164.16	21.50	-
45	PSM	OB1	2010-12-14 10:44:44	2010-12-14 10:57:30	00:12:46	328	133.35	328	179.91	-1.20	-
46	PSR	FBD	2010-12-14 11:31:57	2010-12-14 11:33:49	00:01:52	328	305.60	328	312.40	34.30	43
47	PSR	FBS	2010-12-14 11:59:06	2010-12-14 12:00:58	00:01:52	374	44.61	374	51.42	34.30	7
48	PSR	WB1	2010-12-14 12:10:38	2010-12-14 12:21:08	00:10:30	374	86.67	374	124.96	27.10	80
49	AV2	OBS	2010-12-14 12:30:50	2010-12-14 12:32:42	00:01:52	374	160.33	374	167.14	41.50	-
50	PSM	OB1	2010-12-14 12:36:36	2010-12-14 12:39:32	00:02:56	374	181.30	374	192.00	-1.20	-
51	AV2	OBS	2010-12-14 12:37:22	2010-12-14 12:39:14	00:01:52	374	184.10	374	190.91	0.00	-
52	PSR	WB1	2010-12-14 12:53:55	2010-12-14 12:58:13	00:04:18	374	244.51	374	260.19	27.10	80
53	PSR	FBS	2010-12-14 13:00:04	2010-12-14 13:02:56	00:02:52	374	266.94	374	277.40	34.30	7
54	PSR	FBD	2010-12-14 13:21:54	2010-12-14 13:25:48	00:03:54	374	346.56	420	0.79	34.30	43
55	PSR	PLR	2010-12-14 13:32:55	2010-12-14 13:35:27	00:02:32	420	26.74	420	35.98	21.50	127
56	PSR	WB1	2010-12-14 13:50:14	2010-12-14 13:53:14	00:03:00	420	89.89	420	100.83	27.10	80
57	PSR	WB1	2010-12-14 13:55:59	2010-12-14 14:00:51	00:04:52	420	110.86	420	128.61	27.10	80
58	AV2	OBS	2010-12-14 14:12:48	2010-12-14 14:30:45	00:17:57	420	172.13	420	237.59	0.00	-
59	PSR	WB1	2010-12-14 14:34:28	2010-12-14 14:37:32	00:03:04	420	251.20	420	262.38	27.10	80
60	PSR	FBS	2010-12-14 14:38:47	2010-12-14 14:40:39	00:01:52	420	266.94	420	273.75	34.30	7
61	PSR	FBS	2010-12-14 14:41:26	2010-12-14 14:45:28	00:04:02	420	276.54	420	291.25	34.30	7
62	PSR	FBD	2010-12-14 15:00:27	2010-12-14 15:06:21	00:05:54	420	345.95	466	7.48	34.30	43
63	PSR	FBD	2010-12-14 15:08:18	2010-12-14 15:11:34	00:03:16	466	14.59	466	26.50	34.30	43
64	PSR	FBS	2010-12-14 15:12:27	2010-12-14 15:15:47	00:03:20	466	29.72	466	41.88	34.30	7
65	PSR	PLR	2010-12-14 15:24:09	2010-12-14 15:29:29	00:05:20	466	72.39	466	91.84	21.50	127
66	PSR	WB1	2010-12-14 15:31:59	2010-12-14 15:35:29	00:03:30	466	100.89	466	113.66	27.10	80
67	PSM	OB1	2010-12-14 15:35:44	2010-12-14 15:42:20	00:06:36	466	114.57	466	138.64	-1.20	-
68	PSR	WB1	2010-12-14 15:41:35	2010-12-14 15:52:11	00:10:36	466	135.90	466	174.56	27.10	80
69	PSM	OB1	2010-12-14 15:44:59	2010-12-14 15:52:55	00:07:56	466	148.30	466	177.23	-1.20	-
70	PSR	WB1	2010-12-14 16:11:11	2010-12-14 16:14:37	00:03:26	466	243.91	466	256.43	27.10	80
71	PSR	WB1	2010-12-14 16:17:12	2010-12-14 16:19:04	00:01:52	466	265.79	466	272.59	27.10	80
72	PSR	PLR	2010-12-14 16:50:23	2010-12-14 16:52:15	00:01:52	512	26.80	512	33.61	23.10	128
73	PSR	PLR	2010-12-14 17:04:45	2010-12-14 17:08:13	00:03:28	512	79.26	512	91.90	21.50	127
74	AV2	OBS	2010-12-14 17:11:01	2010-12-14 17:12:55	00:01:54	512	102.05	512	108.98	0.00	-
75	PSM	OB1	2010-12-14 17:14:26	2010-12-14 17:28:34	00:14:08	512	114.51	512	166.05	-1.20	-
76	AV2	OBS	2010-12-14 17:15:12	2010-12-14 17:27:48	00:12:36	512	117.30	512	163.25	0.00	-
77	PSR	WB1	2010-12-14 17:49:55	2010-12-14 17:55:21	00:05:26	512	243.91	512	263.72	27.10	80
78	PSR	FBS	2010-12-14 17:56:14	2010-12-14 17:59:10	00:02:56	512	266.94	512	277.64	34.30	7
79	PSR	FBS	2010-12-14 18:01:40	2010-12-14 18:03:32	00:01:52	512	286.76	512	293.56	34.30	7
80	AV2	OBS	2010-12-14 18:48:35	2010-12-14 18:50:27	00:01:52	558	97.85	558	104.66	0.00	-
81	PSM	OB1	2010-12-14 18:53:09	2010-12-14 19:02:03	00:08:54	558	114.57	558	147.02	-1.20	-
82	AV2	OBS	2010-12-14 18:53:56	2010-12-14 19:02:02	00:08:06	558	117.36	558	146.90	0.00	-
83	PSR	WB1	2010-12-14 19:28:37	2010-12-14 19:34:23	00:05:46	558	243.85	558	264.87	27.10	80
84	PSR	FBS	2010-12-14 19:36:23	2010-12-14 19:42:21	00:05:58	558	272.17	558	293.93	34.30	7
85	PSR	PLR	2010-12-14 19:52:00	2010-12-14 19:57:26	00:05:26	558	329.12	558	348.93	21.50	127
86	PSR	FBD	2010-12-14 19:58:41	2010-12-14 20:05:33	00:06:52	558	353.49	604	18.54	34.30	43
87	PSR	WB1	2010-12-14 20:24:13	2010-12-14 20:37:32	00:13:19	604	86.61	604	135.17	27.10	80
88	PSR	WB1	2010-12-14 20:43:15	2010-12-14 20:45:17	00:02:02	604	156.02	604	163.43	24.60	72
89	AV2	OBS	2010-12-14 20:51:40	2010-12-14 20:56:20	00:04:40	604	186.71	604	203.73	0.00	-
90	PSM	OB2	2010-12-14 20:51:40	2010-12-14 20:53:40	00:02:00	604	186.71	604	194.01	0.00	-
91	PSR	WB1	2010-12-14 21:07:21	2010-12-14 21:10:39	00:03:18	604	243.91	604	255.94	27.10	80
92	PSR	FBS	2010-12-14 21:15:42	2010-12-14 21:21:00	00:05:18	604	274.36	604	293.68	34.30	7
93	PSR	PLR	2010-12-14 21:28:54	2010-12-14 21:34:20	00:05:26	604	322.49	604	342.31	21.50	127
94	PSR	FBD	2010-12-14 21:35:19	2010-12-14 21:43:51	00:08:32	604	345.89	650	17.02	34.30	43
95	PSR	PLR	2010-12-14 21:57:52	2010-12-14 22:01:04	00:03:12	650	68.13	650	79.80	21.50	127
96	PSR	WB1	2010-12-14 22:02:58	2010-12-14 22:15:32	00:12:34	650	86.73	650	132.56	27.10	80
97	AV2	OBS	2010-12-14 22:20:18	2010-12-14 22:22:10	00:01:52	650	149.94	650	156.75	-21.50	-
98	AV2	OBS	2010-12-14 22:29:47	2010-12-14 22:31:39	00:01:52	650	184.53	650	191.33	0.00	-
99	PSM	OB1	2010-12-14 22:39:30	2010-12-14 22:42:44	00:03:14	650	219.96	650	231.75	-1.20	-
100	PSR	WB1	2010-12-14 22:46:02	2010-12-14 22:48:14	00:02:12	650	243.78	650	251.81	27.10	80
101	PSR	FBS	2010-12-14 22:52:21	2010-12-14 22:56:11	00:03:50	650	266.82	650	280.80	34.30	7
102	PSR	FBD	2010-12-14 23:18:05	2010-12-14 23:23:03	00:04:58	25	0.67	25	18.78	34.30	43
103	PSR	FBS	2010-12-14 23:24:10	2010-12-14 23:27:36	00:03:26	25	22.85	25	35.37	34.30	7
104	PSR	WB1	2010-12-14 23:35:54	2010-12-14 23:53:18	00:17:24	25	65.64	25	129.09	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
6	-2.97608	2010-12-13 22:37:07	164.68413	2010-12-13 23:26:28
52	-27.65566	2010-12-14 00:15:50	140.00455	2010-12-14 01:05:11
98	-52.33524	2010-12-14 01:54:33	115.32497	2010-12-14 02:43:54
144	-77.01482	2010-12-14 03:33:16	90.64538	2010-12-14 04:22:37
190	-101.69441	2010-12-14 05:11:59	65.96580	2010-12-14 06:01:21
236	-126.37399	2010-12-14 06:50:42	41.28622	2010-12-14 07:40:04
282	-151.05357	2010-12-14 08:29:25	16.60664	2010-12-14 09:18:47
328	-175.73315	2010-12-14 10:08:08	-8.07295	2010-12-14 10:57:30
374	159.58726	2010-12-14 11:46:51	-32.75253	2010-12-14 12:36:13
420	134.90768	2010-12-14 13:25:34	-57.43211	2010-12-14 14:14:56
466	110.22810	2010-12-14 15:04:18	-82.11169	2010-12-14 15:53:39
512	85.54851	2010-12-14 16:43:01	-106.79128	2010-12-14 17:32:22
558	60.86893	2010-12-14 18:21:44	-131.47086	2010-12-14 19:11:05
604	36.18935	2010-12-14 20:00:27	-156.15044	2010-12-14 20:49:48
650	11.50977	2010-12-14 21:39:10	179.16997	2010-12-14 22:28:32
25	-13.16982	2010-12-14 23:17:53	154.49039	2010-12-15 00:07:15
