>ALOS Data Take Simulation(Dec. 15, 2010)

Observation Area

PRISM

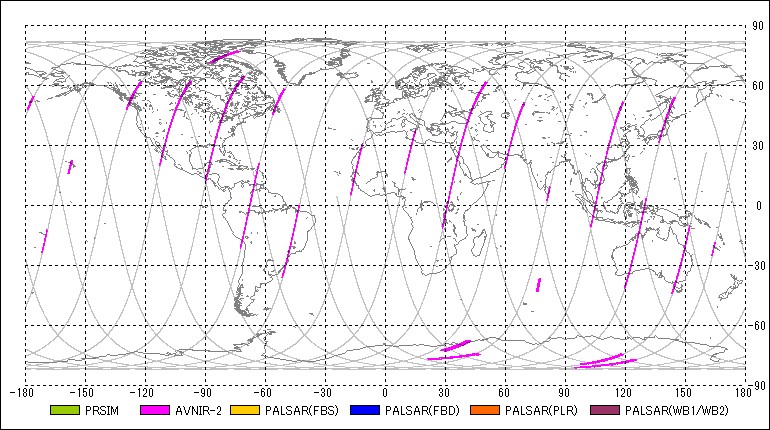

AVNIR-2

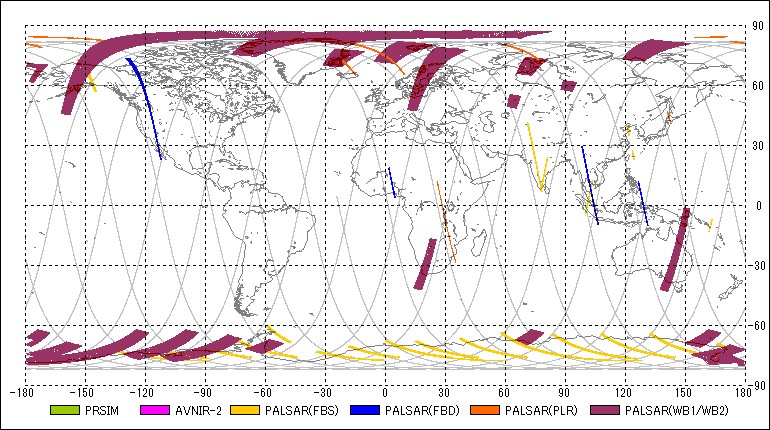

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-12-15 00:07:20	2010-12-15 00:19:26	00:12:06	25	180.27	25	224.40	27.10	80
2	AV2	OBS	2010-12-15 00:10:05	2010-12-15 00:19:29	00:09:24	25	190.30	25	224.58	0.00	-
3	PSM	OB2	2010-12-15 00:12:30	2010-12-15 00:15:16	00:02:46	25	199.11	25	209.20	0.00	-
4	PSM	OB1	2010-12-15 00:27:29	2010-12-15 00:30:05	00:02:36	25	253.75	25	263.23	-1.20	-
5	AV2	OBS	2010-12-15 00:28:16	2010-12-15 00:30:08	00:01:52	25	256.55	25	263.36	0.00	-
6	PSR	FBS	2010-12-15 00:31:20	2010-12-15 00:37:12	00:05:52	25	267.73	25	289.13	34.30	7
7	AV2	OBS	2010-12-15 01:31:00	2010-12-15 01:37:20	00:06:20	71	125.39	71	148.48	0.00	-
8	PSM	OB2	2010-12-15 01:31:07	2010-12-15 01:37:35	00:06:28	71	125.75	71	149.33	0.00	-
9	AV2	OBS	2010-12-15 01:44:58	2010-12-15 01:57:26	00:12:28	71	176.32	71	221.78	0.00	-
10	PSM	OB2	2010-12-15 01:45:00	2010-12-15 01:56:58	00:11:58	71	176.38	71	220.02	0.00	-
11	PSR	FBS	2010-12-15 02:11:53	2010-12-15 02:14:59	00:03:06	71	274.48	71	285.78	34.30	7
12	PSR	WB1	2010-12-15 03:01:27	2010-12-15 03:04:51	00:03:24	117	95.18	117	107.58	27.10	80
13	PSM	OB2	2010-12-15 03:08:58	2010-12-15 03:28:04	00:19:06	117	122.59	117	192.24	0.00	-
14	AV2	OBS	2010-12-15 03:10:23	2010-12-15 03:27:36	00:17:13	117	127.76	117	190.54	0.00	-
15	PSR	FBS	2010-12-15 03:21:00	2010-12-15 03:26:26	00:05:26	117	166.47	117	186.29	34.30	7
16	PSR	WB1	2010-12-15 03:42:13	2010-12-15 03:44:45	00:02:32	117	243.91	117	253.14	27.10	80
17	AV2	OBS	2010-12-15 03:46:47	2010-12-15 03:48:39	00:01:52	117	260.50	117	267.31	-34.30	-
18	PSR	FBS	2010-12-15 03:49:28	2010-12-15 03:52:42	00:03:14	117	270.34	117	282.14	34.30	7
19	PSR	FBS	2010-12-15 03:53:46	2010-12-15 03:57:02	00:03:16	117	285.97	117	297.88	34.30	7
20	PSR	PLR	2010-12-15 04:36:44	2010-12-15 04:39:34	00:02:50	163	82.66	163	92.99	21.50	127
21	PSR	WB1	2010-12-15 04:45:58	2010-12-15 04:47:54	00:01:56	163	116.33	163	123.38	27.10	80
22	PSM	OB1	2010-12-15 04:48:21	2010-12-15 05:02:51	00:14:30	163	125.02	163	177.90	-1.20	-
23	PSR	FBS	2010-12-15 04:56:36	2010-12-15 05:01:52	00:05:16	163	155.11	163	174.31	34.30	7
24	AV2	OBS	2010-12-15 05:00:52	2010-12-15 05:02:44	00:01:52	163	170.73	163	177.54	0.00	-
25	AV2	OBS	2010-12-15 05:13:14	2010-12-15 05:15:06	00:01:52	163	215.77	163	222.57	34.30	-
26	AV2	OBS	2010-12-15 05:23:00	2010-12-15 05:24:52	00:01:52	163	251.38	163	258.19	-34.30	-
27	PSR	FBS	2010-12-15 05:29:28	2010-12-15 05:33:22	00:03:54	163	274.96	163	289.19	34.30	7
28	PSR	FBD	2010-12-15 05:58:28	2010-12-15 06:13:12	00:14:44	209	20.73	209	74.45	34.30	43
29	PSR	WB1	2010-12-15 06:21:25	2010-12-15 06:24:23	00:02:58	209	104.42	209	115.24	27.10	80
30	PSR	WB1	2010-12-15 06:26:39	2010-12-15 06:28:59	00:02:20	209	123.56	209	132.07	27.10	80
31	PSM	OB1	2010-12-15 06:27:03	2010-12-15 06:36:17	00:09:14	209	124.96	209	158.63	-1.20	-
32	AV2	OBS	2010-12-15 06:27:50	2010-12-15 06:37:08	00:09:18	209	127.82	209	161.73	0.00	-
33	PSR	FBS	2010-12-15 07:08:02	2010-12-15 07:11:00	00:02:58	209	274.42	209	285.24	34.30	7
34	PSR	FBS	2010-12-15 07:46:34	2010-12-15 07:51:44	00:05:10	255	54.94	255	73.79	34.30	7
35	PSR	PLR	2010-12-15 07:53:02	2010-12-15 07:54:50	00:01:48	255	78.53	255	85.09	21.50	127
36	PSM	OB1	2010-12-15 08:02:56	2010-12-15 08:24:46	00:21:50	255	114.63	255	194.25	-1.20	-
37	AV2	OBS	2010-12-15 08:03:41	2010-12-15 08:23:59	00:20:18	255	117.36	255	191.39	0.00	-
38	PSR	WB1	2010-12-15 08:25:14	2010-12-15 08:32:50	00:07:36	255	195.95	255	223.67	27.10	80
39	PSR	FBS	2010-12-15 08:46:29	2010-12-15 08:48:55	00:02:26	255	273.51	255	282.38	34.30	7
40	PSR	WB1	2010-12-15 09:37:25	2010-12-15 09:46:47	00:09:22	301	99.19	301	133.35	27.10	80
41	PSM	OB1	2010-12-15 09:47:43	2010-12-15 09:59:41	00:11:58	301	136.75	301	180.39	-1.20	-
42	AV2	OBS	2010-12-15 09:49:10	2010-12-15 09:55:13	00:06:03	301	142.04	301	164.10	0.00	-
43	PSR	FBS	2010-12-15 10:23:38	2010-12-15 10:27:40	00:04:02	301	267.73	301	282.44	34.30	7
44	PSR	WB1	2010-12-15 11:15:19	2010-12-15 11:18:45	00:03:26	347	96.21	347	108.73	27.10	80
45	PSM	OB1	2010-12-15 11:29:20	2010-12-15 11:36:20	00:07:00	347	147.33	347	172.86	-1.20	-
46	AV2	OBS	2010-12-15 11:29:43	2010-12-15 11:36:48	00:07:05	347	148.73	347	174.56	0.00	-
47	PSR	WB1	2010-12-15 11:57:21	2010-12-15 11:59:43	00:02:22	347	249.50	347	258.13	27.10	80
48	PSR	PLR	2010-12-15 12:38:20	2010-12-15 12:40:42	00:02:22	393	38.96	393	47.59	21.50	127
49	PSR	WB1	2010-12-15 12:51:26	2010-12-15 12:53:18	00:01:52	393	86.73	393	93.54	27.10	80
50	PSR	WB1	2010-12-15 12:55:07	2010-12-15 12:58:01	00:02:54	393	100.16	393	110.74	27.10	80
51	PSM	OB1	2010-12-15 13:16:16	2010-12-15 13:26:38	00:10:22	393	177.29	393	215.10	-1.20	-
52	AV2	OBS	2010-12-15 13:17:02	2010-12-15 13:26:59	00:09:57	393	180.09	393	216.37	0.00	-
53	PSR	WB1	2010-12-15 13:35:20	2010-12-15 13:40:08	00:04:48	393	246.82	393	264.33	27.10	80
54	PSR	FBS	2010-12-15 13:44:36	2010-12-15 13:46:28	00:01:52	393	280.56	393	287.36	34.30	7
55	PSR	FBD	2010-12-15 14:02:56	2010-12-15 14:09:38	00:06:42	393	347.47	439	11.91	34.30	43
56	PSR	FBS	2010-12-15 14:12:01	2010-12-15 14:13:53	00:01:52	439	20.60	439	27.41	34.30	7
57	PSR	FBS	2010-12-15 14:15:18	2010-12-15 14:17:20	00:02:02	439	32.58	439	39.99	34.30	7
58	PSR	WB1	2010-12-15 14:30:09	2010-12-15 14:33:15	00:03:06	439	86.73	439	98.04	27.10	80
59	AV2	OBS	2010-12-15 14:39:33	2010-12-15 14:43:09	00:03:36	439	121.01	439	134.14	0.00	-
60	PSM	OB1	2010-12-15 14:40:22	2010-12-15 14:43:54	00:03:32	439	123.99	439	136.87	-1.20	-
61	AV2	OBS	2010-12-15 14:49:57	2010-12-15 15:01:42	00:11:45	439	158.94	439	201.79	0.00	-
62	PSR	WB1	2010-12-15 15:13:15	2010-12-15 15:18:19	00:05:04	439	243.91	439	262.38	27.10	80
63	PSR	FBS	2010-12-15 15:21:33	2010-12-15 15:26:53	00:05:20	439	274.17	439	293.62	34.30	7
64	PSR	FBD	2010-12-15 15:41:44	2010-12-15 15:53:12	00:11:28	439	347.78	485	29.60	34.30	43
65	PSR	PLR	2010-12-15 16:04:23	2010-12-15 16:07:49	00:03:26	485	70.38	485	82.90	21.50	127
66	PSR	WB1	2010-12-15 16:08:52	2010-12-15 16:13:56	00:05:04	485	86.73	485	105.21	27.10	80
67	AV2	OBS	2010-12-15 16:16:29	2010-12-15 16:31:07	00:14:38	485	114.51	485	167.87	0.00	-
68	PSR	WB1	2010-12-15 16:51:58	2010-12-15 16:59:06	00:07:08	485	243.91	485	269.92	27.10	80
69	PSR	FBS	2010-12-15 17:00:21	2010-12-15 17:05:33	00:05:12	485	274.42	485	293.38	34.30	7
70	PSR	FBS	2010-12-15 17:25:00	2010-12-15 17:35:16	00:10:16	531	4.38	531	41.82	34.30	7
71	AV2	OBS	2010-12-15 17:51:16	2010-12-15 17:53:08	00:01:52	531	100.16	531	106.97	0.00	-
72	PSM	OB1	2010-12-15 17:55:13	2010-12-15 18:07:39	00:12:26	531	114.51	531	159.85	-1.20	-
73	AV2	OBS	2010-12-15 17:55:59	2010-12-15 18:07:41	00:11:42	531	117.30	531	159.97	0.00	-
74	PSR	WB1	2010-12-15 18:32:41	2010-12-15 18:37:17	00:04:36	531	251.20	531	267.97	27.10	80
75	PSR	FBS	2010-12-15 18:38:40	2010-12-15 18:44:08	00:05:28	531	273.02	531	292.95	34.30	7
76	PSM	OB1	2010-12-15 19:33:58	2010-12-15 19:39:00	00:05:02	577	114.63	577	132.98	-1.20	-
77	AV2	OBS	2010-12-15 19:34:42	2010-12-15 19:38:36	00:03:54	577	117.30	577	131.53	0.00	-
78	PSR	WB1	2010-12-15 20:09:24	2010-12-15 20:14:38	00:05:14	577	243.91	577	262.99	27.10	80
79	PSR	FBS	2010-12-15 20:15:43	2010-12-15 20:23:07	00:07:24	577	266.94	577	293.93	34.30	7
80	PSR	PLR	2010-12-15 20:32:46	2010-12-15 20:44:44	00:11:58	577	329.12	623	12.76	21.50	127
81	PSR	PLR	2010-12-15 20:58:52	2010-12-15 21:04:14	00:05:22	623	64.30	623	83.88	21.50	127
82	PSR	WB1	2010-12-15 21:05:01	2010-12-15 21:18:20	00:13:19	623	86.73	623	135.29	27.10	80
83	AV2	OBS	2010-12-15 21:24:07	2010-12-15 21:25:59	00:01:52	623	156.32	623	163.13	34.30	-
84	AV2	OBS	2010-12-15 21:33:58	2010-12-15 21:37:04	00:03:06	623	192.30	623	203.61	0.00	-
85	PSM	OB2	2010-12-15 21:33:58	2010-12-15 21:37:10	00:03:12	623	192.30	623	203.97	0.00	-
86	PSR	WB1	2010-12-15 21:48:07	2010-12-15 21:50:59	00:02:52	623	243.91	623	254.36	27.10	80
87	PSR	FBS	2010-12-15 21:56:29	2010-12-15 22:00:57	00:04:28	623	274.42	623	290.71	34.30	7
88	PSR	FBD	2010-12-15 22:20:18	2010-12-15 22:25:06	00:04:48	669	1.22	669	18.72	34.30	43
89	PSR	PLR	2010-12-15 22:37:37	2010-12-15 22:40:37	00:03:00	669	64.36	669	75.31	21.50	127
90	PSR	WB1	2010-12-15 22:49:23	2010-12-15 22:52:33	00:03:10	669	107.27	669	118.82	27.10	80
91	PSM	OB1	2010-12-15 22:53:31	2010-12-15 22:56:25	00:02:54	669	122.35	669	132.92	-1.20	-
92	AV2	OBS	2010-12-15 22:54:14	2010-12-15 22:56:06	00:01:52	669	124.96	669	131.77	0.00	-
93	PSM	OB2	2010-12-15 23:05:57	2010-12-15 23:08:27	00:02:30	669	167.75	669	176.87	0.00	-
94	PSR	FBS	2010-12-15 23:10:58	2010-12-15 23:13:20	00:02:22	669	186.04	669	194.68	34.30	7
95	AV2	OBS	2010-12-15 23:14:27	2010-12-15 23:16:19	00:01:52	669	198.75	669	205.55	0.00	-
96	PSM	OB2	2010-12-15 23:14:27	2010-12-15 23:16:19	00:01:52	669	198.75	669	205.55	0.00	-
97	PSM	OB1	2010-12-15 23:30:27	2010-12-15 23:33:03	00:02:36	669	257.10	669	266.58	-1.20	-
98	AV2	OBS	2010-12-15 23:31:15	2010-12-15 23:33:07	00:01:52	669	259.95	669	266.76	0.00	-
99	PSR	FBS	2010-12-15 23:35:12	2010-12-15 23:39:14	00:04:02	669	274.36	669	289.06	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
25	-13.16982	2010-12-14 23:17:53	154.49039	2010-12-15 00:07:15
71	-37.84940	2010-12-15 00:56:36	129.81081	2010-12-15 01:45:58
117	-62.52898	2010-12-15 02:35:19	105.13123	2010-12-15 03:24:41
163	-87.20856	2010-12-15 04:14:02	80.45164	2010-12-15 05:03:24
209	-111.88815	2010-12-15 05:52:45	55.77206	2010-12-15 06:42:07
255	-136.56773	2010-12-15 07:31:29	31.09248	2010-12-15 08:20:50
301	-161.24731	2010-12-15 09:10:12	6.41290	2010-12-15 09:59:33
347	174.07310	2010-12-15 10:48:55	-18.26669	2010-12-15 11:38:16
393	149.39352	2010-12-15 12:27:38	-42.94627	2010-12-15 13:16:59
439	124.71394	2010-12-15 14:06:21	-67.62585	2010-12-15 14:55:43
485	100.03436	2010-12-15 15:45:04	-92.30544	2010-12-15 16:34:26
531	75.35477	2010-12-15 17:23:47	-116.98502	2010-12-15 18:13:09
577	50.67519	2010-12-15 19:02:30	-141.66460	2010-12-15 19:51:52
623	25.99561	2010-12-15 20:41:13	-166.34418	2010-12-15 21:30:35
669	1.31603	2010-12-15 22:19:56	168.97623	2010-12-15 23:09:18
44	-23.36356	2010-12-15 23:58:40	144.29665	2010-12-16 00:48:01
