>ALOS Data Take Simulation(Dec. 13, 2010)

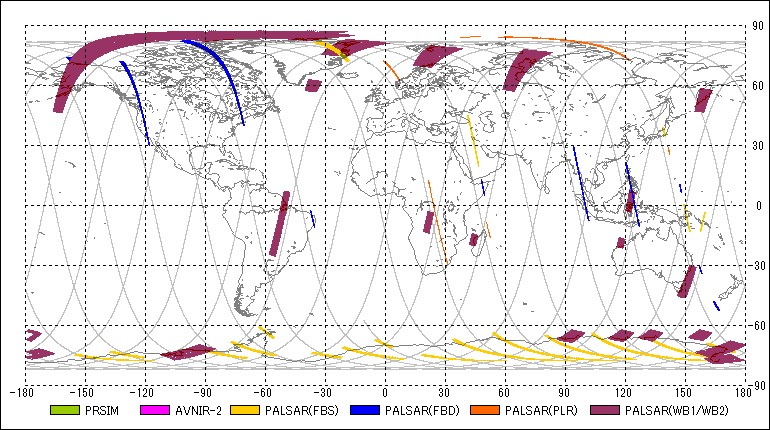

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-12-13 00:08:05	2010-12-13 00:11:51	00:03:46	33	120.40	33	134.14	27.10	80
2	PSM	OB2	2010-12-13 00:21:31	2010-12-13 00:36:33	00:15:02	33	169.39	33	224.21	0.00	-
3	PSR	WB1	2010-12-13 00:41:57	2010-12-13 00:43:57	00:02:00	33	243.91	33	251.20	27.10	80
4	PSR	FBS	2010-12-13 00:48:15	2010-12-13 00:51:41	00:03:26	33	266.88	33	279.40	34.30	7
5	PSR	FBS	2010-12-13 00:52:36	2010-12-13 00:54:34	00:01:58	33	282.74	33	289.92	34.30	7
6	PSR	FBD	2010-12-13 01:10:04	2010-12-13 01:13:02	00:02:58	33	346.44	33	357.26	34.30	43
7	PSM	OB2	2010-12-13 01:47:35	2010-12-13 01:57:45	00:10:10	79	123.20	79	160.27	0.00	-
8	AV2	OBS	2010-12-13 01:52:45	2010-12-13 01:57:43	00:04:58	79	142.10	79	160.21	0.00	-
9	PSM	OB2	2010-12-13 02:00:22	2010-12-13 02:14:10	00:13:48	79	169.82	79	220.14	0.00	-
10	PSR	WB1	2010-12-13 02:00:57	2010-12-13 02:04:23	00:03:26	79	172.00	79	184.53	27.10	80
11	PSR	WB1	2010-12-13 02:07:26	2010-12-13 02:09:22	00:01:56	79	195.59	79	202.64	27.10	80
12	PSR	WB1	2010-12-13 02:20:41	2010-12-13 02:22:51	00:02:10	79	243.91	79	251.81	27.10	80
13	PSR	FBS	2010-12-13 02:28:35	2010-12-13 02:31:57	00:03:22	79	272.78	79	285.05	34.30	7
14	PSR	FBD	2010-12-13 03:02:51	2010-12-13 03:15:31	00:12:40	125	37.74	125	83.94	34.30	43
15	PSM	OB2	2010-12-13 03:25:49	2010-12-13 03:43:59	00:18:10	125	121.44	125	187.69	0.00	-
16	AV2	OBS	2010-12-13 03:27:33	2010-12-13 03:43:25	00:15:52	125	127.76	125	185.62	0.00	-
17	PSR	FBS	2010-12-13 04:07:45	2010-12-13 04:09:37	00:01:52	125	274.42	125	281.22	34.30	7
18	PSR	FBS	2010-12-13 04:11:39	2010-12-13 04:14:03	00:02:24	125	288.58	125	297.33	34.30	7
19	PSM	OB1	2010-12-13 05:05:31	2010-12-13 05:19:29	00:13:58	171	125.02	171	175.96	-1.20	-
20	AV2	OBS	2010-12-13 05:06:15	2010-12-13 05:18:41	00:12:26	171	127.76	171	173.10	0.00	-
21	AV2	OBS	2010-12-13 05:40:03	2010-12-13 05:41:55	00:01:52	171	250.96	171	257.76	-21.50	-
22	PSR	FBS	2010-12-13 05:47:08	2010-12-13 05:50:24	00:03:16	171	276.79	171	288.70	34.30	7
23	PSR	FBD	2010-12-13 06:17:30	2010-12-13 06:29:56	00:12:26	217	27.53	217	72.87	34.30	43
24	PSR	WB1	2010-12-13 06:37:28	2010-12-13 06:43:46	00:06:18	217	100.35	217	123.32	27.10	80
25	PSM	OB1	2010-12-13 06:44:14	2010-12-13 06:53:30	00:09:16	217	125.02	217	158.82	-1.20	-
26	AV2	OBS	2010-12-13 06:44:59	2010-12-13 06:52:43	00:07:44	217	127.76	217	155.96	0.00	-
27	PSR	WB1	2010-12-13 07:03:04	2010-12-13 07:05:12	00:02:08	217	193.70	217	201.48	27.10	80
28	AV2	OBS	2010-12-13 07:19:23	2010-12-13 07:21:15	00:01:52	217	253.21	217	260.01	41.50	-
29	PSR	FBS	2010-12-13 07:25:03	2010-12-13 07:28:15	00:03:12	217	273.87	217	285.54	34.30	7
30	PSR	FBD	2010-12-13 08:07:21	2010-12-13 08:09:13	00:01:52	263	68.13	263	74.94	34.30	43
31	PSM	OB1	2010-12-13 08:20:06	2010-12-13 08:35:52	00:15:46	263	114.63	263	172.13	-1.20	-
32	AV2	OBS	2010-12-13 08:25:10	2010-12-13 08:33:46	00:08:36	263	133.11	263	164.47	0.00	-
33	PSR	WB1	2010-12-13 08:38:41	2010-12-13 08:42:11	00:03:30	263	182.40	263	195.16	27.10	80
34	AV2	OBS	2010-12-13 08:42:59	2010-12-13 08:48:11	00:05:12	263	198.08	263	217.04	0.00	-
35	PSM	OB1	2010-12-13 08:45:33	2010-12-13 08:48:49	00:03:16	263	207.44	263	219.35	-1.20	-
36	PSR	WB1	2010-12-13 09:54:22	2010-12-13 09:57:48	00:03:26	309	98.40	309	110.92	27.10	80
37	AV2	OBS	2010-12-13 10:03:27	2010-12-13 10:15:37	00:12:10	309	131.59	309	175.96	-34.30	-
38	PSR	FBS	2010-12-13 10:42:38	2010-12-13 10:44:44	00:02:06	309	274.42	309	282.08	34.30	7
39	PSM	OB1	2010-12-13 11:46:20	2010-12-13 11:48:56	00:02:36	355	146.72	355	156.20	-1.20	-
40	AV2	OBS	2010-12-13 11:47:06	2010-12-13 11:48:58	00:01:52	355	149.52	355	156.32	0.00	-
41	PSR	FBS	2010-12-13 12:19:31	2010-12-13 12:22:47	00:03:16	355	267.67	355	279.58	34.30	7
42	PSR	FBD	2010-12-13 12:29:24	2010-12-13 12:31:24	00:02:00	355	303.77	355	311.07	34.30	43
43	PSR	FBD	2010-12-13 12:34:37	2010-12-13 12:36:29	00:01:52	355	322.80	355	329.60	34.30	43
44	PSR	FBS	2010-12-13 12:40:29	2010-12-13 12:44:53	00:04:24	355	344.19	401	0.24	34.30	7
45	PSR	FBD	2010-12-13 12:45:51	2010-12-13 12:47:43	00:01:52	401	3.77	401	10.58	34.30	43
46	PSR	PLR	2010-12-13 12:51:11	2010-12-13 12:53:03	00:01:52	401	23.22	401	30.02	21.50	127
47	PSR	FBS	2010-12-13 12:53:48	2010-12-13 12:55:40	00:01:52	401	32.76	401	39.57	21.50	3
48	PSR	PLR	2010-12-13 13:04:37	2010-12-13 13:10:01	00:05:24	401	72.21	401	91.90	21.50	127
49	PSR	WB1	2010-12-13 13:10:47	2010-12-13 13:13:41	00:02:54	401	94.69	401	105.27	27.10	80
50	PSR	WB1	2010-12-13 13:16:36	2010-12-13 13:18:44	00:02:08	401	115.91	401	123.69	27.10	80
51	PSR	WB1	2010-12-13 13:32:03	2010-12-13 13:41:31	00:09:28	401	172.19	401	206.71	27.10	80
52	PSM	OB1	2010-12-13 13:33:03	2010-12-13 13:45:03	00:12:00	401	175.89	401	219.66	-1.20	-
53	PSR	WB1	2010-12-13 13:54:10	2010-12-13 13:56:56	00:02:46	401	252.84	401	262.93	27.10	80
54	PSR	FBS	2010-12-13 14:01:23	2010-12-13 14:03:45	00:02:22	401	279.16	401	287.79	34.30	7
55	PSR	FBD	2010-12-13 14:19:58	2010-12-13 14:29:24	00:09:26	401	346.99	447	21.39	34.30	43
56	PSM	OB1	2010-12-13 14:56:36	2010-12-13 15:01:50	00:05:14	447	120.59	447	139.67	-1.20	-
57	AV2	OBS	2010-12-13 14:57:21	2010-12-13 15:01:49	00:04:28	447	123.32	447	139.61	0.00	-
58	AV2	OBS	2010-12-13 15:06:30	2010-12-13 15:18:52	00:12:22	447	156.69	447	201.79	0.00	-
59	PSR	FBS	2010-12-13 15:38:48	2010-12-13 15:43:50	00:05:02	447	274.42	447	292.77	34.30	7
60	PSR	FBD	2010-12-13 15:59:25	2010-12-13 16:10:31	00:11:06	447	349.66	493	30.15	34.30	43
61	AV2	OBS	2010-12-13 16:33:33	2010-12-13 16:47:59	00:14:26	493	114.14	493	166.78	0.00	-
62	PSR	FBS	2010-12-13 17:15:40	2010-12-13 17:22:48	00:07:08	493	267.73	493	293.74	34.30	7
63	AV2	OBS	2010-12-13 18:08:13	2010-12-13 18:10:05	00:01:52	539	99.37	539	106.18	0.00	-
64	PSM	OB1	2010-12-13 18:12:24	2010-12-13 18:23:48	00:11:24	539	114.63	539	156.20	-1.20	-
65	AV2	OBS	2010-12-13 18:13:09	2010-12-13 18:23:17	00:10:08	539	117.30	539	154.26	0.00	-
66	PSR	WB1	2010-12-13 18:51:07	2010-12-13 18:54:09	00:03:02	539	255.82	539	266.88	27.10	80
67	PSR	FBS	2010-12-13 18:55:34	2010-12-13 19:01:12	00:05:38	539	272.05	539	292.59	34.30	7
68	PSR	PLR	2010-12-13 19:14:44	2010-12-13 19:17:20	00:02:36	539	341.94	539	351.42	21.50	127
69	PSR	FBD	2010-12-13 19:20:23	2010-12-13 19:23:15	00:02:52	585	2.55	585	13.01	34.30	43
70	PSR	FBS	2010-12-13 19:24:25	2010-12-13 19:32:03	00:07:38	585	17.26	585	45.10	34.30	7
71	PSR	WB1	2010-12-13 19:43:27	2010-12-13 19:45:57	00:02:30	585	86.67	585	95.79	27.10	80
72	PSM	OB1	2010-12-13 19:51:06	2010-12-13 19:55:44	00:04:38	585	114.51	585	131.40	-1.20	-
73	AV2	OBS	2010-12-13 19:51:52	2010-12-13 19:55:46	00:03:54	585	117.30	585	131.53	0.00	-
74	PSM	OB1	2010-12-13 20:12:39	2010-12-13 20:15:15	00:02:36	585	193.09	585	202.58	-1.20	-
75	AV2	OBS	2010-12-13 20:13:25	2010-12-13 20:15:17	00:01:52	585	195.89	585	202.70	0.00	-
76	PSR	WB1	2010-12-13 20:26:35	2010-12-13 20:31:13	00:04:38	585	243.97	585	260.86	27.10	80
77	PSR	FBS	2010-12-13 20:33:24	2010-12-13 20:40:16	00:06:52	585	268.83	585	293.87	34.30	7
78	PSR	PLR	2010-12-13 20:49:42	2010-12-13 21:01:54	00:12:12	585	328.27	631	12.76	21.50	127
79	PSR	PLR	2010-12-13 21:15:11	2010-12-13 21:18:37	00:03:26	631	61.20	631	73.72	21.50	127
80	PSR	WB1	2010-12-13 21:21:24	2010-12-13 21:35:16	00:13:52	631	83.81	631	134.38	27.10	80
81	AV2	OBS	2010-12-13 21:47:55	2010-12-13 21:49:47	00:01:52	631	180.51	631	187.32	0.00	-
82	PSM	OB2	2010-12-13 21:47:58	2010-12-13 21:50:18	00:02:20	631	180.70	631	189.20	0.00	-
83	PSR	WB1	2010-12-13 22:05:17	2010-12-13 22:07:09	00:01:52	631	243.91	631	250.71	27.10	80
84	PSR	FBS	2010-12-13 22:11:49	2010-12-13 22:17:57	00:06:08	631	267.73	631	290.10	34.30	7
85	PSR	FBS	2010-12-13 22:56:29	2010-12-13 22:59:55	00:03:26	6	70.56	6	83.08	34.30	7
86	PSM	OB2	2010-12-13 23:22:44	2010-12-13 23:25:18	00:02:34	6	166.29	6	175.65	0.00	-
87	AV2	OBS	2010-12-13 23:22:45	2010-12-13 23:24:37	00:01:52	6	166.35	6	173.16	0.00	-
88	PSR	FBS	2010-12-13 23:27:16	2010-12-13 23:30:32	00:03:16	6	182.82	6	194.74	34.30	7
89	AV2	OBS	2010-12-13 23:28:36	2010-12-13 23:33:22	00:04:46	6	187.69	6	205.07	0.00	-
90	PSM	OB2	2010-12-13 23:28:37	2010-12-13 23:30:55	00:02:18	6	187.75	6	196.13	0.00	-
91	PSR	WB1	2010-12-13 23:34:39	2010-12-13 23:39:37	00:04:58	6	209.75	6	227.86	27.10	80
92	PSR	WB1	2010-12-13 23:44:00	2010-12-13 23:45:56	00:01:56	6	243.85	6	250.90	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
33	-17.46192	2010-12-12 23:35:03	150.19829	2010-12-13 00:24:25
79	-42.14150	2010-12-13 01:13:46	125.51871	2010-12-13 02:03:08
125	-66.82108	2010-12-13 02:52:29	100.83913	2010-12-13 03:41:51
171	-91.50067	2010-12-13 04:31:12	76.15954	2010-12-13 05:20:34
217	-116.18025	2010-12-13 06:09:56	51.47996	2010-12-13 06:59:17
263	-140.85983	2010-12-13 07:48:39	26.80038	2010-12-13 08:38:00
309	-165.53941	2010-12-13 09:27:22	2.12079	2010-12-13 10:16:43
355	169.78100	2010-12-13 11:06:05	-22.55879	2010-12-13 11:55:26
401	145.10142	2010-12-13 12:44:48	-47.23837	2010-12-13 13:34:10
447	120.42184	2010-12-13 14:23:31	-71.91795	2010-12-13 15:12:53
493	95.74225	2010-12-13 16:02:14	-96.59754	2010-12-13 16:51:36
539	71.06267	2010-12-13 17:40:57	-121.27712	2010-12-13 18:30:19
585	46.38309	2010-12-13 19:19:40	-145.95670	2010-12-13 20:09:02
631	21.70351	2010-12-13 20:58:23	-170.63628	2010-12-13 21:47:45
6	-2.97608	2010-12-13 22:37:07	164.68413	2010-12-13 23:26:28
