>ALOS Data Take Simulation(Jun. 22, 2010)

Observation Area

PRISM

AVNIR-2

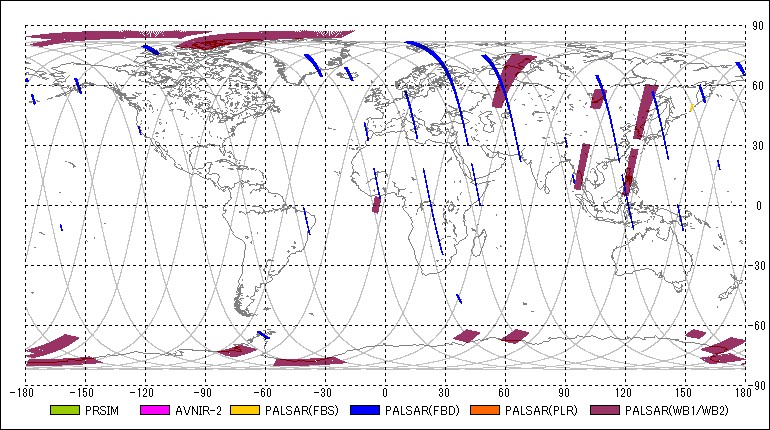

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBD2010-06-22 00:05:062010-06-22 00:08:52 00:03:46 39 62.54 39 76.28 34.30 43
2PSRWB12010-06-22 00:11:442010-06-22 00:15:10 00:03:26 39 86.73 39 99.25 27.10 80
3PSMOB12010-06-22 00:16:252010-06-22 00:23:05 00:06:40 39 103.81 39 128.12 1.20 -
4AV2OBS2010-06-22 00:17:102010-06-22 00:23:02 00:05:52 39 106.55 39 127.94 0.00 -
5PSRFBS2010-06-22 00:23:042010-06-22 00:24:34 00:01:30 39 128.06 39 133.53 34.30 7
6AV2OBS2010-06-22 00:34:142010-06-22 00:35:44 00:01:30 39 168.78 39 174.25 0.00 -
7PSMOB22010-06-22 00:39:522010-06-22 00:48:50 00:08:58 39 189.33 39 222.03 0.00 -
8AV2OBS2010-06-22 00:40:002010-06-22 00:48:56 00:08:56 39 189.81 39 222.39 0.00 -
9PSRFBD2010-06-22 01:21:542010-06-22 01:26:22 00:04:28 39 342.61 39 358.90 34.30 43
10PSMOB12010-06-22 01:54:412010-06-22 02:09:49 00:15:08 85 102.11 85 157.30 1.20 -
11AV2OBS2010-06-22 01:55:272010-06-22 02:09:11 00:13:44 85 104.90 85 154.99 0.00 -
12PSRWB12010-06-22 01:59:052010-06-22 02:07:13 00:08:08 85 118.22 85 147.88 27.10 80
13PSRWB12010-06-22 02:07:592010-06-22 02:15:01 00:07:02 85 150.67 85 176.32 27.10 80
14AV2OBS2010-06-22 02:20:492010-06-22 02:25:43 00:04:54 85 197.47 85 215.34 0.00 -
15PSMOB22010-06-22 03:33:462010-06-22 03:55:58 00:22:12 131 103.51 131 184.46 0.00 -
16PSRWB12010-06-22 03:38:272010-06-22 03:41:39 00:03:12 131 120.59 131 132.26 27.10 80
17PSRWB12010-06-22 03:45:592010-06-22 03:52:55 00:06:56 131 148.06 131 173.34 27.10 80
18AV2OBS2010-06-22 03:51:072010-06-22 03:55:11 00:04:04 131 166.78 131 181.61 0.00 -
19PSRWB12010-06-22 04:12:162010-06-22 04:14:32 00:02:16 131 243.91 131 252.17 27.10 80
20PSRFBD2010-06-22 04:24:242010-06-22 04:26:16 00:01:52 131 288.15 131 294.96 34.30 43
21PSRFBD2010-06-22 05:04:282010-06-22 05:06:18 00:01:50 177 74.27 177 80.96 34.30 43
22AV2OBS2010-06-22 05:11:272010-06-22 05:30:47 00:19:20 177 99.74 177 170.24 0.00 -
23PSMOB12010-06-22 05:13:322010-06-22 05:31:32 00:18:00 177 107.34 177 172.98 1.20 -
24AV2OBS2010-06-22 05:46:202010-06-22 05:48:12 00:01:52 177 226.95 177 233.76 -41.50 -
25PSRWB12010-06-22 05:50:582010-06-22 05:53:02 00:02:04 177 243.85 177 251.38 27.10 80
26PSRFBD2010-06-22 06:31:522010-06-22 06:33:38 00:01:46 223 33.00 223 39.45 34.30 43
27PSMOB12010-06-22 06:49:432010-06-22 07:09:09 00:19:26 223 98.10 223 168.97 1.20 -
28PSRWB12010-06-22 06:51:012010-06-22 06:58:57 00:07:56 223 102.84 223 131.77 27.10 80
29PSRWB12010-06-22 07:34:552010-06-22 07:37:25 00:02:30 223 262.93 223 272.05 27.10 80
30PSRFBD2010-06-22 08:16:212010-06-22 08:19:03 00:02:42 269 54.03 269 63.88 34.30 43
31PSMOB12010-06-22 08:27:452010-06-22 08:42:39 00:14:54 269 95.54 269 149.88 1.20 -
32AV2OBS2010-06-22 08:28:312010-06-22 08:41:53 00:13:22 269 98.40 269 147.15 0.00 -
33PSMOB12010-06-22 08:52:312010-06-22 09:00:45 00:08:14 269 185.86 269 215.89 1.20 -
34AV2OBS2010-06-22 08:53:142010-06-22 08:59:52 00:06:38 269 188.54 269 212.73 0.00 -
35PSRFBD2010-06-22 09:36:062010-06-22 09:37:38 00:01:32 269 344.86 269 350.45 34.30 43
36AV2CA12010-06-22 09:39:522010-06-22 09:47:40 00:07:48 269 358.54 315 26.99 0.00 -
37PSRFBD2010-06-22 09:53:352010-06-22 09:55:31 00:01:56 315 48.62 315 55.67 34.30 43
38PSRFBD2010-06-22 09:56:452010-06-22 10:00:03 00:03:18 315 60.17 315 72.21 34.30 43
39AV2OBS2010-06-22 10:09:132010-06-22 10:19:05 00:09:52 315 105.63 315 141.62 0.00 -
40PSMOB12010-06-22 10:10:022010-06-22 10:19:52 00:09:50 315 108.61 315 144.47 1.20 -
41PSRWB12010-06-22 10:28:122010-06-22 10:31:00 00:02:48 315 174.80 315 185.01 27.10 80
42PSRFBD2010-06-22 11:23:162010-06-22 11:25:08 00:01:52 361 15.62 361 22.43 34.30 43
43PSRFBD2010-06-22 11:32:322010-06-22 11:35:38 00:03:06 361 49.41 361 60.72 34.30 43
44PSMOB12010-06-22 11:49:442010-06-22 11:54:48 00:05:04 361 112.14 361 130.61 1.20 -
45AV2OBS2010-06-22 11:50:302010-06-22 11:54:22 00:03:52 361 114.99 361 129.09 0.00 -
46PSRWB12010-06-22 12:28:262010-06-22 12:30:26 00:02:00 361 253.33 361 260.62 27.10 80
47PSRFBD2010-06-22 12:53:342010-06-22 12:57:50 00:04:16 361 344.98 407 0.55 34.30 43
48PSRFBD2010-06-22 13:03:192010-06-22 13:13:21 00:10:02 407 20.54 407 57.13 34.30 43
49PSMOB12010-06-22 13:26:032010-06-22 13:28:39 00:02:36 407 103.45 407 112.93 1.20 -
50AV2OBS2010-06-22 13:26:392010-06-22 13:28:31 00:01:52 407 105.63 407 112.44 0.00 -
51AV2OBS2010-06-22 13:45:562010-06-22 13:58:28 00:12:32 407 175.96 407 221.66 0.00 -
52PSMOB12010-06-22 14:00:522010-06-22 14:03:32 00:02:40 407 230.35 407 240.08 1.20 -
53AV2OBS2010-06-22 14:01:342010-06-22 14:03:26 00:01:52 407 232.97 407 239.77 0.00 -
54PSRFBD2010-06-22 14:32:282010-06-22 14:40:34 00:08:06 407 345.59 453 15.13 34.30 43
55PSRFBD2010-06-22 14:41:402010-06-22 14:54:22 00:12:42 453 19.15 453 65.46 34.30 43
56PSMOB12010-06-22 15:01:362010-06-22 15:14:50 00:13:14 453 91.84 453 140.10 1.20 -
57AV2OBS2010-06-22 15:09:422010-06-22 15:14:42 00:05:00 453 121.38 453 139.61 0.00 -
58AV2OBS2010-06-22 15:18:532010-06-22 15:29:35 00:10:42 453 154.93 453 193.95 0.00 -
59PSRWB12010-06-22 15:48:262010-06-22 15:51:10 00:02:44 453 262.63 453 272.59 27.10 80
60PSRFBD2010-06-22 16:17:302010-06-22 16:19:22 00:01:52 499 8.63 499 15.44 34.30 43
61PSRFBD2010-06-22 16:22:322010-06-22 16:24:24 00:01:52 499 27.05 499 33.85 34.30 43
62AV2OBS2010-06-22 16:42:262010-06-22 16:52:22 00:09:56 499 99.56 499 135.78 0.00 -
63PSMOB12010-06-22 16:57:412010-06-22 17:01:21 00:03:40 499 155.17 499 168.54 1.20 -
64PSRFBD2010-06-22 17:59:132010-06-22 18:14:43 00:15:30 545 19.57 545 76.10 34.30 43
65PSMOB12010-06-22 18:17:342010-06-22 18:36:08 00:18:34 545 86.49 545 154.20 1.20 -
66PSRWB12010-06-22 18:17:532010-06-22 18:21:37 00:03:44 545 87.64 545 101.26 27.10 80
67PSRWB12010-06-22 19:01:282010-06-22 19:06:54 00:05:26 545 246.58 545 266.39 27.10 80
68PSRFBD2010-06-22 19:31:482010-06-22 19:38:22 00:06:34 545 357.20 591 21.15 34.30 43
69PSRFBD2010-06-22 19:40:082010-06-22 19:55:24 00:15:16 591 27.59 591 83.27 34.30 43
70PSMOB12010-06-22 19:56:172010-06-22 20:07:57 00:11:40 591 86.49 591 129.03 1.20 -
71AV2OBS2010-06-22 19:57:042010-06-22 20:07:36 00:10:32 591 89.35 591 127.76 0.00 -
72PSRWB12010-06-22 20:40:032010-06-22 20:43:29 00:03:26 591 246.09 591 258.61 27.10 80
73PSRFBD2010-06-22 20:56:572010-06-22 20:58:49 00:01:52 591 307.72 591 314.53 34.30 43
74PSRFBD2010-06-22 21:03:482010-06-22 21:16:24 00:12:36 591 332.70 637 18.66 34.30 43
75PSRFBD2010-06-22 21:19:532010-06-22 21:26:59 00:07:06 637 31.36 637 57.25 34.30 43
76PSMOB12010-06-22 21:35:022010-06-22 21:46:14 00:11:12 637 86.55 637 127.39 1.20 -
77AV2OBS2010-06-22 21:40:212010-06-22 21:45:55 00:05:34 637 106.00 637 126.30 0.00 -
78PSRWB12010-06-22 22:18:092010-06-22 22:19:41 00:01:32 637 243.85 637 249.44 27.10 80
79PSRFBD2010-06-22 22:50:172010-06-22 22:55:07 00:04:50 12 1.03 12 18.66 34.30 43
80PSRFBD2010-06-22 22:58:142010-06-22 23:01:24 00:03:10 12 30.02 12 41.57 34.30 43
81PSRFBD2010-06-22 23:06:372010-06-22 23:09:07 00:02:30 12 60.54 12 69.65 34.30 43
82PSMOB12010-06-22 23:19:122010-06-22 23:26:12 00:07:00 12 106.48 12 132.01 1.20 -
83AV2OBS2010-06-22 23:24:102010-06-22 23:26:02 00:01:52 12 124.60 12 131.40 0.00 -
84AV2OBS2010-06-22 23:37:152010-06-22 23:39:07 00:01:52 12 172.31 12 179.12 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
39-20.680992010-06-21 23:47:56146.979212010-06-22 00:37:17
85-45.360582010-06-22 01:26:39122.299632010-06-22 02:16:00
131-70.040162010-06-22 03:05:22 97.620052010-06-22 03:54:44
177-94.719742010-06-22 04:44:05 72.940472010-06-22 05:33:27
223-119.399322010-06-22 06:22:48 48.260882010-06-22 07:12:10
269-144.078912010-06-22 08:01:31 23.581302010-06-22 08:50:53
315-168.758492010-06-22 09:40:14 -1.098282010-06-22 10:29:36
361166.561932010-06-22 11:18:57-25.777862010-06-22 12:08:19
407141.882342010-06-22 12:57:41-50.457452010-06-22 13:47:02
453117.202762010-06-22 14:36:24-75.137032010-06-22 15:25:45
499 92.523182010-06-22 16:15:07-99.816612010-06-22 17:04:28
545 67.843602010-06-22 17:53:50-124.496202010-06-22 18:43:11
591 43.164012010-06-22 19:32:33-149.175782010-06-22 20:21:55
637 18.484432010-06-22 21:11:16-173.855362010-06-22 22:00:38
12 -6.195152010-06-22 22:49:59161.465062010-06-22 23:39:21
