>ALOS Data Take Simulation(Jun. 21, 2010)

Observation Area

PRISM

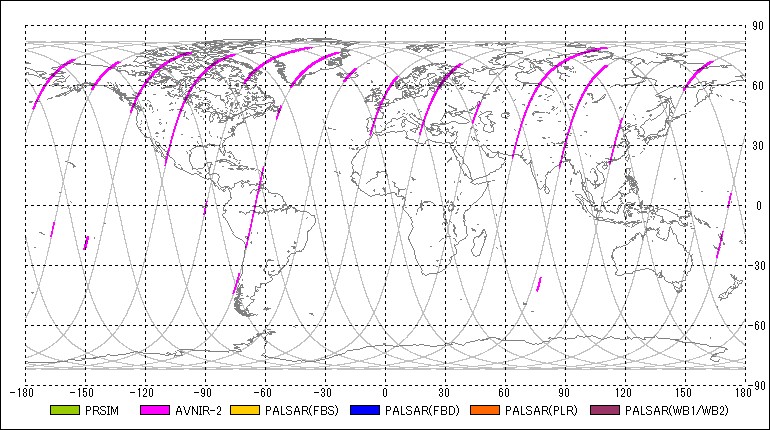

AVNIR-2

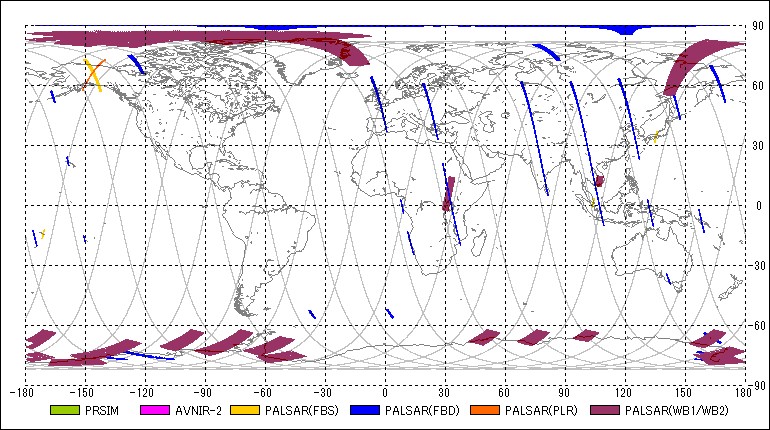

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-06-21 01:08:01	2010-06-21 01:20:24	00:12:23	66	80.65	66	125.81	27.10	80
2	AV2	OBS	2010-06-21 01:15:03	2010-06-21 01:19:17	00:04:14	66	106.36	66	121.80	0.00	-
3	PSM	OB2	2010-06-21 01:22:28	2010-06-21 01:27:40	00:05:12	66	133.35	66	152.31	0.00	-
4	PSR	FBS	2010-06-21 01:24:52	2010-06-21 01:26:58	00:02:06	66	142.10	66	149.76	34.30	7
5	PSM	OB2	2010-06-21 01:32:37	2010-06-21 01:46:21	00:13:44	66	170.36	66	220.45	0.00	-
6	PSR	WB1	2010-06-21 01:52:47	2010-06-21 01:54:49	00:02:02	66	243.91	66	251.32	27.10	80
7	PSR	FBD	2010-06-21 02:08:03	2010-06-21 02:09:55	00:01:52	66	299.58	66	306.39	34.30	43
8	PSM	OB2	2010-06-21 02:58:30	2010-06-21 03:09:12	00:10:42	112	123.56	112	162.58	0.00	-
9	AV2	OBS	2010-06-21 03:02:00	2010-06-21 03:08:24	00:06:24	112	136.39	112	159.73	0.00	-
10	PSR	WB1	2010-06-21 03:09:40	2010-06-21 03:11:42	00:02:02	112	164.29	112	171.70	27.10	80
11	PSR	FBS	2010-06-21 03:12:50	2010-06-21 03:14:42	00:01:52	112	175.83	112	182.64	34.30	7
12	PSM	OB2	2010-06-21 03:15:09	2010-06-21 03:18:13	00:03:04	112	184.28	112	195.47	0.00	-
13	PSR	WB1	2010-06-21 03:31:29	2010-06-21 03:34:07	00:02:38	112	243.85	112	253.45	27.10	80
14	AV2	OBS	2010-06-21 04:33:06	2010-06-21 04:47:38	00:14:32	158	108.61	158	161.61	0.00	-
15	PSM	OB1	2010-06-21 04:40:23	2010-06-21 04:48:03	00:07:40	158	135.11	158	163.07	1.20	-
16	AV2	OBS	2010-06-21 05:02:33	2010-06-21 05:04:25	00:01:52	158	215.95	158	222.75	21.50	-
17	PSR	WB1	2010-06-21 05:10:12	2010-06-21 05:12:42	00:02:30	158	243.91	158	253.02	27.10	80
18	PSR	FBD	2010-06-21 05:59:37	2010-06-21 06:02:55	00:03:18	204	64.06	204	76.10	34.30	43
19	PSM	OB1	2010-06-21 06:08:04	2010-06-21 06:21:28	00:13:24	204	94.88	204	143.74	1.20	-
20	AV2	OBS	2010-06-21 06:08:51	2010-06-21 06:24:57	00:16:06	204	97.79	204	156.51	0.00	-
21	PSR	FBS	2010-06-21 07:35:50	2010-06-21 07:41:00	00:05:10	250	54.94	250	73.79	34.30	7
22	PSM	OB1	2010-06-21 07:49:15	2010-06-21 08:05:31	00:16:16	250	103.87	250	163.19	1.20	-
23	AV2	OBS	2010-06-21 07:55:48	2010-06-21 07:58:52	00:03:04	250	127.76	250	138.94	0.00	-
24	PSR	WB1	2010-06-21 08:05:59	2010-06-21 08:11:15	00:05:16	250	164.89	250	184.10	27.10	80
25	PSM	OB1	2010-06-21 08:11:43	2010-06-21 08:20:45	00:09:02	250	185.80	250	218.74	1.20	-
26	PSR	FBD	2010-06-21 08:53:28	2010-06-21 08:55:20	00:01:52	250	338.05	250	344.86	34.30	43
27	PSR	FBD	2010-06-21 09:04:16	2010-06-21 09:06:08	00:01:52	296	17.44	296	24.25	34.30	43
28	PSR	FBD	2010-06-21 09:12:59	2010-06-21 09:15:17	00:02:18	296	49.23	296	57.62	34.30	43
29	AV2	OBS	2010-06-21 09:29:02	2010-06-21 09:39:02	00:10:00	296	107.76	296	144.23	0.00	-
30	PSR	WB1	2010-06-21 10:10:06	2010-06-21 10:12:14	00:02:08	296	257.52	296	265.30	27.10	80
31	PSR	FBD	2010-06-21 10:14:10	2010-06-21 10:17:18	00:03:08	296	272.35	296	283.78	34.30	43
32	PSR	FBD	2010-06-21 10:31:54	2010-06-21 10:34:40	00:02:46	296	337.02	296	347.11	34.30	43
33	PSR	FBD	2010-06-21 10:51:48	2010-06-21 10:57:34	00:05:46	342	49.60	342	70.63	34.30	43
34	PSM	OB1	2010-06-21 11:08:47	2010-06-21 11:18:41	00:09:54	342	111.53	342	147.63	1.20	-
35	AV2	OBS	2010-06-21 11:09:33	2010-06-21 11:17:53	00:08:20	342	114.33	342	144.71	0.00	-
36	PSR	WB1	2010-06-21 11:46:05	2010-06-21 11:49:23	00:03:18	342	247.55	342	259.59	27.10	80
37	PSR	FBD	2010-06-21 11:52:50	2010-06-21 11:54:42	00:01:52	342	272.11	342	278.91	34.30	43
38	PSR	FBD	2010-06-21 12:12:32	2010-06-21 12:16:24	00:03:52	342	344.01	342	358.11	34.30	43
39	PSR	FBD	2010-06-21 12:28:04	2010-06-21 12:32:10	00:04:06	388	40.66	388	55.61	34.30	43
40	PSM	OB1	2010-06-21 12:46:29	2010-06-21 12:49:43	00:03:14	388	107.82	388	119.61	1.20	-
41	AV2	OBS	2010-06-21 12:47:12	2010-06-21 12:49:04	00:01:52	388	110.37	388	117.18	0.00	-
42	PSM	OB1	2010-06-21 13:05:46	2010-06-21 13:14:22	00:08:36	388	178.14	388	209.51	1.20	-
43	PSR	WB1	2010-06-21 13:23:48	2010-06-21 13:28:08	00:04:20	388	243.91	388	259.71	27.10	80
44	PSR	FBD	2010-06-21 13:35:13	2010-06-21 13:37:29	00:02:16	388	285.54	388	293.81	34.30	43
45	PSR	FBD	2010-06-21 13:43:56	2010-06-21 13:46:10	00:02:14	388	317.33	388	325.47	34.30	43
46	PSR	FBD	2010-06-21 13:52:06	2010-06-21 13:56:28	00:04:22	388	347.11	434	3.04	34.30	43
47	PSR	FBD	2010-06-21 14:01:16	2010-06-21 14:13:08	00:11:52	434	20.54	434	63.82	34.30	43
48	PSR	FBD	2010-06-21 14:18:33	2010-06-21 14:21:03	00:02:30	434	83.57	434	92.69	49.00	51
49	AV2	OBS	2010-06-21 14:23:21	2010-06-21 14:28:37	00:05:16	434	101.08	434	120.28	0.00	-
50	PSM	OB1	2010-06-21 14:30:34	2010-06-21 14:33:10	00:02:36	434	127.39	434	136.87	1.20	-
51	AV2	OBS	2010-06-21 14:31:13	2010-06-21 14:33:05	00:01:52	434	129.76	434	136.57	0.00	-
52	AV2	OBS	2010-06-21 14:39:40	2010-06-21 14:50:52	00:11:12	434	160.52	434	201.36	0.00	-
53	AV2	OBS	2010-06-21 14:54:21	2010-06-21 14:57:11	00:02:50	434	214.12	434	224.46	0.00	-
54	PSR	WB1	2010-06-21 15:02:31	2010-06-21 15:05:57	00:03:26	434	243.91	434	256.43	27.10	80
55	PSR	WB1	2010-06-21 15:08:07	2010-06-21 15:10:13	00:02:06	434	264.33	434	271.99	27.10	80
56	PSR	FBD	2010-06-21 15:11:05	2010-06-21 15:12:57	00:01:52	434	275.15	434	281.95	34.30	43
57	PSR	FBD	2010-06-21 15:30:53	2010-06-21 15:51:25	00:20:32	434	347.35	480	62.24	34.30	43
58	PSR	FBD	2010-06-21 15:53:49	2010-06-21 15:56:47	00:02:58	480	70.93	480	81.75	34.30	43
59	AV2	OBS	2010-06-21 16:01:08	2010-06-21 16:06:44	00:05:36	480	97.61	480	118.03	0.00	-
60	PSM	OB1	2010-06-21 16:15:51	2010-06-21 16:25:21	00:09:30	480	151.34	480	185.98	1.20	-
61	AV2	OBS	2010-06-21 16:23:12	2010-06-21 16:25:04	00:01:52	480	178.08	480	184.89	0.00	-
62	PSR	WB1	2010-06-21 16:42:46	2010-06-21 16:46:40	00:03:54	480	249.50	480	263.72	27.10	80
63	PSR	FBD	2010-06-21 16:47:53	2010-06-21 16:49:45	00:01:52	480	268.16	480	274.96	34.30	43
64	PSR	FBD	2010-06-21 17:13:44	2010-06-21 17:30:08	00:16:24	526	2.43	526	62.24	34.30	43
65	PSM	OB1	2010-06-21 17:36:48	2010-06-21 17:57:26	00:20:38	526	86.49	526	161.73	1.20	-
66	AV2	OBS	2010-06-21 17:41:05	2010-06-21 17:57:01	00:15:56	526	102.11	526	160.21	0.00	-
67	PSR	WB1	2010-06-21 18:23:58	2010-06-21 18:26:44	00:02:46	526	258.49	526	268.58	27.10	80
68	PSM	OB1	2010-06-21 19:15:31	2010-06-21 19:29:05	00:13:34	572	86.49	572	135.96	1.20	-
69	AV2	OBS	2010-06-21 19:19:31	2010-06-21 19:28:21	00:08:50	572	101.08	572	133.29	0.00	-
70	AV2	OBS	2010-06-21 19:45:47	2010-06-21 19:47:39	00:01:52	572	196.92	572	203.73	-41.50	-
71	PSR	WB1	2010-06-21 19:58:40	2010-06-21 20:04:04	00:05:24	572	243.91	572	263.60	27.10	80
72	PSR	FBD	2010-06-21 20:24:18	2010-06-21 20:36:14	00:11:56	572	337.32	618	20.85	34.30	43
73	PSR	FBD	2010-06-21 20:38:53	2010-06-21 20:47:21	00:08:28	618	30.51	618	61.39	34.30	43
74	PSR	WB1	2010-06-21 20:53:25	2010-06-21 20:57:59	00:04:34	618	83.51	618	100.16	27.10	80
75	PSM	OB2	2010-06-21 20:54:46	2010-06-21 20:58:20	00:03:34	618	88.43	618	101.44	0.00	-
76	PSR	PLR	2010-06-21 20:59:10	2010-06-21 21:04:20	00:05:10	618	104.54	618	123.38	21.50	127
77	AV2	OBS	2010-06-21 20:59:44	2010-06-21 21:03:50	00:04:06	618	106.55	618	121.50	0.00	-
78	AV2	OBS	2010-06-21 21:22:16	2010-06-21 21:24:08	00:01:52	618	188.72	618	195.53	0.00	-
79	PSR	FBS	2010-06-21 21:22:57	2010-06-21 21:24:49	00:01:52	618	191.21	618	198.02	34.30	7
80	PSR	WB1	2010-06-21 21:37:23	2010-06-21 21:40:21	00:02:58	618	243.91	618	254.72	27.10	80
81	PSR	FBD	2010-06-21 22:01:45	2010-06-21 22:05:37	00:03:52	618	332.70	618	346.80	34.30	43
82	PSR	FBD	2010-06-21 22:07:26	2010-06-21 22:09:58	00:02:32	618	353.43	664	2.67	34.30	43
83	PSR	FBD	2010-06-21 22:18:43	2010-06-21 22:27:01	00:08:18	664	34.58	664	64.85	34.30	43
84	PSR	WB1	2010-06-21 22:28:06	2010-06-21 22:36:28	00:08:22	664	68.80	664	99.31	27.10	80
85	PSM	OB1	2010-06-21 22:37:18	2010-06-21 22:45:24	00:08:06	664	102.41	664	131.95	1.20	-
86	AV2	OBS	2010-06-21 22:38:04	2010-06-21 22:45:16	00:07:12	664	105.21	664	131.46	0.00	-
87	AV2	OBS	2010-06-21 22:56:59	2010-06-21 22:58:51	00:01:52	664	174.13	664	180.94	0.00	-
88	AV2	OBS	2010-06-21 23:02:08	2010-06-21 23:05:46	00:03:38	664	192.91	664	206.16	0.00	-
89	PSR	FBD	2010-06-21 23:31:26	2010-06-21 23:33:18	00:01:52	664	299.76	664	306.57	34.30	43

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
20	-10.48725	2010-06-20 23:07:09	157.17296	2010-06-20 23:56:31
66	-35.16684	2010-06-21 00:45:52	132.49337	2010-06-21 01:35:14
112	-59.84642	2010-06-21 02:24:35	107.81379	2010-06-21 03:13:57
158	-84.52600	2010-06-21 04:03:19	83.13421	2010-06-21 04:52:40
204	-109.20558	2010-06-21 05:42:02	58.45462	2010-06-21 06:31:23
250	-133.88517	2010-06-21 07:20:45	33.77504	2010-06-21 08:10:06
296	-158.56475	2010-06-21 08:59:28	9.09546	2010-06-21 09:48:49
342	176.75567	2010-06-21 10:38:11	-15.58412	2010-06-21 11:27:33
388	152.07608	2010-06-21 12:16:54	-40.26371	2010-06-21 13:06:16
434	127.39650	2010-06-21 13:55:37	-64.94329	2010-06-21 14:44:59
480	102.71692	2010-06-21 15:34:20	-89.62287	2010-06-21 16:23:42
526	78.03734	2010-06-21 17:13:03	-114.30245	2010-06-21 18:02:25
572	53.35775	2010-06-21 18:51:46	-138.98204	2010-06-21 19:41:08
618	28.67817	2010-06-21 20:30:30	-163.66162	2010-06-21 21:19:51
664	3.99859	2010-06-21 22:09:13	171.65880	2010-06-21 22:58:34
39	-20.68099	2010-06-21 23:47:56	146.97921	2010-06-22 00:37:17
