>ALOS Data Take Simulation(Jun. 14, 2010)

Observation Area

PRISM

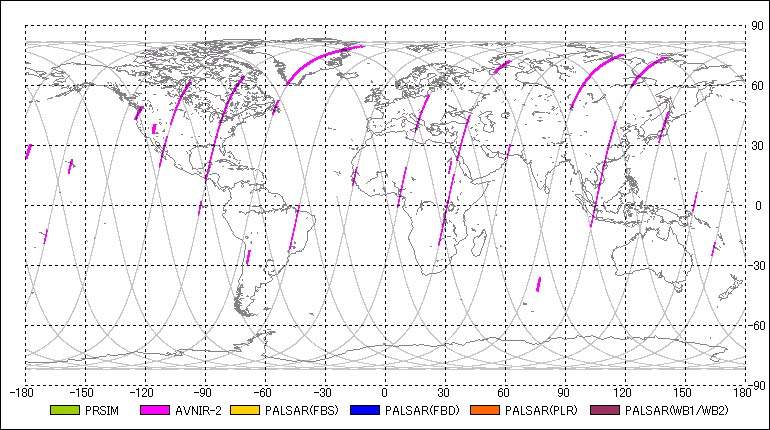

AVNIR-2

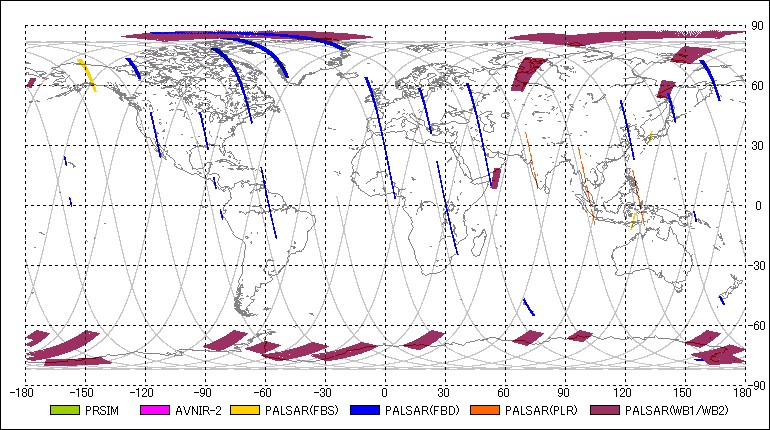

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2010-06-14 00:05:322010-06-14 00:08:10 00:02:38 25 173.71 25 183.31 0.00 -
2PSRFBD2010-06-14 01:13:402010-06-14 01:21:08 00:07:28 71 62.18 71 89.41 34.30 43
3PSRWB12010-06-14 01:23:412010-06-14 01:26:29 00:02:48 71 98.71 71 108.92 27.10 80
4PSRWB12010-06-14 01:28:302010-06-14 01:31:26 00:02:56 71 116.27 71 126.97 27.10 80
5PSMOB22010-06-14 01:31:072010-06-14 01:37:35 00:06:28 71 125.75 71 149.33 0.00 -
6AV2OBS2010-06-14 01:32:552010-06-14 01:37:21 00:04:26 71 132.38 71 148.54 0.00 -
7PSRFBS2010-06-14 01:35:282010-06-14 01:37:34 00:02:06 71 141.62 71 149.27 34.30 7
8PSMOB22010-06-14 01:45:002010-06-14 01:56:58 00:11:58 71 176.38 71 220.02 0.00 -
9PSRFBS2010-06-14 01:46:452010-06-14 01:49:41 00:02:56 71 182.82 71 193.52 34.30 7
10PSRWB12010-06-14 02:03:302010-06-14 02:05:32 00:02:02 71 243.91 71 251.32 27.10 80
11PSRFBD2010-06-14 02:30:092010-06-14 02:40:35 00:10:26 71 341.09 117 19.15 34.30 43
12PSRFBD2010-06-14 02:46:052010-06-14 02:57:11 00:11:06 117 39.20 117 79.68 34.30 43
13AV2OBS2010-06-14 03:03:522010-06-14 03:08:20 00:04:28 117 104.05 117 120.34 0.00 -
14PSMOB22010-06-14 03:10:232010-06-14 03:28:05 00:17:42 117 127.76 117 192.30 0.00 -
15AV2OBS2010-06-14 03:13:102010-06-14 03:27:36 00:14:26 117 137.91 117 190.54 0.00 -
16PSRWB12010-06-14 03:42:132010-06-14 03:44:45 00:02:32 117 243.91 117 253.14 27.10 80
17PSRFBD2010-06-14 04:11:302010-06-14 04:13:32 00:02:02 117 350.63 117 358.05 34.30 43
18PSRFBD2010-06-14 04:15:492010-06-14 04:17:53 00:02:04 163 6.44 163 13.98 34.30 43
19PSRFBD2010-06-14 04:21:052010-06-14 04:26:55 00:05:50 163 25.65 163 46.92 34.30 43
20AV2OBS2010-06-14 04:42:082010-06-14 04:50:06 00:07:58 163 102.35 163 131.40 0.00 -
21PSMOB12010-06-14 04:48:212010-06-14 05:02:51 00:14:30 163 125.02 163 177.90 -1.20 -
22AV2OBS2010-06-14 05:13:142010-06-14 05:15:06 00:01:52 163 215.77 163 222.57 34.30 -
23PSRFBD2010-06-14 05:58:422010-06-14 06:05:38 00:06:56 209 21.64 209 46.92 34.30 43
24PSRFBD2010-06-14 06:09:452010-06-14 06:13:11 00:03:26 209 61.87 209 74.39 34.30 43
25PSRWB12010-06-14 06:16:342010-06-14 06:20:00 00:03:26 209 86.73 209 99.25 27.10 80
26PSRWB12010-06-14 06:21:252010-06-14 06:26:37 00:05:12 209 104.42 209 123.38 27.10 80
27PSMOB12010-06-14 06:27:042010-06-14 06:36:18 00:09:14 209 125.02 209 158.69 -1.20 -
28AV2OBS2010-06-14 06:33:472010-06-14 06:35:39 00:01:52 209 149.52 209 156.32 0.00 -
29PSRWB12010-06-14 06:36:452010-06-14 06:40:07 00:03:22 209 160.33 209 172.61 27.10 80
30PSRWB12010-06-14 06:59:392010-06-14 07:02:55 00:03:16 209 243.91 209 255.82 27.10 80
31PSRFBS2010-06-14 07:46:342010-06-14 07:51:44 00:05:10 255 54.94 255 73.79 34.30 7
32PSRWB12010-06-14 07:56:272010-06-14 07:58:01 00:01:34 255 90.99 255 96.70 27.10 80
33AV2OBS2010-06-14 08:00:342010-06-14 08:02:20 00:01:46 255 106.00 255 112.44 0.00 -
34AV2OBS2010-06-14 08:08:252010-06-14 08:26:17 00:17:52 255 134.63 255 199.78 0.00 -
35PSMOB12010-06-14 08:11:042010-06-14 08:24:42 00:13:38 255 144.29 255 194.01 -1.20 -
36PSRWB12010-06-14 08:40:232010-06-14 08:43:49 00:03:26 255 251.20 255 263.72 27.10 80
37PSRFBD2010-06-14 09:09:242010-06-14 09:11:20 00:01:56 255 357.02 301 4.07 34.30 43
38PSRFBD2010-06-14 09:15:062010-06-14 09:16:58 00:01:52 301 17.81 301 24.62 41.50 46
39PSMOB12010-06-14 09:39:492010-06-14 09:51:11 00:11:22 301 107.94 301 149.39 -1.20 -
40AV2OBS2010-06-14 09:44:142010-06-14 09:49:19 00:05:05 301 124.11 301 142.65 0.00 -
41AV2OBS2010-06-14 09:54:232010-06-14 09:59:55 00:05:32 301 161.13 301 181.30 0.00 -
42PSRWB12010-06-14 10:19:062010-06-14 10:22:32 00:03:26 301 251.20 301 263.72 27.10 80
43PSRFBD2010-06-14 11:02:482010-06-14 11:09:04 00:06:16 347 50.57 347 73.42 34.30 43
44PSMOB12010-06-14 11:20:152010-06-14 11:29:07 00:08:52 347 114.20 347 146.54 -1.20 -
45PSMOB12010-06-14 11:32:242010-06-14 11:36:20 00:03:56 347 158.51 347 172.86 -1.20 -
46AV2OBS2010-06-14 11:33:072010-06-14 11:35:37 00:02:30 347 161.13 347 170.24 0.00 -
47PSRWB12010-06-14 11:57:412010-06-14 11:59:43 00:02:02 347 250.71 347 258.13 27.10 80
48PSRFBD2010-06-14 12:13:102010-06-14 12:14:56 00:01:46 347 307.18 347 313.62 34.30 43
49PSRFBD2010-06-14 12:24:452010-06-14 12:26:49 00:02:04 347 349.42 347 356.95 34.30 43
50PSRFBD2010-06-14 12:38:282010-06-14 12:43:10 00:04:42 393 39.45 393 56.59 34.30 43
51PSMOB12010-06-14 12:58:382010-06-14 13:01:56 00:03:18 393 112.99 393 125.02 0.00 -
52PSMOB12010-06-14 13:16:162010-06-14 13:26:38 00:10:22 393 177.29 393 215.10 -1.20 -
53AV2OBS2010-06-14 13:17:022010-06-14 13:23:07 00:06:05 393 180.09 393 202.27 0.00 -
54PSMOB12010-06-14 13:30:132010-06-14 13:32:49 00:02:36 393 228.16 393 237.65 -1.20 -
55PSRWB12010-06-14 13:34:322010-06-14 13:37:58 00:03:26 393 243.91 393 256.43 27.10 80
56PSRPLR2010-06-14 14:03:012010-06-14 14:11:13 00:08:12 393 347.78 439 17.69 23.10 128
57PSRFBD2010-06-14 14:12:012010-06-14 14:20:55 00:08:54 439 20.60 439 53.06 34.30 43
58AV2OBS2010-06-14 14:32:522010-06-14 14:39:08 00:06:16 439 96.64 439 119.49 0.00 -
59PSMOB12010-06-14 14:34:092010-06-14 14:38:29 00:04:20 439 101.32 439 117.12 -1.20 -
60AV2OBS2010-06-14 14:41:082010-06-14 14:43:08 00:02:00 439 126.78 439 134.08 0.00 -
61PSMOB12010-06-14 14:51:192010-06-14 15:02:05 00:10:46 439 163.92 439 203.18 -1.20 -
62AV2OBS2010-06-14 15:01:482010-06-14 15:03:40 00:01:52 439 202.09 439 208.90 34.30 -
63PSRWB12010-06-14 15:18:352010-06-14 15:20:57 00:02:22 439 263.29 439 271.93 27.10 80
64PSRPLR2010-06-14 15:41:542010-06-14 15:53:18 00:11:24 439 348.39 485 29.96 23.10 128
65PSMOB12010-06-14 16:09:162010-06-14 16:18:02 00:08:46 485 88.19 485 120.16 -1.20 -
66AV2OBS2010-06-14 16:16:292010-06-14 16:31:07 00:14:38 485 114.51 485 167.87 0.00 -
67AV2OBS2010-06-14 16:33:562010-06-14 16:35:48 00:01:52 485 178.08 485 184.89 0.00 -
68PSRFBD2010-06-14 16:58:272010-06-14 17:00:19 00:01:52 485 267.55 485 274.36 34.30 43
69PSRPLR2010-06-14 17:25:272010-06-14 17:34:01 00:08:34 531 6.02 531 37.26 23.10 128
70PSMOB12010-06-14 17:47:322010-06-14 18:01:48 00:14:16 531 86.49 531 138.52 -1.20 -
71AV2OBS2010-06-14 17:55:592010-06-14 18:07:41 00:11:42 531 117.36 531 160.03 0.00 -
72PSRWB12010-06-14 18:30:412010-06-14 18:37:17 00:06:36 531 243.91 531 267.97 27.10 80
73PSRFBD2010-06-14 18:46:262010-06-14 18:49:28 00:03:02 531 301.34 531 312.40 34.30 43
74PSRFBD2010-06-14 19:04:422010-06-14 19:19:24 00:14:42 577 7.96 577 61.57 34.30 43
75PSMOB12010-06-14 19:26:152010-06-14 19:39:01 00:12:46 577 86.49 577 133.05 -1.20 -
76AV2OBS2010-06-14 19:37:502010-06-14 19:39:42 00:01:52 577 128.79 577 135.60 34.30 -
77PSRWB12010-06-14 20:09:242010-06-14 20:14:38 00:05:14 577 243.91 577 262.99 27.10 80
78PSRFBD2010-06-14 20:33:462010-06-14 20:47:20 00:13:34 577 332.76 623 22.25 34.30 43
79PSRFBD2010-06-14 20:50:342010-06-14 20:57:26 00:06:52 623 33.98 623 59.02 34.30 43
80PSRWB12010-06-14 21:03:582010-06-14 21:07:28 00:03:30 623 82.90 623 95.67 27.10 80
81PSMOB12010-06-14 21:04:592010-06-14 21:15:35 00:10:36 623 86.55 623 125.20 -1.20 -
82AV2OBS2010-06-14 21:24:072010-06-14 21:25:59 00:01:52 623 156.32 623 163.13 34.30 -
83AV2OBS2010-06-14 21:33:592010-06-14 21:35:51 00:01:52 623 192.30 623 199.11 0.00 -
84PSMOB22010-06-14 21:35:112010-06-14 21:37:09 00:01:58 623 196.74 623 203.91 0.00 -
85PSRWB12010-06-14 21:48:072010-06-14 21:50:59 00:02:52 623 243.91 623 254.36 27.10 80
86PSRFBD2010-06-14 22:20:182010-06-14 22:37:44 00:17:26 669 1.22 669 64.79 34.30 43
87PSRFBD2010-06-14 22:41:042010-06-14 22:45:14 00:04:10 669 76.95 669 92.14 34.30 43
88PSMOB12010-06-14 22:48:292010-06-14 22:56:25 00:07:56 669 103.99 669 132.92 -1.20 -
89PSRWB12010-06-14 22:51:232010-06-14 22:53:15 00:01:52 669 114.57 669 121.38 27.10 80
90AV2OBS2010-06-14 23:00:382010-06-14 23:02:30 00:01:52 669 148.36 669 155.17 41.50 -
91AV2OBS2010-06-14 23:14:272010-06-14 23:16:19 00:01:52 669 198.75 669 205.55 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
25-13.169822010-06-13 23:17:53154.490392010-06-14 00:07:15
71-37.849402010-06-14 00:56:36129.810812010-06-14 01:45:58
117-62.528982010-06-14 02:35:19105.131232010-06-14 03:24:41
163-87.208562010-06-14 04:14:02 80.451642010-06-14 05:03:24
209-111.888152010-06-14 05:52:45 55.772062010-06-14 06:42:07
255-136.567732010-06-14 07:31:29 31.092482010-06-14 08:20:50
301-161.247312010-06-14 09:10:12 6.412902010-06-14 09:59:33
347174.073102010-06-14 10:48:55-18.266692010-06-14 11:38:16
393149.393522010-06-14 12:27:38-42.946272010-06-14 13:16:59
439124.713942010-06-14 14:06:21-67.625852010-06-14 14:55:43
485100.034362010-06-14 15:45:04-92.305442010-06-14 16:34:26
531 75.354772010-06-14 17:23:47-116.985022010-06-14 18:13:09
577 50.675192010-06-14 19:02:30-141.664602010-06-14 19:51:52
623 25.995612010-06-14 20:41:13-166.344182010-06-14 21:30:35
669 1.316032010-06-14 22:19:56168.976232010-06-14 23:09:18
44-23.363562010-06-14 23:58:40144.296652010-06-15 00:48:01
