>ALOS Data Take Simulation(Jun. 13, 2010)

Observation Area

PRISM

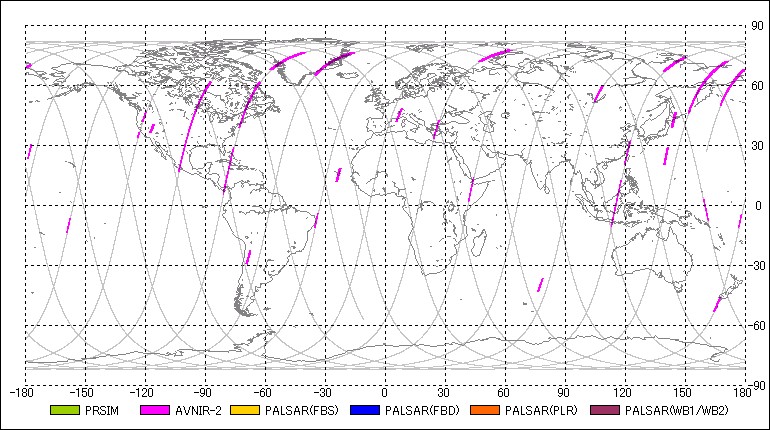

AVNIR-2

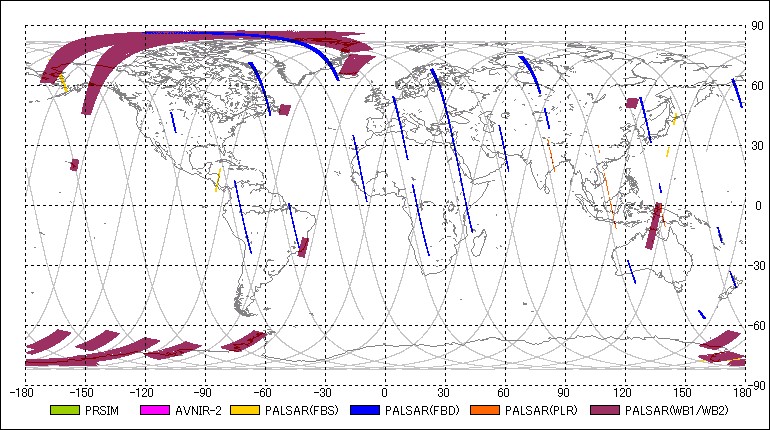

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2010-06-13 00:44:572010-06-13 00:54:33 00:09:36 52 106.12 52 141.13 0.00 -
2PSRFBS2010-06-13 00:52:112010-06-13 00:54:23 00:02:12 52 132.50 52 140.52 34.30 7
3PSRFBS2010-06-13 00:56:542010-06-13 00:58:50 00:01:56 52 149.70 52 156.75 34.30 7
4AV2OBS2010-06-13 00:57:212010-06-13 00:59:43 00:02:22 52 151.34 52 159.97 -34.30 -
5PSRWB12010-06-13 01:04:342010-06-13 01:11:30 00:06:56 52 177.66 52 202.94 27.10 80
6PSMOB22010-06-13 01:05:062010-06-13 01:14:04 00:08:58 52 179.60 52 212.30 0.00 -
7PSRFBD2010-06-13 01:47:012010-06-13 01:54:55 00:07:54 52 332.46 98 1.28 34.30 43
8PSRFBD2010-06-13 02:06:242010-06-13 02:14:26 00:08:02 98 43.15 98 72.45 34.30 43
9AV2OBS2010-06-13 02:23:042010-06-13 02:25:10 00:02:06 98 103.99 98 111.65 0.00 -
10PSMOB22010-06-13 02:28:402010-06-13 02:38:50 00:10:10 98 124.35 98 161.43 0.00 -
11PSRWB12010-06-13 02:28:512010-06-13 02:30:45 00:01:54 98 125.02 98 131.95 27.10 80
12AV2OBS2010-06-13 02:34:542010-06-13 02:38:16 00:03:22 98 147.15 98 159.42 0.00 -
13AV2OBS2010-06-13 02:40:302010-06-13 02:46:50 00:06:20 98 167.57 98 190.66 0.00 -
14PSMOB22010-06-13 02:40:342010-06-13 02:47:44 00:07:10 98 167.75 98 193.88 0.00 -
15PSRFBD2010-06-13 03:26:002010-06-13 03:36:46 00:10:46 98 333.43 144 12.70 34.30 43
16AV2OBS2010-06-13 04:05:582010-06-13 04:08:14 00:02:16 144 119.19 144 127.45 0.00 -
17AV2OBS2010-06-13 04:32:502010-06-13 04:34:42 00:01:52 144 217.10 144 223.91 -21.50 -
18PSRFBD2010-06-13 05:21:242010-06-13 05:24:52 00:03:28 190 34.28 190 46.92 34.30 43
19PSMOB12010-06-13 05:46:162010-06-13 05:56:50 00:10:34 190 124.96 190 163.50 -1.20 -
20AV2OBS2010-06-13 07:36:162010-06-13 07:39:36 00:03:20 236 166.11 236 178.26 0.00 -
21PSRFBS2010-06-13 08:44:312010-06-13 08:49:41 00:05:10 282 54.94 282 73.79 34.30 7
22AV2OBS2010-06-13 08:56:422010-06-13 08:58:36 00:01:54 282 99.37 282 106.30 0.00 -
23AV2OBS2010-06-13 09:07:032010-06-13 09:09:37 00:02:34 282 137.12 282 146.48 0.00 -
24PSMOB12010-06-13 09:12:522010-06-13 09:22:42 00:09:50 282 158.33 282 194.19 -1.20 -
25PSRFBD2010-06-13 10:21:062010-06-13 10:25:40 00:04:34 328 47.23 328 63.88 34.30 43
26PSMOB12010-06-13 10:36:222010-06-13 10:48:10 00:11:48 328 102.84 328 145.87 -1.20 -
27AV2OBS2010-06-13 10:43:542010-06-13 10:45:46 00:01:52 328 130.37 328 137.18 21.50 -
28PSMOB12010-06-13 10:51:392010-06-13 10:57:31 00:05:52 328 158.57 328 179.97 -1.20 -
29PSRFBD2010-06-13 11:34:462010-06-13 11:37:48 00:03:02 328 315.81 328 326.87 34.30 43
30PSRFBD2010-06-13 11:41:072010-06-13 11:43:51 00:02:44 328 339.03 328 348.99 34.30 43
31AV2OBS2010-06-13 11:44:482010-06-13 11:47:48 00:03:00 328 352.40 374 3.34 0.00 -
32PSRWB12010-06-13 12:15:022010-06-13 12:18:24 00:03:22 374 102.66 374 114.93 27.10 80
33PSMOB12010-06-13 12:26:092010-06-13 12:28:49 00:02:40 374 143.20 374 152.92 0.00 -
34AV2OBS2010-06-13 12:30:502010-06-13 12:32:42 00:01:52 374 160.33 374 167.14 41.50 -
35PSMOB12010-06-13 12:36:362010-06-13 12:39:32 00:02:56 374 181.30 374 192.00 -1.20 -
36AV2OBS2010-06-13 12:37:222010-06-13 12:39:14 00:01:52 374 184.10 374 190.91 0.00 -
37PSRWB12010-06-13 12:40:242010-06-13 12:43:36 00:03:12 374 195.22 374 206.89 27.10 80
38PSRWB12010-06-13 12:53:552010-06-13 12:57:21 00:03:26 374 244.45 374 256.97 27.10 80
39PSRFBD2010-06-13 13:09:012010-06-13 13:10:53 00:01:52 374 299.58 374 306.39 34.30 43
40PSRPLR2010-06-13 13:22:042010-06-13 13:25:56 00:03:52 374 347.17 420 1.28 23.10 128
41PSRFBD2010-06-13 13:26:432010-06-13 13:28:39 00:01:56 420 4.13 420 11.18 34.30 43
42PSRFBD2010-06-13 13:33:352010-06-13 13:40:35 00:07:00 420 29.17 420 54.70 34.30 43
43AV2OBS2010-06-13 13:53:182010-06-13 13:56:48 00:03:30 420 101.01 420 113.78 0.00 -
44PSRWB12010-06-13 14:00:492010-06-13 14:02:45 00:01:56 420 128.43 420 135.48 27.10 80
45PSMOB12010-06-13 14:14:022010-06-13 14:31:12 00:17:10 420 176.62 420 239.23 -1.20 -
46AV2OBS2010-06-13 14:21:242010-06-13 14:23:16 00:01:52 420 203.55 420 210.36 -34.30 -
47PSRWB12010-06-13 14:34:242010-06-13 14:37:32 00:03:08 420 250.96 420 262.38 27.10 80
48PSRWB12010-06-13 14:38:412010-06-13 14:40:33 00:01:52 420 266.52 420 273.32 27.10 80
49PSRFBD2010-06-13 14:52:532010-06-13 14:56:41 00:03:48 420 318.36 420 332.22 34.30 43
50PSRPLR2010-06-13 15:00:372010-06-13 15:09:09 00:08:32 420 346.56 466 17.69 23.10 128
51PSRPLR2010-06-13 15:10:592010-06-13 15:12:51 00:01:52 466 24.37 466 31.18 23.10 128
52AV2OBS2010-06-13 15:32:012010-06-13 15:34:45 00:02:44 466 101.01 466 110.98 0.00 -
53AV2OBS2010-06-13 15:36:302010-06-13 15:42:59 00:06:29 466 117.36 466 141.01 0.00 -
54AV2OBS2010-06-13 15:45:452010-06-13 15:52:09 00:06:24 466 151.10 466 174.44 0.00 -
55PSRFBS2010-06-13 15:48:152010-06-13 15:52:07 00:03:52 466 160.21 466 174.31 34.30 7
56PSRWB12010-06-13 16:12:242010-06-13 16:19:04 00:06:40 466 248.28 466 272.59 27.10 80
57PSRPLR2010-06-13 16:47:062010-06-13 16:52:16 00:05:10 512 14.83 512 33.67 23.10 128
58PSRFBD2010-06-13 16:53:042010-06-13 16:56:26 00:03:22 512 36.59 512 48.87 34.30 43
59PSRFBD2010-06-13 16:57:522010-06-13 17:03:46 00:05:54 512 54.09 512 75.61 34.30 43
60PSMOB12010-06-13 17:06:482010-06-13 17:16:50 00:10:02 512 86.67 512 123.26 -1.20 -
61AV2OBS2010-06-13 17:15:132010-06-13 17:27:49 00:12:36 512 117.36 512 163.31 0.00 -
62PSRWB12010-06-13 17:49:542010-06-13 17:53:20 00:03:26 512 243.91 512 256.43 27.10 80
63PSRFBS2010-06-13 17:55:242010-06-13 17:57:16 00:01:52 512 263.90 512 270.71 34.30 7
64PSRFBD2010-06-13 18:25:482010-06-13 18:32:46 00:06:58 558 14.77 558 40.17 34.30 43
65PSMOB12010-06-13 18:45:282010-06-13 19:02:04 00:16:36 558 86.55 558 147.09 -1.20 -
66AV2OBS2010-06-13 18:58:092010-06-13 19:01:33 00:03:24 558 132.74 558 145.14 0.00 -
67PSRWB12010-06-13 19:28:372010-06-13 19:34:23 00:05:46 558 243.85 558 264.87 27.10 80
68PSRFBD2010-06-13 19:56:042010-06-13 20:19:22 00:23:18 558 343.95 604 68.92 34.30 43
69PSRWB12010-06-13 20:23:492010-06-13 20:37:32 00:13:43 604 85.15 604 135.17 27.10 80
70PSMOB12010-06-13 20:24:112010-06-13 20:34:39 00:10:28 604 86.49 604 124.66 -1.20 -
71PSRWB12010-06-13 20:43:122010-06-13 20:45:18 00:02:06 604 155.84 604 163.50 27.10 80
72AV2OBS2010-06-13 20:51:402010-06-13 20:53:32 00:01:52 604 186.71 604 193.52 0.00 -
73PSMOB22010-06-13 20:51:402010-06-13 20:53:40 00:02:00 604 186.71 604 194.01 0.00 -
74PSRWB12010-06-13 21:07:212010-06-13 21:10:39 00:03:18 604 243.91 604 255.94 27.10 80
75PSRFBD2010-06-13 21:31:372010-06-13 21:42:07 00:10:30 604 332.40 650 10.70 34.30 43
76PSRFBD2010-06-13 21:44:502010-06-13 21:54:20 00:09:30 650 20.60 650 55.25 34.30 43
77PSRWB12010-06-13 22:00:072010-06-13 22:11:55 00:11:48 650 76.34 650 119.37 27.10 80
78PSMOB12010-06-13 22:02:562010-06-13 22:05:32 00:02:36 650 86.55 650 96.03 -1.20 -
79PSMOB12010-06-13 22:07:222010-06-13 22:14:48 00:07:26 650 102.78 650 129.88 -1.20 -
80AV2OBS2010-06-13 22:20:182010-06-13 22:22:10 00:01:52 650 149.94 650 156.75 -21.50 -
81AV2OBS2010-06-13 22:29:472010-06-13 22:31:39 00:01:52 650 184.53 650 191.33 0.00 -
82AV2OBS2010-06-13 22:41:162010-06-13 22:43:17 00:02:01 650 226.40 650 233.76 0.00 -
83PSRFBD2010-06-13 23:17:522010-06-13 23:27:38 00:09:46 650 359.87 25 35.49 34.30 43
84PSRFBD2010-06-13 23:34:312010-06-13 23:42:59 00:08:28 25 60.60 25 91.47 34.30 43
85PSMOB12010-06-13 23:46:362010-06-13 23:49:26 00:02:50 25 104.60 25 114.93 -1.20 -
86AV2OBS2010-06-13 23:47:342010-06-13 23:53:26 00:05:52 25 108.19 25 129.58 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
6 -2.976082010-06-12 22:37:07164.684132010-06-12 23:26:28
52-27.655662010-06-13 00:15:50140.004552010-06-13 01:05:11
98-52.335242010-06-13 01:54:33115.324972010-06-13 02:43:54
144-77.014822010-06-13 03:33:16 90.645382010-06-13 04:22:37
190-101.694412010-06-13 05:11:59 65.965802010-06-13 06:01:21
236-126.373992010-06-13 06:50:42 41.286222010-06-13 07:40:04
282-151.053572010-06-13 08:29:25 16.606642010-06-13 09:18:47
328-175.733152010-06-13 10:08:08 -8.072952010-06-13 10:57:30
374159.587262010-06-13 11:46:51-32.752532010-06-13 12:36:13
420134.907682010-06-13 13:25:34-57.432112010-06-13 14:14:56
466110.228102010-06-13 15:04:18-82.111692010-06-13 15:53:39
512 85.548512010-06-13 16:43:01-106.791282010-06-13 17:32:22
558 60.868932010-06-13 18:21:44-131.470862010-06-13 19:11:05
604 36.189352010-06-13 20:00:27-156.150442010-06-13 20:49:48
650 11.509772010-06-13 21:39:10179.169972010-06-13 22:28:32
25-13.169822010-06-13 23:17:53154.490392010-06-14 00:07:15
