>ALOS Data Take Simulation(Jun. 05, 2010)

Observation Area

PRISM

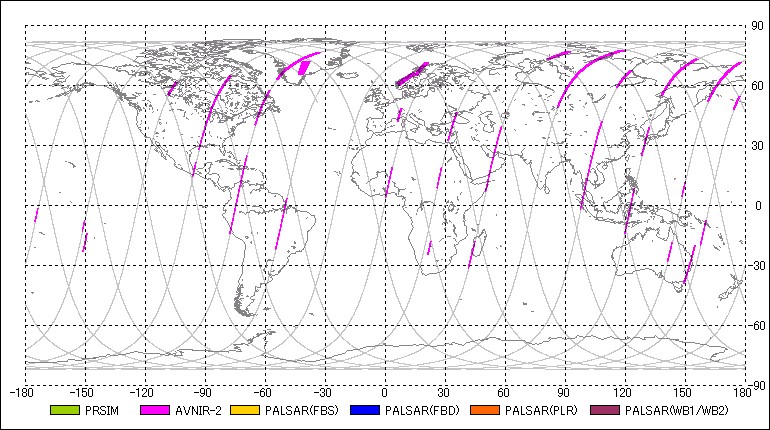

AVNIR-2

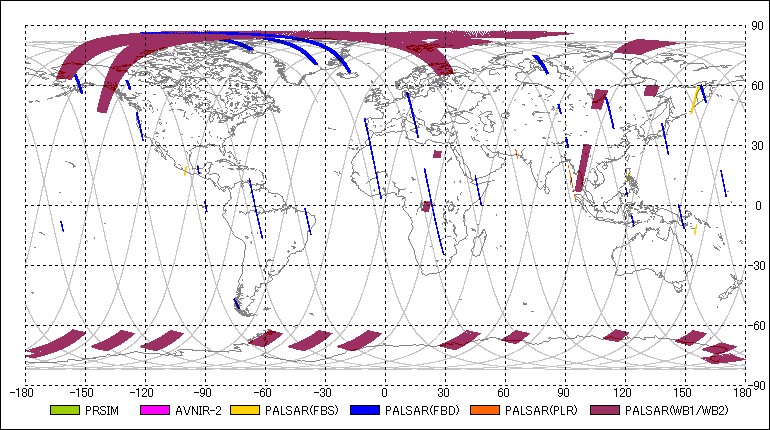

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBD2010-06-05 00:04:402010-06-05 00:10:46 00:06:06 38 68.80 38 91.05 34.30 43
2AV2OBS2010-06-05 00:15:052010-06-05 00:20:51 00:05:46 38 106.73 38 127.76 0.00 -
3PSRFBS2010-06-05 00:18:242010-06-05 00:22:48 00:04:24 38 118.88 38 134.93 34.30 7
4AV2OBS2010-06-05 00:32:042010-06-05 00:33:56 00:01:52 38 168.72 38 175.53 0.00 -
5PSMOB22010-06-05 00:38:262010-06-05 00:46:46 00:08:20 38 191.94 38 222.33 0.00 -
6AV2OBS2010-06-05 00:40:132010-06-05 00:42:55 00:02:42 38 198.44 38 208.29 0.00 -
7PSRWB12010-06-05 00:52:402010-06-05 00:54:40 00:02:00 38 243.85 38 251.14 27.10 80
8PSRFBD2010-06-05 01:19:552010-06-05 01:24:09 00:04:14 38 343.22 38 358.66 34.30 43
9PSRFBD2010-06-05 01:45:312010-06-05 01:48:37 00:03:06 84 76.52 84 87.83 34.30 43
10AV2OBS2010-06-05 01:53:192010-06-05 01:58:37 00:05:18 84 104.97 84 124.29 0.00 -
11PSRWB12010-06-05 01:57:012010-06-05 01:59:03 00:02:02 84 118.46 84 125.87 27.10 80
12AV2OBS2010-06-05 02:03:042010-06-05 02:07:00 00:03:56 84 140.52 84 154.86 0.00 -
13PSMOB22010-06-05 02:03:052010-06-05 02:07:31 00:04:26 84 140.58 84 156.75 0.00 -
14PSRFBS2010-06-05 02:09:022010-06-05 02:10:54 00:01:52 84 162.28 84 169.09 34.30 7
15PSMOB22010-06-05 02:11:212010-06-05 02:20:35 00:09:14 84 170.73 84 204.40 0.00 -
16AV2OBS2010-06-05 02:11:312010-06-05 02:17:51 00:06:20 84 171.34 84 194.43 0.00 -
17PSRFBD2010-06-05 02:58:022010-06-05 03:06:56 00:08:54 84 341.03 130 13.49 34.30 43
18PSRWB12010-06-05 03:29:142010-06-05 03:31:46 00:02:32 130 94.82 130 104.05 27.10 80
19AV2OBS2010-06-05 03:33:422010-06-05 03:36:14 00:02:32 130 111.10 130 120.34 0.00 -
20PSRWB12010-06-05 03:36:212010-06-05 03:39:35 00:03:14 130 120.71 130 132.50 27.10 80
21PSMOB22010-06-05 03:38:162010-06-05 03:53:58 00:15:42 130 127.76 130 185.01 0.00 -
22AV2OBS2010-06-05 03:41:042010-06-05 03:53:14 00:12:10 130 137.91 130 182.28 0.00 -
23PSRWB12010-06-05 03:43:552010-06-05 03:51:01 00:07:06 130 148.30 130 174.19 27.10 80
24PSRWB12010-06-05 04:10:072010-06-05 04:12:23 00:02:16 130 243.91 130 252.17 27.10 80
25PSRFBD2010-06-05 04:26:552010-06-05 04:28:55 00:02:00 130 305.17 130 312.46 34.30 43
26PSRFBD2010-06-05 04:40:332010-06-05 04:42:35 00:02:02 130 354.83 176 2.25 34.30 43
27PSRFBD2010-06-05 04:45:422010-06-05 04:47:34 00:01:52 176 13.61 176 20.42 34.30 43
28AV2OBS2010-06-05 05:09:162010-06-05 05:17:46 00:08:30 176 99.56 176 130.55 0.00 -
29PSMOB12010-06-05 05:19:022010-06-05 05:21:44 00:02:42 176 135.17 176 145.02 -1.20 -
30PSRWB12010-06-05 05:48:502010-06-05 05:52:06 00:03:16 176 243.91 176 255.82 27.10 80
31PSRFBD2010-06-05 06:29:012010-06-05 06:33:33 00:04:32 222 30.39 222 46.92 34.30 43
32PSRFBD2010-06-05 06:36:082010-06-05 06:38:00 00:01:52 222 56.34 222 63.15 34.30 43
33AV2OBS2010-06-05 06:48:132010-06-05 06:49:31 00:01:18 222 100.41 222 105.15 0.00 -
34PSMOB12010-06-05 06:54:582010-06-05 07:08:50 00:13:52 222 125.02 222 175.59 -1.20 -
35AV2OBS2010-06-05 06:59:072010-06-05 07:08:07 00:09:00 222 140.16 222 172.98 0.00 -
36PSMOB12010-06-05 07:14:202010-06-05 07:19:32 00:05:12 222 195.65 222 214.61 0.00 -
37AV2OBS2010-06-05 07:15:042010-06-05 07:18:46 00:03:42 222 198.32 222 211.81 0.00 -
38PSRFBD2010-06-05 08:14:152010-06-05 08:19:35 00:05:20 268 54.15 268 73.60 34.30 43
39PSMOB12010-06-05 08:30:512010-06-05 08:40:29 00:09:38 268 114.69 268 149.82 -1.20 -
40AV2OBS2010-06-05 08:35:582010-06-05 08:39:50 00:03:52 268 133.35 268 147.45 0.00 -
41PSRWB12010-06-05 08:40:562010-06-05 08:42:28 00:01:32 268 151.46 268 157.05 27.10 80
42PSMOB12010-06-05 08:42:552010-06-05 08:47:31 00:04:36 268 158.69 268 175.47 -1.20 -
43AV2OBS2010-06-05 08:43:352010-06-05 08:46:23 00:02:48 268 161.13 268 171.34 0.00 -
44PSRWB12010-06-05 08:47:592010-06-05 08:49:51 00:01:52 268 177.17 268 183.98 27.10 80
45AV2OBS2010-06-05 08:53:362010-06-05 08:55:28 00:01:52 268 197.65 268 204.46 21.50 -
46PSMOB12010-06-05 08:55:552010-06-05 09:00:11 00:04:16 268 206.10 268 221.66 0.00 -
47PSRWB12010-06-05 09:06:162010-06-05 09:09:42 00:03:26 268 243.91 268 256.43 27.10 80
48PSRFBD2010-06-05 09:33:542010-06-05 09:35:56 00:02:02 268 344.62 268 352.03 34.30 43
49AV2CA22010-06-05 09:37:432010-06-05 09:45:31 00:07:48 268 358.54 314 26.99 0.00 -
50PSRWB12010-06-05 10:03:492010-06-05 10:05:45 00:01:56 314 93.78 314 100.83 27.10 80
51AV2OBS2010-06-05 10:07:442010-06-05 10:09:36 00:01:52 314 108.00 314 114.81 -21.50 -
52PSMOB12010-06-05 10:12:562010-06-05 10:17:44 00:04:48 314 126.97 314 144.47 -1.20 -
53AV2OBS2010-06-05 10:14:082010-06-05 10:16:00 00:01:52 314 131.34 314 138.15 -21.50 -
54PSMOB12010-06-05 10:21:352010-06-05 10:27:09 00:05:34 314 158.51 314 178.81 -1.20 -
55AV2OBS2010-06-05 10:22:172010-06-05 10:26:23 00:04:06 314 161.06 314 176.02 0.00 -
56PSRWB12010-06-05 10:44:592010-06-05 10:48:25 00:03:26 314 243.91 314 256.43 27.10 80
57PSRFBD2010-06-05 11:17:302010-06-05 11:21:38 00:04:08 360 2.43 360 17.50 34.30 43
58PSRFBD2010-06-05 11:30:252010-06-05 11:33:31 00:03:06 360 49.53 360 60.84 34.30 43
59AV2OBS2010-06-05 11:46:502010-06-05 11:48:42 00:01:52 360 109.40 360 116.21 41.50 -
60PSMOB12010-06-05 11:47:352010-06-05 11:52:55 00:05:20 360 112.14 360 131.59 -1.20 -
61PSMOB12010-06-05 11:58:182010-06-05 12:01:14 00:02:56 360 151.22 360 161.92 0.00 -
62PSRWB12010-06-05 12:23:422010-06-05 12:26:30 00:02:48 360 243.91 360 254.12 27.10 80
63PSRFBD2010-06-05 12:51:472010-06-05 12:55:43 00:03:56 360 346.26 406 0.61 34.30 43
64PSRFBD2010-06-05 13:02:012010-06-05 13:06:55 00:04:54 406 23.58 406 41.45 34.30 43
65PSRWB12010-06-05 13:18:572010-06-05 13:21:27 00:02:30 406 85.33 406 94.45 27.10 80
66PSMOB12010-06-05 13:23:512010-06-05 13:26:35 00:02:44 406 103.20 406 113.17 -1.20 -
67AV2OBS2010-06-05 13:25:132010-06-05 13:27:05 00:01:52 406 108.19 406 114.99 -41.50 -
68PSMOB12010-06-05 13:43:112010-06-05 13:56:49 00:13:38 406 173.71 406 223.42 -1.20 -
69AV2OBS2010-06-05 13:43:572010-06-05 13:51:01 00:07:04 406 176.50 406 202.27 0.00 -
70PSMOB12010-06-05 13:58:462010-06-05 14:01:26 00:02:40 406 230.53 406 240.26 -1.20 -
71PSRFBD2010-06-05 14:30:482010-06-05 14:32:56 00:02:08 406 347.35 406 355.13 34.30 43
72PSRFBD2010-06-05 14:34:492010-06-05 14:36:41 00:01:52 452 2.01 452 8.81 34.30 43
73PSRFBD2010-06-05 14:44:182010-06-05 14:49:10 00:04:52 452 36.59 452 54.34 34.30 43
74AV2OBS2010-06-05 15:01:582010-06-05 15:06:08 00:04:10 452 101.01 452 116.21 0.00 -
75AV2OBS2010-06-05 15:07:402010-06-05 15:12:32 00:04:52 452 121.80 452 139.55 0.00 -
76AV2OBS2010-06-05 15:16:492010-06-05 15:27:35 00:10:46 452 155.17 452 194.43 0.00 -
77PSMOB12010-06-05 15:18:572010-06-05 15:28:19 00:09:22 452 162.95 452 197.11 -1.20 -
78PSRWB12010-06-05 15:41:092010-06-05 15:44:35 00:03:26 452 243.91 452 256.43 27.10 80
79PSRPLR2010-06-05 16:12:572010-06-05 16:18:39 00:05:42 452 359.87 498 20.60 23.10 128
80PSRFBD2010-06-05 16:20:242010-06-05 16:22:24 00:02:00 498 27.05 498 34.34 34.30 43
81PSRFBD2010-06-05 16:25:012010-06-05 16:26:59 00:01:58 498 43.88 498 51.05 34.30 43
82PSRFBD2010-06-05 16:30:332010-06-05 16:33:49 00:03:16 498 64.06 498 75.97 34.30 43
83PSMOB12010-06-05 16:36:572010-06-05 16:45:55 00:08:58 498 87.40 498 120.10 -1.20 -
84AV2OBS2010-06-05 16:44:182010-06-05 16:54:40 00:10:22 498 114.20 498 152.01 0.00 -
85AV2OBS2010-06-05 16:56:242010-06-05 16:58:24 00:02:00 498 158.33 498 165.62 0.00 -
86PSRFBS2010-06-05 16:56:402010-06-05 16:58:32 00:01:52 498 159.30 498 166.11 34.30 7
87PSRWB12010-06-05 17:19:522010-06-05 17:23:18 00:03:26 498 243.91 498 256.43 27.10 80
88PSRPLR2010-06-05 17:57:372010-06-05 17:59:29 00:01:52 544 21.58 544 28.38 23.10 128
89PSMOB12010-06-05 18:15:252010-06-05 18:34:01 00:18:36 544 86.49 544 154.32 -1.20 -
90AV2OBS2010-06-05 18:23:542010-06-05 18:25:46 00:01:52 544 117.36 544 124.17 0.00 -
91PSRWB12010-06-05 18:58:342010-06-05 19:04:46 00:06:12 544 243.85 544 266.46 27.10 80
92PSRFBD2010-06-05 19:29:452010-06-05 19:34:33 00:04:48 544 357.56 590 15.07 34.30 43
93PSRWB12010-06-05 19:47:572010-06-05 20:07:13 00:19:16 590 63.94 590 134.20 27.10 80
94PSMOB12010-06-05 19:54:092010-06-05 20:05:53 00:11:44 590 86.49 590 129.28 -1.20 -
95AV2OBS2010-06-05 20:21:542010-06-05 20:25:54 00:04:00 590 187.75 590 202.33 0.00 -
96PSMOB22010-06-05 20:21:542010-06-05 20:23:46 00:01:52 590 187.69 590 194.49 0.00 -
97PSRWB12010-06-05 20:39:242010-06-05 20:41:20 00:01:56 590 251.56 590 258.61 27.10 80
98PSRFBD2010-06-05 21:01:402010-06-05 21:14:18 00:12:38 590 332.76 636 18.84 34.30 43
99PSRFBD2010-06-05 21:17:562010-06-05 21:24:48 00:06:52 636 32.03 636 57.07 34.30 43
100PSMOB12010-06-05 21:32:532010-06-05 21:35:47 00:02:54 636 86.55 636 97.12 -1.20 -
101PSRWB12010-06-05 21:32:552010-06-05 21:41:17 00:08:22 636 86.73 636 117.24 27.10 80
102PSMOB12010-06-05 21:37:302010-06-05 21:44:08 00:06:38 636 103.45 636 127.64 -1.20 -
103AV2OBS2010-06-05 21:58:522010-06-05 22:00:44 00:01:52 636 181.30 636 188.11 0.00 -
104PSMOB22010-06-05 21:58:522010-06-05 22:01:10 00:02:18 636 181.30 636 189.69 0.00 -
105PSMOB12010-06-05 22:07:292010-06-05 22:11:05 00:03:36 636 212.73 636 225.85 -1.20 -
106PSRWB12010-06-05 22:16:012010-06-05 22:18:33 00:02:32 636 243.91 636 253.14 27.10 80
107PSRFBD2010-06-05 22:48:112010-06-05 22:59:55 00:11:44 11 1.22 11 44.00 34.30 43
108PSRFBD2010-06-05 23:05:362010-06-05 23:13:04 00:07:28 11 64.73 11 91.96 34.30 43
109PSMOB12010-06-05 23:17:022010-06-05 23:20:26 00:03:24 11 106.42 11 118.82 -1.20 -
110AV2OBS2010-06-05 23:22:042010-06-05 23:23:56 00:01:52 11 124.78 11 131.59 0.00 -
111AV2OBS2010-06-05 23:39:192010-06-05 23:48:07 00:08:48 11 187.62 11 219.72 0.00 -
112PSRFBS2010-06-05 23:39:362010-06-05 23:41:32 00:01:56 11 188.66 11 195.71 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
38-20.144482010-06-04 23:45:47147.515732010-06-05 00:35:09
84-44.824062010-06-05 01:24:30122.836142010-06-05 02:13:52
130-69.503652010-06-05 03:03:13 98.156562010-06-05 03:52:35
176-94.183232010-06-05 04:41:56 73.476982010-06-05 05:31:18
222-118.862812010-06-05 06:20:39 48.797402010-06-05 07:10:01
268-143.542392010-06-05 07:59:23 24.117812010-06-05 08:48:44
314-168.221982010-06-05 09:38:06 -0.561772010-06-05 10:27:27
360167.098442010-06-05 11:16:49-25.241352010-06-05 12:06:10
406142.418862010-06-05 12:55:32-49.920932010-06-05 13:44:53
452117.739272010-06-05 14:34:15-74.600522010-06-05 15:23:36
498 93.059692010-06-05 16:12:58-99.280102010-06-05 17:02:20
544 68.380112010-06-05 17:51:41-123.959682010-06-05 18:41:03
590 43.700532010-06-05 19:30:24-148.639272010-06-05 20:19:46
636 19.020942010-06-05 21:09:07-173.318852010-06-05 21:58:29
11 -5.658642010-06-05 22:47:50162.001572010-06-05 23:37:12
