>ALOS Data Take Simulation(Jun. 04, 2010)

Observation Area

PRISM

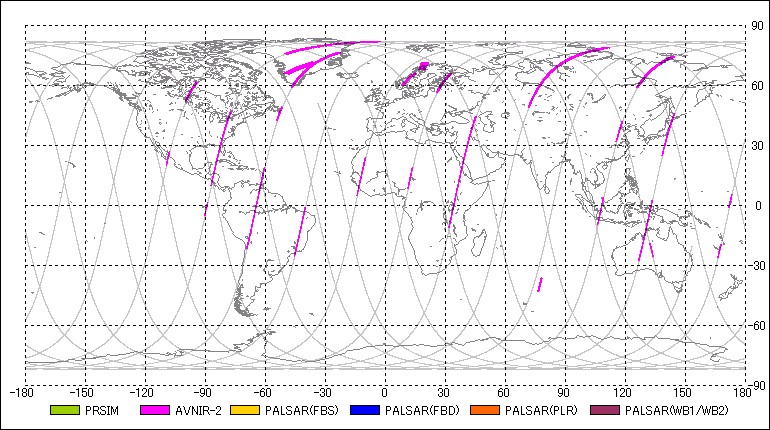

AVNIR-2

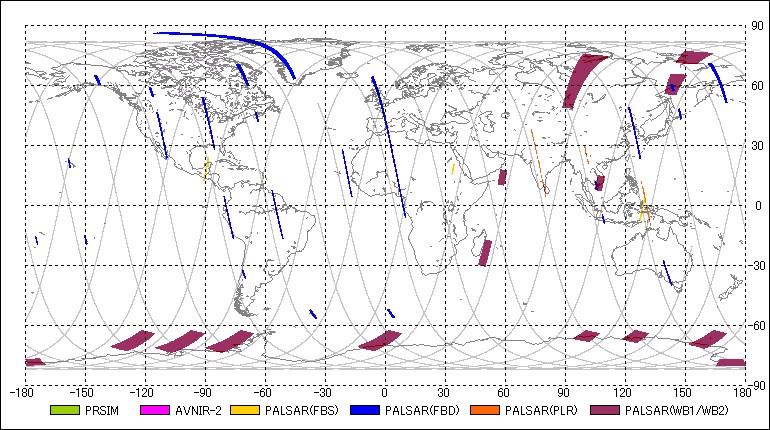

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12010-06-04 00:11:542010-06-04 00:14:00 00:02:06 19 243.91 19 251.56 27.10 80
2PSRFBD2010-06-04 01:00:372010-06-04 01:08:21 00:07:44 65 61.51 65 89.71 34.30 43
3PSRWB12010-06-04 01:11:282010-06-04 01:13:40 00:02:12 65 101.08 65 109.10 27.10 80
4PSRWB12010-06-04 01:14:412010-06-04 01:18:05 00:03:24 65 112.81 65 125.20 27.10 80
5AV2OBS2010-06-04 01:20:222010-06-04 01:26:12 00:05:50 65 133.59 65 154.86 0.00 -
6PSMOB22010-06-04 01:20:232010-06-04 01:26:03 00:05:40 65 133.59 65 154.26 0.00 -
7PSMOB22010-06-04 01:30:162010-06-04 01:44:06 00:13:50 65 169.63 65 220.08 0.00 -
8PSRFBS2010-06-04 01:31:382010-06-04 01:35:34 00:03:56 65 174.62 65 188.96 34.30 7
9AV2OBS2010-06-04 01:32:252010-06-04 01:40:41 00:08:16 65 177.54 65 207.68 0.00 -
10PSRWB12010-06-04 01:50:372010-06-04 01:52:39 00:02:02 65 243.91 65 251.32 27.10 80
11PSRFBD2010-06-04 02:05:572010-06-04 02:07:49 00:01:52 65 299.82 65 306.63 34.30 43
12PSRFBD2010-06-04 02:17:162010-06-04 02:24:38 00:07:22 65 341.03 111 7.90 34.30 43
13PSRFBD2010-06-04 02:33:292010-06-04 02:35:21 00:01:52 111 40.17 111 46.98 34.30 43
14PSRFBD2010-06-04 02:38:352010-06-04 02:42:01 00:03:26 111 58.77 111 71.29 34.30 43
15AV2OBS2010-06-04 02:50:532010-06-04 02:55:29 00:04:36 111 103.63 111 120.40 0.00 -
16PSMOB22010-06-04 02:57:172010-06-04 03:06:59 00:09:42 111 126.97 111 162.34 0.00 -
17AV2OBS2010-06-04 03:00:172010-06-04 03:03:05 00:02:48 111 137.91 111 148.12 0.00 -
18PSRWB12010-06-04 03:07:262010-06-04 03:10:02 00:02:36 111 163.98 111 173.46 27.10 80
19PSMOB22010-06-04 03:10:302010-06-04 03:15:22 00:04:52 111 175.17 111 192.91 0.00 -
20AV2OBS2010-06-04 03:10:452010-06-04 03:14:25 00:03:40 111 176.14 111 189.51 0.00 -
21PSRFBD2010-06-04 03:50:212010-06-04 03:52:13 00:01:52 111 320.49 111 327.29 34.30 43
22PSRFBD2010-06-04 03:55:592010-06-04 04:02:25 00:06:26 111 341.03 157 4.50 34.30 43
23PSRFBD2010-06-04 04:08:132010-06-04 04:16:09 00:07:56 157 25.65 157 54.58 34.30 43
24PSRWB12010-06-04 04:29:212010-06-04 04:37:23 00:08:02 157 102.72 157 132.01 27.10 80
25PSMOB12010-06-04 04:35:272010-06-04 04:38:47 00:03:20 157 124.96 157 137.12 -1.20 -
26AV2OBS2010-06-04 05:00:272010-06-04 05:02:19 00:01:52 157 216.13 157 222.94 21.50 -
27PSRFBD2010-06-04 05:45:492010-06-04 05:52:45 00:06:56 203 21.58 203 46.86 34.30 43
28PSRFBD2010-06-04 05:54:232010-06-04 05:56:15 00:01:52 203 52.82 203 59.62 34.30 43
29AV2OBS2010-06-04 06:06:402010-06-04 06:15:42 00:09:02 203 97.61 203 130.55 0.00 -
30PSMOB12010-06-04 06:14:102010-06-04 06:23:34 00:09:24 203 124.96 203 159.24 -1.20 -
31PSRWB12010-06-04 06:24:022010-06-04 06:26:44 00:02:42 203 160.94 203 170.79 27.10 80
32PSRWB12010-06-04 06:33:482010-06-04 06:37:56 00:04:08 203 196.56 203 211.63 27.10 80
33PSRFBD2010-06-04 07:34:442010-06-04 07:36:36 00:01:52 249 58.77 249 65.58 34.30 43
34PSMOB12010-06-04 07:50:032010-06-04 08:11:53 00:21:50 249 114.63 249 194.25 -1.20 -
35AV2OBS2010-06-04 07:55:402010-06-04 08:11:04 00:15:24 249 135.11 249 191.27 0.00 -
36PSRFBS2010-06-04 08:02:002010-06-04 08:03:52 00:01:52 249 158.21 249 165.01 34.30 7
37PSRWB12010-06-04 08:25:302010-06-04 08:28:56 00:03:26 249 243.91 249 256.43 27.10 80
38PSRFBD2010-06-04 08:51:222010-06-04 08:53:14 00:01:52 249 338.24 249 345.04 34.30 43
39PSRFBD2010-06-04 09:02:002010-06-04 09:03:52 00:01:52 295 17.02 295 23.83 34.30 43
40AV2OBS2010-06-04 09:27:072010-06-04 09:30:51 00:03:44 295 108.61 295 122.23 -41.50 -
41PSMOB12010-06-04 09:40:492010-06-04 09:48:25 00:07:36 295 158.57 295 186.29 -1.20 -
42AV2OBS2010-06-04 09:41:312010-06-04 09:44:27 00:02:56 295 161.13 295 171.82 0.00 -
43PSRFBD2010-06-04 10:29:592010-06-04 10:31:51 00:01:52 295 337.81 295 344.62 34.30 43
44PSRFBD2010-06-04 10:49:362010-06-04 10:55:48 00:06:12 341 49.41 341 72.02 34.30 43
45AV2OBS2010-06-04 11:06:382010-06-04 11:08:30 00:01:52 341 111.53 341 118.34 21.50 -
46PSMOB12010-06-04 11:06:422010-06-04 11:16:32 00:09:50 341 111.71 341 147.57 -1.20 -
47AV2OBS2010-06-04 11:18:472010-06-04 11:24:07 00:05:20 341 155.78 341 175.23 0.00 -
48PSMOB12010-06-04 11:19:322010-06-04 11:24:14 00:04:42 341 158.51 341 175.65 -1.20 -
49PSRFBD2010-06-04 12:26:042010-06-04 12:28:06 00:02:02 387 41.21 387 48.62 34.30 43
50PSRFBD2010-06-04 12:30:012010-06-04 12:31:29 00:01:28 387 55.61 387 60.96 34.30 43
51PSMOB12010-06-04 13:03:402010-06-04 13:11:56 00:08:16 387 178.33 387 208.47 -1.20 -
52AV2OBS2010-06-04 13:04:232010-06-04 13:11:11 00:06:48 387 180.94 387 205.74 0.00 -
53PSRWB12010-06-04 13:21:392010-06-04 13:25:23 00:03:44 387 243.91 387 257.52 27.10 80
54PSRFBD2010-06-04 13:41:472010-06-04 13:45:57 00:04:10 387 317.33 387 332.52 34.30 43
55AV2OBS2010-06-04 13:46:252010-06-04 13:48:17 00:01:52 387 334.22 387 341.03 0.00 -
56PSRPLR2010-06-04 13:50:042010-06-04 13:56:54 00:06:50 387 347.53 433 12.46 23.10 128
57PSRFBD2010-06-04 13:59:172010-06-04 14:07:03 00:07:46 433 21.15 433 49.47 34.30 43
58PSMOB12010-06-04 14:19:302010-06-04 14:27:12 00:07:42 433 94.88 433 122.96 -1.20 -
59AV2OBS2010-06-04 14:21:122010-06-04 14:26:30 00:05:18 433 101.01 433 120.34 0.00 -
60AV2OBS2010-06-04 14:29:132010-06-04 14:31:07 00:01:54 433 130.31 433 137.24 0.00 -
61AV2OBS2010-06-04 14:37:342010-06-04 14:48:50 00:11:16 433 160.76 433 201.85 0.00 -
62PSMOB12010-06-04 14:46:042010-06-04 14:48:46 00:02:42 433 191.76 433 201.60 -1.20 -
63PSMOB12010-06-04 14:51:242010-06-04 14:55:58 00:04:34 433 211.15 433 227.80 -1.20 -
64PSRWB12010-06-04 15:00:222010-06-04 15:04:08 00:03:46 433 243.91 433 257.64 27.10 80
65PSRFBD2010-06-04 15:29:042010-06-04 15:30:56 00:01:52 433 348.57 433 355.37 34.30 43
66PSRFBD2010-06-04 15:33:432010-06-04 15:35:35 00:01:52 479 5.53 479 12.34 34.30 43
67PSRPLR2010-06-04 15:37:272010-06-04 15:40:23 00:02:56 479 19.15 479 29.84 23.10 128
68PSMOB12010-06-04 15:56:302010-06-04 16:05:24 00:08:54 479 88.55 479 121.01 -1.20 -
69AV2OBS2010-06-04 15:57:152010-06-04 16:02:13 00:04:58 479 91.35 479 109.46 0.00 -
70AV2OBS2010-06-04 16:08:372010-06-04 16:18:55 00:10:18 479 132.74 479 170.30 0.00 -
71PSRFBS2010-06-04 16:14:372010-06-04 16:18:29 00:03:52 479 154.62 479 168.72 34.30 7
72PSMOB12010-06-04 16:20:242010-06-04 16:23:04 00:02:40 479 175.71 479 185.44 -1.20 -
73AV2OBS2010-06-04 16:21:102010-06-04 16:23:02 00:01:52 479 178.51 479 185.32 0.00 -
74PSRWB12010-06-04 16:39:052010-06-04 16:42:31 00:03:26 479 243.91 479 256.43 27.10 80
75PSRWB12010-06-04 16:45:012010-06-04 16:46:53 00:01:52 479 265.54 479 272.35 27.10 80
76PSRPLR2010-06-04 17:11:372010-06-04 17:21:29 00:09:52 525 2.55 525 38.53 23.10 128
77PSMOB12010-06-04 17:34:402010-06-04 17:44:42 00:10:02 525 86.55 525 123.14 -1.20 -
78AV2OBS2010-06-04 17:43:072010-06-04 17:45:55 00:02:48 525 117.36 525 127.58 0.00 -
79PSMOB12010-06-04 17:48:292010-06-04 17:54:27 00:05:58 525 136.94 525 158.69 -1.20 -
80AV2OBS2010-06-04 17:52:552010-06-04 17:54:47 00:01:52 525 153.10 525 159.91 0.00 -
81PSMOB22010-06-04 21:20:072010-06-04 21:22:11 00:02:04 617 188.72 617 196.26 0.00 -
82PSRWB12010-06-04 21:35:152010-06-04 21:38:17 00:03:02 617 243.91 617 254.97 27.10 80
83PSRFBD2010-06-04 22:04:482010-06-04 22:24:54 00:20:06 617 351.67 663 64.97 34.30 43
84PSMOB12010-06-04 22:35:112010-06-04 22:43:17 00:08:06 663 102.47 663 132.01 -1.20 -
85AV2OBS2010-06-04 22:54:532010-06-04 22:56:45 00:01:52 663 174.31 663 181.12 0.00 -
86AV2OBS2010-06-04 23:01:482010-06-04 23:03:40 00:01:52 663 199.54 663 206.34 0.00 -
87PSRFBD2010-06-04 23:29:212010-06-04 23:31:13 00:01:52 663 300.01 663 306.81 34.30 43
88PSRFBD2010-06-04 23:46:282010-06-04 23:53:30 00:07:02 38 2.43 38 28.08 34.30 43

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
19 -9.950742010-06-03 23:05:01157.709472010-06-03 23:54:22
65-34.630322010-06-04 00:43:44133.029892010-06-04 01:33:05
111-59.309912010-06-04 02:22:27108.350302010-06-04 03:11:48
157-83.989492010-06-04 04:01:10 83.670722010-06-04 04:50:31
203-108.669072010-06-04 05:39:53 58.991142010-06-04 06:29:14
249-133.348652010-06-04 07:18:36 34.311552010-06-04 08:07:58
295-158.028242010-06-04 08:57:19 9.631972010-06-04 09:46:41
341177.292182010-06-04 10:36:02-15.047612010-06-04 11:25:24
387152.612602010-06-04 12:14:45-39.727192010-06-04 13:04:07
433127.933012010-06-04 13:53:28-64.406782010-06-04 14:42:50
479103.253432010-06-04 15:32:12-89.086362010-06-04 16:21:33
525 78.573852010-06-04 17:10:55-113.765942010-06-04 18:00:16
571 53.894272010-06-04 18:49:38-138.445522010-06-04 19:38:59
617 29.214682010-06-04 20:28:21-163.125112010-06-04 21:17:42
663 4.535102010-06-04 22:07:04172.195312010-06-04 22:56:25
38-20.144482010-06-04 23:45:47147.515732010-06-05 00:35:09
