>ALOS Data Take Simulation(May. 29, 2010)

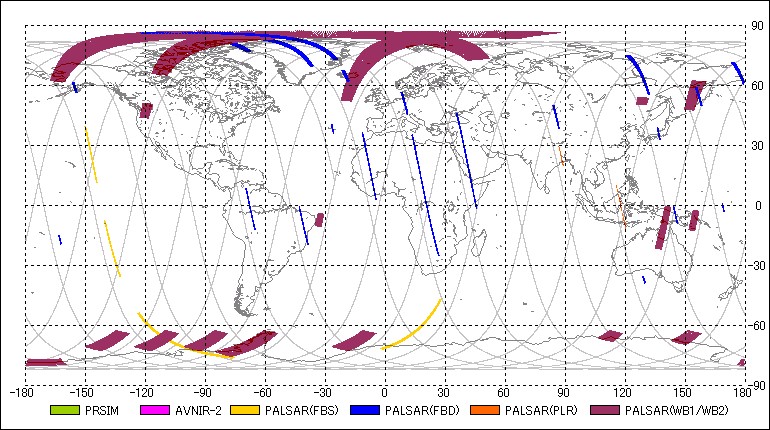

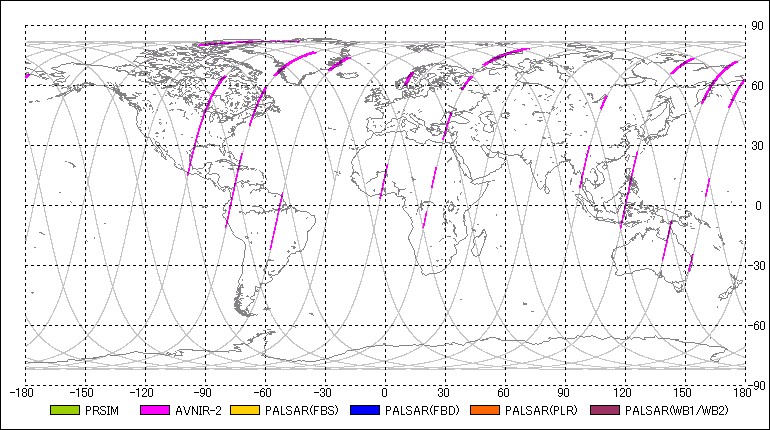

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBD2010-05-29 00:05:522010-05-29 00:07:48 00:01:56 43 34.04 43 41.09 34.30 43
2PSRFBD2010-05-29 00:15:122010-05-29 00:21:26 00:06:14 43 68.07 43 90.80 34.30 43
3AV2OBS2010-05-29 00:25:432010-05-29 00:31:47 00:06:04 43 106.42 43 128.55 0.00 -
4PSRWB12010-05-29 00:28:212010-05-29 00:32:59 00:04:38 43 116.03 43 132.92 27.10 80
5PSRWB12010-05-29 00:45:452010-05-29 00:52:13 00:06:28 43 179.48 43 203.06 27.10 80
6PSMOB22010-05-29 00:47:492010-05-29 00:52:43 00:04:54 43 187.02 43 204.89 0.00 -
7AV2OBS2010-05-29 00:47:562010-05-29 00:53:26 00:05:30 43 187.44 43 207.50 0.00 -
8PSRWB12010-05-29 01:03:252010-05-29 01:05:21 00:01:56 43 243.91 43 250.96 27.10 80
9PSRFBD2010-05-29 01:29:102010-05-29 01:35:06 00:05:56 43 337.81 43 359.45 34.30 43
10PSRFBD2010-05-29 01:56:012010-05-29 01:59:09 00:03:08 89 75.73 89 87.16 34.30 43
11AV2OBS2010-05-29 02:03:562010-05-29 02:06:16 00:02:20 89 104.60 89 113.11 0.00 -
12PSMOB22010-05-29 02:08:482010-05-29 02:34:14 00:25:26 89 122.35 89 215.10 0.00 -
13PSRWB12010-05-29 02:09:242010-05-29 02:11:00 00:01:36 89 124.54 89 130.37 27.10 80
14AV2OBS2010-05-29 02:17:142010-05-29 02:27:46 00:10:32 89 153.10 89 191.51 0.00 -
15PSRFBD2010-05-29 03:10:002010-05-29 03:16:22 00:06:22 89 345.53 135 8.75 34.30 43
16AV2OBS2010-05-29 03:48:092010-05-29 03:50:01 00:01:52 135 124.66 135 131.46 0.00 -
17AV2OBS2010-05-29 03:55:092010-05-29 04:00:49 00:05:40 135 150.18 135 170.85 0.00 -
18PSRFBS2010-05-29 07:33:332010-05-29 07:41:59 00:08:26 227 226.64 227 257.40 34.30 7
19PSRFBS2010-05-29 07:46:362010-05-29 07:55:02 00:08:26 227 274.23 227 304.99 34.30 25
20PSRFBS2010-05-29 07:59:362010-05-29 08:08:02 00:08:26 227 321.64 227 352.40 34.30 7
21PSRFBS2010-05-29 08:12:372010-05-29 08:21:03 00:08:26 273 9.06 273 39.81 34.30 25
22PSRFBD2010-05-29 08:25:092010-05-29 08:27:07 00:01:58 273 54.76 273 61.93 34.30 43
23AV2OBS2010-05-29 08:37:042010-05-29 08:39:50 00:02:46 273 98.28 273 108.37 0.00 -
24AV2OBS2010-05-29 08:41:312010-05-29 08:43:23 00:01:52 273 114.45 273 121.25 0.00 -
25AV2OBS2010-05-29 08:46:372010-05-29 08:50:25 00:03:48 273 133.11 273 146.96 0.00 -
26AV2OBS2010-05-29 08:54:182010-05-29 08:57:06 00:02:48 273 161.13 273 171.34 0.00 -
27AV2OBS2010-05-29 09:00:182010-05-29 09:02:34 00:02:16 273 183.01 273 191.27 0.00 -
28PSRWB12010-05-29 09:17:002010-05-29 09:20:26 00:03:26 273 243.91 273 256.43 27.10 80
29PSRFBD2010-05-29 09:42:522010-05-29 09:44:44 00:01:52 273 338.24 273 345.04 34.30 43
30PSRFBD2010-05-29 10:05:012010-05-29 10:08:43 00:03:42 319 58.96 319 72.45 34.30 43
31PSMOB12010-05-29 10:16:552010-05-29 10:28:15 00:11:20 319 102.41 319 143.74 -1.20 -
32AV2OBS2010-05-29 10:19:532010-05-29 10:21:45 00:01:52 319 113.17 319 119.98 -21.50 -
33PSMOB12010-05-29 10:32:192010-05-29 10:38:01 00:05:42 319 158.51 319 179.30 -1.20 -
34AV2OBS2010-05-29 10:32:332010-05-29 10:37:13 00:04:40 319 159.36 319 176.38 0.00 -
35PSRFBD2010-05-29 11:26:022010-05-29 11:27:54 00:01:52 319 354.46 365 1.28 34.30 43
36PSRFBD2010-05-29 11:40:432010-05-29 11:43:55 00:03:12 365 48.02 365 59.68 34.30 43
37PSRWB12010-05-29 11:53:152010-05-29 12:02:46 00:09:31 365 93.66 365 128.37 27.10 80
38PSMOB12010-05-29 11:58:102010-05-29 12:00:54 00:02:44 365 111.59 365 121.56 -1.20 -
39PSRWB12010-05-29 12:17:452010-05-29 12:20:07 00:02:22 365 183.01 365 191.64 27.10 80
40PSRWB12010-05-29 12:34:262010-05-29 12:38:56 00:04:30 365 243.91 365 260.32 27.10 80
41PSRFBD2010-05-29 13:03:122010-05-29 13:06:10 00:02:58 365 348.75 365 359.57 34.30 43
42PSRFBD2010-05-29 13:14:432010-05-29 13:17:05 00:02:22 411 30.75 411 39.38 34.30 43
43PSRFBD2010-05-29 13:21:012010-05-29 13:27:07 00:06:06 411 53.73 411 75.97 34.30 43
44PSRWB12010-05-29 13:29:472010-05-29 13:32:17 00:02:30 411 85.70 411 94.82 27.10 80
45PSMOB12010-05-29 13:34:062010-05-29 13:37:36 00:03:30 411 101.44 411 114.20 -1.20 -
46AV2OBS2010-05-29 13:34:482010-05-29 13:36:48 00:02:00 411 104.05 411 111.35 0.00 -
47PSMOB12010-05-29 13:53:062010-05-29 14:12:20 00:19:14 411 170.73 411 240.87 -1.20 -
48AV2OBS2010-05-29 13:53:522010-05-29 14:01:45 00:07:53 411 173.52 411 202.27 0.00 -
49PSRWB12010-05-29 14:13:092010-05-29 14:16:35 00:03:26 411 243.91 411 256.43 27.10 80
50PSRFBD2010-05-29 14:33:352010-05-29 14:35:13 00:01:38 411 318.36 411 324.32 34.30 43
51PSRPLR2010-05-29 14:41:062010-05-29 14:47:52 00:06:46 411 345.77 457 10.45 23.10 128
52AV2OBS2010-05-29 15:12:392010-05-29 15:16:19 00:03:40 457 100.83 457 114.20 0.00 -
53AV2OBS2010-05-29 15:17:572010-05-29 15:23:17 00:05:20 457 120.16 457 139.61 0.00 -
54AV2OBS2010-05-29 15:27:092010-05-29 15:37:23 00:10:14 457 153.77 457 191.09 0.00 -
55PSMOB12010-05-29 15:30:082010-05-29 15:38:04 00:07:56 457 164.59 457 193.52 -1.20 -
56PSRWB12010-05-29 15:51:522010-05-29 15:55:18 00:03:26 457 243.91 457 256.43 27.10 80
57PSRWB12010-05-29 15:57:532010-05-29 15:59:45 00:01:52 457 265.79 457 272.59 27.10 80
58PSRPLR2010-05-29 16:28:402010-05-29 16:31:58 00:03:18 503 18.05 503 30.09 23.10 128
59PSRFBD2010-05-29 16:33:452010-05-29 16:37:37 00:03:52 503 36.59 503 50.69 34.30 43
60PSMOB12010-05-29 16:47:342010-05-29 16:56:38 00:09:04 503 86.97 503 120.04 -1.20 -
61AV2OBS2010-05-29 16:55:022010-05-29 17:08:58 00:13:56 503 114.20 503 165.01 0.00 -
62PSRWB12010-05-29 17:30:362010-05-29 17:34:02 00:03:26 503 243.91 503 256.43 27.10 80
63PSRWB12010-05-29 18:22:062010-05-29 18:33:58 00:11:52 549 71.72 549 114.99 27.10 80
64PSMOB12010-05-29 18:34:292010-05-29 18:43:51 00:09:22 549 116.88 549 151.04 -1.20 -
65PSRWB12010-05-29 18:37:232010-05-29 18:40:01 00:02:38 549 127.45 549 137.06 27.10 80
66PSRCA22010-05-29 19:27:552010-05-29 19:38:31 00:10:36 549 311.74 549 350.39 34.30 7
67PSRFBD2010-05-29 19:40:052010-05-29 19:53:55 00:13:50 549 356.10 595 46.56 34.30 43
68PSRCA22010-05-29 20:05:122010-05-29 20:08:18 00:03:06 595 87.64 595 98.95 34.30 7
69AV2OBS2010-05-29 20:05:242010-05-29 20:07:32 00:02:08 595 88.37 595 96.15 0.00 -
70PSRCA22010-05-29 20:12:532010-05-29 20:15:59 00:03:06 595 115.66 595 126.97 34.30 7
71PSRCA22010-05-29 20:20:492010-05-29 20:23:55 00:03:06 595 144.65 595 155.96 34.30 7
72PSRCA22010-05-29 20:28:462010-05-29 20:31:52 00:03:06 595 173.58 595 184.89 34.30 7
73PSRCA22010-05-29 20:36:432010-05-29 20:39:49 00:03:06 595 202.64 595 213.94 34.30 7
74PSRCA22010-05-29 20:44:402010-05-29 20:47:46 00:03:06 595 231.63 595 242.93 34.30 7
75PSRCA22010-05-29 20:52:372010-05-29 20:55:43 00:03:06 595 260.62 595 271.93 34.30 7
76PSRFBD2010-05-29 21:12:192010-05-29 21:29:37 00:17:18 595 332.46 641 35.56 34.30 43
77PSRFBD2010-05-29 21:31:522010-05-29 21:35:30 00:03:38 641 43.76 641 57.01 34.30 43
78PSMOB12010-05-29 21:43:352010-05-29 21:46:21 00:02:46 641 86.43 641 96.52 -1.20 -
79PSRWB12010-05-29 21:43:392010-05-29 21:52:20 00:08:41 641 86.67 641 118.34 27.10 80
80PSMOB12010-05-29 21:48:102010-05-29 21:55:04 00:06:54 641 103.20 641 128.37 -1.20 -
81PSRWB12010-05-29 22:26:452010-05-29 22:29:11 00:02:26 641 243.91 641 252.78 27.10 80
82PSRFBD2010-05-29 22:58:492010-05-29 23:08:43 00:09:54 16 0.85 16 36.95 34.30 43
83PSRFBD2010-05-29 23:15:092010-05-29 23:17:19 00:02:10 16 60.41 16 68.32 34.30 43
84PSRFBD2010-05-29 23:18:132010-05-29 23:23:45 00:05:32 16 71.60 16 91.78 34.30 43
85PSMOB12010-05-29 23:27:362010-05-29 23:31:06 00:03:30 16 105.82 16 118.58 -1.20 -
86AV2OBS2010-05-29 23:29:442010-05-29 23:34:28 00:04:44 16 113.60 16 130.86 0.00 -
87AV2OBS2010-05-29 23:44:122010-05-29 23:46:46 00:02:34 16 166.29 16 175.65 0.00 -
88PSRWB12010-05-29 23:48:212010-05-29 23:51:43 00:03:22 16 181.43 16 193.70 27.10 80
89PSMOB12010-05-29 23:54:182010-05-29 23:58:44 00:04:26 16 203.12 16 219.29 -1.20 -
90AV2OBS2010-05-29 23:54:452010-05-29 23:56:56 00:02:11 16 204.76 16 212.73 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
43-22.827042010-05-28 23:56:31144.833162010-05-29 00:45:52
89-47.506632010-05-29 01:35:14120.153582010-05-29 02:24:35
135-72.186212010-05-29 03:13:57 95.474002010-05-29 04:03:19
181-96.865792010-05-29 04:52:40 70.794422010-05-29 05:42:02
227-121.545382010-05-29 06:31:23 46.114832010-05-29 07:20:45
273-146.224962010-05-29 08:10:06 21.435252010-05-29 08:59:28
319-170.904542010-05-29 09:48:49 -3.244332010-05-29 10:38:11
365164.415882010-05-29 11:27:33-27.923922010-05-29 12:16:54
411139.736292010-05-29 13:06:16-52.603502010-05-29 13:55:37
457115.056712010-05-29 14:44:59-77.283082010-05-29 15:34:20
503 90.377132010-05-29 16:23:42-101.962662010-05-29 17:13:03
549 65.697552010-05-29 18:02:25-126.642252010-05-29 18:51:46
595 41.017962010-05-29 19:41:08-151.321832010-05-29 20:30:30
641 16.338382010-05-29 21:19:51-176.001412010-05-29 22:09:13
16 -8.341202010-05-29 22:58:34159.319012010-05-29 23:47:56
