>ALOS Data Take Simulation(May. 28, 2010)

Observation Area

PRISM

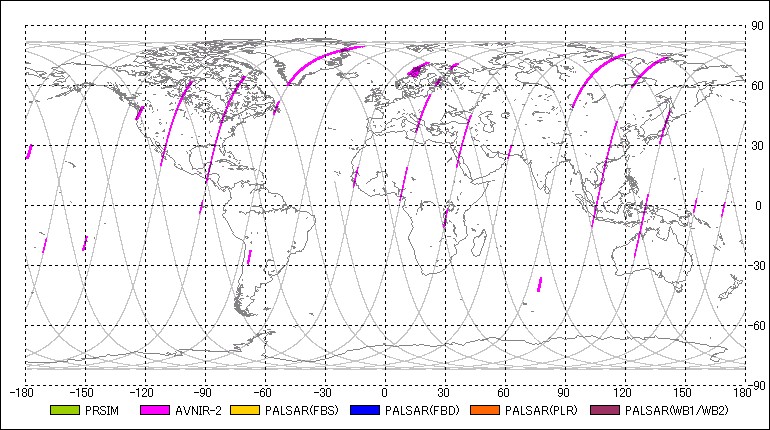

AVNIR-2

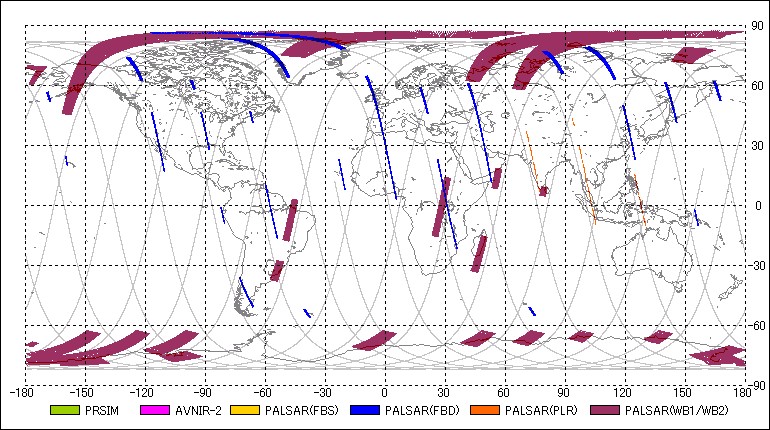

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2010-05-28 00:04:132010-05-28 00:06:05 00:01:52 24 176.68 24 183.49 0.00 -
2PSMOB22010-05-28 00:10:322010-05-28 00:14:22 00:03:50 24 199.72 24 213.70 0.00 -
3PSRFBD2010-05-28 01:11:292010-05-28 01:18:57 00:07:28 70 62.06 70 89.28 34.30 43
4PSRWB12010-05-28 01:21:392010-05-28 01:24:21 00:02:42 70 99.13 70 108.98 27.10 80
5PSMOB22010-05-28 01:29:082010-05-28 01:35:24 00:06:16 70 126.36 70 149.21 0.00 -
6AV2OBS2010-05-28 01:30:462010-05-28 01:35:24 00:04:38 70 132.32 70 149.21 0.00 -
7AV2OBS2010-05-28 01:42:162010-05-28 01:50:59 00:08:43 70 174.31 70 206.10 0.00 -
8PSMOB22010-05-28 01:42:212010-05-28 01:54:47 00:12:26 70 174.56 70 219.90 0.00 -
9PSRWB12010-05-28 02:01:242010-05-28 02:03:24 00:02:00 70 244.09 70 251.38 27.10 80
10PSRFBD2010-05-28 02:16:472010-05-28 02:18:41 00:01:54 70 300.13 70 307.06 34.30 43
11PSRFBD2010-05-28 02:28:002010-05-28 02:36:14 00:08:14 70 341.03 116 11.06 34.30 43
12PSRFBD2010-05-28 02:44:002010-05-28 02:46:16 00:02:16 116 39.38 116 47.65 34.30 43
13AV2OBS2010-05-28 03:01:432010-05-28 03:06:11 00:04:28 116 104.05 116 120.34 0.00 -
14PSMOB22010-05-28 03:08:142010-05-28 03:26:00 00:17:46 116 127.76 116 192.55 0.00 -
15AV2OBS2010-05-28 03:11:012010-05-28 03:25:30 00:14:29 116 137.91 116 190.72 0.00 -
16PSRWB12010-05-28 03:40:042010-05-28 03:42:40 00:02:36 116 243.91 116 253.39 27.10 80
17PSRFBD2010-05-28 03:57:032010-05-28 04:01:57 00:04:54 116 305.84 116 323.71 34.30 43
18PSRFBD2010-05-28 04:08:482010-05-28 04:11:40 00:02:52 116 348.63 116 359.08 34.30 43
19PSRFBD2010-05-28 04:18:562010-05-28 04:24:46 00:05:50 162 25.65 162 46.92 34.30 43
20PSRFBD2010-05-28 04:27:222010-05-28 04:29:14 00:01:52 162 56.34 162 63.15 34.30 43
21AV2OBS2010-05-28 04:39:592010-05-28 04:47:43 00:07:44 162 102.35 162 130.55 0.00 -
22PSMOB12010-05-28 04:46:122010-05-28 04:57:20 00:11:08 162 125.02 162 165.62 -1.20 -
23PSRWB12010-05-28 04:58:232010-05-28 05:00:15 00:01:52 162 169.51 162 176.32 27.10 80
24AV2OBS2010-05-28 05:11:062010-05-28 05:12:58 00:01:52 162 215.83 162 222.63 34.30 -
25PSRWB12010-05-28 05:18:472010-05-28 05:21:35 00:02:48 162 243.91 162 254.12 27.10 80
26PSRFBD2010-05-28 05:54:442010-05-28 06:03:30 00:08:46 208 14.95 208 46.92 34.30 43
27PSRFBD2010-05-28 06:07:202010-05-28 06:11:10 00:03:50 208 60.90 208 74.88 34.30 43
28PSRWB12010-05-28 06:14:252010-05-28 06:24:15 00:09:50 208 86.73 208 122.59 27.10 80
29PSMOB12010-05-28 06:24:552010-05-28 06:34:09 00:09:14 208 125.02 208 158.69 -1.20 -
30AV2OBS2010-05-28 06:31:412010-05-28 06:33:33 00:01:52 208 149.76 208 156.57 0.00 -
31PSRWB12010-05-28 06:34:372010-05-28 06:37:57 00:03:20 208 160.40 208 172.55 27.10 80
32PSRWB12010-05-28 06:43:572010-05-28 06:49:31 00:05:34 208 194.43 208 214.73 27.10 80
33PSRWB12010-05-28 07:53:082010-05-28 08:01:50 00:08:42 254 86.73 254 118.46 27.10 80
34PSMOB12010-05-28 08:00:462010-05-28 08:13:34 00:12:48 254 114.57 254 161.25 -1.20 -
35AV2OBS2010-05-28 08:06:192010-05-28 08:13:33 00:07:14 254 134.81 254 161.19 0.00 -
36PSRWB12010-05-28 08:14:342010-05-28 08:23:18 00:08:44 254 164.89 254 196.74 27.10 80
37AV2OBS2010-05-28 08:19:122010-05-28 08:21:48 00:02:36 254 181.79 254 191.27 0.00 -
38PSRWB12010-05-28 08:36:142010-05-28 08:39:40 00:03:26 254 243.91 254 256.43 27.10 80
39PSRFBD2010-05-28 09:12:542010-05-28 09:14:46 00:01:52 300 17.63 300 24.43 41.50 46
40PSRFBD2010-05-28 09:21:462010-05-28 09:23:46 00:02:00 300 49.96 300 57.25 34.30 43
41AV2OBS2010-05-28 09:37:322010-05-28 09:40:26 00:02:54 300 107.46 300 118.03 0.00 -
42AV2OBS2010-05-28 09:42:052010-05-28 09:47:19 00:05:14 300 124.05 300 143.13 0.00 -
43PSMOB12010-05-28 09:44:322010-05-28 09:49:08 00:04:36 300 132.98 300 149.76 -1.20 -
44PSMOB12010-05-28 09:51:332010-05-28 09:57:33 00:06:00 300 158.57 300 180.45 -1.20 -
45AV2OBS2010-05-28 09:52:152010-05-28 09:56:51 00:04:36 300 161.13 300 177.90 0.00 -
46PSRFBD2010-05-28 11:00:362010-05-28 11:03:58 00:03:22 346 50.39 346 62.66 34.30 43
47AV2OBS2010-05-28 11:15:432010-05-28 11:17:35 00:01:52 346 105.51 346 112.32 21.50 -
48PSMOB12010-05-28 11:18:192010-05-28 11:27:01 00:08:42 346 114.99 346 146.72 -1.20 -
49PSMOB12010-05-28 11:30:152010-05-28 11:34:21 00:04:06 346 158.51 346 173.46 -1.20 -
50AV2OBS2010-05-28 11:30:582010-05-28 11:33:38 00:02:40 346 161.13 346 170.85 0.00 -
51PSRFBD2010-05-28 12:22:072010-05-28 12:24:57 00:02:50 346 347.66 346 357.99 34.30 43
52PSRFBD2010-05-28 12:36:182010-05-28 12:42:32 00:06:14 392 39.38 392 62.12 34.30 43
53PSRWB12010-05-28 13:13:432010-05-28 13:20:03 00:06:20 392 175.83 392 198.93 27.10 80
54PSMOB12010-05-28 13:17:122010-05-28 13:20:06 00:02:54 392 188.54 392 199.11 -1.20 -
55PSRWB12010-05-28 13:22:132010-05-28 13:25:39 00:03:26 392 206.83 392 219.35 27.10 80
56PSRWB12010-05-28 13:36:102010-05-28 13:38:02 00:01:52 392 257.70 392 264.51 27.10 80
57PSRPLR2010-05-28 14:00:512010-05-28 14:08:33 00:07:42 392 347.72 438 15.80 23.10 128
58PSRFBD2010-05-28 14:09:542010-05-28 14:18:04 00:08:10 438 20.73 438 50.51 34.30 43
59PSRFBD2010-05-28 14:21:012010-05-28 14:26:17 00:05:16 438 61.27 438 80.47 34.30 43
60PSRWB12010-05-28 14:27:482010-05-28 14:33:10 00:05:22 438 86.00 438 105.57 27.10 80
61AV2OBS2010-05-28 14:30:462010-05-28 14:37:00 00:06:14 438 96.76 438 119.49 0.00 -
62PSMOB12010-05-28 14:32:032010-05-28 14:36:19 00:04:16 438 101.50 438 117.06 -1.20 -
63AV2OBS2010-05-28 14:39:092010-05-28 14:41:01 00:01:52 438 127.39 438 134.20 0.00 -
64PSMOB12010-05-28 14:49:102010-05-28 15:00:02 00:10:52 438 163.92 438 203.55 -1.20 -
65AV2OBS2010-05-28 14:59:392010-05-28 15:01:31 00:01:52 438 202.09 438 208.90 34.30 -
66PSRWB12010-05-28 15:11:062010-05-28 15:15:16 00:04:10 438 243.91 438 259.10 27.10 80
67PSRWB12010-05-28 15:16:292010-05-28 15:18:25 00:01:56 438 263.54 438 270.59 27.10 80
68PSRPLR2010-05-28 15:39:452010-05-28 15:51:13 00:11:28 438 348.39 484 30.21 23.10 128
69PSRPLR2010-05-28 15:53:212010-05-28 15:55:13 00:01:52 484 37.99 484 44.79 23.10 128
70PSRFBD2010-05-28 16:00:312010-05-28 16:04:23 00:03:52 484 64.06 484 78.16 34.30 43
71PSMOB12010-05-28 16:07:072010-05-28 16:15:57 00:08:50 484 88.19 484 120.40 -1.20 -
72AV2OBS2010-05-28 16:14:222010-05-28 16:29:06 00:14:44 484 114.57 484 168.30 0.00 -
73PSMOB12010-05-28 16:30:582010-05-28 16:33:34 00:02:36 484 175.10 484 184.59 -1.20 -
74AV2OBS2010-05-28 16:31:372010-05-28 16:33:29 00:01:52 484 177.54 484 184.34 0.00 -
75PSRWB12010-05-28 16:49:492010-05-28 16:57:01 00:07:12 484 243.91 484 270.16 27.10 80
76PSRPLR2010-05-28 17:23:012010-05-28 17:32:01 00:09:00 530 4.98 530 37.80 23.10 128
77PSMOB12010-05-28 17:45:232010-05-28 17:59:39 00:14:16 530 86.55 530 138.58 -1.20 -
78AV2OBS2010-05-28 17:53:502010-05-28 18:05:32 00:11:42 530 117.30 530 159.97 0.00 -
79PSRWB12010-05-28 18:28:322010-05-28 18:35:12 00:06:40 530 243.91 530 268.22 27.10 80
80PSRFBD2010-05-28 18:44:172010-05-28 18:46:09 00:01:52 530 301.34 530 308.15 34.30 43
81PSRFBD2010-05-28 19:02:532010-05-28 19:17:15 00:14:22 576 9.18 576 61.57 34.30 43
82PSMOB12010-05-28 19:24:062010-05-28 19:36:58 00:12:52 576 86.49 576 133.41 -1.20 -
83AV2OBS2010-05-28 19:35:412010-05-28 19:37:33 00:01:52 576 128.79 576 135.60 34.30 -
84AV2OBS2010-05-28 19:54:162010-05-28 19:56:08 00:01:52 576 196.50 576 203.31 -34.30 -
85PSRWB12010-05-28 20:08:472010-05-28 20:12:35 00:03:48 576 249.50 576 263.36 27.10 80
86PSRFBD2010-05-28 20:32:332010-05-28 20:45:33 00:13:00 576 336.11 622 23.52 34.30 43
87PSRFBD2010-05-28 20:51:102010-05-28 20:55:28 00:04:18 622 44.00 622 59.68 34.30 43
88PSRWB12010-05-28 21:01:502010-05-28 21:16:11 00:14:21 622 82.90 622 135.23 27.10 80
89PSMOB12010-05-28 21:02:502010-05-28 21:13:28 00:10:38 622 86.55 622 125.33 -1.20 -
90AV2OBS2010-05-28 21:33:022010-05-28 21:34:54 00:01:52 622 196.74 622 203.55 0.00 -
91PSMOB22010-05-28 21:33:022010-05-28 21:35:00 00:01:58 622 196.74 622 203.91 0.00 -
92PSRFBD2010-05-28 22:18:022010-05-28 22:35:44 00:17:42 668 0.85 668 65.40 34.30 43
93PSRFBD2010-05-28 22:38:562010-05-28 22:43:06 00:04:10 668 77.01 668 92.20 34.30 43
94PSMOB12010-05-28 22:46:102010-05-28 22:54:12 00:08:02 668 103.39 668 132.68 -1.20 -
95PSRWB12010-05-28 22:47:302010-05-28 22:50:46 00:03:16 668 108.31 668 120.22 27.10 80
96AV2OBS2010-05-28 22:58:332010-05-28 23:00:25 00:01:52 668 148.54 668 155.35 41.50 -
97AV2OBS2010-05-28 23:06:492010-05-28 23:08:41 00:01:52 668 178.69 668 185.50 0.00 -
98PSRWB12010-05-28 23:24:412010-05-28 23:26:57 00:02:16 668 243.91 668 252.17 27.10 80
99PSRFBD2010-05-28 23:58:082010-05-29 00:02:56 00:04:48 43 5.83 43 23.34 34.30 43

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
24-12.633302010-05-27 23:15:44155.026902010-05-28 00:05:06
70-37.312892010-05-28 00:54:27130.347322010-05-28 01:43:49
116-61.992472010-05-28 02:33:11105.667742010-05-28 03:22:32
162-86.672052010-05-28 04:11:54 80.988162010-05-28 05:01:15
208-111.351632010-05-28 05:50:37 56.308572010-05-28 06:39:58
254-136.031222010-05-28 07:29:20 31.628992010-05-28 08:18:41
300-160.710802010-05-28 09:08:03 6.949412010-05-28 09:57:24
346174.609622010-05-28 10:46:46-17.730172010-05-28 11:36:08
392149.930032010-05-28 12:25:29-42.409762010-05-28 13:14:51
438125.250452010-05-28 14:04:12-67.089342010-05-28 14:53:34
484100.570872010-05-28 15:42:55-91.768922010-05-28 16:32:17
530 75.891292010-05-28 17:21:38-116.448512010-05-28 18:11:00
576 51.211702010-05-28 19:00:22-141.128092010-05-28 19:49:43
622 26.532122010-05-28 20:39:05-165.807672010-05-28 21:28:26
668 1.852542010-05-28 22:17:48169.512752010-05-28 23:07:09
43-22.827042010-05-28 23:56:31144.833162010-05-29 00:45:52
