>ALOS Data Take Simulation(Feb. 18, 2010)

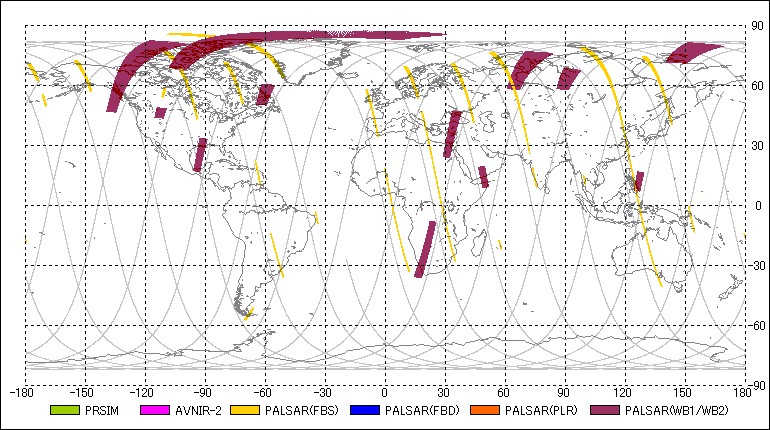

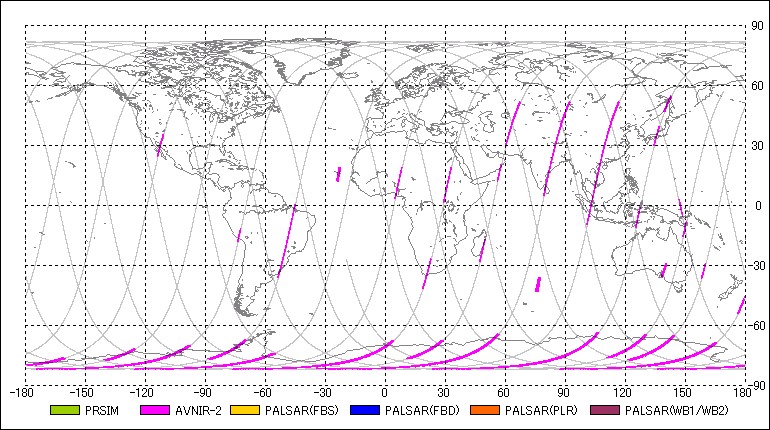

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB2	2010-02-18 00:15:58	2010-02-18 00:20:08	00:04:10	29	180.39	29	195.59	0.00	-
2	AV2	OBS	2010-02-18 00:18:08	2010-02-18 00:20:10	00:02:02	29	188.29	29	195.71	0.00	-
3	AV2	OBS	2010-02-18 00:24:08	2010-02-18 00:26:00	00:01:52	29	210.17	29	216.98	-34.30	-
4	PSM	OB1	2010-02-18 00:33:08	2010-02-18 00:38:14	00:05:06	29	242.99	29	261.59	-1.20	-
5	AV2	OBS	2010-02-18 00:33:50	2010-02-18 00:37:26	00:03:36	29	245.55	29	258.68	0.00	-
6	PSR	FBS	2010-02-18 01:02:05	2010-02-18 01:04:21	00:02:16	29	348.63	29	356.89	34.30	7
7	PSR	FBS	2010-02-18 01:22:16	2010-02-18 01:29:32	00:07:16	75	62.24	75	88.74	34.30	7
8	PSR	WB1	2010-02-18 01:31:43	2010-02-18 01:35:05	00:03:22	75	96.70	75	108.98	27.10	80
9	AV2	OBS	2010-02-18 01:39:24	2010-02-18 01:41:38	00:02:14	75	124.66	75	132.80	0.00	-
10	AV2	OBS	2010-02-18 01:43:39	2010-02-18 01:46:23	00:02:44	75	140.16	75	150.12	0.00	-
11	PSM	OB2	2010-02-18 01:43:43	2010-02-18 01:46:29	00:02:46	75	140.40	75	150.49	0.00	-
12	PSR	WB1	2010-02-18 01:49:40	2010-02-18 01:52:54	00:03:14	75	162.10	75	173.89	27.10	80
13	PSM	OB2	2010-02-18 01:53:22	2010-02-18 02:03:22	00:10:00	75	175.59	75	212.06	0.00	-
14	AV2	OBS	2010-02-18 01:54:54	2010-02-18 01:57:42	00:02:48	75	181.18	75	191.39	0.00	-
15	PSM	OB1	2010-02-18 02:11:34	2010-02-18 02:19:56	00:08:22	75	241.96	75	272.47	-1.20	-
16	AV2	OBS	2010-02-18 02:12:19	2010-02-18 02:19:35	00:07:16	75	244.76	75	271.26	0.00	-
17	PSR	FBS	2010-02-18 02:33:21	2010-02-18 02:40:07	00:06:46	75	321.46	75	346.14	34.30	7
18	PSR	FBS	2010-02-18 02:46:14	2010-02-18 02:50:06	00:03:52	121	8.45	121	22.55	34.30	7
19	PSR	FBS	2010-02-18 02:57:24	2010-02-18 03:03:50	00:06:26	121	49.11	121	72.57	34.30	7
20	AV2	OBS	2010-02-18 03:18:57	2010-02-18 03:36:01	00:17:04	121	127.70	121	189.93	0.00	-
21	PSM	OB2	2010-02-18 03:21:45	2010-02-18 03:36:07	00:14:22	121	137.91	121	190.30	0.00	-
22	PSR	FBS	2010-02-18 04:33:57	2010-02-18 04:44:29	00:10:32	167	41.21	167	79.62	34.30	7
23	PSR	WB1	2010-02-18 04:52:49	2010-02-18 04:56:15	00:03:26	167	110.01	167	122.53	27.10	80
24	AV2	OBS	2010-02-18 04:57:40	2010-02-18 05:10:44	00:13:04	167	127.76	167	175.41	0.00	-
25	PSM	OB1	2010-02-18 04:59:43	2010-02-18 05:11:13	00:11:30	167	135.17	167	177.11	-1.20	-
26	AV2	OBS	2010-02-18 05:21:46	2010-02-18 05:23:38	00:01:52	167	215.58	167	222.39	41.50	-
27	PSM	OB1	2010-02-18 05:29:10	2010-02-18 05:35:32	00:06:22	167	242.57	167	265.79	-1.20	-
28	AV2	OBS	2010-02-18 05:29:56	2010-02-18 05:37:22	00:07:26	167	245.43	167	272.53	0.00	-
29	PSR	WB1	2010-02-18 06:29:08	2010-02-18 06:34:58	00:05:50	213	101.26	213	122.53	27.10	80
30	AV2	OBS	2010-02-18 06:36:23	2010-02-18 06:42:17	00:05:54	213	127.76	213	149.27	0.00	-
31	PSM	OB1	2010-02-18 06:38:27	2010-02-18 06:43:05	00:04:38	213	135.23	213	152.13	-1.20	-
32	AV2	OBS	2010-02-18 06:45:09	2010-02-18 06:47:27	00:02:18	213	159.67	213	168.05	0.00	-
33	AV2	OBS	2010-02-18 06:55:24	2010-02-18 06:58:32	00:03:08	213	197.05	213	208.47	0.00	-
34	PSM	OB1	2010-02-18 07:08:52	2010-02-18 07:13:04	00:04:12	213	246.15	213	261.47	-1.20	-
35	AV2	OBS	2010-02-18 07:09:38	2010-02-18 07:12:28	00:02:50	213	248.95	213	259.28	0.00	-
36	PSR	FBS	2010-02-18 07:55:16	2010-02-18 08:00:14	00:04:58	259	55.37	259	73.48	34.30	7
37	PSR	WB1	2010-02-18 08:16:10	2010-02-18 08:23:08	00:06:58	259	131.59	259	156.99	27.10	80
38	PSM	OB1	2010-02-18 08:23:35	2010-02-18 08:30:55	00:07:20	259	158.63	259	185.38	-1.20	-
39	AV2	OBS	2010-02-18 08:24:16	2010-02-18 08:29:04	00:04:48	259	161.13	259	178.63	0.00	-
40	PSR	WB1	2010-02-18 08:31:22	2010-02-18 08:39:42	00:08:20	259	187.02	259	217.41	27.10	80
41	AV2	OBS	2010-02-18 08:36:49	2010-02-18 08:40:55	00:04:06	259	206.89	259	221.84	0.00	-
42	PSM	OB1	2010-02-18 08:47:36	2010-02-18 08:51:48	00:04:12	259	246.22	259	261.53	-1.20	-
43	AV2	OBS	2010-02-18 08:48:22	2010-02-18 08:54:30	00:06:08	259	249.01	259	271.38	0.00	-
44	PSR	FBS	2010-02-18 09:31:54	2010-02-18 09:34:10	00:02:16	305	47.77	305	56.04	34.30	7
45	PSR	FBS	2010-02-18 09:35:24	2010-02-18 09:38:26	00:03:02	305	60.54	305	71.60	34.30	7
46	PSM	OB1	2010-02-18 10:02:16	2010-02-18 10:07:54	00:05:38	305	158.51	305	179.05	-1.20	-
47	AV2	OBS	2010-02-18 10:02:59	2010-02-18 10:07:11	00:04:12	305	161.13	305	176.44	0.00	-
48	PSR	FBS	2010-02-18 10:51:43	2010-02-18 10:53:39	00:01:56	305	338.84	305	345.89	34.30	7
49	PSM	OB1	2010-02-18 11:41:02	2010-02-18 11:44:02	00:03:00	351	158.69	351	169.63	-1.20	-
50	AV2	OBS	2010-02-18 11:41:55	2010-02-18 11:43:47	00:01:52	351	161.92	351	168.72	-41.50	-
51	AV2	OBS	2010-02-18 12:07:43	2010-02-18 12:11:55	00:04:12	351	256.00	351	271.32	0.00	-
52	PSR	FBS	2010-02-18 12:31:52	2010-02-18 12:36:08	00:04:16	351	344.07	351	359.63	34.30	7
53	AV2	OBS	2010-02-18 12:34:45	2010-02-18 12:37:03	00:02:18	351	354.58	397	2.98	0.00	-
54	PSR	FBS	2010-02-18 12:46:49	2010-02-18 12:56:55	00:10:06	397	38.59	397	75.43	34.30	7
55	PSM	OB1	2010-02-18 13:24:42	2010-02-18 13:30:50	00:06:08	397	176.75	397	199.11	-1.20	-
56	AV2	OBS	2010-02-18 13:25:27	2010-02-18 13:35:34	00:10:07	397	179.48	397	216.37	0.00	-
57	PSR	FBS	2010-02-18 13:39:39	2010-02-18 13:42:05	00:02:26	397	231.26	397	240.14	34.30	7
58	PSM	OB1	2010-02-18 13:43:41	2010-02-18 13:48:05	00:04:24	397	245.97	397	262.02	-1.20	-
59	AV2	OBS	2010-02-18 13:44:24	2010-02-18 13:47:26	00:03:02	397	248.59	397	259.65	0.00	-
60	PSR	FBS	2010-02-18 14:03:02	2010-02-18 14:36:56	00:33:54	397	316.54	443	80.17	34.30	7
61	PSR	WB1	2010-02-18 14:47:16	2010-02-18 14:50:42	00:03:26	443	117.85	443	130.37	27.10	80
62	PSM	OB1	2010-02-18 14:59:51	2010-02-18 15:09:33	00:09:42	443	163.74	443	199.11	-1.20	-
63	AV2	OBS	2010-02-18 15:07:31	2010-02-18 15:09:23	00:01:52	443	191.70	443	198.50	0.00	-
64	PSM	OB1	2010-02-18 15:23:14	2010-02-18 15:26:42	00:03:28	443	248.95	443	261.59	-1.20	-
65	AV2	OBS	2010-02-18 15:24:00	2010-02-18 15:29:22	00:05:22	443	251.81	443	271.38	0.00	-
66	PSR	FBS	2010-02-18 15:55:56	2010-02-18 15:57:48	00:01:52	489	8.27	489	15.07	34.30	7
67	PSR	WB1	2010-02-18 16:33:30	2010-02-18 16:38:37	00:05:07	489	145.26	489	163.92	27.10	80
68	PSM	OB1	2010-02-18 17:02:33	2010-02-18 17:05:23	00:02:50	489	251.20	489	261.53	-1.20	-
69	AV2	OBS	2010-02-18 17:03:12	2010-02-18 17:05:04	00:01:52	489	253.57	489	260.38	0.00	-
70	PSR	FBS	2010-02-18 17:34:15	2010-02-18 17:37:41	00:03:26	535	6.81	535	19.33	34.30	7
71	PSR	FBS	2010-02-18 17:38:57	2010-02-18 17:53:39	00:14:42	535	23.95	535	77.55	34.30	7
72	PSR	WB1	2010-02-18 17:55:36	2010-02-18 18:03:06	00:07:30	535	84.67	535	112.02	27.10	80
73	PSR	FBS	2010-02-18 18:05:15	2010-02-18 18:07:07	00:01:52	535	119.86	535	126.66	34.30	7
74	PSR	WB1	2010-02-18 18:08:01	2010-02-18 18:09:59	00:01:58	535	129.95	535	137.12	27.10	80
75	AV2	OBS	2010-02-18 18:11:55	2010-02-18 18:15:05	00:03:10	535	144.17	535	155.72	0.00	-
76	PSM	OB1	2010-02-18 18:13:00	2010-02-18 18:16:10	00:03:10	535	148.06	535	159.61	0.00	-
77	PSM	OB1	2010-02-18 18:42:49	2010-02-18 18:46:03	00:03:14	535	256.79	535	268.58	-1.20	-
78	AV2	OBS	2010-02-18 18:43:24	2010-02-18 18:46:48	00:03:24	535	258.98	535	271.38	0.00	-
79	PSR	FBS	2010-02-18 19:04:24	2010-02-18 19:06:16	00:01:52	535	335.56	535	342.37	34.30	7
80	PSR	WB1	2010-02-18 19:13:01	2010-02-18 19:16:31	00:03:30	581	6.93	581	19.69	27.10	80
81	PSR	FBS	2010-02-18 19:21:54	2010-02-18 19:30:46	00:08:52	581	39.38	581	71.72	34.30	7
82	PSR	WB1	2010-02-18 19:37:21	2010-02-18 19:47:53	00:10:32	581	95.67	581	134.08	27.10	80
83	PSR	FBS	2010-02-18 20:41:28	2010-02-18 21:02:46	00:21:18	581	329.54	627	47.23	34.30	7
84	PSR	FBS	2010-02-18 21:04:01	2010-02-18 21:09:07	00:05:06	627	51.72	627	70.32	34.30	7
85	PSM	OB1	2010-02-18 21:41:44	2010-02-18 21:44:20	00:02:36	627	189.33	627	198.81	-1.20	-
86	PSM	OB1	2010-02-18 21:51:01	2010-02-18 21:53:47	00:02:46	627	223.18	627	233.27	-1.20	-
87	AV2	OBS	2010-02-18 21:51:47	2010-02-18 21:54:13	00:02:26	627	225.98	627	234.85	0.00	-
88	PSM	OB1	2010-02-18 21:58:07	2010-02-18 22:04:37	00:06:30	627	249.07	627	272.78	-1.20	-
89	AV2	OBS	2010-02-18 21:58:26	2010-02-18 22:04:14	00:05:48	627	250.17	627	271.32	0.00	-
90	PSR	FBS	2010-02-18 22:18:45	2010-02-18 22:33:41	00:14:56	627	324.26	2	18.72	34.30	7
91	PSR	FBS	2010-02-18 22:37:29	2010-02-18 22:44:33	00:07:04	2	32.58	2	58.35	34.30	7
92	PSM	OB1	2010-02-18 23:16:47	2010-02-18 23:19:23	00:02:36	2	175.89	2	185.38	-1.20	-
93	AV2	OBS	2010-02-18 23:25:54	2010-02-18 23:28:00	00:02:06	2	209.14	2	216.80	0.00	-
94	PSM	OB1	2010-02-18 23:35:15	2010-02-18 23:43:55	00:08:40	2	243.24	2	274.84	-1.20	-
95	AV2	OBS	2010-02-18 23:36:02	2010-02-18 23:39:54	00:03:52	2	246.15	2	260.26	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
29	-15.31587	2010-02-17 23:26:28	152.34434	2010-02-18 00:15:50
75	-39.99545	2010-02-18 01:05:11	127.66476	2010-02-18 01:54:33
121	-64.67503	2010-02-18 02:43:54	102.98518	2010-02-18 03:33:16
167	-89.35462	2010-02-18 04:22:37	78.30559	2010-02-18 05:11:59
213	-114.03420	2010-02-18 06:01:21	53.62601	2010-02-18 06:50:42
259	-138.71378	2010-02-18 07:40:04	28.94643	2010-02-18 08:29:25
305	-163.39336	2010-02-18 09:18:47	4.26685	2010-02-18 10:08:08
351	171.92705	2010-02-18 10:57:30	-20.41274	2010-02-18 11:46:51
397	147.24747	2010-02-18 12:36:13	-45.09232	2010-02-18 13:25:34
443	122.56789	2010-02-18 14:14:56	-69.77190	2010-02-18 15:04:18
489	97.88831	2010-02-18 15:53:39	-94.45149	2010-02-18 16:43:01
535	73.20872	2010-02-18 17:32:22	-119.13107	2010-02-18 18:21:44
581	48.52914	2010-02-18 19:11:05	-143.81065	2010-02-18 20:00:27
627	23.84956	2010-02-18 20:49:48	-168.49023	2010-02-18 21:39:10
2	-0.83003	2010-02-18 22:28:32	166.83018	2010-02-18 23:17:53
