>ALOS Data Take Simulation(Feb. 17, 2010)

Observation Area

PRISM

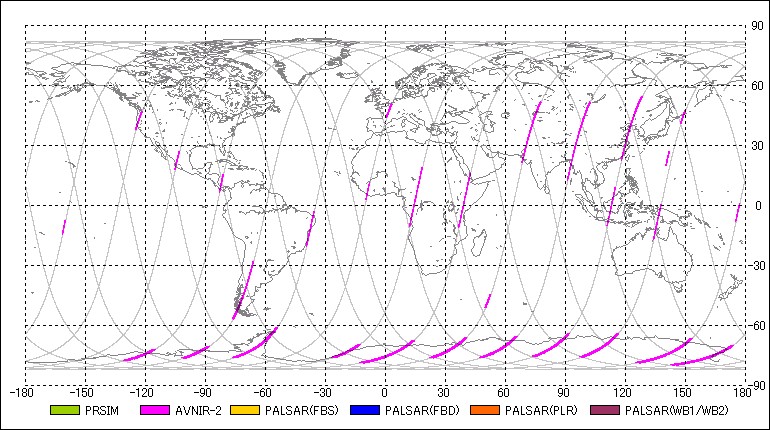

AVNIR-2

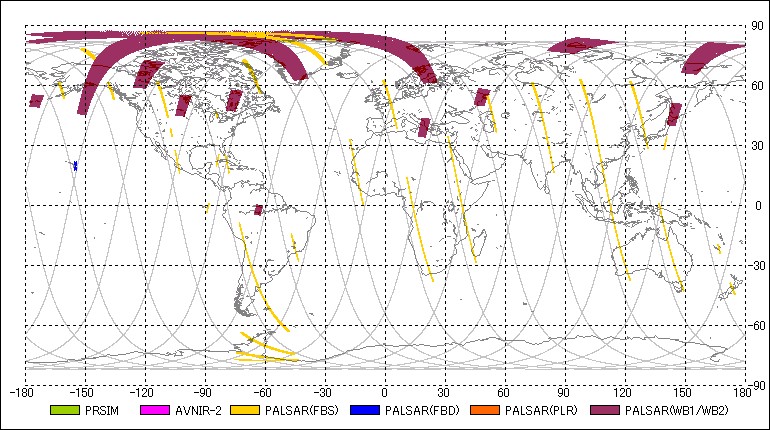

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12010-02-17 00:41:162010-02-17 00:55:51 00:14:35 56 61.39 56 114.57 27.10 80
2PSRWB12010-02-17 00:59:262010-02-17 01:03:04 00:03:38 56 127.64 56 140.89 27.10 80
3AV2OBS2010-02-17 01:00:402010-02-17 01:02:32 00:01:52 56 132.13 56 138.94 0.00 -
4PSRFBS2010-02-17 01:04:032010-02-17 01:06:29 00:02:26 56 144.47 56 153.35 34.30 7
5AV2OBS2010-02-17 01:06:292010-02-17 01:08:21 00:01:52 56 153.35 56 160.15 -14.00 -
6PSMOB22010-02-17 01:10:262010-02-17 01:20:58 00:10:32 56 167.75 56 206.16 0.00 -
7AV2OBS2010-02-17 01:13:392010-02-17 01:18:28 00:04:49 56 179.48 56 197.05 0.00 -
8PSMOB12010-02-17 01:30:532010-02-17 01:39:35 00:08:42 56 242.33 56 274.05 -1.20 -
9AV2OBS2010-02-17 01:31:402010-02-17 01:35:16 00:03:36 56 245.18 56 258.31 0.00 -
10PSRFBS2010-02-17 01:54:492010-02-17 01:59:21 00:04:32 56 329.60 56 346.14 34.30 7
11PSRFBS2010-02-17 02:18:012010-02-17 02:23:21 00:05:20 102 54.21 102 73.66 34.30 7
12AV2OBS2010-02-17 02:37:252010-02-17 02:46:17 00:08:52 102 124.96 102 157.30 0.00 -
13PSMOB22010-02-17 02:37:282010-02-17 02:47:04 00:09:36 102 125.14 102 160.15 0.00 -
14AV2OBS2010-02-17 02:50:022010-02-17 02:55:20 00:05:18 102 170.97 102 190.30 0.00 -
15PSMOB22010-02-17 02:50:052010-02-17 02:56:13 00:06:08 102 171.15 102 193.52 0.00 -
16AV2OBS2010-02-17 03:10:222010-02-17 03:13:52 00:03:30 102 245.12 102 257.89 0.00 -
17PSRFBS2010-02-17 03:23:232010-02-17 03:39:35 00:16:12 102 292.59 102 351.67 34.30 7
18PSRFBS2010-02-17 03:45:432010-02-17 03:48:55 00:03:12 148 14.04 148 25.71 34.30 7
19PSRFBS2010-02-17 03:53:202010-02-17 03:54:56 00:01:36 148 41.82 148 47.65 34.30 7
20AV2OBS2010-02-17 04:16:532010-02-17 04:27:49 00:10:56 148 127.70 148 167.57 0.00 -
21PSMOB12010-02-17 04:48:472010-02-17 04:56:57 00:08:10 148 244.03 148 273.81 -1.20 -
22AV2OBS2010-02-17 04:49:322010-02-17 04:52:48 00:03:16 148 246.76 148 258.68 0.00 -
23PSRFBS2010-02-17 04:58:022010-02-17 05:02:36 00:04:34 148 277.76 148 294.41 34.30 7
24PSRFBS2010-02-17 05:24:262010-02-17 05:28:08 00:03:42 194 14.04 194 27.53 34.30 7
25PSRFBS2010-02-17 05:29:252010-02-17 05:31:17 00:01:52 194 32.21 194 39.02 34.30 7
26PSRFBS2010-02-17 05:32:022010-02-17 05:37:44 00:05:42 194 41.76 194 62.54 34.30 7
27PSRWB12010-02-17 05:46:222010-02-17 05:48:56 00:02:34 194 94.03 194 103.39 27.10 80
28AV2OBS2010-02-17 05:55:372010-02-17 06:04:07 00:08:30 194 127.70 194 158.69 0.00 -
29PSMOB12010-02-17 06:21:342010-02-17 06:24:10 00:02:36 194 222.39 194 231.87 -1.20 -
30AV2OBS2010-02-17 06:22:192010-02-17 06:24:11 00:01:52 194 225.13 194 231.93 0.00 -
31AV2OBS2010-02-17 06:28:252010-02-17 06:31:31 00:03:06 194 247.37 194 258.68 0.00 -
32PSMOB12010-02-17 06:31:582010-02-17 06:34:30 00:02:32 194 260.32 194 269.55 -1.20 -
33PSRFBS2010-02-17 06:34:502010-02-17 06:37:48 00:02:58 194 270.71 194 281.53 34.30 7
34PSRFBS2010-02-17 07:13:202010-02-17 07:16:20 00:03:00 240 51.18 240 62.12 34.30 7
35PSRFBS2010-02-17 07:17:142010-02-17 07:21:06 00:03:52 240 65.34 240 79.44 34.30 7
36PSRWB12010-02-17 07:32:182010-02-17 07:35:08 00:02:50 240 120.34 240 130.67 27.10 80
37PSMOB12010-02-17 07:43:242010-02-17 07:54:54 00:11:30 240 160.82 240 202.76 -1.20 -
38AV2OBS2010-02-17 07:44:132010-02-17 07:51:45 00:07:32 240 163.74 240 191.21 0.00 -
39AV2OBS2010-02-17 08:07:352010-02-17 08:11:11 00:03:36 240 249.01 240 262.14 0.00 -
40PSMOB12010-02-17 08:08:402010-02-17 08:11:16 00:02:36 240 252.96 240 262.44 -1.20 -
41PSRFBS2010-02-17 08:12:302010-02-17 08:14:40 00:02:10 240 266.94 240 274.84 34.30 7
42PSRFBD2010-02-17 08:42:222010-02-17 08:44:14 00:01:52 286 15.80 286 22.61 21.50 39
43PSRFBS2010-02-17 08:52:132010-02-17 08:55:05 00:02:52 286 51.78 286 62.24 34.30 7
44PSRWB12010-02-17 09:15:042010-02-17 09:18:12 00:03:08 286 135.11 286 146.54 27.10 80
45AV2OBS2010-02-17 09:22:122010-02-17 09:30:18 00:08:06 286 161.13 286 190.66 0.00 -
46PSMOB12010-02-17 09:46:212010-02-17 09:53:11 00:06:50 286 249.19 286 274.11 -1.20 -
47AV2OBS2010-02-17 09:46:542010-02-17 09:48:58 00:02:04 286 251.14 286 258.68 0.00 -
48PSMOB12010-02-17 10:51:172010-02-17 10:53:53 00:02:36 332 125.99 332 135.48 -1.20 -
49AV2OBS2010-02-17 10:52:032010-02-17 10:53:55 00:01:52 332 128.79 332 135.60 0.00 -
50PSMOB12010-02-17 11:00:132010-02-17 11:06:01 00:05:48 332 158.51 332 179.66 -1.20 -
51AV2OBS2010-02-17 11:02:552010-02-17 11:05:17 00:02:22 332 168.42 332 177.05 0.00 -
52PSMOB12010-02-17 11:26:302010-02-17 11:31:54 00:05:24 332 254.36 332 274.05 -1.20 -
53PSRFBS2010-02-17 11:42:212010-02-17 11:44:41 00:02:20 332 312.22 332 320.73 34.30 7
54PSRFBS2010-02-17 11:48:102010-02-17 11:50:06 00:01:56 332 333.43 332 340.48 34.30 7
55PSMOB12010-02-17 12:44:542010-02-17 12:51:02 00:06:08 378 180.27 378 202.64 -1.20 -
56AV2OBS2010-02-17 12:45:412010-02-17 12:50:27 00:04:46 378 183.13 378 200.51 0.00 -
57PSMOB12010-02-17 13:01:072010-02-17 13:10:39 00:09:32 378 239.41 378 274.17 -1.20 -
58AV2OBS2010-02-17 13:01:522010-02-17 13:06:24 00:04:32 378 242.14 378 258.68 0.00 -
59PSRFBS2010-02-17 13:21:372010-02-17 13:34:29 00:12:52 378 314.17 424 1.09 34.30 7
60PSRFBS2010-02-17 13:41:282010-02-17 13:51:22 00:09:54 424 26.56 424 62.66 34.30 7
61PSMOB12010-02-17 14:20:132010-02-17 14:28:49 00:08:36 424 167.93 424 199.29 -1.20 -
62PSRWB12010-02-17 14:23:092010-02-17 14:25:07 00:01:58 424 178.63 424 185.80 27.10 80
63AV2OBS2010-02-17 14:31:152010-02-17 14:39:20 00:08:05 424 208.11 424 237.59 0.00 -
64PSMOB12010-02-17 14:42:342010-02-17 14:49:22 00:06:48 424 249.38 424 274.17 -1.20 -
65AV2OBS2010-02-17 14:43:202010-02-17 14:45:12 00:01:52 424 252.17 424 258.98 0.00 -
66PSRFBS2010-02-17 15:01:512010-02-17 15:30:19 00:28:28 424 319.76 470 63.57 34.30 7
67PSRWB12010-02-17 15:46:042010-02-17 15:49:30 00:03:26 470 120.95 470 133.47 27.10 80
68PSRFBS2010-02-17 15:54:512010-02-17 15:57:11 00:02:20 470 153.04 470 161.55 34.30 7
69AV2OBS2010-02-17 15:57:572010-02-17 16:00:33 00:02:36 470 164.29 470 173.77 0.00 -
70PSRFBS2010-02-17 16:01:392010-02-17 16:03:31 00:01:52 470 177.84 470 184.65 34.30 7
71PSMOB12010-02-17 16:21:482010-02-17 16:28:02 00:06:14 470 251.26 470 273.99 -1.20 -
72AV2OBS2010-02-17 16:22:292010-02-17 16:24:21 00:01:52 470 253.75 470 260.56 0.00 -
73PSRFBS2010-02-17 16:55:312010-02-17 17:08:41 00:13:10 516 14.22 516 62.24 34.30 7
74PSRWB12010-02-17 17:25:302010-02-17 17:28:56 00:03:26 516 123.56 516 136.08 27.10 80
75PSMOB12010-02-17 17:30:452010-02-17 17:33:21 00:02:36 516 142.77 516 152.25 -1.20 -
76AV2OBS2010-02-17 17:33:362010-02-17 17:36:04 00:02:28 516 153.10 516 162.10 0.00 -
77PSMOB12010-02-17 18:01:162010-02-17 18:06:48 00:05:32 516 254.00 516 274.17 -1.20 -
78PSRFBS2010-02-17 18:39:492010-02-17 18:45:29 00:05:40 562 34.58 562 55.25 34.30 7
79PSRWB12010-02-17 18:59:222010-02-17 19:03:46 00:04:24 562 105.88 562 121.92 27.10 80
80AV2OBS2010-02-17 19:06:442010-02-17 19:09:14 00:02:30 562 132.74 562 141.86 0.00 -
81PSMOB22010-02-17 19:06:442010-02-17 19:10:00 00:03:16 562 132.74 562 144.65 0.00 -
82PSMOB12010-02-17 19:40:352010-02-17 19:45:29 00:04:54 562 256.18 562 274.05 -1.20 -
83PSRFBS2010-02-17 20:00:282010-02-17 20:18:34 00:18:06 562 328.69 608 34.70 34.30 7
84PSRWB12010-02-17 20:25:272010-02-17 20:46:08 00:20:41 608 59.81 608 135.23 27.10 80
85PSRFBD2010-02-17 20:51:572010-02-17 20:53:49 00:01:52 608 156.45 608 163.25 9.90 36
86PSMOB12010-02-17 20:59:462010-02-17 21:02:42 00:02:56 608 184.89 608 195.59 -1.20 -
87AV2OBS2010-02-17 21:00:322010-02-17 21:02:24 00:01:52 608 187.69 608 194.49 0.00 -
88PSMOB12010-02-17 21:17:202010-02-17 21:24:14 00:06:54 608 248.95 608 274.11 -1.20 -
89AV2OBS2010-02-17 21:18:052010-02-17 21:21:25 00:03:20 608 251.75 608 263.90 0.00 -
90PSRFBS2010-02-17 21:36:342010-02-17 21:51:42 00:15:08 608 319.15 654 14.34 34.30 7
91PSRFBS2010-02-17 21:57:472010-02-17 22:05:09 00:07:22 654 36.53 654 63.39 34.30 7
92PSRFBS2010-02-17 22:10:142010-02-17 22:13:02 00:02:48 654 81.93 654 92.14 34.30 7
93PSRWB12010-02-17 22:21:342010-02-17 22:23:50 00:02:16 654 123.26 654 131.53 27.10 80
94PSMOB12010-02-17 22:36:042010-02-17 22:40:10 00:04:06 654 176.14 654 191.09 -1.20 -
95AV2OBS2010-02-17 22:36:502010-02-17 22:39:24 00:02:34 654 178.93 654 188.29 0.00 -
96PSMOB12010-02-17 22:54:552010-02-17 23:02:55 00:08:00 654 244.88 654 274.05 -1.20 -
97AV2OBS2010-02-17 22:55:432010-02-17 22:59:39 00:03:56 654 247.80 654 262.14 0.00 -
98PSRFBS2010-02-17 23:25:572010-02-17 23:35:37 00:09:40 654 358.05 29 33.31 34.30 7
99PSRFBS2010-02-17 23:45:222010-02-17 23:51:34 00:06:12 29 68.86 29 91.47 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
10 -5.122132010-02-16 22:45:42162.538082010-02-16 23:35:03
56-29.801712010-02-17 00:24:25137.858502010-02-17 01:13:46
102-54.481292010-02-17 02:03:08113.178922010-02-17 02:52:29
148-79.160872010-02-17 03:41:51 88.499332010-02-17 04:31:12
194-103.840462010-02-17 05:20:34 63.819752010-02-17 06:09:56
240-128.520042010-02-17 06:59:17 39.140172010-02-17 07:48:39
286-153.199622010-02-17 08:38:00 14.460592010-02-17 09:27:22
332-177.879212010-02-17 10:16:43-10.219002010-02-17 11:06:05
378157.441212010-02-17 11:55:26-34.898582010-02-17 12:44:48
424132.761632010-02-17 13:34:10-59.578162010-02-17 14:23:31
470108.082052010-02-17 15:12:53-84.257752010-02-17 16:02:14
516 83.402462010-02-17 16:51:36-108.937332010-02-17 17:40:57
562 58.722882010-02-17 18:30:19-133.616912010-02-17 19:19:40
608 34.043302010-02-17 20:09:02-158.296492010-02-17 20:58:23
654 9.363722010-02-17 21:47:45177.023922010-02-17 22:37:07
29-15.315872010-02-17 23:26:28152.344342010-02-18 00:15:50
