>ALOS Data Take Simulation(Jan. 12, 2010)

Observation Area

PRISM

AVNIR-2

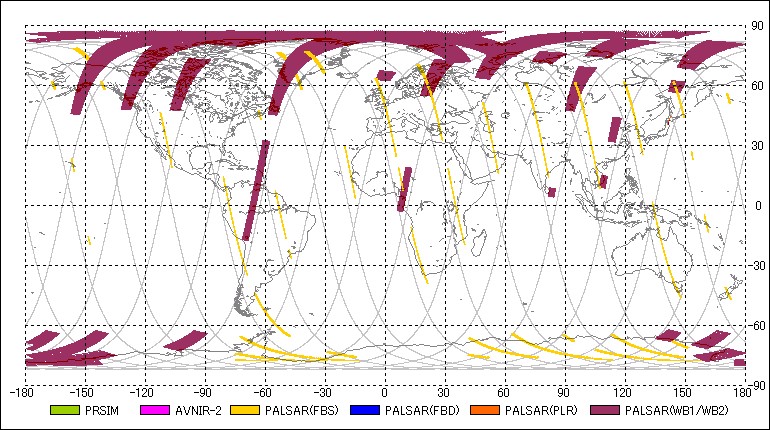

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB1	2010-01-12 00:07:44	2010-01-12 00:10:20	00:02:36	16	252.11	16	261.59	1.20	-
2	AV2	OBS	2010-01-12 00:08:30	2010-01-12 00:10:22	00:01:52	16	254.97	16	261.78	0.00	-
3	PSR	FBS	2010-01-12 00:52:40	2010-01-12 00:58:36	00:05:56	62	55.98	62	77.61	34.30	7
4	PSR	WB1	2010-01-12 00:59:39	2010-01-12 01:08:00	00:08:21	62	81.44	62	111.89	27.10	80
5	PSR	WB1	2010-01-12 01:09:06	2010-01-12 01:11:20	00:02:14	62	115.97	62	124.11	27.10	80
6	PSR	PLR	2010-01-12 01:13:59	2010-01-12 01:15:51	00:01:52	62	133.71	62	140.52	21.50	127
7	AV2	OBS	2010-01-12 01:14:32	2010-01-12 01:17:50	00:03:18	62	135.72	62	147.75	-34.30	-
8	PSM	OB2	2010-01-12 01:26:14	2010-01-12 01:36:44	00:10:30	62	178.39	62	216.68	0.00	-
9	PSR	FBS	2010-01-12 02:08:02	2010-01-12 02:09:54	00:01:52	62	330.82	62	337.63	34.30	7
10	PSR	FBS	2010-01-12 02:10:50	2010-01-12 02:18:06	00:07:16	62	341.03	108	7.54	34.30	7
11	PSR	FBS	2010-01-12 02:27:13	2010-01-12 02:29:07	00:01:54	108	40.78	108	47.71	34.30	7
12	AV2	OBS	2010-01-12 02:47:31	2010-01-12 03:00:31	00:13:00	108	114.81	108	162.22	0.00	-
13	PSR	WB1	2010-01-12 02:52:58	2010-01-12 02:56:56	00:03:58	108	134.69	108	149.15	27.10	80
14	PSM	OB2	2010-01-12 02:53:51	2010-01-12 03:00:19	00:06:28	108	137.97	108	161.55	0.00	-
15	PSR	WB1	2010-01-12 03:00:59	2010-01-12 03:03:17	00:02:18	108	163.92	108	172.31	27.10	80
16	AV2	OBS	2010-01-12 03:03:56	2010-01-12 03:08:06	00:04:10	108	174.68	108	189.87	0.00	-
17	PSM	OB2	2010-01-12 03:04:01	2010-01-12 03:09:01	00:05:00	108	174.98	108	193.22	0.00	-
18	PSR	FBS	2010-01-12 03:31:25	2010-01-12 03:33:21	00:01:56	108	274.96	108	282.01	34.30	7
19	PSR	FBS	2010-01-12 03:35:26	2010-01-12 03:42:32	00:07:06	108	289.61	108	315.50	34.30	7
20	PSR	FBS	2010-01-12 03:44:23	2010-01-12 03:58:43	00:14:20	108	322.19	154	14.47	34.30	7
21	PSR	WB1	2010-01-12 04:20:35	2010-01-12 04:23:45	00:03:10	154	94.21	154	105.76	27.10	80
22	PSR	WB1	2010-01-12 04:24:35	2010-01-12 04:31:23	00:06:48	154	108.79	154	133.59	27.10	80
23	PSM	OB1	2010-01-12 04:31:50	2010-01-12 04:39:16	00:07:26	154	135.23	154	162.34	1.20	-
24	AV2	OBS	2010-01-12 04:35:55	2010-01-12 04:39:03	00:03:08	154	150.12	154	161.55	0.00	-
25	PSR	WB1	2010-01-12 04:41:22	2010-01-12 04:43:14	00:01:52	154	170.00	154	176.81	27.10	80
26	PSR	FBS	2010-01-12 05:08:27	2010-01-12 05:14:49	00:06:22	154	268.76	154	291.98	34.30	7
27	PSR	FBS	2010-01-12 05:38:05	2010-01-12 05:46:21	00:08:16	200	16.84	200	46.98	34.30	7
28	PSR	WB1	2010-01-12 06:01:14	2010-01-12 06:03:20	00:02:06	200	101.26	200	108.92	27.10	80
29	AV2	OBS	2010-01-12 06:11:18	2010-01-12 06:16:20	00:05:02	200	137.97	200	156.32	0.00	-
30	AV2	OBS	2010-01-12 06:28:14	2010-01-12 06:30:06	00:01:52	200	199.72	200	206.53	0.00	-
31	PSR	FBS	2010-01-12 06:46:39	2010-01-12 06:50:25	00:03:46	200	266.88	200	280.62	34.30	7
32	PSR	FBS	2010-01-12 07:27:32	2010-01-12 07:29:24	00:01:52	246	55.98	246	62.78	34.30	7
33	PSR	FBS	2010-01-12 07:30:13	2010-01-12 07:34:05	00:03:52	246	65.76	246	79.86	34.30	7
34	PSR	WB1	2010-01-12 07:35:58	2010-01-12 07:44:16	00:08:18	246	86.73	246	117.00	27.10	80
35	PSM	OB1	2010-01-12 07:55:37	2010-01-12 08:11:31	00:15:54	246	158.39	246	216.37	1.20	-
36	AV2	OBS	2010-01-12 07:56:21	2010-01-12 08:04:37	00:08:16	246	161.13	246	191.27	0.00	-
37	PSR	FBS	2010-01-12 08:25:23	2010-01-12 08:27:19	00:01:56	246	266.94	246	273.99	34.30	7
38	PSR	FBS	2010-01-12 08:44:49	2010-01-12 08:46:41	00:01:52	246	337.81	246	344.62	34.30	7
39	PSR	FBS	2010-01-12 08:55:01	2010-01-12 08:57:27	00:02:26	292	15.01	292	23.89	34.30	7
40	PSR	FBS	2010-01-12 09:06:15	2010-01-12 09:08:07	00:01:52	292	55.98	292	62.78	34.30	7
41	PSR	WB1	2010-01-12 09:19:43	2010-01-12 09:25:25	00:05:42	292	105.09	292	125.87	27.10	80
42	PSM	OB1	2010-01-12 09:34:19	2010-01-12 09:42:55	00:08:36	292	158.33	292	189.69	1.20	-
43	PSR	WB1	2010-01-12 09:34:43	2010-01-12 09:41:23	00:06:40	292	159.79	292	184.10	27.10	80
44	PSR	FBS	2010-01-12 10:43:03	2010-01-12 10:45:05	00:02:02	338	48.99	338	56.40	34.30	7
45	PSR	WB1	2010-01-12 11:00:06	2010-01-12 11:01:58	00:01:52	338	111.16	338	117.97	27.10	80
46	AV2	OBS	2010-01-12 11:10:35	2010-01-12 11:17:41	00:07:06	338	149.33	338	175.23	0.00	-
47	PSM	OB1	2010-01-12 11:13:02	2010-01-12 11:18:10	00:05:08	338	158.33	338	177.05	1.20	-
48	PSR	FBS	2010-01-12 11:54:37	2010-01-12 11:56:59	00:02:22	338	309.97	338	318.60	34.30	7
49	PSR	FBS	2010-01-12 12:03:57	2010-01-12 12:07:05	00:03:08	338	344.01	338	355.44	34.30	7
50	PSR	FBS	2010-01-12 12:13:59	2010-01-12 12:15:51	00:01:52	384	20.60	384	27.41	34.30	7
51	PSR	FBS	2010-01-12 12:19:47	2010-01-12 12:25:27	00:05:40	384	41.76	384	62.42	34.30	7
52	PSM	OB1	2010-01-12 12:57:21	2010-01-12 13:05:21	00:08:00	384	178.69	384	207.86	1.20	-
53	AV2	OBS	2010-01-12 12:58:07	2010-01-12 13:04:37	00:06:30	384	181.49	384	205.19	0.00	-
54	PSR	FBS	2010-01-12 13:33:29	2010-01-12 13:47:37	00:14:08	384	310.52	430	2.07	34.30	7
55	PSR	FBS	2010-01-12 13:53:24	2010-01-12 14:04:14	00:10:50	430	23.16	430	62.66	34.30	7
56	PSR	WB1	2010-01-12 14:10:54	2010-01-12 14:24:14	00:13:20	430	86.97	430	135.60	27.10	80
57	PSR	WB1	2010-01-12 14:27:08	2010-01-12 14:41:35	00:14:27	430	146.17	430	198.87	27.10	80
58	PSM	OB1	2010-01-12 14:32:17	2010-01-12 14:44:29	00:12:12	430	164.89	430	209.38	1.20	-
59	PSR	WB1	2010-01-12 14:53:56	2010-01-12 14:57:22	00:03:26	430	243.91	430	256.43	27.10	80
60	PSR	WB1	2010-01-12 14:59:45	2010-01-12 15:01:37	00:01:52	430	265.12	430	271.93	27.10	80
61	PSR	FBS	2010-01-12 15:04:30	2010-01-12 15:07:20	00:02:50	430	282.44	430	292.77	34.30	7
62	PSR	FBS	2010-01-12 15:27:28	2010-01-12 15:42:52	00:15:24	476	6.20	476	62.36	34.30	7
63	AV2	OBS	2010-01-12 16:09:47	2010-01-12 16:13:41	00:03:54	476	160.52	476	174.74	0.00	-
64	PSM	OB2	2010-01-12 16:09:51	2010-01-12 16:13:43	00:03:52	476	160.70	476	174.80	0.00	-
65	PSR	WB1	2010-01-12 16:36:15	2010-01-12 16:40:05	00:03:50	476	257.03	476	271.01	27.10	80
66	PSR	FBS	2010-01-12 16:41:03	2010-01-12 16:46:11	00:05:08	476	274.54	476	293.26	34.30	7
67	PSR	FBS	2010-01-12 17:07:47	2010-01-12 17:21:31	00:13:44	522	12.03	522	62.12	34.30	7
68	PSR	WB1	2010-01-12 17:24:25	2010-01-12 17:31:43	00:07:18	522	72.69	522	99.31	27.10	80
69	PSR	WB1	2010-01-12 17:33:10	2010-01-12 17:41:02	00:07:52	522	104.60	522	133.29	27.10	80
70	AV2	OBS	2010-01-12 17:42:16	2010-01-12 17:48:24	00:06:08	522	137.73	522	160.09	-21.50	-
71	PSM	OB2	2010-01-12 17:44:34	2010-01-12 17:49:08	00:04:34	522	146.11	522	162.77	0.00	-
72	PSR	WB1	2010-01-12 18:11:22	2010-01-12 18:16:48	00:05:26	522	243.91	522	263.72	27.10	80
73	PSR	FBS	2010-01-12 18:17:41	2010-01-12 18:22:13	00:04:32	522	266.94	522	283.47	34.30	7
74	PSR	FBS	2010-01-12 18:23:05	2010-01-12 18:24:49	00:01:44	522	286.63	522	292.95	34.30	7
75	PSR	FBS	2010-01-12 18:46:55	2010-01-12 18:57:25	00:10:30	568	13.55	568	51.84	34.30	7
76	PSR	WB1	2010-01-12 19:02:29	2010-01-12 19:19:38	00:17:09	568	70.32	568	132.86	27.10	80
77	PSR	WB1	2010-01-12 19:50:06	2010-01-12 19:55:38	00:05:32	568	243.91	568	264.08	27.10	80
78	PSR	FBS	2010-01-12 19:57:34	2010-01-12 20:03:46	00:06:12	568	271.20	568	293.81	34.30	7
79	PSR	FBS	2010-01-12 20:15:56	2010-01-12 20:27:02	00:11:06	568	338.17	614	18.66	34.30	7
80	PSR	FBS	2010-01-12 20:30:18	2010-01-12 20:41:24	00:11:06	614	30.57	614	71.05	34.30	7
81	PSR	WB1	2010-01-12 20:45:42	2010-01-12 20:59:00	00:13:18	614	86.73	614	135.23	27.10	80
82	PSM	OB1	2010-01-12 21:04:12	2010-01-12 21:06:52	00:02:40	614	154.14	614	163.86	1.20	-
83	AV2	OBS	2010-01-12 21:04:54	2010-01-12 21:06:46	00:01:52	614	156.75	614	163.56	0.00	-
84	PSM	OB1	2010-01-12 21:08:38	2010-01-12 21:11:14	00:02:36	614	170.30	614	179.78	1.20	-
85	AV2	OBS	2010-01-12 21:09:24	2010-01-12 21:11:16	00:01:52	614	173.10	614	179.91	0.00	-
86	PSR	WB1	2010-01-12 21:28:48	2010-01-12 21:31:54	00:03:06	614	243.91	614	255.21	27.10	80
87	PSR	FBS	2010-01-12 21:37:09	2010-01-12 21:41:47	00:04:38	614	274.30	614	291.19	34.30	7
88	PSR	FBS	2010-01-12 21:49:10	2010-01-12 21:57:38	00:08:28	614	318.12	614	348.99	34.30	7
89	PSR	FBS	2010-01-12 22:02:02	2010-01-12 22:05:54	00:03:52	660	5.04	660	19.15	34.30	7
90	PSR	FBS	2010-01-12 22:06:49	2010-01-12 22:18:17	00:11:28	660	22.49	660	64.30	34.30	7
91	PSR	WB1	2010-01-12 22:24:26	2010-01-12 22:26:18	00:01:52	660	86.73	660	93.54	27.10	80
92	AV2	OBS	2010-01-12 22:29:30	2010-01-12 22:31:22	00:01:52	660	105.21	660	112.02	0.00	-
93	PSM	OB1	2010-01-12 22:48:31	2010-01-12 22:51:27	00:02:56	660	174.56	660	185.25	1.20	-
94	AV2	OBS	2010-01-12 22:49:03	2010-01-12 22:50:55	00:01:52	660	176.50	660	183.31	0.00	-
95	PSM	OB1	2010-01-12 22:54:03	2010-01-12 22:59:21	00:05:18	660	194.74	660	214.06	1.20	-
96	AV2	OBS	2010-01-12 22:54:42	2010-01-12 22:56:34	00:01:52	660	197.11	660	203.91	0.00	-
97	PSM	OB1	2010-01-12 23:03:55	2010-01-12 23:06:33	00:02:38	660	230.72	660	240.32	1.20	-
98	AV2	OBS	2010-01-12 23:04:41	2010-01-12 23:06:35	00:01:54	660	233.57	660	240.50	0.00	-
99	PSR	WB1	2010-01-12 23:07:31	2010-01-12 23:09:31	00:02:00	660	243.85	660	251.14	27.10	80
100	PSR	FBS	2010-01-12 23:15:51	2010-01-12 23:17:19	00:01:28	660	274.23	660	279.58	34.30	7
101	PSR	FBS	2010-01-12 23:39:38	2010-01-12 23:47:36	00:07:58	35	1.03	35	30.09	34.30	7
102	PSM	OB1	2010-01-12 23:49:46	2010-01-12 23:52:50	00:03:04	35	37.93	35	49.11	0.00	-
103	PSR	FBS	2010-01-12 23:57:02	2010-01-13 00:00:46	00:03:44	35	64.43	35	78.04	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
16	-8.34120	2010-01-11 22:58:34	159.31901	2010-01-11 23:47:56
62	-33.02079	2010-01-12 00:37:17	134.63942	2010-01-12 01:26:39
108	-57.70037	2010-01-12 02:16:00	109.95984	2010-01-12 03:05:22
154	-82.37995	2010-01-12 03:54:44	85.28026	2010-01-12 04:44:05
200	-107.05953	2010-01-12 05:33:27	60.60068	2010-01-12 06:22:48
246	-131.73912	2010-01-12 07:12:10	35.92109	2010-01-12 08:01:31
292	-156.41870	2010-01-12 08:50:53	11.24151	2010-01-12 09:40:14
338	178.90172	2010-01-12 10:29:36	-13.43807	2010-01-12 11:18:57
384	154.22214	2010-01-12 12:08:19	-38.11766	2010-01-12 12:57:41
430	129.54255	2010-01-12 13:47:02	-62.79724	2010-01-12 14:36:24
476	104.86297	2010-01-12 15:25:45	-87.47682	2010-01-12 16:15:07
522	80.18339	2010-01-12 17:04:28	-112.15640	2010-01-12 17:53:50
568	55.50380	2010-01-12 18:43:11	-136.83599	2010-01-12 19:32:33
614	30.82422	2010-01-12 20:21:55	-161.51557	2010-01-12 21:11:16
660	6.14464	2010-01-12 22:00:38	173.80485	2010-01-12 22:49:59
35	-18.53494	2010-01-12 23:39:21	149.12527	2010-01-13 00:28:42
