>ALOS Data Take Simulation(Jan. 11, 2010)

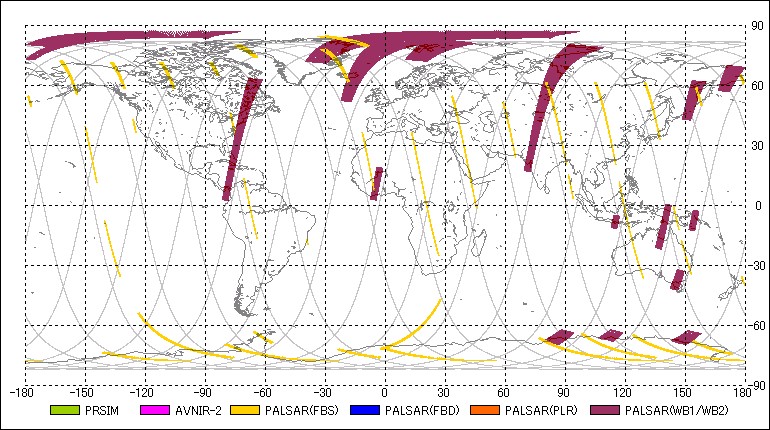

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-01-11 00:28:21	2010-01-11 00:34:25	00:06:04	43	116.03	43	138.15	27.10	80
2	PSR	WB1	2010-01-11 00:45:28	2010-01-11 00:52:12	00:06:44	43	178.45	43	203.00	27.10	80
3	PSM	OB2	2010-01-11 00:45:59	2010-01-11 00:49:23	00:03:24	43	180.33	43	192.73	0.00	-
4	PSR	WB1	2010-01-11 01:03:24	2010-01-11 01:05:20	00:01:56	43	243.85	43	250.90	27.10	80
5	PSR	FBS	2010-01-11 01:09:43	2010-01-11 01:14:43	00:05:00	43	266.88	43	285.11	34.30	7
6	PSR	FBS	2010-01-11 01:29:10	2010-01-11 01:30:40	00:01:30	43	337.81	43	343.28	34.30	7
7	PSR	FBS	2010-01-11 01:55:08	2010-01-11 01:57:34	00:02:26	89	72.51	89	81.38	34.30	7
8	AV2	OBS	2010-01-11 02:08:47	2010-01-11 02:15:27	00:06:40	89	122.29	89	146.60	0.00	-
9	PSM	OB2	2010-01-11 02:08:48	2010-01-11 02:16:10	00:07:22	89	122.35	89	149.21	0.00	-
10	PSM	OB2	2010-01-11 02:18:50	2010-01-11 02:33:56	00:15:06	89	158.94	89	214.00	0.00	-
11	PSR	WB1	2010-01-11 02:25:40	2010-01-11 02:28:04	00:02:24	89	183.86	89	192.61	27.10	80
12	PSR	WB1	2010-01-11 02:42:07	2010-01-11 02:44:33	00:02:26	89	243.85	89	252.72	27.10	80
13	PSR	FBS	2010-01-11 02:50:30	2010-01-11 02:53:06	00:02:36	89	274.42	89	283.90	34.30	7
14	PSR	FBS	2010-01-11 03:08:46	2010-01-11 03:17:46	00:09:00	89	341.03	135	13.86	34.30	7
15	PSR	FBS	2010-01-11 03:21:55	2010-01-11 03:26:51	00:04:56	135	28.99	135	46.98	34.30	7
16	PSR	FBS	2010-01-11 03:31:21	2010-01-11 03:33:47	00:02:26	135	63.33	135	72.21	34.30	7
17	AV2	OBS	2010-01-11 03:51:00	2010-01-11 03:52:52	00:01:52	135	135.05	135	141.86	0.00	-
18	AV2	OBS	2010-01-11 03:59:08	2010-01-11 04:03:24	00:04:16	135	164.71	135	180.27	0.00	-
19	PSR	FBS	2010-01-11 04:32:17	2010-01-11 04:34:47	00:02:30	135	285.60	135	294.72	34.30	7
20	PSR	FBS	2010-01-11 05:08:15	2010-01-11 05:12:29	00:04:14	181	56.77	181	72.21	34.30	7
21	PSR	WB1	2010-01-11 05:19:29	2010-01-11 05:37:39	00:18:10	181	97.67	181	163.92	27.10	80
22	PSM	OB1	2010-01-11 05:29:45	2010-01-11 05:39:11	00:09:26	181	135.17	181	169.57	1.20	-
23	AV2	OBS	2010-01-11 05:54:45	2010-01-11 05:56:37	00:01:52	181	226.34	181	233.15	-34.30	-
24	PSR	FBS	2010-01-11 06:06:07	2010-01-11 06:11:27	00:05:20	181	267.79	181	287.24	34.30	7
25	PSR	FBS	2010-01-11 06:40:54	2010-01-11 06:43:20	00:02:26	227	34.58	227	43.46	34.30	7
26	PSR	FBS	2010-01-11 06:46:57	2010-01-11 06:51:13	00:04:16	227	56.71	227	72.27	34.30	7
27	PSM	OB1	2010-01-11 07:16:21	2010-01-11 07:25:23	00:09:02	227	163.86	227	196.80	1.20	-
28	AV2	OBS	2010-01-11 07:17:04	2010-01-11 07:21:00	00:03:56	227	166.53	227	180.88	0.00	-
29	PSR	FBS	2010-01-11 07:33:35	2010-01-11 07:42:01	00:08:26	227	226.71	227	257.46	34.30	7
30	PSR	FBS	2010-01-11 07:46:36	2010-01-11 07:55:02	00:08:26	227	274.23	227	304.99	34.30	25
31	PSR	FBS	2010-01-11 07:59:36	2010-01-11 08:08:02	00:08:26	227	321.64	227	352.40	34.30	7
32	PSR	FBS	2010-01-11 08:12:37	2010-01-11 08:21:03	00:08:26	273	9.06	273	39.81	34.30	25
33	PSR	FBS	2010-01-11 08:24:46	2010-01-11 08:30:12	00:05:26	273	53.42	273	73.24	34.30	7
34	AV2	OBS	2010-01-11 08:54:18	2010-01-11 08:57:06	00:02:48	273	161.13	273	171.34	0.00	-
35	AV2	OBS	2010-01-11 09:00:18	2010-01-11 09:02:34	00:02:16	273	183.01	273	191.27	0.00	-
36	PSR	FBS	2010-01-11 10:01:50	2010-01-11 10:04:00	00:02:10	319	47.41	319	55.31	34.30	7
37	PSR	FBS	2010-01-11 10:05:01	2010-01-11 10:07:09	00:02:08	319	58.96	319	66.74	34.30	7
38	PSR	WB1	2010-01-11 10:14:53	2010-01-11 10:18:27	00:03:34	319	94.94	319	107.94	27.10	80
39	PSR	WB1	2010-01-11 10:32:40	2010-01-11 10:37:44	00:05:04	319	159.79	319	178.26	27.10	80
40	PSR	FBS	2010-01-11 11:02:16	2010-01-11 11:06:02	00:03:46	319	267.79	319	281.53	34.30	7
41	PSR	FBS	2010-01-11 11:15:50	2010-01-11 11:17:42	00:01:52	319	317.21	319	324.01	34.30	7
42	PSR	FBS	2010-01-11 11:40:43	2010-01-11 11:43:55	00:03:12	365	48.02	365	59.68	34.30	7
43	PSR	WB1	2010-01-11 11:51:22	2010-01-11 12:02:49	00:11:27	365	86.79	365	128.55	27.10	80
44	PSR	FBS	2010-01-11 12:56:08	2010-01-11 13:01:32	00:05:24	365	322.98	365	342.67	34.30	7
45	PSR	FBS	2010-01-11 13:02:20	2010-01-11 13:06:12	00:03:52	365	345.59	365	359.69	34.30	7
46	PSR	FBS	2010-01-11 13:14:43	2010-01-11 13:23:19	00:08:36	411	30.75	411	62.12	34.30	7
47	PSR	WB1	2010-01-11 13:29:47	2010-01-11 13:36:05	00:06:18	411	85.70	411	108.67	27.10	80
48	AV2	OBS	2010-01-11 13:53:52	2010-01-11 14:00:10	00:06:18	411	173.52	411	196.50	0.00	-
49	PSR	FBS	2010-01-11 14:22:28	2010-01-11 14:25:46	00:03:18	411	277.82	411	289.85	34.30	7
50	PSR	FBS	2010-01-11 14:34:11	2010-01-11 14:48:17	00:14:06	411	320.55	457	11.97	34.30	7
51	PSR	FBS	2010-01-11 14:49:59	2010-01-11 15:02:03	00:12:04	457	18.17	457	62.18	34.30	7
52	PSR	WB1	2010-01-11 15:16:33	2010-01-11 15:33:57	00:17:24	457	115.05	457	178.51	27.10	80
53	PSM	OB1	2010-01-11 15:30:03	2010-01-11 15:38:09	00:08:06	457	164.35	457	193.88	1.20	-
54	AV2	OBS	2010-01-11 15:31:41	2010-01-11 15:37:23	00:05:42	457	170.30	457	191.09	0.00	-
55	PSR	FBS	2010-01-11 15:58:29	2010-01-11 16:05:19	00:06:50	457	267.97	457	292.89	34.30	7
56	PSR	FBS	2010-01-11 16:24:00	2010-01-11 16:27:58	00:03:58	503	1.03	503	15.50	34.30	7
57	PSR	FBS	2010-01-11 16:28:43	2010-01-11 16:40:47	00:12:04	503	18.23	503	62.24	34.30	7
58	AV2	OBS	2010-01-11 17:05:52	2010-01-11 17:09:12	00:03:20	503	153.71	503	165.87	0.00	-
59	PSR	FBS	2010-01-11 17:38:58	2010-01-11 17:44:14	00:05:16	503	274.42	503	293.62	34.30	7
60	PSR	FBS	2010-01-11 18:08:24	2010-01-11 18:16:40	00:08:16	549	21.76	549	51.91	34.30	7
61	AV2	OBS	2010-01-11 18:40:46	2010-01-11 18:43:06	00:02:20	549	139.79	549	148.30	0.00	-
62	PSM	OB2	2010-01-11 18:40:50	2010-01-11 18:43:48	00:02:58	549	140.03	549	150.85	0.00	-
63	PSR	FBS	2010-01-11 19:15:38	2010-01-11 19:22:16	00:06:38	549	266.94	549	291.13	34.30	7
64	PSR	CA2	2010-01-11 19:27:55	2010-01-11 19:38:31	00:10:36	549	311.74	549	350.39	34.30	7
65	PSR	FBS	2010-01-11 19:40:05	2010-01-11 19:56:19	00:16:14	549	356.10	595	55.31	34.30	7
66	PSR	CA2	2010-01-11 20:05:12	2010-01-11 20:08:18	00:03:06	595	87.64	595	98.95	34.30	7
67	PSR	CA2	2010-01-11 20:12:53	2010-01-11 20:15:59	00:03:06	595	115.66	595	126.97	34.30	7
68	PSR	CA2	2010-01-11 20:20:49	2010-01-11 20:23:55	00:03:06	595	144.65	595	155.96	34.30	7
69	PSR	CA2	2010-01-11 20:28:46	2010-01-11 20:31:52	00:03:06	595	173.58	595	184.89	34.30	7
70	PSR	CA2	2010-01-11 20:36:43	2010-01-11 20:39:49	00:03:06	595	202.64	595	213.94	34.30	7
71	PSR	CA2	2010-01-11 20:44:40	2010-01-11 20:47:46	00:03:06	595	231.63	595	242.93	34.30	7
72	PSR	CA2	2010-01-11 20:52:37	2010-01-11 20:55:43	00:03:06	595	260.62	595	271.93	34.30	7
73	PSR	FBS	2010-01-11 21:12:19	2010-01-11 21:29:59	00:17:40	595	332.46	641	36.89	34.30	7
74	PSR	FBS	2010-01-11 21:41:24	2010-01-11 21:43:40	00:02:16	641	78.47	641	86.73	34.30	7
75	PSM	OB1	2010-01-11 22:18:03	2010-01-11 22:22:39	00:04:36	641	212.12	641	228.89	1.20	-
76	PSR	WB1	2010-01-11 22:26:45	2010-01-11 22:29:11	00:02:26	641	243.91	641	252.78	27.10	80
77	PSR	FBS	2010-01-11 23:00:05	2010-01-11 23:08:45	00:08:40	16	5.41	16	37.01	34.30	7
78	PSR	FBS	2010-01-11 23:15:02	2010-01-11 23:20:20	00:05:18	16	59.99	16	79.32	34.30	7
79	PSR	WB1	2010-01-11 23:22:21	2010-01-11 23:32:29	00:10:08	16	86.61	16	123.56	27.10	80
80	AV2	OBS	2010-01-11 23:44:12	2010-01-11 23:45:10	00:00:58	16	166.29	16	169.82	0.00	-
81	PSR	WB1	2010-01-11 23:48:21	2010-01-11 23:51:43	00:03:22	16	181.43	16	193.70	27.10	80
82	AV2	OBS	2010-01-11 23:48:55	2010-01-11 23:51:35	00:02:40	16	183.49	16	193.22	0.00	-
83	PSM	OB2	2010-01-11 23:54:15	2010-01-11 23:59:21	00:05:06	16	202.94	16	221.54	0.00	-
84	PSR	WB1	2010-01-11 23:56:37	2010-01-11 23:59:53	00:03:16	16	211.63	16	223.55	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
43	-22.82704	2010-01-10 23:56:31	144.83316	2010-01-11 00:45:52
89	-47.50663	2010-01-11 01:35:14	120.15358	2010-01-11 02:24:35
135	-72.18621	2010-01-11 03:13:57	95.47400	2010-01-11 04:03:19
181	-96.86579	2010-01-11 04:52:40	70.79442	2010-01-11 05:42:02
227	-121.54538	2010-01-11 06:31:23	46.11483	2010-01-11 07:20:45
273	-146.22496	2010-01-11 08:10:06	21.43525	2010-01-11 08:59:28
319	-170.90454	2010-01-11 09:48:49	-3.24433	2010-01-11 10:38:11
365	164.41588	2010-01-11 11:27:33	-27.92392	2010-01-11 12:16:54
411	139.73629	2010-01-11 13:06:16	-52.60350	2010-01-11 13:55:37
457	115.05671	2010-01-11 14:44:59	-77.28308	2010-01-11 15:34:20
503	90.37713	2010-01-11 16:23:42	-101.96266	2010-01-11 17:13:03
549	65.69755	2010-01-11 18:02:25	-126.64225	2010-01-11 18:51:46
595	41.01796	2010-01-11 19:41:08	-151.32183	2010-01-11 20:30:30
641	16.33838	2010-01-11 21:19:51	-176.00141	2010-01-11 22:09:13
16	-8.34120	2010-01-11 22:58:34	159.31901	2010-01-11 23:47:56
