>ALOS Data Take Simulation(Dec. 14, 2009)

Observation Area

PRISM

AVNIR-2

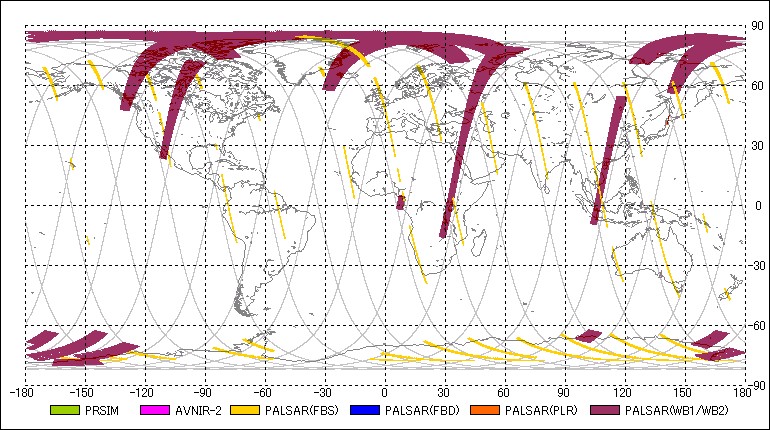

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2009-12-14 00:10:392009-12-14 00:12:31 00:01:52 17 254.97 17 261.78 0.00 -
2PSRWB12009-12-14 01:01:402009-12-14 01:13:37 00:11:57 63 81.02 63 124.60 27.10 80
3PSRPLR2009-12-14 01:16:032009-12-14 01:17:55 00:01:52 63 133.47 63 140.28 21.50 127
4AV2OBS2009-12-14 01:18:002009-12-14 01:20:04 00:02:04 63 140.52 63 148.06 -34.30 -
5PSMOB22009-12-14 01:28:192009-12-14 01:38:57 00:10:38 63 178.20 63 216.98 0.00 -
6PSRWB12009-12-14 01:46:192009-12-14 01:48:25 00:02:06 63 243.85 63 251.50 27.10 80
7PSRFBS2009-12-14 01:52:382009-12-14 01:56:30 00:03:52 63 266.88 63 280.98 34.30 7
8PSRFBS2009-12-14 02:12:582009-12-14 02:20:16 00:07:18 63 341.03 109 7.66 34.30 7
9PSRFBS2009-12-14 02:29:182009-12-14 02:30:48 00:01:30 109 40.60 109 46.07 34.30 7
10PSRWB12009-12-14 02:37:592009-12-14 02:48:12 00:10:13 109 72.27 109 109.52 27.10 80
11AV2OBS2009-12-14 02:49:382009-12-14 03:02:53 00:13:15 109 114.75 109 163.07 0.00 -
12PSRWB12009-12-14 02:52:112009-12-14 03:10:27 00:18:16 109 124.05 109 190.66 27.10 80
13AV2OBS2009-12-14 03:04:532009-12-14 03:10:17 00:05:24 109 170.36 109 190.06 0.00 -
14PSMOB22009-12-14 03:06:182009-12-14 03:07:54 00:01:36 109 175.53 109 181.36 0.00 -
15PSRFBS2009-12-14 03:31:292009-12-14 03:33:41 00:02:12 109 267.37 109 275.39 34.30 7
16PSRFBS2009-12-14 03:51:112009-12-14 04:01:13 00:10:02 109 339.21 155 15.80 34.30 7
17PSRFBS2009-12-14 04:03:552009-12-14 04:05:25 00:01:30 155 25.65 155 31.12 34.30 7
18PSRFBS2009-12-14 04:12:272009-12-14 04:16:41 00:04:14 155 56.77 155 72.21 34.30 7
19AV2OBS2009-12-14 04:32:272009-12-14 04:40:43 00:08:16 155 129.64 155 159.79 0.00 -
20PSRFBS2009-12-14 05:13:432009-12-14 05:16:31 00:02:48 155 280.19 155 290.40 34.30 7
21PSRFBS2009-12-14 05:40:202009-12-14 05:48:30 00:08:10 201 17.20 201 46.98 34.30 7
22PSRFBS2009-12-14 05:49:322009-12-14 05:55:26 00:05:54 201 50.75 201 72.27 34.30 7
23PSMOB12009-12-14 06:12:412009-12-14 06:19:17 00:06:36 201 135.17 201 159.24 1.20 -
24AV2OBS2009-12-14 06:13:252009-12-14 06:18:45 00:05:20 201 137.91 201 157.36 0.00 -
25PSMOB12009-12-14 06:29:352009-12-14 06:32:11 00:02:36 201 196.80 201 206.28 1.20 -
26AV2OBS2009-12-14 06:37:152009-12-14 06:39:07 00:01:52 201 224.76 201 231.57 21.50 -
27AV2OBS2009-12-14 06:43:502009-12-14 06:45:42 00:01:52 201 248.77 201 255.58 21.50 -
28PSRFBS2009-12-14 06:50:252009-12-14 06:53:45 00:03:20 201 272.78 201 284.93 34.30 7
29PSRFBS2009-12-14 07:29:472009-12-14 07:34:23 00:04:36 247 56.34 247 73.12 34.30 7
30PSRWB12009-12-14 07:41:162009-12-14 08:08:22 00:27:06 247 98.22 247 197.05 27.10 80
31PSMOB12009-12-14 07:57:442009-12-14 08:07:32 00:09:48 247 158.33 247 194.07 1.20 -
32AV2OBS2009-12-14 07:58:312009-12-14 08:00:23 00:01:52 247 161.13 247 167.93 0.00 -
33PSRFBS2009-12-14 08:46:582009-12-14 08:48:50 00:01:52 247 337.81 247 344.62 34.30 7
34PSRFBS2009-12-14 08:57:202009-12-14 08:59:32 00:02:12 293 15.62 293 23.64 34.30 7
35PSRFBS2009-12-14 09:06:582009-12-14 09:12:14 00:05:16 293 50.75 293 69.96 34.30 7
36PSMOB12009-12-14 09:36:282009-12-14 09:44:40 00:08:12 293 158.33 293 188.23 1.20 -
37PSRWB12009-12-14 09:40:442009-12-14 09:43:18 00:02:34 293 173.89 293 183.25 27.10 80
38PSRFBS2009-12-14 10:07:472009-12-14 10:10:59 00:03:12 293 272.53 293 284.20 34.30 7
39PSRFBS2009-12-14 10:45:152009-12-14 10:51:35 00:06:20 339 49.17 339 72.27 34.30 7
40AV2OBS2009-12-14 11:06:192009-12-14 11:08:11 00:01:52 339 125.99 339 132.80 0.00 -
41PSMOB22009-12-14 11:06:222009-12-14 11:08:14 00:01:52 339 126.18 339 132.98 0.00 -
42AV2OBS2009-12-14 11:12:322009-12-14 11:19:24 00:06:52 339 148.67 339 173.71 0.00 -
43PSMOB12009-12-14 11:15:112009-12-14 11:20:13 00:05:02 339 158.33 339 176.68 1.20 -
44PSRFBS2009-12-14 11:46:302009-12-14 11:48:22 00:01:52 339 272.53 339 279.34 34.30 7
45PSRFBS2009-12-14 11:56:392009-12-14 11:59:01 00:02:22 339 309.55 339 318.18 34.30 7
46PSRFBS2009-12-14 12:06:052009-12-14 12:09:21 00:03:16 339 343.95 339 355.86 34.30 7
47PSRFBS2009-12-14 12:21:532009-12-14 12:27:35 00:05:42 385 41.57 385 62.36 34.30 7
48PSRWB12009-12-14 12:35:482009-12-14 12:44:12 00:08:24 385 92.38 385 123.02 27.10 80
49PSMOB12009-12-14 12:59:262009-12-14 13:07:32 00:08:06 385 178.51 385 208.05 1.20 -
50AV2OBS2009-12-14 13:00:122009-12-14 13:03:00 00:02:48 385 181.30 385 191.51 0.00 -
51PSRFBS2009-12-14 13:23:532009-12-14 13:26:31 00:02:38 385 267.67 385 277.27 34.30 7
52PSRFBS2009-12-14 13:35:472009-12-14 13:49:51 00:14:04 385 311.07 431 2.37 34.30 7
53PSRFBS2009-12-14 13:55:232009-12-14 14:06:15 00:10:52 431 22.55 431 62.18 34.30 7
54PSMOB12009-12-14 14:34:192009-12-14 14:43:47 00:09:28 431 164.53 431 199.05 1.20 -
55AV2OBS2009-12-14 14:35:052009-12-14 14:43:05 00:08:00 431 167.32 431 196.50 0.00 -
56PSRWB12009-12-14 15:01:512009-12-14 15:03:47 00:01:56 431 264.94 431 271.99 27.10 80
57PSRFBS2009-12-14 15:04:402009-12-14 15:09:34 00:04:54 431 275.21 431 293.08 34.30 7
58PSRFBS2009-12-14 15:16:442009-12-14 15:22:14 00:05:30 431 319.21 431 339.27 34.30 7
59PSRFBS2009-12-14 15:24:142009-12-14 15:45:00 00:20:46 431 346.56 477 62.30 34.30 7
60PSRWB12009-12-14 16:36:482009-12-14 16:40:14 00:03:26 477 251.20 477 263.72 27.10 80
61PSRFBS2009-12-14 16:41:312009-12-14 16:48:23 00:06:52 477 268.40 477 293.44 34.30 7
62PSRFBS2009-12-14 17:09:392009-12-14 17:23:41 00:14:02 523 11.00 523 62.18 34.30 7
63PSRWB12009-12-14 17:26:332009-12-14 17:34:24 00:07:51 523 72.63 523 101.26 27.10 80
64PSRWB12009-12-14 17:35:392009-12-14 17:49:47 00:14:08 523 105.82 523 157.36 27.10 80
65PSMOB22009-12-14 17:48:102009-12-14 17:51:12 00:03:02 523 151.40 523 162.46 0.00 -
66PSRWB12009-12-14 18:13:312009-12-14 18:18:57 00:05:26 523 243.91 523 263.72 27.10 80
67PSRFBS2009-12-14 18:20:052009-12-14 18:27:03 00:06:58 523 267.79 523 293.20 34.30 7
68PSRFBS2009-12-14 18:49:002009-12-14 18:59:34 00:10:34 569 13.31 569 51.84 34.30 7
69PSRWB12009-12-14 19:04:352009-12-14 19:21:52 00:17:17 569 70.14 569 133.17 27.10 80
70PSRWB12009-12-14 19:52:142009-12-14 19:57:40 00:05:26 569 243.91 569 263.72 27.10 80
71PSRFBS2009-12-14 19:58:532009-12-14 20:05:11 00:06:18 569 268.16 569 291.13 34.30 7
72PSRFBS2009-12-14 20:17:582009-12-14 20:25:08 00:07:10 569 337.75 615 3.89 34.30 7
73PSRFBS2009-12-14 20:32:222009-12-14 20:43:26 00:11:04 615 30.27 615 70.63 34.30 7
74PSMOB12009-12-14 21:06:172009-12-14 21:08:53 00:02:36 615 153.95 615 163.43 1.20 -
75AV2OBS2009-12-14 21:07:032009-12-14 21:08:55 00:01:52 615 156.75 615 163.56 0.00 -
76PSMOB12009-12-14 21:10:472009-12-14 21:13:23 00:02:36 615 170.30 615 179.78 1.20 -
77AV2OBS2009-12-14 21:11:332009-12-14 21:13:25 00:01:52 615 173.10 615 179.91 0.00 -
78PSRWB12009-12-14 21:30:572009-12-14 21:33:59 00:03:02 615 243.91 615 254.97 27.10 80
79PSRFBS2009-12-14 21:39:192009-12-14 21:43:53 00:04:34 615 274.42 615 291.07 34.30 7
80PSRFBS2009-12-14 21:51:142009-12-14 22:00:06 00:08:52 615 317.87 615 350.21 34.30 7
81PSRFBS2009-12-14 22:02:452009-12-14 22:04:43 00:01:58 615 359.87 661 7.05 34.30 7
82PSRFBS2009-12-14 22:05:282009-12-14 22:07:56 00:02:28 661 9.72 661 18.72 34.30 7
83PSRFBS2009-12-14 22:08:532009-12-14 22:20:29 00:11:36 661 22.18 661 64.49 34.30 7
84PSRFBS2009-12-14 22:21:232009-12-14 22:26:35 00:05:12 661 67.77 661 86.73 34.30 7
85AV2OBS2009-12-14 22:31:352009-12-14 22:33:27 00:01:52 661 105.03 661 111.83 0.00 -
86AV2OBS2009-12-14 22:43:412009-12-14 22:45:33 00:01:52 661 149.15 661 155.96 21.50 -
87AV2OBS2009-12-14 22:50:522009-12-14 22:52:44 00:01:52 661 175.29 661 182.09 0.00 -
88PSMOB12009-12-14 22:55:592009-12-14 22:58:39 00:02:40 661 194.01 661 203.73 1.20 -
89AV2OBS2009-12-14 22:56:342009-12-14 22:58:26 00:01:52 661 196.13 661 202.94 0.00 -
90AV2OBS2009-12-14 23:06:492009-12-14 23:08:41 00:01:52 661 233.51 661 240.32 0.00 -
91PSRFBS2009-12-14 23:16:142009-12-14 23:22:06 00:05:52 661 267.79 661 289.19 34.30 7
92PSRFBS2009-12-14 23:41:542009-12-14 23:49:38 00:07:44 36 1.40 36 29.60 34.30 7
93PSMOB12009-12-14 23:51:562009-12-14 23:55:00 00:03:04 36 37.99 36 49.17 0.00 -
94PSRFBS2009-12-14 23:58:472009-12-15 00:00:39 00:01:52 36 62.97 36 69.77 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
17 -8.877722009-12-13 23:00:43158.782492009-12-13 23:50:05
63-33.557302009-12-14 00:39:26134.102912009-12-14 01:28:48
109-58.236882009-12-14 02:18:09109.423332009-12-14 03:07:31
155-82.916462009-12-14 03:56:52 84.743752009-12-14 04:46:14
201-107.596052009-12-14 05:35:35 60.064162009-12-14 06:24:57
247-132.275632009-12-14 07:14:18 35.384582009-12-14 08:03:40
293-156.955212009-12-14 08:53:02 10.705002009-12-14 09:42:23
339178.365212009-12-14 10:31:45-13.974592009-12-14 11:21:06
385153.685622009-12-14 12:10:28-38.654172009-12-14 12:59:49
431129.006042009-12-14 13:49:11-63.333752009-12-14 14:38:32
477104.326462009-12-14 15:27:54-88.013332009-12-14 16:17:16
523 79.646872009-12-14 17:06:37-112.692922009-12-14 17:55:59
569 54.967292009-12-14 18:45:20-137.372502009-12-14 19:34:42
615 30.287712009-12-14 20:24:03-162.052082009-12-14 21:13:25
661 5.608132009-12-14 22:02:46173.268342009-12-14 22:52:08
36-19.071462009-12-14 23:41:29148.588752009-12-15 00:30:51
