>ALOS Data Take Simulation(Sep. 25, 2009)

Observation Area

PRISM

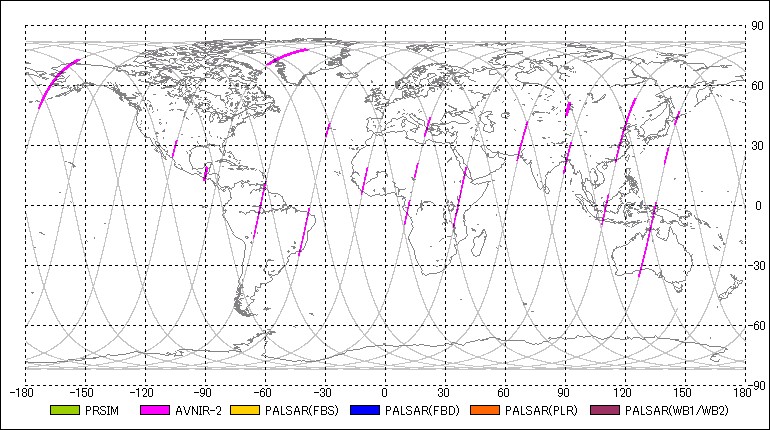

AVNIR-2

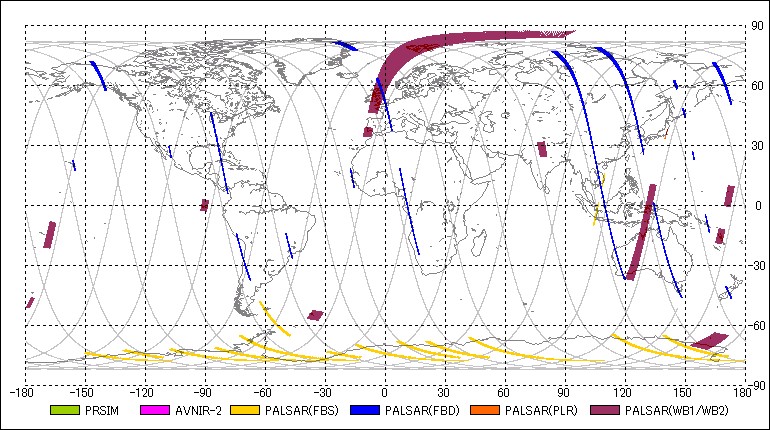

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2009-09-25 00:11:412009-09-25 00:15:43 00:04:02 15 274.42 15 289.13 34.30 7
2AV2OBS2009-09-25 01:11:312009-09-25 01:13:23 00:01:52 61 132.56 61 139.37 0.00 -
3PSRPLR2009-09-25 01:13:422009-09-25 01:15:34 00:01:52 61 140.52 61 147.33 23.10 128
4AV2OBS2009-09-25 01:16:302009-09-25 01:18:52 00:02:22 61 150.73 61 159.36 0.00 -
5PSMOB22009-09-25 01:16:312009-09-25 01:18:23 00:01:52 61 150.79 61 157.60 0.00 -
6PSRWB12009-09-25 01:21:192009-09-25 01:35:09 00:13:50 61 168.30 61 218.74 27.10 80
7AV2OBS2009-09-25 01:24:072009-09-25 01:34:19 00:10:12 61 178.57 61 215.77 0.00 -
8PSMOB22009-09-25 01:24:072009-09-25 01:28:03 00:03:56 61 178.51 61 192.85 0.00 -
9PSRFBS2009-09-25 01:48:342009-09-25 01:53:48 00:05:14 61 267.73 61 286.82 34.30 7
10PSRFBD2009-09-25 02:05:562009-09-25 02:10:04 00:04:08 61 331.00 61 346.08 34.30 43
11PSMOB22009-09-25 02:45:072009-09-25 02:58:09 00:13:02 107 113.90 107 161.43 0.00 -
12AV2OBS2009-09-25 02:48:242009-09-25 02:57:20 00:08:56 107 125.93 107 158.51 0.00 -
13PSRFBS2009-09-25 02:58:362009-09-25 03:01:02 00:02:26 107 163.07 107 171.94 34.30 7
14AV2OBS2009-09-25 03:01:412009-09-25 03:05:57 00:04:16 107 174.31 107 189.87 0.00 -
15PSMOB22009-09-25 03:01:452009-09-25 03:06:43 00:04:58 107 174.56 107 192.67 0.00 -
16PSRFBS2009-09-25 03:02:282009-09-25 03:06:20 00:03:52 107 177.23 107 191.33 34.30 7
17PSRFBS2009-09-25 03:29:082009-09-25 03:31:14 00:02:06 107 274.48 107 282.14 34.30 7
18PSRFBS2009-09-25 03:33:242009-09-25 03:39:16 00:05:52 107 289.98 107 311.37 34.30 7
19PSRFBD2009-09-25 03:41:292009-09-25 03:48:49 00:07:20 107 319.45 107 346.20 34.30 43
20PSRFBD2009-09-25 03:53:372009-09-25 04:05:29 00:11:52 153 3.71 153 46.98 34.30 43
21PSMOB22009-09-25 04:22:272009-09-25 04:26:23 00:03:56 153 108.86 153 123.20 0.00 -
22AV2OBS2009-09-25 04:27:542009-09-25 04:29:46 00:01:52 153 128.79 153 135.60 -34.30 -
23AV2OBS2009-09-25 04:33:132009-09-25 04:37:37 00:04:24 153 148.12 153 164.16 0.00 -
24PSRFBS2009-09-25 05:06:202009-09-25 05:12:48 00:06:28 153 268.95 153 292.53 34.30 7
25PSRFBD2009-09-25 05:37:152009-09-25 05:39:31 00:02:16 199 21.64 199 29.90 34.30 43
26PSMOB22009-09-25 05:58:122009-09-25 06:05:06 00:06:54 199 98.04 199 123.20 0.00 -
27PSMOB12009-09-25 06:08:242009-09-25 06:15:06 00:06:42 199 135.23 199 159.67 -1.20 -
28AV2OBS2009-09-25 06:09:092009-09-25 06:14:31 00:05:22 199 137.97 199 157.54 0.00 -
29PSRFBS2009-09-25 06:44:322009-09-25 06:49:26 00:04:54 199 266.94 199 284.81 34.30 7
30PSRFBD2009-09-25 07:25:202009-09-25 07:30:04 00:04:44 245 55.80 245 73.06 34.30 43
31PSMOB12009-09-25 07:39:312009-09-25 07:43:49 00:04:18 245 107.52 245 123.20 -1.20 -
32PSMOB12009-09-25 07:53:162009-09-25 08:09:52 00:16:36 245 157.66 245 218.20 -1.20 -
33AV2OBS2009-09-25 07:54:132009-09-25 08:02:29 00:08:16 245 161.13 245 191.27 0.00 -
34PSRFBS2009-09-25 08:23:142009-09-25 08:27:54 00:04:40 245 266.94 245 283.96 34.30 7
35PSRFBD2009-09-25 08:52:562009-09-25 08:54:58 00:02:02 291 15.26 291 22.67 34.30 43
36AV2OBS2009-09-25 09:25:552009-09-25 09:28:38 00:02:43 291 135.54 291 145.44 0.00 -
37PSMOB12009-09-25 09:32:132009-09-25 09:35:19 00:03:06 291 158.51 291 169.82 -1.20 -
38AV2OBS2009-09-25 09:32:222009-09-25 09:34:22 00:02:00 291 159.00 291 166.29 0.00 -
39AV2OBS2009-09-25 09:37:282009-09-25 09:40:48 00:03:20 291 177.66 291 189.81 0.00 -
40PSRFBS2009-09-25 10:04:012009-09-25 10:06:27 00:02:26 291 274.48 291 283.35 34.30 7
41PSRFBD2009-09-25 10:40:512009-09-25 10:47:19 00:06:28 337 48.74 337 72.33 34.30 43
42PSRWB12009-09-25 10:51:312009-09-25 11:04:22 00:12:51 337 87.70 337 134.56 27.10 80
43PSRWB12009-09-25 11:05:472009-09-25 11:07:39 00:01:52 337 139.73 337 146.54 27.10 80
44AV2OBS2009-09-25 11:11:392009-09-25 11:15:25 00:03:46 337 161.13 337 174.86 0.00 -
45PSRWB12009-09-25 11:31:192009-09-25 11:33:11 00:01:52 337 232.84 337 239.65 27.10 80
46PSRFBS2009-09-25 11:40:532009-09-25 11:44:35 00:03:42 337 267.73 337 281.22 34.30 7
47PSRFBD2009-09-25 11:52:352009-09-25 11:54:55 00:02:20 337 310.40 337 318.91 34.30 43
48PSRFBD2009-09-25 12:01:482009-09-25 12:04:54 00:03:06 337 344.01 337 355.31 34.30 43
49PSRFBD2009-09-25 12:11:502009-09-25 12:13:42 00:01:52 383 20.60 383 27.41 34.30 43
50PSRFBD2009-09-25 12:17:422009-09-25 12:19:38 00:01:56 383 42.00 383 49.05 34.30 43
51PSRFBD2009-09-25 12:21:392009-09-25 12:23:31 00:01:52 383 56.40 383 63.21 34.30 43
52PSMOB12009-09-25 12:43:282009-09-25 12:46:04 00:02:36 383 135.96 383 145.44 -1.20 -
53AV2OBS2009-09-25 12:44:112009-09-25 12:46:03 00:01:52 383 138.52 383 145.32 0.00 -
54PSMOB12009-09-25 12:55:152009-09-25 13:03:11 00:07:56 383 178.93 383 207.86 -1.20 -
55AV2OBS2009-09-25 12:56:012009-09-25 13:02:29 00:06:28 383 181.73 383 205.31 0.00 -
56PSRFBD2009-09-25 13:31:242009-09-25 13:45:22 00:13:58 383 310.76 429 1.70 34.30 43
57PSRFBD2009-09-25 13:51:212009-09-25 14:06:51 00:15:30 429 23.52 429 80.05 34.30 43
58PSMOB12009-09-25 14:30:152009-09-25 14:42:21 00:12:06 429 165.32 429 209.44 -1.20 -
59AV2OBS2009-09-25 14:31:012009-09-25 14:38:47 00:07:46 429 168.11 429 196.44 0.00 -
60PSRFBS2009-09-25 15:00:272009-09-25 15:05:11 00:04:44 429 275.45 429 292.71 34.30 7
61PSRFBD2009-09-25 15:12:452009-09-25 15:45:03 00:32:18 429 320.37 475 78.16 34.30 43
62PSMOB12009-09-25 15:50:022009-09-25 15:54:00 00:03:58 475 96.27 475 110.74 -1.20 -
63AV2OBS2009-09-25 15:50:452009-09-25 15:53:17 00:02:32 475 98.89 475 108.13 0.00 -
64AV2OBS2009-09-25 16:07:552009-09-25 16:09:47 00:01:52 475 161.49 475 168.30 -41.50 -
65PSRWB12009-09-25 16:11:542009-09-25 16:14:04 00:02:10 475 176.02 475 183.92 27.10 80
66PSRFBS2009-09-25 16:37:032009-09-25 16:44:03 00:07:00 475 267.73 475 293.26 34.30 7
67PSRWB12009-09-25 17:08:302009-09-25 17:11:08 00:02:38 521 22.43 521 32.03 27.10 80
68PSMOB12009-09-25 17:42:022009-09-25 17:45:52 00:03:50 521 144.71 521 158.69 -1.20 -
69AV2OBS2009-09-25 17:42:482009-09-25 17:45:06 00:02:18 521 147.51 521 155.90 0.00 -
70PSRWB12009-09-25 21:11:102009-09-25 21:15:18 00:04:08 613 187.38 613 202.45 27.10 80
71PSRWB12009-09-25 21:21:362009-09-25 21:24:02 00:02:26 613 225.43 613 234.30 27.10 80
72PSRWB12009-09-25 21:27:062009-09-25 21:29:52 00:02:46 613 245.49 613 255.58 27.10 80
73PSRFBS2009-09-25 21:32:592009-09-25 21:39:39 00:06:40 613 266.94 613 291.25 34.30 7
74PSRFBD2009-09-25 21:51:032009-09-25 22:03:39 00:12:36 613 332.83 659 18.78 34.30 43
75PSRFBD2009-09-25 22:08:132009-09-25 22:16:05 00:07:52 659 35.43 659 64.12 34.30 43
76PSRFBD2009-09-25 22:19:262009-09-25 22:21:18 00:01:52 659 76.34 659 83.15 34.30 43
77PSMOB12009-09-25 22:26:402009-09-25 22:34:32 00:07:52 659 102.72 659 131.40 -1.20 -
78AV2OBS2009-09-25 22:27:232009-09-25 22:34:27 00:07:04 659 105.33 659 131.10 0.00 -
79PSRWB12009-09-25 22:44:502009-09-25 22:48:16 00:03:26 659 168.97 659 181.49 27.10 80
80PSRWB12009-09-25 22:50:492009-09-25 22:53:27 00:02:38 659 190.79 659 200.39 27.10 80
81PSRFBS2009-09-25 23:13:442009-09-25 23:17:48 00:04:04 659 274.36 659 289.19 34.30 7
82PSRFBD2009-09-25 23:39:062009-09-25 23:42:18 00:03:12 34 6.81 34 18.48 34.30 43

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
15 -7.804692009-09-24 22:56:25159.855522009-09-24 23:45:47
61-32.484272009-09-25 00:35:09135.175942009-09-25 01:24:30
107-57.163862009-09-25 02:13:52110.496352009-09-25 03:03:13
153-81.843442009-09-25 03:52:35 85.816772009-09-25 04:41:56
199-106.523022009-09-25 05:31:18 61.137192009-09-25 06:20:39
245-131.202602009-09-25 07:10:01 36.457612009-09-25 07:59:23
291-155.882192009-09-25 08:48:44 11.778022009-09-25 09:38:06
337179.438232009-09-25 10:27:27-12.901562009-09-25 11:16:49
383154.758652009-09-25 12:06:10-37.581142009-09-25 12:55:32
429130.079072009-09-25 13:44:53-62.260732009-09-25 14:34:15
475105.399482009-09-25 15:23:36-86.940312009-09-25 16:12:58
521 80.719902009-09-25 17:02:20-111.619892009-09-25 17:51:41
567 56.040322009-09-25 18:41:03-136.299472009-09-25 19:30:24
613 31.360732009-09-25 20:19:46-160.979062009-09-25 21:09:07
659 6.681152009-09-25 21:58:29174.341362009-09-25 22:47:50
34-17.998432009-09-25 23:37:12149.661782009-09-26 00:26:33
