>ALOS Data Take Simulation(Sep. 24, 2009)

Observation Area

PRISM

AVNIR-2

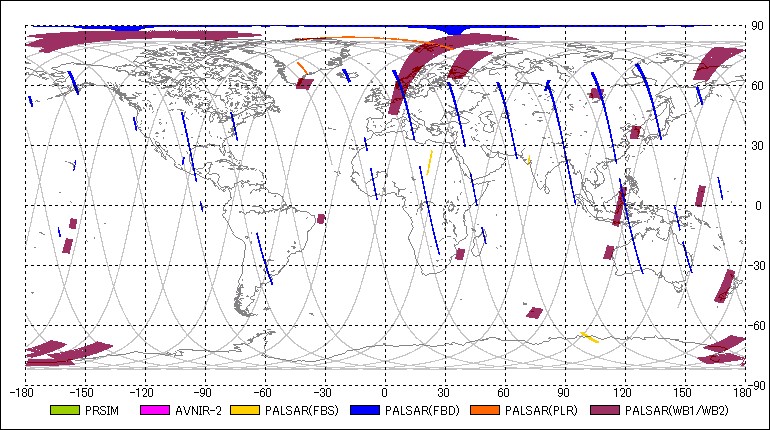

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2009-09-24 00:11:592009-09-24 00:14:19 00:02:20 42 64.18 42 72.69 21.50 127
2PSRWB12009-09-24 00:17:292009-09-24 00:26:42 00:09:13 42 84.24 42 117.85 27.10 80
3AV2OBS2009-09-24 00:46:172009-09-24 00:55:12 00:08:55 42 189.27 42 221.78 0.00 -
4PSMOB22009-09-24 02:03:192009-09-24 02:16:33 00:13:14 88 110.19 88 158.45 0.00 -
5AV2OBS2009-09-24 02:06:362009-09-24 02:19:10 00:12:34 88 122.17 88 167.99 0.00 -
6PSRWB12009-09-24 02:11:142009-09-24 02:13:34 00:02:20 88 139.06 88 147.57 27.10 80
7PSRWB12009-09-24 02:19:382009-09-24 02:25:34 00:05:56 88 169.69 88 191.33 27.10 80
8AV2OBS2009-09-24 02:20:542009-09-24 02:24:32 00:03:38 88 174.31 88 187.56 0.00 -
9PSRWB12009-09-24 02:27:452009-09-24 02:30:11 00:02:26 88 199.29 88 208.17 27.10 80
10PSRFBD2009-09-24 03:00:132009-09-24 03:08:01 00:07:48 88 317.63 88 346.08 34.30 43
11PSRFBD2009-09-24 03:20:062009-09-24 03:24:40 00:04:34 134 30.15 134 46.80 34.30 43
12PSRWB12009-09-24 03:44:492009-09-24 03:46:39 00:01:50 134 120.28 134 126.97 27.10 80
13AV2OBS2009-09-24 03:48:512009-09-24 04:01:21 00:12:30 134 134.99 134 180.57 0.00 -
14PSMOB22009-09-24 03:49:402009-09-24 03:58:50 00:09:10 134 137.97 134 171.40 0.00 -
15PSRWB12009-09-24 04:15:182009-09-24 04:17:14 00:01:56 134 231.51 134 238.56 27.10 80
16PSRFBD2009-09-24 04:49:082009-09-24 04:51:04 00:01:56 134 354.83 180 1.88 34.30 43
17PSRFBD2009-09-24 04:53:142009-09-24 05:03:26 00:10:12 180 9.85 180 47.04 34.30 43
18AV2OBS2009-09-24 05:18:502009-09-24 05:20:42 00:01:52 180 103.20 180 110.01 0.00 -
19PSRFBD2009-09-24 05:22:162009-09-24 05:24:22 00:02:06 180 115.66 180 123.32 34.30 43
20PSMOB12009-09-24 05:24:502009-09-24 05:37:12 00:12:22 180 125.02 180 170.12 -1.20 -
21AV2OBS2009-09-24 05:25:372009-09-24 05:36:29 00:10:52 180 127.94 180 167.57 21.50 -
22PSRFBS2009-09-24 05:32:472009-09-24 05:34:39 00:01:52 180 154.01 180 160.82 34.30 7
23PSRFBD2009-09-24 06:39:012009-09-24 06:41:27 00:02:26 226 35.62 226 44.49 34.30 43
24PSRFBD2009-09-24 06:52:102009-09-24 06:54:26 00:02:16 226 83.57 226 91.84 49.00 51
25PSMOB22009-09-24 06:57:212009-09-24 07:03:11 00:05:50 226 102.41 226 123.69 0.00 -
26AV2OBS2009-09-24 07:04:182009-09-24 07:11:58 00:07:40 226 127.76 226 155.72 0.00 -
27PSMOB12009-09-24 07:14:112009-09-24 07:18:49 00:04:38 226 163.80 226 180.70 -1.20 -
28AV2OBS2009-09-24 07:14:552009-09-24 07:18:47 00:03:52 226 166.53 226 180.64 0.00 -
29PSMOB12009-09-24 07:20:342009-09-24 07:23:14 00:02:40 226 187.14 226 196.86 -1.20 -
30AV2OBS2009-09-24 07:21:192009-09-24 07:23:11 00:01:52 226 189.81 226 196.62 0.00 -
31PSRWB12009-09-24 07:24:202009-09-24 07:26:22 00:02:02 226 200.81 226 208.23 27.10 80
32PSRFBD2009-09-24 08:22:402009-09-24 08:26:34 00:03:54 272 53.55 272 67.77 34.30 43
33PSMOB12009-09-24 08:34:122009-09-24 08:38:30 00:04:18 272 95.61 272 111.29 -1.20 -
34PSRWB12009-09-24 08:35:312009-09-24 08:40:01 00:04:30 272 100.47 272 116.88 27.10 80
35AV2OBS2009-09-24 08:41:142009-09-24 08:43:06 00:01:52 272 121.25 272 128.06 0.00 -
36PSMOB22009-09-24 08:41:172009-09-24 08:43:09 00:01:52 272 121.44 272 128.24 0.00 -
37PSMOB12009-09-24 08:47:202009-09-24 09:06:20 00:19:00 272 143.50 272 212.79 -1.20 -
38PSRFBS2009-09-24 08:49:322009-09-24 08:53:24 00:03:52 272 151.52 272 165.62 34.30 7
39AV2OBS2009-09-24 08:50:022009-09-24 09:04:04 00:14:02 272 153.35 272 204.52 0.00 -
40PSRFBD2009-09-24 09:41:462009-09-24 09:43:38 00:01:52 272 342.06 272 348.87 34.30 43
41PSRFBD2009-09-24 09:59:442009-09-24 10:01:50 00:02:06 318 47.53 318 55.19 34.30 43
42PSRWB12009-09-24 10:11:452009-09-24 10:23:46 00:12:01 318 91.35 318 135.17 27.10 80
43PSMOB12009-09-24 10:24:312009-09-24 10:35:49 00:11:18 318 137.91 318 179.12 -1.20 -
44AV2OBS2009-09-24 10:30:532009-09-24 10:35:03 00:04:10 318 161.13 318 176.32 0.00 -
45PSRFBD2009-09-24 11:25:372009-09-24 11:29:21 00:03:44 364 0.73 364 14.34 34.30 43
46PSRFBD2009-09-24 11:38:412009-09-24 11:41:49 00:03:08 364 48.38 364 59.81 34.30 43
47AV2OBS2009-09-24 11:51:222009-09-24 11:53:30 00:02:08 364 94.63 364 102.41 0.00 -
48AV2OBS2009-09-24 11:56:502009-09-24 11:58:42 00:01:52 364 114.57 364 121.38 0.00 -
49PSRWB12009-09-24 12:15:432009-09-24 12:17:35 00:01:52 364 183.43 364 190.24 27.10 80
50PSRFBD2009-09-24 12:54:122009-09-24 12:59:06 00:04:54 364 323.77 364 341.64 34.30 43
51PSRFBD2009-09-24 13:00:072009-09-24 13:03:59 00:03:52 364 345.35 364 359.45 34.30 43
52PSRFBD2009-09-24 13:12:382009-09-24 13:23:46 00:11:08 410 31.00 410 71.60 34.30 43
53AV2OBS2009-09-24 13:29:222009-09-24 13:31:14 00:01:52 410 92.02 410 98.83 0.00 -
54AV2OBS2009-09-24 13:32:462009-09-24 13:34:38 00:01:52 410 104.42 410 111.23 0.00 -
55PSRWB12009-09-24 13:35:392009-09-24 13:37:41 00:02:02 410 114.93 410 122.35 27.10 80
56PSMOB12009-09-24 13:51:072009-09-24 13:58:43 00:07:36 410 171.34 410 199.05 -1.20 -
57AV2OBS2009-09-24 13:51:532009-09-24 13:58:01 00:06:08 410 174.13 410 196.50 0.00 -
58PSRFBD2009-09-24 14:32:492009-09-24 14:46:37 00:13:48 410 323.40 456 13.74 34.30 43
59PSRFBD2009-09-24 14:47:572009-09-24 15:01:15 00:13:18 456 18.60 456 67.10 34.30 43
60AV2OBS2009-09-24 15:10:342009-09-24 15:14:26 00:03:52 456 101.08 456 115.18 0.00 -
61PSMOB12009-09-24 15:27:512009-09-24 15:36:07 00:08:16 456 164.10 456 194.25 -1.20 -
62AV2OBS2009-09-24 15:28:352009-09-24 15:35:39 00:07:04 456 166.78 456 192.55 0.00 -
63PSRWB12009-09-24 15:55:332009-09-24 15:57:33 00:02:00 456 265.12 456 272.41 27.10 80
64PSRFBD2009-09-24 16:21:042009-09-24 16:38:38 00:17:34 456 358.17 502 62.24 34.30 43
65PSRPLR2009-09-24 16:45:512009-09-24 16:47:43 00:01:52 502 88.49 502 95.30 21.50 127
66AV2OBS2009-09-24 16:48:052009-09-24 16:50:01 00:01:56 502 96.70 502 103.75 0.00 -
67PSRFBD2009-09-24 17:04:012009-09-24 17:05:35 00:01:34 502 154.80 502 160.52 34.30 43
68PSRWB12009-09-24 17:30:252009-09-24 17:33:51 00:03:26 502 251.08 502 263.60 27.10 80
69PSRFBS2009-09-24 17:39:592009-09-24 17:42:17 00:02:18 502 285.97 502 294.35 34.30 7
70PSRFBD2009-09-24 18:06:092009-09-24 18:17:21 00:11:12 548 21.39 548 62.24 34.30 43
71PSRPLR2009-09-24 18:21:302009-09-24 18:24:56 00:03:26 548 77.37 548 89.89 21.50 127
72PSMOB12009-09-24 18:23:462009-09-24 18:27:56 00:04:10 548 85.64 548 100.83 -1.20 -
73PSMOB12009-09-24 18:31:422009-09-24 18:41:48 00:10:06 548 114.57 548 151.40 -1.20 -
74AV2OBS2009-09-24 18:32:282009-09-24 18:41:08 00:08:40 548 117.30 548 148.91 0.00 -
75PSRWB12009-09-24 19:08:522009-09-24 19:13:22 00:04:30 548 250.11 548 266.52 27.10 80
76PSRFBD2009-09-24 19:33:042009-09-24 19:36:00 00:02:56 548 338.36 548 349.05 34.30 43
77PSRFBD2009-09-24 19:38:292009-09-24 19:43:23 00:04:54 548 358.11 594 15.98 34.30 43
78PSRFBD2009-09-24 19:46:332009-09-24 19:56:01 00:09:28 594 27.53 594 62.06 34.30 43
79PSRFBD2009-09-24 20:01:552009-09-24 20:04:15 00:02:20 594 83.57 594 92.08 49.00 51
80PSMOB12009-09-24 20:10:262009-09-24 20:13:52 00:03:26 594 114.57 594 127.09 -1.20 -
81AV2OBS2009-09-24 20:11:112009-09-24 20:13:13 00:02:02 594 117.30 594 124.72 0.00 -
82PSRFBD2009-09-24 20:22:012009-09-24 20:24:01 00:02:00 594 156.81 594 164.10 50.80 53
83PSRWB12009-09-24 20:29:582009-09-24 20:31:50 00:01:52 594 185.80 594 192.61 27.10 80
84PSRWB12009-09-24 20:32:422009-09-24 20:35:14 00:02:32 594 195.83 594 205.07 27.10 80
85PSRWB12009-09-24 20:46:292009-09-24 20:49:37 00:03:08 594 246.09 594 257.52 27.10 80
86PSRFBD2009-09-24 21:10:152009-09-24 21:23:11 00:12:56 594 332.76 640 19.94 34.30 43
87PSRFBD2009-09-24 21:26:132009-09-24 21:36:27 00:10:14 640 31.00 640 68.32 34.30 43
88PSMOB12009-09-24 21:46:022009-09-24 21:52:52 00:06:50 640 103.20 640 128.12 -1.20 -
89AV2OBS2009-09-24 21:46:482009-09-24 21:52:40 00:05:52 640 106.00 640 127.39 0.00 -
90PSRWB12009-09-24 22:08:342009-09-24 22:10:26 00:01:52 640 185.44 640 192.24 27.10 80
91PSRWB12009-09-24 22:15:452009-09-24 22:20:53 00:05:08 640 211.63 640 230.35 27.10 80
92PSMOB22009-09-24 22:18:332009-09-24 22:20:25 00:01:52 640 221.84 640 228.65 0.00 -
93PSRFBD2009-09-24 22:56:402009-09-24 23:01:34 00:04:54 15 0.85 15 18.72 34.30 43
94PSRFBD2009-09-24 23:03:222009-09-24 23:05:48 00:02:26 15 25.22 15 34.10 34.30 43
95PSRFBD2009-09-24 23:12:532009-09-24 23:15:15 00:02:22 15 59.99 15 68.62 34.30 43
96PSRWB12009-09-24 23:20:142009-09-24 23:24:36 00:04:22 15 86.73 15 102.66 27.10 80
97PSMOB12009-09-24 23:25:282009-09-24 23:28:58 00:03:30 15 105.82 15 118.58 -1.20 -
98AV2OBS2009-09-24 23:26:142009-09-24 23:28:12 00:01:58 15 108.61 15 115.78 0.00 -
99PSRWB12009-09-24 23:42:512009-09-24 23:46:17 00:03:26 15 169.21 15 181.73 27.10 80
100AV2OBS2009-09-24 23:48:492009-09-24 23:50:41 00:01:52 15 191.03 15 197.84 0.00 -
101AV2OBS2009-09-24 23:52:322009-09-24 23:56:38 00:04:06 15 204.52 15 219.47 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
42-22.290532009-09-23 23:54:22145.369682009-09-24 00:43:44
88-46.970112009-09-24 01:33:05120.690092009-09-24 02:22:27
134-71.649702009-09-24 03:11:48 96.010512009-09-24 04:01:10
180-96.329282009-09-24 04:50:31 71.330932009-09-24 05:39:53
226-121.008862009-09-24 06:29:14 46.651352009-09-24 07:18:36
272-145.688452009-09-24 08:07:58 21.971762009-09-24 08:57:19
318-170.368032009-09-24 09:46:41 -2.707822009-09-24 10:36:02
364164.952392009-09-24 11:25:24-27.387402009-09-24 12:14:45
410140.272812009-09-24 13:04:07-52.066992009-09-24 13:53:28
456115.593222009-09-24 14:42:50-76.746572009-09-24 15:32:12
502 90.913642009-09-24 16:21:33-101.426152009-09-24 17:10:55
548 66.234062009-09-24 18:00:16-126.105732009-09-24 18:49:38
594 41.554482009-09-24 19:38:59-150.785322009-09-24 20:28:21
640 16.874892009-09-24 21:17:42-175.464902009-09-24 22:07:04
15 -7.804692009-09-24 22:56:25159.855522009-09-24 23:45:47
