>ALOS Data Take Simulation(May. 27, 2009)

Observation Area

PRISM

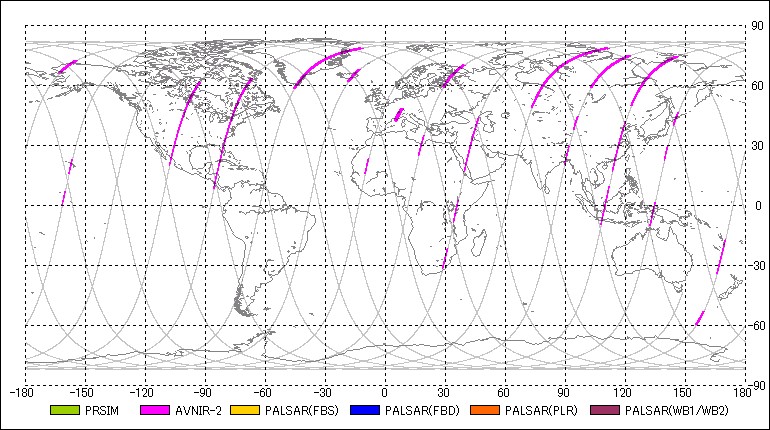

AVNIR-2

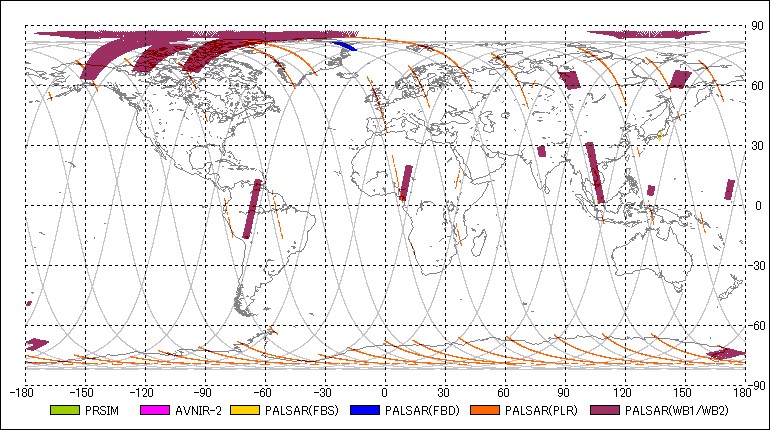

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2009-05-27 00:12:002009-05-27 00:18:20 00:06:20 16 267.67 16 290.77 23.10 128
2PSRPLR2009-05-27 00:52:592009-05-27 01:00:05 00:07:06 62 57.19 62 83.08 23.10 128
3PSRWB12009-05-27 01:01:052009-05-27 01:02:57 00:01:52 62 86.73 62 93.54 27.10 80
4PSRWB12009-05-27 01:07:472009-05-27 01:10:45 00:02:58 62 111.10 62 121.92 27.10 80
5AV2OBS2009-05-27 01:13:462009-05-27 01:15:38 00:01:52 62 132.92 62 139.73 0.00 -
6PSMOB22009-05-27 01:13:502009-05-27 01:15:54 00:02:04 62 133.17 62 140.70 0.00 -
7PSRFBS2009-05-27 01:16:222009-05-27 01:18:02 00:01:40 62 142.41 62 148.48 34.30 7
8AV2OBS2009-05-27 01:18:362009-05-27 01:20:28 00:01:52 62 150.55 62 157.36 0.00 -
9PSMOB22009-05-27 01:18:372009-05-27 01:20:29 00:01:52 62 150.61 62 157.42 0.00 -
10PSRWB12009-05-27 01:23:412009-05-27 01:25:33 00:01:52 62 169.09 62 175.89 27.10 80
11AV2OBS2009-05-27 01:26:122009-05-27 01:29:26 00:03:14 62 178.33 62 190.12 0.00 -
12PSMOB22009-05-27 01:26:142009-05-27 01:34:00 00:07:46 62 178.39 62 206.71 0.00 -
13PSRPLR2009-05-27 01:50:432009-05-27 01:55:55 00:05:12 62 267.73 62 286.69 23.10 128
14PSRPLR2009-05-27 02:10:562009-05-27 02:18:14 00:07:18 62 341.46 108 8.08 23.10 128
15AV2OBS2009-05-27 02:44:232009-05-27 02:51:35 00:07:12 108 103.45 108 129.70 0.00 -
16PSMOB22009-05-27 02:53:232009-05-27 03:00:33 00:07:10 108 136.21 108 162.34 0.00 -
17AV2OBS2009-05-27 02:53:512009-05-27 03:00:48 00:06:57 108 137.91 108 163.25 0.00 -
18AV2OBS2009-05-27 03:02:482009-05-27 03:08:06 00:05:18 108 170.55 108 189.87 0.00 -
19PSRFBS2009-05-27 03:03:382009-05-27 03:05:30 00:01:52 108 173.58 108 180.39 34.30 7
20PSMOB22009-05-27 03:04:012009-05-27 03:09:01 00:05:00 108 174.98 108 193.22 0.00 -
21PSRPLR2009-05-27 03:29:262009-05-27 03:33:22 00:03:56 108 267.67 108 282.01 23.10 128
22PSRPLR2009-05-27 03:36:022009-05-27 03:37:54 00:01:52 108 291.80 108 298.61 23.10 128
23PSRPLR2009-05-27 03:49:462009-05-27 03:55:52 00:06:06 108 341.82 154 4.07 23.10 128
24PSRPLR2009-05-27 04:05:492009-05-27 04:07:41 00:01:52 154 40.42 154 47.23 23.10 128
25PSRPLR2009-05-27 04:10:252009-05-27 04:14:39 00:04:14 154 57.19 154 72.63 23.10 128
26AV2OBS2009-05-27 04:23:002009-05-27 04:27:46 00:04:46 154 103.02 154 120.40 0.00 -
27AV2OBS2009-05-27 04:31:462009-05-27 04:33:38 00:01:52 154 135.05 154 141.86 0.00 -
28AV2OBS2009-05-27 04:35:552009-05-27 04:38:29 00:02:34 154 150.12 154 159.48 0.00 -
29PSRPLR2009-05-27 05:08:102009-05-27 05:14:20 00:06:10 154 267.73 154 290.22 23.10 128
30PSRPLR2009-05-27 05:52:082009-05-27 05:54:02 00:01:54 200 68.07 200 75.00 23.10 128
31AV2OBS2009-05-27 06:00:202009-05-27 06:09:16 00:08:56 200 97.98 200 130.55 0.00 -
32PSRPLR2009-05-27 06:05:082009-05-27 06:06:48 00:01:40 200 115.48 200 121.56 23.10 128
33PSMOB22009-05-27 06:08:312009-05-27 06:17:07 00:08:36 200 127.82 200 159.18 0.00 -
34PSMOB12009-05-27 06:27:262009-05-27 06:30:02 00:02:36 200 196.80 200 206.28 1.20 -
35PSRPLR2009-05-27 06:46:542009-05-27 06:52:06 00:05:12 200 267.79 200 286.76 23.10 128
36PSRPLR2009-05-27 07:27:222009-05-27 07:32:32 00:05:10 246 55.37 246 74.21 21.50 127
37PSRWB12009-05-27 07:35:582009-05-27 07:37:30 00:01:32 246 86.73 246 92.32 27.10 80
38PSMOB12009-05-27 07:43:372009-05-27 07:57:45 00:14:08 246 114.63 246 166.17 1.20 -
39AV2OBS2009-05-27 07:49:272009-05-27 07:56:55 00:07:28 246 135.90 246 163.13 0.00 -
40PSRPLR2009-05-27 07:56:002009-05-27 07:59:26 00:03:26 246 159.79 246 172.31 23.10 128
41AV2OBS2009-05-27 08:00:532009-05-27 08:03:53 00:03:00 246 177.60 246 188.54 0.00 -
42AV2OBS2009-05-27 08:07:252009-05-27 08:10:15 00:02:50 246 201.42 246 211.75 0.00 -
43PSRPLR2009-05-27 08:25:382009-05-27 08:30:10 00:04:32 246 267.85 246 284.38 23.10 128
44PSRPLR2009-05-27 09:04:502009-05-27 09:06:42 00:01:52 292 50.81 292 57.62 21.50 127
45AV2OBS2009-05-27 09:20:342009-05-27 09:23:50 00:03:16 292 108.19 292 120.10 0.00 -
46PSMOB12009-05-27 09:22:192009-05-27 09:25:39 00:03:20 292 114.57 292 126.72 1.20 -
47AV2OBS2009-05-27 09:30:392009-05-27 09:33:27 00:02:48 292 144.96 292 155.17 0.00 -
48PSRWB12009-05-27 09:34:272009-05-27 09:39:51 00:05:24 292 158.82 292 178.51 27.10 80
49PSRPLR2009-05-27 10:04:182009-05-27 10:07:46 00:03:28 292 267.67 292 280.31 23.10 128
50PSRPLR2009-05-27 10:43:262009-05-27 10:49:52 00:06:26 338 50.39 338 73.85 23.10 128
51PSMOB12009-05-27 10:59:012009-05-27 11:10:11 00:11:10 338 107.21 338 147.94 1.20 -
52AV2OBS2009-05-27 11:05:052009-05-27 11:06:57 00:01:52 338 129.34 338 136.14 41.50 -
53AV2OBS2009-05-27 11:12:272009-05-27 11:14:37 00:02:10 338 156.20 338 164.10 0.00 -
54PSRPLR2009-05-27 11:43:022009-05-27 11:46:50 00:03:48 338 267.67 338 281.53 23.10 128
55PSRPLR2009-05-27 12:04:032009-05-27 12:07:25 00:03:22 338 344.37 338 356.65 23.10 128
56PSRPLR2009-05-27 12:19:312009-05-27 12:21:23 00:01:52 384 40.78 384 47.59 23.10 128
57PSRPLR2009-05-27 12:23:312009-05-27 12:28:59 00:05:28 384 55.37 384 75.31 23.10 128
58AV2OBS2009-05-27 12:38:402009-05-27 12:40:32 00:01:52 384 110.56 384 117.36 0.00 -
59PSMOB12009-05-27 12:57:212009-05-27 13:05:21 00:08:00 384 178.69 384 207.86 1.20 -
60PSRPLR2009-05-27 13:21:452009-05-27 13:27:19 00:05:34 384 267.67 384 287.97 23.10 128
61PSRPLR2009-05-27 13:43:382009-05-27 13:47:50 00:04:12 384 347.53 430 2.86 23.10 128
62PSRPLR2009-05-27 13:53:172009-05-27 13:55:09 00:01:52 430 22.73 430 29.54 23.10 128
63PSRPLR2009-05-27 14:00:182009-05-27 14:09:06 00:08:48 430 48.32 430 80.41 23.10 128
64AV2OBS2009-05-27 14:13:562009-05-27 14:20:10 00:06:14 430 97.98 430 120.71 0.00 -
65PSMOB12009-05-27 14:32:212009-05-27 14:51:49 00:19:28 430 165.14 430 236.13 1.20 -
66PSRWB12009-05-27 14:32:312009-05-27 14:41:15 00:08:44 430 165.81 430 197.65 27.10 80
67PSRPLR2009-05-27 15:00:292009-05-27 15:07:49 00:07:20 430 267.73 430 294.47 23.10 128
68PSRPLR2009-05-27 15:22:452009-05-27 15:24:37 00:01:52 430 348.99 430 355.80 21.50 127
69PSRWB12009-05-27 15:25:342009-05-27 15:34:29 00:08:55 430 359.26 476 31.79 27.10 80
70PSRWB12009-05-27 15:41:212009-05-27 15:44:19 00:02:58 476 56.77 476 67.59 27.10 80
71PSMOB12009-05-27 15:50:072009-05-27 15:59:03 00:08:56 476 88.80 476 121.38 1.20 -
72AV2OBS2009-05-27 15:57:272009-05-27 16:12:53 00:15:26 476 115.54 476 171.82 0.00 -
73PSRPLR2009-05-27 16:39:112009-05-27 16:46:29 00:07:18 476 267.73 476 294.35 23.10 128
74PSRWB12009-05-27 17:10:382009-05-27 17:12:38 00:02:00 522 22.43 522 29.72 27.10 80
75PSRPLR2009-05-27 17:17:222009-05-27 17:25:44 00:08:22 522 46.98 522 77.49 23.10 128
76PSMOB12009-05-27 17:28:142009-05-27 17:33:32 00:05:18 522 86.55 522 105.88 1.20 -
77PSRWB12009-05-27 17:28:402009-05-27 17:35:34 00:06:54 522 88.19 522 113.35 27.10 80
78AV2OBS2009-05-27 17:36:412009-05-27 17:48:25 00:11:44 522 117.36 522 160.15 0.00 -
79PSMOB12009-05-27 17:43:582009-05-27 17:48:50 00:04:52 522 143.92 522 161.67 1.20 -
80PSRPLR2009-05-27 18:17:542009-05-27 18:25:02 00:07:08 522 267.73 522 293.74 23.10 128
81PSRPLR2009-05-27 18:58:522009-05-27 19:07:30 00:08:38 568 57.13 568 88.62 23.10 128
82PSMOB12009-05-27 19:06:562009-05-27 19:21:16 00:14:20 568 86.49 568 138.76 1.20 -
83PSRWB12009-05-27 19:09:452009-05-27 19:14:17 00:04:32 568 96.76 568 113.29 27.10 80
84PSRWB12009-05-27 19:51:252009-05-27 19:55:07 00:03:42 568 248.71 568 262.20 27.10 80
85PSRPLR2009-05-27 19:56:252009-05-27 20:03:33 00:07:08 568 266.94 568 292.95 23.10 128
86PSRPLR2009-05-27 20:15:522009-05-27 20:19:36 00:03:44 568 337.93 568 351.55 23.10 128
87PSRPLR2009-05-27 20:34:512009-05-27 20:41:23 00:06:32 614 47.16 614 70.99 23.10 128
88PSMOB12009-05-27 20:45:402009-05-27 20:55:46 00:10:06 614 86.55 614 123.38 1.20 -
89PSRWB12009-05-27 20:47:112009-05-27 20:54:07 00:06:56 614 92.14 614 117.42 27.10 80
90PSMOB12009-05-27 21:04:152009-05-27 21:06:51 00:02:36 614 154.32 614 163.80 1.20 -
91AV2OBS2009-05-27 21:05:012009-05-27 21:06:53 00:01:52 614 157.11 614 163.92 0.00 -
92AV2OBS2009-05-27 21:09:242009-05-27 21:11:16 00:01:52 614 173.10 614 179.91 0.00 -
93PSRWB12009-05-27 21:24:182009-05-27 21:26:10 00:01:52 614 227.43 614 234.24 27.10 80
94PSRPLR2009-05-27 21:35:212009-05-27 21:42:03 00:06:42 614 267.73 614 292.16 23.10 128
95PSRPLR2009-05-27 21:53:172009-05-27 21:55:31 00:02:14 614 333.13 614 341.27 23.10 128
96PSRPLR2009-05-27 22:00:332009-05-27 22:07:49 00:07:16 614 359.63 660 26.13 23.10 128
97PSRPLR2009-05-27 22:10:112009-05-27 22:18:33 00:08:22 660 34.83 660 65.34 23.10 128
98PSRFBD2009-05-27 22:21:322009-05-27 22:23:24 00:01:52 660 76.16 660 82.96 34.30 43
99PSMOB12009-05-27 22:24:232009-05-27 22:26:59 00:02:36 660 86.55 660 96.03 1.20 -
100PSRWB12009-05-27 22:24:262009-05-27 22:26:18 00:01:52 660 86.73 660 93.54 27.10 80
101PSMOB12009-05-27 22:28:432009-05-27 22:36:39 00:07:56 660 102.35 660 131.28 1.20 -
102AV2OBS2009-05-27 22:29:372009-05-27 22:31:29 00:01:52 660 105.63 660 112.44 0.00 -
103PSRWB12009-05-27 22:46:102009-05-27 22:49:28 00:03:18 660 165.99 660 178.02 27.10 80
104PSMOB12009-05-27 22:48:312009-05-27 22:51:27 00:02:56 660 174.56 660 185.25 1.20 -
105AV2OBS2009-05-27 22:54:432009-05-27 22:59:23 00:04:40 660 197.17 660 214.19 0.00 -
106AV2OBS2009-05-27 23:04:422009-05-27 23:06:34 00:01:52 660 233.57 660 240.38 0.00 -
107PSRPLR2009-05-27 23:14:042009-05-27 23:20:24 00:06:20 660 267.73 660 290.83 23.10 128
108PSRPLR2009-05-27 23:56:482009-05-28 00:02:50 00:06:02 35 63.57 35 85.58 23.10 128

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
16 -8.341202009-05-26 22:58:34159.319012009-05-26 23:47:56
62-33.020792009-05-27 00:37:17134.639422009-05-27 01:26:39
108-57.700372009-05-27 02:16:00109.959842009-05-27 03:05:22
154-82.379952009-05-27 03:54:44 85.280262009-05-27 04:44:05
200-107.059532009-05-27 05:33:27 60.600682009-05-27 06:22:48
246-131.739122009-05-27 07:12:10 35.921092009-05-27 08:01:31
292-156.418702009-05-27 08:50:53 11.241512009-05-27 09:40:14
338178.901722009-05-27 10:29:36-13.438072009-05-27 11:18:57
384154.222142009-05-27 12:08:19-38.117662009-05-27 12:57:41
430129.542552009-05-27 13:47:02-62.797242009-05-27 14:36:24
476104.862972009-05-27 15:25:45-87.476822009-05-27 16:15:07
522 80.183392009-05-27 17:04:28-112.156402009-05-27 17:53:50
568 55.503802009-05-27 18:43:11-136.835992009-05-27 19:32:33
614 30.824222009-05-27 20:21:55-161.515572009-05-27 21:11:16
660 6.144642009-05-27 22:00:38173.804852009-05-27 22:49:59
35-18.534942009-05-27 23:39:21149.125272009-05-28 00:28:42
