>ALOS Data Take Simulation(May. 26, 2009)

Observation Area

PRISM

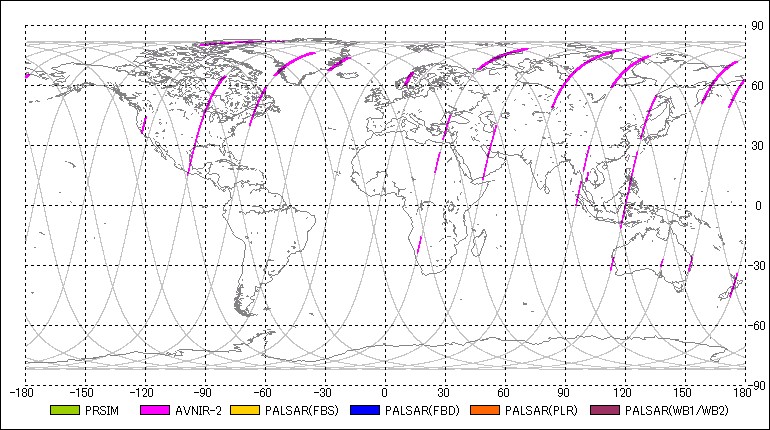

AVNIR-2

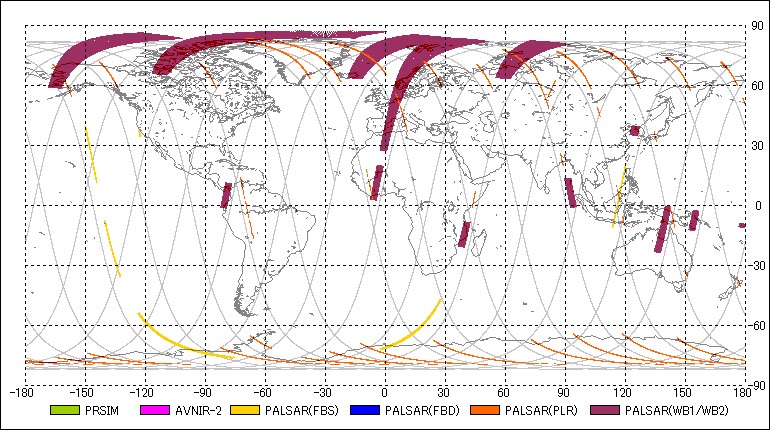

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2009-05-26 00:13:312009-05-26 00:19:47 00:06:16 43 61.93 43 84.79 23.10 128
2AV2OBS2009-05-26 00:25:432009-05-26 00:31:47 00:06:04 43 106.42 43 128.55 0.00 -
3PSMOB12009-05-26 00:42:162009-05-26 00:52:50 00:10:34 43 166.78 43 205.31 1.20 -
4PSRWB12009-05-26 00:45:452009-05-26 00:52:40 00:06:55 43 179.48 43 204.70 27.10 80
5AV2OBS2009-05-26 00:53:172009-05-26 00:54:17 00:01:00 43 206.95 43 210.60 0.00 -
6PSRPLR2009-05-26 01:09:572009-05-26 01:15:43 00:05:46 43 267.73 43 288.76 23.10 128
7PSRPLR2009-05-26 01:33:272009-05-26 01:35:19 00:01:52 43 353.43 89 0.24 23.10 128
8AV2OBS2009-05-26 02:09:242009-05-26 02:15:28 00:06:04 89 124.54 89 146.66 0.00 -
9PSRWB12009-05-26 02:13:232009-05-26 02:15:15 00:01:52 89 139.06 89 145.87 27.10 80
10AV2OBS2009-05-26 02:17:142009-05-26 02:27:46 00:10:32 89 153.10 89 191.51 0.00 -
11PSMOB22009-05-26 02:17:152009-05-26 02:28:43 00:11:28 89 153.16 89 194.98 0.00 -
12PSRFBS2009-05-26 02:18:312009-05-26 02:28:01 00:09:30 89 157.78 89 192.43 34.30 7
13AV2OBS2009-05-26 02:31:452009-05-26 02:33:37 00:01:52 89 206.04 89 212.85 0.00 -
14PSRPLR2009-05-26 02:48:392009-05-26 02:53:07 00:04:28 89 267.67 89 283.96 23.10 128
15PSRPLR2009-05-26 03:08:532009-05-26 03:17:53 00:09:00 89 341.46 135 14.28 23.10 128
16PSRPLR2009-05-26 03:29:392009-05-26 03:33:53 00:04:14 135 57.19 135 72.63 23.10 128
17AV2OBS2009-05-26 03:42:172009-05-26 03:46:59 00:04:42 135 103.20 135 120.34 0.00 -
18AV2OBS2009-05-26 03:55:082009-05-26 04:03:08 00:08:00 135 150.12 135 179.30 0.00 -
19PSRPLR2009-05-26 04:27:112009-05-26 04:30:45 00:03:34 135 266.94 135 279.95 23.10 128
20PSRPLR2009-05-26 04:31:442009-05-26 04:34:26 00:02:42 135 283.59 135 293.44 23.10 128
21AV2OBS2009-05-26 05:19:542009-05-26 05:28:30 00:08:36 181 99.19 181 130.55 0.00 -
22PSRPLR2009-05-26 05:24:212009-05-26 05:27:17 00:02:56 181 115.48 181 126.18 23.10 128
23PSMOB22009-05-26 05:27:432009-05-26 05:39:07 00:11:24 181 127.76 181 169.33 0.00 -
24PSRPLR2009-05-26 06:06:072009-05-26 06:11:15 00:05:08 181 267.79 181 286.51 23.10 128
25PSRFBS2009-05-26 06:40:112009-05-26 06:41:45 00:01:34 227 32.03 227 37.74 41.50 10
26PSRPLR2009-05-26 06:47:072009-05-26 06:51:29 00:04:22 227 57.31 227 73.24 23.10 128
27PSRWB12009-05-26 06:57:352009-05-26 07:03:29 00:05:54 227 95.48 227 117.00 27.10 80
28PSMOB12009-05-26 07:05:212009-05-26 07:17:59 00:12:38 227 123.75 227 169.82 1.20 -
29AV2OBS2009-05-26 07:09:472009-05-26 07:17:13 00:07:26 227 139.91 227 167.02 0.00 -
30PSRPLR2009-05-26 07:18:272009-05-26 07:21:19 00:02:52 227 171.52 227 181.97 23.10 128
31PSRWB12009-05-26 07:22:452009-05-26 07:26:49 00:04:04 227 187.20 227 202.03 27.10 80
32PSRFBS2009-05-26 07:33:352009-05-26 07:42:01 00:08:26 227 226.71 227 257.46 34.30 7
33PSRFBS2009-05-26 07:46:362009-05-26 07:55:02 00:08:26 227 274.23 227 304.99 34.30 25
34PSRFBS2009-05-26 07:59:362009-05-26 08:08:02 00:08:26 227 321.64 227 352.40 34.30 7
35PSRFBS2009-05-26 08:12:372009-05-26 08:21:03 00:08:26 273 9.06 273 39.81 34.30 25
36PSRPLR2009-05-26 08:24:392009-05-26 08:29:49 00:05:10 273 53.00 273 71.84 23.10 128
37AV2OBS2009-05-26 08:37:062009-05-26 08:40:26 00:03:20 273 98.34 273 110.50 0.00 -
38AV2OBS2009-05-26 08:47:052009-05-26 08:50:25 00:03:20 273 134.75 273 146.90 0.00 -
39AV2OBS2009-05-26 08:52:082009-05-26 08:54:56 00:02:48 273 153.22 273 163.43 0.00 -
40AV2OBS2009-05-26 09:03:492009-05-26 09:06:11 00:02:22 273 195.83 273 204.46 0.00 -
41PSRPLR2009-05-26 10:01:442009-05-26 10:03:46 00:02:02 319 46.98 319 54.40 23.10 128
42PSRPLR2009-05-26 10:04:542009-05-26 10:08:52 00:03:58 319 58.59 319 73.06 23.10 128
43PSRWB12009-05-26 10:14:302009-05-26 10:30:57 00:16:27 319 93.60 319 153.59 27.10 80
44AV2OBS2009-05-26 10:19:532009-05-26 10:21:45 00:01:52 319 113.17 319 119.98 -21.50 -
45PSMOB12009-05-26 10:20:492009-05-26 10:28:15 00:07:26 319 116.57 319 143.68 1.20 -
46PSRWB12009-05-26 10:32:242009-05-26 10:37:46 00:05:22 319 158.82 319 178.39 27.10 80
47PSRPLR2009-05-26 11:02:152009-05-26 11:06:23 00:04:08 319 267.67 319 282.74 23.10 128
48PSRPLR2009-05-26 11:15:502009-05-26 11:17:42 00:01:52 319 317.21 319 324.01 21.50 127
49PSRPLR2009-05-26 11:42:522009-05-26 11:48:16 00:05:24 365 55.80 365 75.49 23.10 128
50PSRWB12009-05-26 11:52:472009-05-26 11:59:39 00:06:52 365 91.96 365 117.00 27.10 80
51PSMOB12009-05-26 11:58:132009-05-26 12:00:57 00:02:44 365 111.77 365 121.74 1.20 -
52PSRPLR2009-05-26 12:40:452009-05-26 12:44:17 00:03:32 365 266.88 365 279.77 23.10 128
53PSRPLR2009-05-26 12:55:512009-05-26 12:57:43 00:01:52 365 321.95 365 328.75 21.50 127
54PSRPLR2009-05-26 13:02:332009-05-26 13:06:25 00:03:52 365 346.38 411 0.49 23.10 128
55PSRPLR2009-05-26 13:14:302009-05-26 13:16:40 00:02:10 411 29.96 411 37.87 23.10 128
56PSRPLR2009-05-26 13:21:572009-05-26 13:28:15 00:06:18 411 57.13 411 80.11 23.10 128
57PSMOB12009-05-26 13:34:122009-05-26 13:37:28 00:03:16 411 101.80 411 113.72 1.20 -
58AV2OBS2009-05-26 13:34:482009-05-26 13:36:50 00:02:02 411 104.05 411 111.47 0.00 -
59PSMOB12009-05-26 13:58:242009-05-26 14:12:16 00:13:52 411 190.06 411 240.62 1.20 -
60PSRPLR2009-05-26 14:19:412009-05-26 14:26:21 00:06:40 411 267.73 411 292.04 23.10 128
61PSRPLR2009-05-26 14:41:422009-05-26 14:43:34 00:01:52 411 347.96 411 354.77 21.50 127
62PSRPLR2009-05-26 14:44:592009-05-26 14:47:49 00:02:50 411 359.93 457 10.27 23.10 128
63PSRPLR2009-05-26 14:56:402009-05-26 14:58:36 00:01:56 457 42.55 457 49.60 21.50 127
64PSRPLR2009-05-26 15:00:402009-05-26 15:06:34 00:05:54 457 57.13 457 78.65 23.10 128
65AV2OBS2009-05-26 15:12:422009-05-26 15:16:18 00:03:36 457 101.01 457 114.14 0.00 -
66AV2OBS2009-05-26 15:17:572009-05-26 15:23:17 00:05:20 457 120.16 457 139.61 0.00 -
67PSMOB12009-05-26 15:30:032009-05-26 15:34:07 00:04:04 457 164.35 457 179.18 1.20 -
68PSRWB12009-05-26 15:30:582009-05-26 15:35:00 00:04:02 457 167.63 457 182.34 27.10 80
69PSRPLR2009-05-26 15:58:252009-05-26 16:05:43 00:07:18 457 267.73 457 294.35 23.10 128
70PSRWB12009-05-26 16:22:522009-05-26 16:27:30 00:04:38 457 356.89 503 13.80 27.10 80
71PSRPLR2009-05-26 16:28:402009-05-26 16:31:02 00:02:22 503 18.05 503 26.68 23.10 128
72PSRPLR2009-05-26 16:36:362009-05-26 16:45:36 00:09:00 503 46.98 503 79.80 23.10 128
73PSMOB12009-05-26 16:47:342009-05-26 16:56:38 00:09:04 503 86.97 503 120.04 1.20 -
74AV2OBS2009-05-26 16:55:012009-05-26 17:08:57 00:13:56 503 114.14 503 164.95 0.00 -
75PSRPLR2009-05-26 17:37:082009-05-26 17:44:26 00:07:18 503 267.73 503 294.35 23.10 128
76PSRPLR2009-05-26 18:18:072009-05-26 18:22:05 00:03:58 549 57.19 549 71.66 23.10 128
77PSRWB12009-05-26 18:26:122009-05-26 18:33:56 00:07:44 549 86.67 549 114.87 27.10 80
78PSMOB12009-05-26 18:30:542009-05-26 18:36:12 00:05:18 549 103.81 549 123.14 1.20 -
79AV2OBS2009-05-26 18:39:392009-05-26 18:41:59 00:02:20 549 135.72 549 144.23 -23.10 -
80PSRPLR2009-05-26 19:15:502009-05-26 19:22:16 00:06:26 549 267.67 549 291.13 23.10 128
81PSRCA22009-05-26 19:27:552009-05-26 19:38:31 00:10:36 549 311.74 549 350.39 34.30 7
82PSRPLR2009-05-26 19:56:592009-05-26 20:01:19 00:04:20 595 57.74 595 73.54 23.10 128
83PSRCA22009-05-26 20:05:122009-05-26 20:08:18 00:03:06 595 87.64 595 98.95 34.30 7
84AV2OBS2009-05-26 20:05:402009-05-26 20:07:32 00:01:52 595 89.35 595 96.15 0.00 -
85PSRCA22009-05-26 20:12:532009-05-26 20:15:59 00:03:06 595 115.66 595 126.97 34.30 7
86PSRCA22009-05-26 20:20:492009-05-26 20:23:55 00:03:06 595 144.65 595 155.96 34.30 7
87PSRCA22009-05-26 20:28:462009-05-26 20:31:52 00:03:06 595 173.58 595 184.89 34.30 7
88PSRCA22009-05-26 20:36:432009-05-26 20:39:49 00:03:06 595 202.64 595 213.94 34.30 7
89PSRCA22009-05-26 20:44:402009-05-26 20:47:46 00:03:06 595 231.63 595 242.93 34.30 7
90PSRCA22009-05-26 20:52:372009-05-26 20:55:43 00:03:06 595 260.62 595 271.93 34.30 7
91PSRPLR2009-05-26 21:29:322009-05-26 21:35:24 00:05:52 641 35.19 641 56.59 23.10 128
92PSRPLR2009-05-26 21:37:312009-05-26 21:42:57 00:05:26 641 64.36 641 84.18 23.10 128
93PSMOB12009-05-26 21:43:362009-05-26 21:55:02 00:11:26 641 86.49 641 128.18 1.20 -
94PSRWB12009-05-26 21:44:462009-05-26 21:53:19 00:08:33 641 90.74 641 121.92 27.10 80
95PSRWB12009-05-26 22:10:312009-05-26 22:12:35 00:02:04 641 184.71 641 192.24 27.10 80
96AV2OBS2009-05-26 22:18:352009-05-26 22:21:55 00:03:20 641 214.12 641 226.28 0.00 -
97PSRPLR2009-05-26 22:33:172009-05-26 22:39:37 00:06:20 641 267.73 641 290.83 23.10 128
98PSRPLR2009-05-26 22:58:492009-05-26 23:03:47 00:04:58 16 0.85 16 18.96 23.10 128
99PSRPLR2009-05-26 23:15:152009-05-26 23:22:27 00:07:12 16 60.72 16 86.97 23.10 128
100PSMOB12009-05-26 23:27:362009-05-26 23:31:06 00:03:30 16 105.82 16 118.58 1.20 -
101AV2OBS2009-05-26 23:29:442009-05-26 23:34:28 00:04:44 16 113.60 16 130.86 0.00 -
102PSRWB12009-05-26 23:48:212009-05-26 23:51:43 00:03:22 16 181.43 16 193.70 27.10 80
103PSMOB12009-05-26 23:54:182009-05-26 23:56:54 00:02:36 16 203.12 16 212.60 1.20 -
104AV2OBS2009-05-26 23:55:032009-05-26 23:56:55 00:01:52 16 205.92 16 212.73 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
43-22.827042009-05-25 23:56:31144.833162009-05-26 00:45:52
89-47.506632009-05-26 01:35:14120.153582009-05-26 02:24:35
135-72.186212009-05-26 03:13:57 95.474002009-05-26 04:03:19
181-96.865792009-05-26 04:52:40 70.794422009-05-26 05:42:02
227-121.545382009-05-26 06:31:23 46.114832009-05-26 07:20:45
273-146.224962009-05-26 08:10:06 21.435252009-05-26 08:59:28
319-170.904542009-05-26 09:48:49 -3.244332009-05-26 10:38:11
365164.415882009-05-26 11:27:33-27.923922009-05-26 12:16:54
411139.736292009-05-26 13:06:16-52.603502009-05-26 13:55:37
457115.056712009-05-26 14:44:59-77.283082009-05-26 15:34:20
503 90.377132009-05-26 16:23:42-101.962662009-05-26 17:13:03
549 65.697552009-05-26 18:02:25-126.642252009-05-26 18:51:46
595 41.017962009-05-26 19:41:08-151.321832009-05-26 20:30:30
641 16.338382009-05-26 21:19:51-176.001412009-05-26 22:09:13
16 -8.341202009-05-26 22:58:34159.319012009-05-26 23:47:56
