>ALOS Data Take Simulation(Sep. 08, 2008)

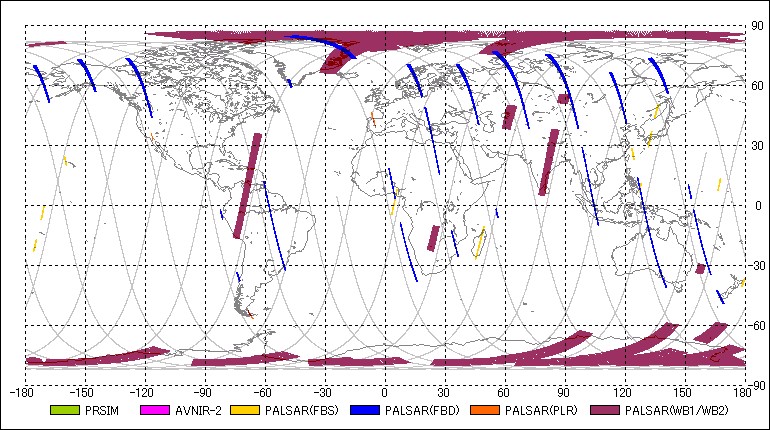

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2008-09-08 00:14:122008-09-08 00:16:04 00:01:52 25 205.31 25 212.12 34.30 -
2PSRFBD2008-09-08 01:12:212008-09-08 01:14:07 00:01:46 71 57.38 71 63.82 34.30 43
3PSMOB12008-09-08 01:24:542008-09-08 01:37:36 00:12:42 71 103.14 71 149.46 1.20 -
4PSRFBS2008-09-08 01:31:452008-09-08 01:34:15 00:02:30 71 128.06 71 137.18 34.30 7
5PSRFBS2008-09-08 01:35:292008-09-08 01:38:19 00:02:50 71 141.68 71 152.01 34.30 7
6PSRFBS2008-09-08 01:42:432008-09-08 01:44:33 00:01:50 71 168.05 71 174.74 34.30 7
7PSMOB22008-09-08 01:45:002008-09-08 01:49:28 00:04:28 71 176.38 71 192.67 0.00 -
8PSMOB12008-09-08 01:52:262008-09-08 01:57:02 00:04:36 71 203.49 71 220.26 1.20 -
9PSRWB12008-09-08 02:03:312008-09-08 02:11:25 00:07:54 71 243.91 71 272.72 27.10 80
10PSRFBD2008-09-08 02:25:422008-09-08 02:38:40 00:12:58 71 324.86 117 12.16 34.30 43
11PSMOB22008-09-08 03:08:582008-09-08 03:28:06 00:19:08 117 122.59 117 192.37 0.00 -
12AV2OBS2008-09-08 03:23:252008-09-08 03:27:17 00:03:52 117 175.29 117 189.39 0.00 -
13PSMOB12008-09-08 03:30:212008-09-08 03:32:57 00:02:36 117 200.57 117 210.05 1.20 -
14AV2OBS2008-09-08 03:31:062008-09-08 03:32:58 00:01:52 117 203.31 117 210.11 0.00 -
15PSRPLR2008-09-08 03:57:392008-09-08 03:59:27 00:01:48 117 300.19 117 306.75 21.50 127
16PSRFBD2008-09-08 04:02:562008-09-08 04:04:48 00:01:52 117 319.39 117 326.20 34.30 43
17PSRFBD2008-09-08 04:11:302008-09-08 04:13:32 00:02:02 117 350.63 117 358.05 34.30 43
18AV2OBS2008-09-08 04:43:432008-09-08 04:46:57 00:03:14 163 108.13 163 119.92 0.00 -
19PSRWB12008-09-08 04:47:462008-09-08 04:49:38 00:01:52 163 122.90 163 129.70 27.10 80
20PSMOB22008-09-08 04:48:462008-09-08 04:56:42 00:07:56 163 126.60 163 155.53 0.00 -
21AV2OBS2008-09-08 04:49:052008-09-08 04:55:55 00:06:50 163 127.76 163 152.68 0.00 -
22PSRWB12008-09-08 04:52:392008-09-08 05:02:19 00:09:40 163 140.70 163 175.96 27.10 80
23PSRWB12008-09-08 05:26:112008-09-08 05:28:37 00:02:26 163 262.99 163 271.86 27.10 80
24PSRPLR2008-09-08 06:01:042008-09-08 06:02:56 00:01:52 209 30.21 209 37.01 23.10 128
25PSRFBD2008-09-08 06:04:142008-09-08 06:13:12 00:08:58 209 41.76 209 74.45 34.30 43
26PSMOB22008-09-08 06:24:572008-09-08 06:35:23 00:10:26 209 117.36 209 155.41 0.00 -
27AV2OBS2008-09-08 06:24:592008-09-08 06:36:21 00:11:22 209 117.42 209 158.88 0.00 -
28PSRWB12008-09-08 06:28:032008-09-08 06:31:55 00:03:52 209 128.61 209 142.71 27.10 80
29PSRFBS2008-09-08 06:44:482008-09-08 06:49:58 00:05:10 209 189.69 209 208.53 34.30 7
30AV2OBS2008-09-08 06:45:142008-09-08 06:49:46 00:04:32 209 191.33 209 207.86 -34.30 -
31PSRWB12008-09-08 07:04:542008-09-08 07:06:54 00:02:00 209 262.99 209 270.28 27.10 80
32PSRFBD2008-09-08 07:46:342008-09-08 07:51:44 00:05:10 255 54.94 255 73.79 34.30 43
33PSRWB12008-09-08 07:53:222008-09-08 08:00:07 00:06:45 255 79.74 255 104.36 27.10 80
34AV2OBS2008-09-08 08:00:342008-09-08 08:02:26 00:01:52 255 106.00 255 112.81 0.00 -
35AV2OBS2008-09-08 08:09:392008-09-08 08:11:31 00:01:52 255 139.12 255 145.93 0.00 -
36AV2OBS2008-09-08 08:13:472008-09-08 08:30:51 00:17:04 255 154.20 255 216.43 0.00 -
37PSRWB12008-09-08 08:23:232008-09-08 08:27:25 00:04:02 255 189.20 255 203.91 27.10 80
38PSRFBS2008-09-08 09:15:062008-09-08 09:16:58 00:01:52 301 17.81 301 24.62 41.50 10
39PSRFBD2008-09-08 09:23:522008-09-08 09:29:36 00:05:44 301 49.78 301 70.69 34.30 43
40AV2OBS2008-09-08 09:40:362008-09-08 09:43:14 00:02:38 301 110.80 301 120.40 0.00 -
41PSMOB12008-09-08 09:47:432008-09-08 09:50:19 00:02:36 301 136.75 301 146.23 1.20 -
42AV2OBS2008-09-08 09:49:572008-09-08 09:52:45 00:02:48 301 144.96 301 155.17 0.00 -
43AV2OBS2008-09-08 09:54:392008-09-08 09:59:07 00:04:28 301 162.10 301 178.39 0.00 -
44PSRFBS2008-09-08 09:57:032008-09-08 10:01:07 00:04:04 301 170.79 301 185.62 21.50 3
45PSRWB12008-09-08 10:20:562008-09-08 10:24:48 00:03:52 301 257.95 301 272.05 27.10 80
46AV2OBS2008-09-08 11:29:462008-09-08 11:35:40 00:05:54 347 148.91 347 170.42 0.00 -
47PSRFBD2008-09-08 12:13:152008-09-08 12:15:47 00:02:32 347 307.48 347 316.72 34.30 43
48PSRFBD2008-09-08 12:17:232008-09-08 12:27:09 00:09:46 347 322.55 347 358.17 34.30 43
49PSRFBD2008-09-08 12:27:582008-09-08 12:30:30 00:02:32 393 1.15 393 10.39 34.30 43
50PSRFBD2008-09-08 12:42:302008-09-08 12:48:08 00:05:38 393 54.15 393 74.70 34.30 43
51PSRWB12008-09-08 12:50:472008-09-08 12:59:00 00:08:13 393 84.36 393 114.33 27.10 80
52PSMOB12008-09-08 12:57:132008-09-08 13:00:23 00:03:10 393 107.82 393 119.37 1.20 -
53PSRFBD2008-09-08 13:54:212008-09-08 14:10:17 00:15:56 393 316.17 439 14.28 34.30 43
54PSRFBS2008-09-08 14:12:012008-09-08 14:14:19 00:02:18 439 20.60 439 28.99 34.30 7
55PSRFBD2008-09-08 14:17:032008-09-08 14:24:49 00:07:46 439 38.96 439 67.28 34.30 43
56AV2OBS2008-09-08 14:35:362008-09-08 14:37:28 00:01:52 439 106.61 439 113.41 0.00 -
57PSMOB12008-09-08 14:40:322008-09-08 14:43:56 00:03:24 439 124.60 439 137.00 1.20 -
58AV2OBS2008-09-08 14:41:082008-09-08 14:43:08 00:02:00 439 126.78 439 134.08 0.00 -
59PSRWB12008-09-08 14:45:312008-09-08 15:00:34 00:15:03 439 142.77 439 197.65 27.10 80
60PSMOB12008-09-08 14:49:142008-09-08 14:52:32 00:03:18 439 156.32 439 168.36 1.20 -
61PSRWB12008-09-08 15:16:022008-09-08 15:20:56 00:04:54 439 254.06 439 271.93 27.10 80
62PSRFBD2008-09-08 15:41:442008-09-08 15:53:10 00:11:26 439 347.78 485 29.48 34.30 43
63PSRFBD2008-09-08 15:55:072008-09-08 16:06:03 00:10:56 485 36.59 485 76.46 34.30 43
64PSMOB12008-09-08 16:15:432008-09-08 16:31:53 00:16:10 485 111.71 485 170.67 1.20 -
65AV2OBS2008-09-08 16:29:482008-09-08 16:32:02 00:02:14 485 163.01 485 171.15 0.00 -
66PSRWB12008-09-08 16:57:432008-09-08 17:00:15 00:02:32 485 264.87 485 274.11 27.10 80
67PSRFBD2008-09-08 17:33:502008-09-08 17:45:12 00:11:22 531 36.59 531 78.04 34.30 43
68PSRWB12008-09-08 17:46:172008-09-08 17:50:29 00:04:12 531 81.99 531 97.31 27.10 80
69PSMOB12008-09-08 17:47:332008-09-08 17:52:35 00:05:02 531 86.55 531 104.90 1.20 -
70PSMOB12008-09-08 17:55:142008-09-08 18:01:50 00:06:36 531 114.57 531 138.64 1.20 -
71AV2OBS2008-09-08 17:57:592008-09-08 18:03:01 00:05:02 531 124.66 531 143.01 0.00 -
72AV2OBS2008-09-08 18:04:412008-09-08 18:07:13 00:02:32 531 149.03 531 158.27 0.00 -
73PSMOB12008-09-08 18:05:022008-09-08 18:07:38 00:02:36 531 150.31 531 159.79 1.20 -
74PSRWB12008-09-08 18:35:012008-09-08 18:38:25 00:03:24 531 259.71 531 272.11 27.10 80
75PSRFBD2008-09-08 19:00:122008-09-08 19:02:04 00:01:52 531 351.55 531 358.35 34.30 43
76PSRFBD2008-09-08 19:13:022008-09-08 19:22:04 00:09:02 577 38.35 577 71.29 34.30 43
77PSRWB12008-09-08 19:24:232008-09-08 19:27:41 00:03:18 577 79.74 577 91.78 27.10 80
78PSMOB12008-09-08 19:26:162008-09-08 19:39:04 00:12:48 577 86.55 577 133.23 1.20 -
79AV2OBS2008-09-08 19:56:252008-09-08 19:58:17 00:01:52 577 196.50 577 203.31 -34.30 -
80PSRWB12008-09-08 20:11:512008-09-08 20:17:03 00:05:12 577 252.84 577 271.80 27.10 80
81PSRFBD2008-09-08 20:33:292008-09-08 20:37:49 00:04:20 577 331.73 577 347.53 34.30 43
82PSRFBD2008-09-08 20:44:542008-09-08 20:54:50 00:09:56 623 13.37 623 49.60 34.30 43
83PSRFBD2008-09-08 20:55:362008-09-08 21:00:48 00:05:12 623 52.33 623 71.29 34.30 43
84PSRWB12008-09-08 21:02:172008-09-08 21:07:01 00:04:44 623 76.76 623 94.03 27.10 80
85PSMOB12008-09-08 21:06:052008-09-08 21:09:19 00:03:14 623 90.62 623 102.41 1.20 -
86AV2OBS2008-09-08 21:10:422008-09-08 21:12:34 00:01:52 623 107.40 623 114.20 -41.50 -
87PSRFBS2008-09-08 21:30:262008-09-08 21:32:52 00:02:26 623 179.42 623 188.29 34.30 7
88PSRFBS2008-09-08 21:34:562008-09-08 21:37:16 00:02:20 623 195.83 623 204.34 34.30 7
89AV2OBS2008-09-08 21:35:142008-09-08 21:37:16 00:02:02 623 196.92 623 204.34 -34.30 -
90PSRFBS2008-09-08 21:40:262008-09-08 21:42:18 00:01:52 623 215.83 623 222.63 34.30 7
91PSRWB12008-09-08 21:46:552008-09-08 21:50:21 00:03:26 623 239.47 623 251.99 27.10 80
92PSRWB12008-09-08 21:51:142008-09-08 21:55:50 00:04:36 623 255.27 623 272.05 27.10 80
93PSRFBD2008-09-08 22:08:442008-09-08 22:17:36 00:08:52 623 319.03 623 351.36 34.30 43
94PSRFBD2008-09-08 22:20:182008-09-08 22:25:06 00:04:48 669 1.22 669 18.72 34.30 43
95PSRPLR2008-09-08 22:30:292008-09-08 22:32:53 00:02:24 669 38.35 669 47.10 21.50 127
96PSRFBD2008-09-08 22:39:402008-09-08 22:43:46 00:04:06 669 71.90 669 86.85 34.30 43
97PSMOB12008-09-08 22:53:342008-09-08 22:56:10 00:02:36 669 122.59 669 132.07 1.20 -
98AV2OBS2008-09-08 22:54:142008-09-08 22:56:06 00:01:52 669 124.96 669 131.77 0.00 -
99PSRFBS2008-09-08 23:05:162008-09-08 23:07:38 00:02:22 669 165.26 669 173.89 34.30 7
100PSRWB12008-09-08 23:17:102008-09-08 23:19:02 00:01:52 669 208.65 669 215.46 27.10 80
101PSRWB12008-09-08 23:25:382008-09-08 23:34:34 00:08:56 669 239.53 669 272.11 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
25-13.169822008-09-07 23:17:53154.490392008-09-08 00:07:15
71-37.849402008-09-08 00:56:36129.810812008-09-08 01:45:58
117-62.528982008-09-08 02:35:19105.131232008-09-08 03:24:41
163-87.208562008-09-08 04:14:02 80.451642008-09-08 05:03:24
209-111.888152008-09-08 05:52:45 55.772062008-09-08 06:42:07
255-136.567732008-09-08 07:31:29 31.092482008-09-08 08:20:50
301-161.247312008-09-08 09:10:12 6.412902008-09-08 09:59:33
347174.073102008-09-08 10:48:55-18.266692008-09-08 11:38:16
393149.393522008-09-08 12:27:38-42.946272008-09-08 13:16:59
439124.713942008-09-08 14:06:21-67.625852008-09-08 14:55:43
485100.034362008-09-08 15:45:04-92.305442008-09-08 16:34:26
531 75.354772008-09-08 17:23:47-116.985022008-09-08 18:13:09
577 50.675192008-09-08 19:02:30-141.664602008-09-08 19:51:52
623 25.995612008-09-08 20:41:13-166.344182008-09-08 21:30:35
669 1.316032008-09-08 22:19:56168.976232008-09-08 23:09:18
44-23.363562008-09-08 23:58:40144.296652008-09-09 00:48:01
