>ALOS Data Take Simulation(Sep. 07, 2008)

Observation Area

PRISM

AVNIR-2

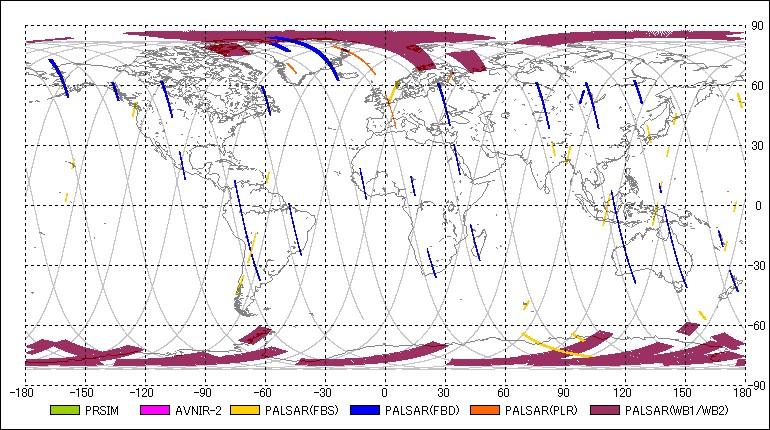

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2008-09-07 00:33:312008-09-07 00:35:45 00:02:14 52 64.49 52 72.63 21.50 127
2PSRFBD2008-09-07 00:36:372008-09-07 00:39:09 00:02:32 52 75.73 52 84.97 34.30 43
3PSMOB12008-09-07 00:44:152008-09-07 00:53:21 00:09:06 52 103.57 52 136.75 1.20 -
4PSRFBS2008-09-07 00:52:112008-09-07 00:54:23 00:02:12 52 132.50 52 140.52 34.30 7
5PSRFBS2008-09-07 00:56:542008-09-07 00:58:46 00:01:52 52 149.70 52 156.51 34.30 7
6PSRFBS2008-09-07 01:01:402008-09-07 01:03:42 00:02:02 52 167.08 52 174.50 34.30 7
7PSRFBS2008-09-07 01:04:302008-09-07 01:08:18 00:03:48 52 177.41 52 191.27 34.30 7
8AV2OBS2008-09-07 01:05:182008-09-07 01:08:02 00:02:44 52 180.33 52 190.30 0.00 -
9PSMOB22008-09-07 01:05:192008-09-07 01:09:35 00:04:16 52 180.39 52 195.95 0.00 -
10AV2OBS2008-09-07 01:13:032008-09-07 01:14:55 00:01:52 52 208.59 52 215.40 41.50 -
11PSRWB12008-09-07 01:22:502008-09-07 01:30:44 00:07:54 52 244.27 52 273.08 27.10 80
12PSRFBD2008-09-07 01:47:022008-09-07 01:54:56 00:07:54 52 332.52 98 1.34 34.30 43
13PSRFBD2008-09-07 02:06:252008-09-07 02:11:03 00:04:38 98 43.21 98 60.11 34.30 43
14PSRWB12008-09-07 02:14:472008-09-07 02:16:59 00:02:12 98 73.72 98 81.75 27.10 80
15AV2OBS2008-09-07 02:23:222008-09-07 02:27:34 00:04:12 98 105.03 98 120.34 0.00 -
16PSMOB22008-09-07 02:26:452008-09-07 02:30:29 00:03:44 98 117.36 98 130.98 0.00 -
17AV2OBS2008-09-07 02:32:402008-09-07 02:38:16 00:05:36 98 139.00 98 159.42 0.00 -
18AV2OBS2008-09-07 02:40:312008-09-07 02:41:33 00:01:02 98 167.57 98 171.34 0.00 -
19PSRFBS2008-09-07 02:42:002008-09-07 02:47:04 00:05:04 98 172.98 98 191.45 34.30 7
20AV2OBS2008-09-07 02:44:302008-09-07 02:46:50 00:02:20 98 182.09 98 190.60 0.00 -
21PSRFBD2008-09-07 03:22:102008-09-07 03:36:46 00:14:36 98 319.45 144 12.70 34.30 43
22AV2OBS2008-09-07 04:05:212008-09-07 04:07:13 00:01:52 144 116.94 144 123.75 0.00 -
23PSMOB22008-09-07 04:05:272008-09-07 04:19:27 00:14:00 144 117.30 144 168.36 0.00 -
24PSRFBD2008-09-07 04:06:262008-09-07 04:08:56 00:02:30 144 120.89 144 130.01 34.30 43
25PSRFBS2008-09-07 04:14:092008-09-07 04:17:21 00:03:12 144 149.03 144 160.70 34.30 7
26PSRFBS2008-09-07 04:35:422008-09-07 04:37:34 00:01:52 144 227.62 144 234.42 34.30 7
27AV2OBS2008-09-07 04:36:102008-09-07 04:38:02 00:01:52 144 229.32 144 236.13 -34.30 -
28PSRFBD2008-09-07 05:14:572008-09-07 05:19:31 00:04:34 190 10.76 190 27.41 34.30 43
29PSRFBD2008-09-07 05:23:282008-09-07 05:29:10 00:05:42 190 41.82 190 62.60 34.30 43
30PSMOB22008-09-07 05:44:112008-09-07 05:52:37 00:08:26 190 117.36 190 148.12 0.00 -
31AV2OBS2008-09-07 05:47:022008-09-07 05:51:50 00:04:48 190 127.76 190 145.26 0.00 -
32PSRWB12008-09-07 06:20:482008-09-07 06:26:58 00:06:10 190 250.83 190 273.32 27.10 80
33PSRFBD2008-09-07 07:04:322008-09-07 07:07:44 00:03:12 236 50.39 236 62.06 34.30 43
34PSRWB12008-09-07 07:13:162008-09-07 07:17:58 00:04:42 236 82.17 236 99.31 27.10 80
35AV2OBS2008-09-07 07:18:502008-09-07 07:22:28 00:03:38 236 102.53 236 115.78 0.00 -
36PSMOB22008-09-07 07:22:552008-09-07 07:24:47 00:01:52 236 117.42 236 124.23 0.00 -
37AV2OBS2008-09-07 07:36:182008-09-07 07:47:58 00:11:40 236 166.23 236 208.78 0.00 -
38PSRFBD2008-09-07 08:43:452008-09-07 08:49:41 00:05:56 282 52.21 282 73.85 34.30 43
39PSRPLR2008-09-07 09:00:002008-09-07 09:01:52 00:01:52 282 111.47 282 118.28 21.50 127
40AV2OBS2008-09-07 09:09:172008-09-07 09:25:01 00:15:44 282 145.32 282 202.70 0.00 -
41PSRFBS2008-09-07 10:21:032008-09-07 10:23:41 00:02:38 328 46.98 328 56.59 34.30 7
42AV2OBS2008-09-07 10:37:042008-09-07 10:42:32 00:05:28 328 105.39 328 125.33 0.00 -
43PSRFBS2008-09-07 10:39:532008-09-07 10:43:45 00:03:52 328 115.66 328 129.76 21.50 3
44PSMOB12008-09-07 10:44:402008-09-07 10:47:16 00:02:36 328 133.17 328 142.65 1.20 -
45AV2OBS2008-09-07 10:46:542008-09-07 10:56:42 00:09:48 328 141.31 328 177.05 0.00 -
46PSRWB12008-09-07 11:17:552008-09-07 11:22:45 00:04:50 328 254.42 328 272.05 27.10 80
47PSRWB12008-09-07 11:24:052008-09-07 11:27:27 00:03:22 328 276.91 328 289.19 27.10 80
48PSRFBD2008-09-07 11:34:132008-09-07 11:37:55 00:03:42 328 313.80 328 327.29 34.30 43
49PSRFBD2008-09-07 11:40:372008-09-07 11:43:29 00:02:52 328 337.20 328 347.66 34.30 43
50PSRWB12008-09-07 12:53:122008-09-07 12:56:06 00:02:54 374 241.90 374 252.48 27.10 80
51PSRWB12008-09-07 12:57:412008-09-07 13:01:27 00:03:46 374 258.19 374 271.93 27.10 80
52PSRWB12008-09-07 13:04:302008-09-07 13:07:20 00:02:50 374 283.11 374 293.44 27.10 80
53PSRFBS2008-09-07 13:08:542008-09-07 13:10:46 00:01:52 374 299.15 374 305.96 34.30 7
54PSRFBD2008-09-07 13:13:342008-09-07 13:25:38 00:12:04 374 316.17 420 0.18 34.30 43
55PSRFBD2008-09-07 13:26:432008-09-07 13:28:39 00:01:56 420 4.13 420 11.18 34.30 43
56PSRFBS2008-09-07 13:33:362008-09-07 13:36:42 00:03:06 420 29.23 420 40.54 34.30 7
57PSRFBD2008-09-07 13:39:042008-09-07 13:42:56 00:03:52 420 49.17 420 63.27 34.30 43
58PSMOB12008-09-07 13:52:192008-09-07 13:57:21 00:05:02 420 97.43 420 115.78 1.20 -
59PSRFBS2008-09-07 14:10:052008-09-07 14:12:11 00:02:06 420 162.22 420 169.88 34.30 7
60AV2OBS2008-09-07 14:14:472008-09-07 14:18:19 00:03:32 420 179.42 420 192.30 0.00 -
61PSRFBS2008-09-07 14:18:312008-09-07 14:23:13 00:04:42 420 192.97 420 210.11 34.30 7
62AV2OBS2008-09-07 14:21:242008-09-07 14:23:16 00:01:52 420 203.55 420 210.36 -34.30 -
63PSRFBS2008-09-07 14:24:202008-09-07 14:27:46 00:03:26 420 214.25 420 226.77 34.30 7
64PSRWB12008-09-07 14:38:342008-09-07 14:40:26 00:01:52 420 266.09 420 272.90 27.10 80
65PSRFBD2008-09-07 14:52:532008-09-07 15:06:27 00:13:34 420 318.36 466 7.84 34.30 43
66PSRFBD2008-09-07 15:14:192008-09-07 15:21:19 00:07:00 466 36.53 466 62.06 34.30 43
67PSMOB12008-09-07 15:29:022008-09-07 15:35:38 00:06:36 466 90.14 466 114.20 1.20 -
68AV2OBS2008-09-07 15:38:302008-09-07 15:41:18 00:02:48 466 124.66 466 134.87 0.00 -
69PSMOB12008-09-07 15:39:122008-09-07 15:52:54 00:13:42 466 127.27 466 177.23 1.20 -
70PSRWB12008-09-07 16:13:462008-09-07 16:18:52 00:05:06 466 253.27 466 271.86 27.10 80
71PSRFBS2008-09-07 16:49:142008-09-07 16:51:52 00:02:38 512 22.61 512 32.21 34.30 7
72PSRFBD2008-09-07 16:53:052008-09-07 17:00:05 00:07:00 512 36.65 512 62.18 34.30 43
73PSRWB12008-09-07 17:05:392008-09-07 17:09:43 00:04:04 512 82.48 512 97.31 27.10 80
74PSMOB12008-09-07 17:06:482008-09-07 17:12:20 00:05:32 512 86.67 512 106.85 1.20 -
75PSMOB12008-09-07 17:15:532008-09-07 17:28:35 00:12:42 512 119.80 512 166.11 1.20 -
76AV2OBS2008-09-07 17:19:132008-09-07 17:21:49 00:02:36 512 131.95 512 141.43 0.00 -
77PSRFBS2008-09-07 18:01:412008-09-07 18:03:33 00:01:52 512 286.82 512 293.62 34.30 7
78PSRWB12008-09-07 18:39:442008-09-07 18:43:10 00:03:26 558 65.58 558 78.10 27.10 80
79PSRWB12008-09-07 18:44:032008-09-07 18:48:21 00:04:18 558 81.32 558 97.00 27.10 80
80PSMOB12008-09-07 18:45:302008-09-07 18:52:34 00:07:04 558 86.61 558 112.38 1.20 -
81PSRFBS2008-09-07 18:56:322008-09-07 18:59:14 00:02:42 558 126.85 558 136.69 34.30 7
82AV2OBS2008-09-07 18:57:262008-09-07 19:00:58 00:03:32 558 130.13 558 143.01 -23.10 -
83PSRWB12008-09-07 19:30:102008-09-07 19:35:38 00:05:28 558 249.50 558 269.43 27.10 80
84PSRFBS2008-09-07 19:36:232008-09-07 19:42:19 00:05:56 558 272.17 558 293.81 34.30 7
85PSRFBD2008-09-07 19:52:102008-09-07 19:57:50 00:05:40 558 329.73 558 350.39 34.30 43
86PSRFBD2008-09-07 20:04:072008-09-07 20:08:57 00:04:50 604 13.31 604 30.94 34.30 43
87PSRFBD2008-09-07 20:10:492008-09-07 20:17:25 00:06:36 604 37.74 604 61.81 34.30 43
88PSRWB12008-09-07 20:18:422008-09-07 20:26:26 00:07:44 604 66.49 604 94.69 27.10 80
89PSMOB12008-09-07 20:24:122008-09-07 20:26:48 00:02:36 604 86.55 604 96.03 1.20 -
90AV2OBS2008-09-07 20:28:492008-09-07 20:30:41 00:01:52 604 103.39 604 110.19 0.00 -
91PSRFBS2008-09-07 20:43:122008-09-07 20:45:04 00:01:52 604 155.84 604 162.64 34.30 7
92AV2OBS2008-09-07 20:43:402008-09-07 20:45:32 00:01:52 604 157.54 604 164.35 -34.30 -
93PSRFBS2008-09-07 20:47:482008-09-07 20:49:40 00:01:52 604 172.61 604 179.42 34.30 7
94PSMOB12008-09-07 20:50:542008-09-07 20:56:18 00:05:24 604 183.92 604 203.61 1.20 -
95AV2OBS2008-09-07 20:51:402008-09-07 20:53:38 00:01:58 604 186.71 604 193.88 0.00 -
96PSRWB12008-09-07 21:09:072008-09-07 21:15:03 00:05:56 604 250.35 604 271.99 27.10 80
97PSRFBD2008-09-07 21:28:332008-09-07 21:33:11 00:04:38 604 321.22 604 338.11 34.30 43
98PSRFBD2008-09-07 21:39:562008-09-07 21:43:12 00:03:16 650 2.74 650 14.65 34.30 43
99PSRPLR2008-09-07 21:49:142008-09-07 21:54:40 00:05:26 650 36.59 650 56.40 21.50 127
100PSRPLR2008-09-07 21:56:502008-09-07 22:01:40 00:04:50 650 64.36 650 81.99 21.50 127
101PSMOB12008-09-07 22:02:402008-09-07 22:05:16 00:02:36 650 85.64 650 95.12 1.20 -
102PSRWB12008-09-07 22:02:582008-09-07 22:04:50 00:01:52 650 86.73 650 93.54 27.10 80
103PSMOB12008-09-07 22:12:152008-09-07 22:14:51 00:02:36 650 120.59 650 130.07 1.20 -
104PSRFBS2008-09-07 22:27:442008-09-07 22:29:46 00:02:02 650 176.99 650 184.40 34.30 7
105PSRFBS2008-09-07 22:33:162008-09-07 22:35:08 00:01:52 650 197.23 650 204.04 34.30 7
106AV2OBS2008-09-07 22:33:482008-09-07 22:35:36 00:01:48 650 199.17 650 205.74 -34.30 -
107PSMOB12008-09-07 22:36:512008-09-07 22:43:53 00:07:02 650 210.30 650 235.94 1.20 -
108PSRWB12008-09-07 22:44:502008-09-07 22:47:02 00:02:12 650 239.41 650 247.43 27.10 80
109PSRWB12008-09-07 22:48:062008-09-07 22:54:00 00:05:54 650 251.32 650 272.84 27.10 80
110PSRFBD2008-09-07 23:18:052008-09-07 23:23:03 00:04:58 25 0.67 25 18.78 34.30 43
111PSRFBD2008-09-07 23:34:312008-09-07 23:41:29 00:06:58 25 60.60 25 86.00 34.30 43
112PSMOB12008-09-07 23:47:012008-09-07 23:53:35 00:06:34 25 106.18 25 130.13 1.20 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
6 -2.976082008-09-06 22:37:07164.684132008-09-06 23:26:28
52-27.655662008-09-07 00:15:50140.004552008-09-07 01:05:11
98-52.335242008-09-07 01:54:33115.324972008-09-07 02:43:54
144-77.014822008-09-07 03:33:16 90.645382008-09-07 04:22:37
190-101.694412008-09-07 05:11:59 65.965802008-09-07 06:01:21
236-126.373992008-09-07 06:50:42 41.286222008-09-07 07:40:04
282-151.053572008-09-07 08:29:25 16.606642008-09-07 09:18:47
328-175.733152008-09-07 10:08:08 -8.072952008-09-07 10:57:30
374159.587262008-09-07 11:46:51-32.752532008-09-07 12:36:13
420134.907682008-09-07 13:25:34-57.432112008-09-07 14:14:56
466110.228102008-09-07 15:04:18-82.111692008-09-07 15:53:39
512 85.548512008-09-07 16:43:01-106.791282008-09-07 17:32:22
558 60.868932008-09-07 18:21:44-131.470862008-09-07 19:11:05
604 36.189352008-09-07 20:00:27-156.150442008-09-07 20:49:48
650 11.509772008-09-07 21:39:10179.169972008-09-07 22:28:32
25-13.169822008-09-07 23:17:53154.490392008-09-08 00:07:15
