>ALOS Data Take Simulation(Jul. 12, 2008)

Observation Area

PRISM

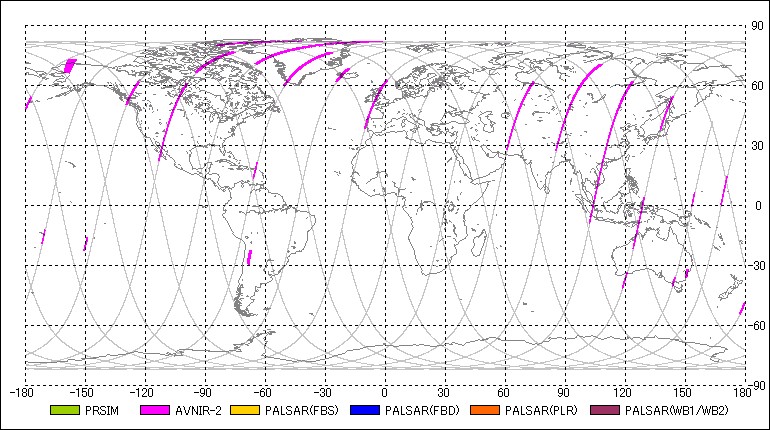

AVNIR-2

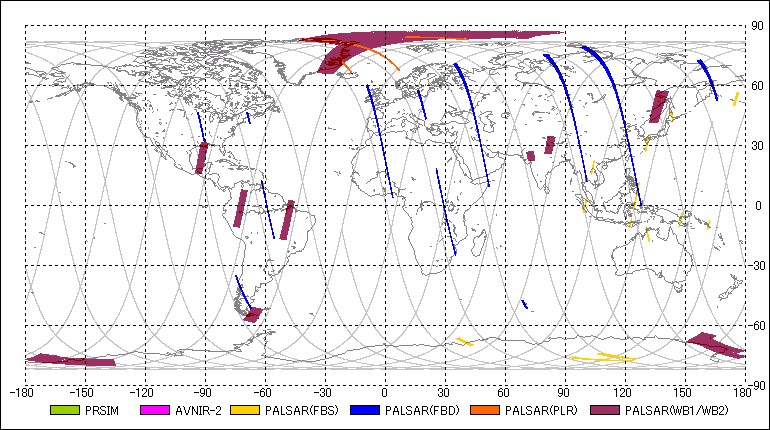

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2008-07-12 00:09:512008-07-12 00:11:43 00:01:52 27 173.77 27 180.57 0.00 -
2PSRFBS2008-07-12 00:12:102008-07-12 00:14:52 00:02:42 27 182.22 27 192.06 34.30 7
3PSMOB22008-07-12 00:16:322008-07-12 00:19:48 00:03:16 27 198.14 27 210.05 0.00 -
4AV2OBS2008-07-12 00:20:162008-07-12 00:22:36 00:02:20 27 211.75 27 220.26 34.30 -
5PSMOB12008-07-12 01:29:102008-07-12 01:35:02 00:05:52 73 103.02 73 124.41 -1.20 -
6PSRWB12008-07-12 01:34:102008-07-12 01:39:10 00:05:00 73 121.25 73 139.49 27.10 80
7AV2OBS2008-07-12 01:35:092008-07-12 01:39:49 00:04:40 73 124.84 73 141.86 0.00 -
8PSRFBS2008-07-12 01:40:152008-07-12 01:43:11 00:02:56 73 143.44 73 154.14 34.30 7
9PSRFBS2008-07-12 01:46:472008-07-12 01:51:01 00:04:14 73 167.26 73 182.70 34.30 7
10AV2OBS2008-07-12 01:49:092008-07-12 01:56:15 00:07:06 73 175.89 73 201.79 0.00 -
11PSMOB22008-07-12 01:49:102008-07-12 01:56:58 00:07:48 73 175.96 73 204.40 0.00 -
12PSRFBS2008-07-12 01:51:452008-07-12 01:53:37 00:01:52 73 185.44 73 192.24 34.30 7
13AV2OBS2008-07-12 01:59:282008-07-12 02:01:44 00:02:16 73 213.52 73 221.78 0.00 -
14PSRFBD2008-07-12 02:34:262008-07-12 02:43:06 00:08:40 73 341.03 119 12.64 34.30 43
15PSRFBD2008-07-12 02:50:162008-07-12 02:52:28 00:02:12 119 38.78 119 46.80 34.30 43
16AV2OBS2008-07-12 03:11:482008-07-12 03:31:28 00:19:40 119 117.30 119 189.02 0.00 -
17PSMOB22008-07-12 03:13:112008-07-12 03:32:09 00:18:58 119 122.35 119 191.51 0.00 -
18PSRFBS2008-07-12 03:22:302008-07-12 03:25:04 00:02:34 119 156.32 119 165.68 34.30 7
19PSRFBS2008-07-12 03:27:372008-07-12 03:30:19 00:02:42 119 174.98 119 184.83 34.30 7
20PSRFBD2008-07-12 04:01:482008-07-12 04:08:38 00:06:50 119 299.64 119 324.56 34.30 43
21PSRFBD2008-07-12 04:25:232008-07-12 04:31:13 00:05:50 165 25.65 165 46.92 34.30 43
22PSMOB22008-07-12 04:46:262008-07-12 05:00:58 00:14:32 165 102.41 165 155.41 0.00 -
23AV2OBS2008-07-12 04:47:582008-07-12 05:00:12 00:12:14 165 108.00 165 152.62 0.00 -
24PSRWB12008-07-12 04:57:542008-07-12 05:00:52 00:02:58 165 144.23 165 155.05 27.10 80
25PSMOB22008-07-12 06:23:482008-07-12 06:39:28 00:15:40 211 97.49 211 154.62 0.00 -
26AV2OBS2008-07-12 06:29:152008-07-12 06:38:47 00:09:32 211 117.36 211 152.13 0.00 -
27PSRFBD2008-07-12 11:07:092008-07-12 11:13:25 00:06:16 349 50.75 349 73.60 34.30 43
28PSMOB12008-07-12 11:24:222008-07-12 11:32:30 00:08:08 349 113.54 349 143.20 -1.20 -
29AV2OBS2008-07-12 11:25:082008-07-12 11:32:02 00:06:54 349 116.33 349 141.49 0.00 -
30PSRFBS2008-07-12 12:43:042008-07-12 12:44:58 00:01:54 395 40.60 395 47.53 34.30 7
31PSRWB12008-07-12 12:55:362008-07-12 13:03:17 00:07:41 395 86.25 395 114.26 27.10 80
32AV2OBS2008-07-12 13:02:122008-07-12 13:04:06 00:01:54 395 110.31 395 117.24 0.00 -
33PSRWB12008-07-12 13:20:192008-07-12 13:26:19 00:06:00 395 176.44 395 198.32 27.10 80
34PSRWB12008-07-12 13:35:252008-07-12 13:37:55 00:02:30 395 231.45 395 240.56 27.10 80
35PSRWB12008-07-12 13:45:162008-07-12 13:52:04 00:06:48 395 267.37 395 292.16 27.10 80
36PSRFBS2008-07-12 14:05:062008-07-12 14:07:22 00:02:16 395 339.75 395 348.02 34.30 7
37PSRFBD2008-07-12 14:10:042008-07-12 14:32:44 00:22:40 395 357.87 441 80.53 34.30 43
38PSRWB12008-07-12 14:34:072008-07-12 14:37:33 00:03:26 441 85.58 441 98.10 27.10 80
39AV2OBS2008-07-12 14:38:222008-07-12 14:43:26 00:05:04 441 101.01 441 119.49 0.00 -
40PSMOB12008-07-12 14:44:232008-07-12 14:48:13 00:03:50 441 122.96 441 136.94 -1.20 -
41PSMOB12008-07-12 14:53:192008-07-12 14:56:39 00:03:20 441 155.53 441 167.69 -1.20 -
42AV2OBS2008-07-12 14:54:052008-07-12 14:56:17 00:02:12 441 158.33 441 166.35 0.00 -
43PSRWB12008-07-12 14:57:342008-07-12 15:03:16 00:05:42 441 171.09 441 191.88 27.10 80
44AV2OBS2008-07-12 15:06:022008-07-12 15:07:54 00:01:52 441 201.91 441 208.72 41.50 -
45PSRFBD2008-07-12 15:52:042008-07-12 16:10:22 00:18:18 487 9.85 487 76.58 34.30 43
46PSRPLR2008-07-12 16:12:242008-07-12 16:14:16 00:01:52 487 83.94 487 90.74 21.50 127
47AV2OBS2008-07-12 16:14:142008-07-12 16:18:58 00:04:44 487 90.62 487 107.88 0.00 -
48PSMOB12008-07-12 16:19:582008-07-12 16:36:06 00:16:08 487 111.53 487 170.36 -1.20 -
49PSRWB12008-07-12 16:29:462008-07-12 16:34:38 00:04:52 487 147.27 487 165.01 27.10 80
50PSMOB12008-07-12 16:45:482008-07-12 16:48:24 00:02:36 487 205.74 487 215.22 -1.20 -
51PSRWB12008-07-12 17:33:422008-07-12 17:35:34 00:01:52 533 20.42 533 27.23 27.10 80
52PSMOB12008-07-12 17:54:262008-07-12 17:58:46 00:04:20 533 96.03 533 111.83 -1.20 -
53AV2OBS2008-07-12 17:55:412008-07-12 17:58:53 00:03:12 533 100.65 533 112.32 0.00 -
54AV2OBS2008-07-12 18:00:292008-07-12 18:11:17 00:10:48 533 118.09 533 157.48 0.00 -
55PSMOB12008-07-12 18:03:292008-07-12 18:11:55 00:08:26 533 129.03 533 159.79 -1.20 -
56PSRFBS2008-07-12 18:42:552008-07-12 18:45:01 00:02:06 533 272.90 533 280.56 34.30 7
57PSRFBD2008-07-12 18:51:442008-07-12 18:53:36 00:01:52 533 304.99 533 311.80 34.30 43
58PSRFBD2008-07-12 19:08:502008-07-12 19:26:28 00:17:38 579 7.35 579 71.66 34.30 43
59AV2OBS2008-07-12 19:31:192008-07-12 19:33:11 00:01:52 579 89.35 579 96.15 0.00 -
60PSMOB12008-07-12 19:37:192008-07-12 19:43:01 00:05:42 579 111.23 579 132.01 -1.20 -
61AV2OBS2008-07-12 19:39:002008-07-12 19:42:16 00:03:16 579 117.36 579 129.28 0.00 -
62AV2OBS2008-07-12 20:00:392008-07-12 20:02:31 00:01:52 579 196.32 579 203.12 -21.50 -
63PSRFBS2008-07-12 20:20:142008-07-12 20:22:52 00:02:38 579 267.73 579 277.33 34.30 7
64PSRFBD2008-07-12 20:38:032008-07-12 20:50:39 00:12:36 579 332.70 625 18.66 34.30 43
65PSRFBD2008-07-12 20:56:502008-07-12 21:01:30 00:04:40 625 41.21 625 58.23 34.30 43
66PSRPLR2008-07-12 21:03:412008-07-12 21:09:33 00:05:52 625 66.19 625 87.58 21.50 127
67PSMOB12008-07-12 21:10:432008-07-12 21:13:19 00:02:36 625 91.84 625 101.32 -1.20 -
68AV2OBS2008-07-12 21:14:562008-07-12 21:16:48 00:01:52 625 107.21 625 114.02 -41.50 -
69AV2OBS2008-07-12 21:38:162008-07-12 21:40:08 00:01:52 625 192.30 625 199.11 0.00 -
70PSMOB12008-07-12 21:47:202008-07-12 21:50:00 00:02:40 625 225.37 625 235.09 -1.20 -
71AV2OBS2008-07-12 21:48:062008-07-12 21:49:58 00:01:52 625 228.16 625 234.97 0.00 -
72PSRWB12008-07-12 21:52:482008-07-12 21:54:58 00:02:10 625 245.30 625 253.21 27.10 80
73PSRFBS2008-07-12 22:03:272008-07-12 22:05:19 00:01:52 625 284.14 625 290.95 34.30 7
74PSRFBD2008-07-12 22:24:452008-07-12 22:40:57 00:16:12 671 1.76 671 60.84 34.30 43
75PSRPLR2008-07-12 22:41:542008-07-12 22:44:56 00:03:02 671 64.36 671 75.43 21.50 127
76PSRFBS2008-07-12 22:57:402008-07-12 23:00:10 00:02:30 671 121.86 671 130.98 34.30 7
77AV2OBS2008-07-12 22:58:352008-07-12 23:00:27 00:01:52 671 125.14 671 131.95 0.00 -
78PSMOB12008-07-12 23:08:532008-07-12 23:13:39 00:04:46 671 162.77 671 180.15 -1.20 -
79AV2OBS2008-07-12 23:09:382008-07-12 23:13:30 00:03:52 671 165.50 671 179.60 0.00 -
80PSRFBS2008-07-12 23:15:202008-07-12 23:17:12 00:01:52 671 186.29 671 193.09 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
27-14.242842008-07-11 23:22:11153.417372008-07-12 00:11:32
73-38.922422008-07-12 01:00:54128.737782008-07-12 01:50:15
119-63.602012008-07-12 02:39:37104.058202008-07-12 03:28:58
165-88.281592008-07-12 04:18:20 79.378622008-07-12 05:07:41
211-112.961172008-07-12 05:57:03 54.699042008-07-12 06:46:25
257-137.640762008-07-12 07:35:46 30.019452008-07-12 08:25:08
303-162.320342008-07-12 09:14:29 5.339872008-07-12 10:03:51
349173.000082008-07-12 10:53:12-19.339712008-07-12 11:42:34
395148.320502008-07-12 12:31:55-44.019302008-07-12 13:21:17
441123.640912008-07-12 14:10:39-68.698882008-07-12 15:00:00
487 98.961332008-07-12 15:49:22-93.378462008-07-12 16:38:43
533 74.281752008-07-12 17:28:05-118.058042008-07-12 18:17:26
579 49.602172008-07-12 19:06:48-142.737632008-07-12 19:56:09
625 24.922582008-07-12 20:45:31-167.417212008-07-12 21:34:52
671 0.243002008-07-12 22:24:14167.903212008-07-12 23:13:36
