>ALOS Data Take Simulation(Jun. 02, 2008)

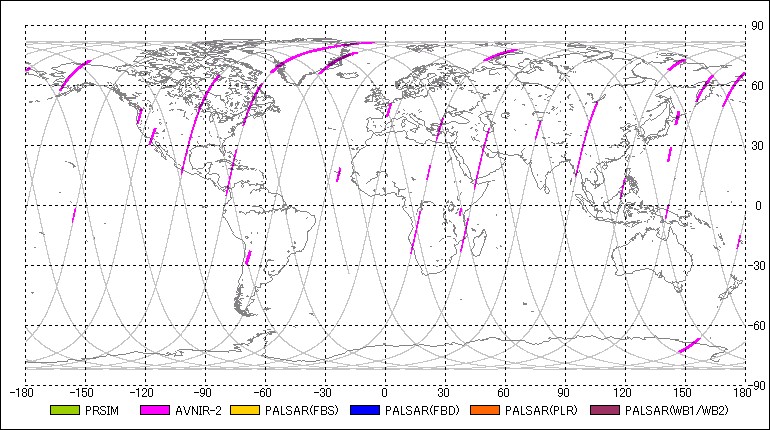

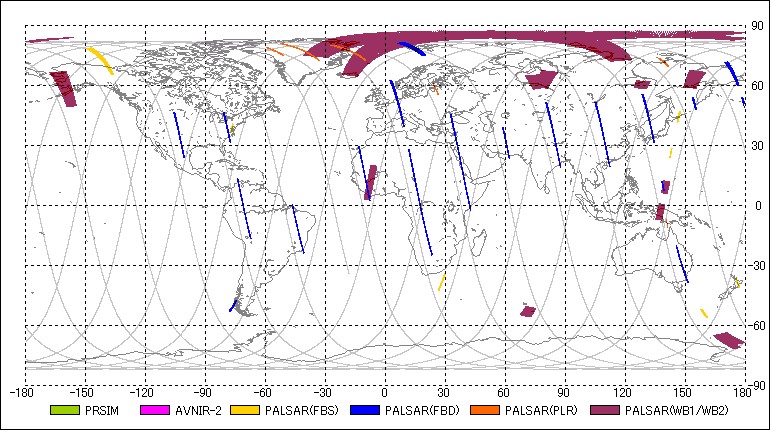

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2008-06-02 00:29:442008-06-02 00:31:36 00:01:52 49 74.09 49 80.90 24.20 129
2PSRWB12008-06-02 00:39:522008-06-02 00:42:50 00:02:58 49 111.10 49 121.92 27.10 80
3AV2OBS2008-06-02 00:40:402008-06-02 00:44:24 00:03:44 49 113.96 49 127.58 0.00 -
4PSRFBS2008-06-02 00:45:322008-06-02 00:47:40 00:02:08 49 131.71 49 139.49 34.30 7
5AV2OBS2008-06-02 00:45:592008-06-02 00:47:51 00:01:52 49 133.35 49 140.16 -34.30 -
6PSRFBS2008-06-02 00:50:342008-06-02 00:52:28 00:01:54 49 150.06 49 156.99 34.30 7
7AV2OBS2008-06-02 00:51:012008-06-02 00:52:53 00:01:52 49 151.70 49 158.51 -34.30 -
8PSRWB12008-06-02 00:55:042008-06-02 00:57:24 00:02:20 49 166.47 49 174.98 27.10 80
9PSRWB12008-06-02 00:58:182008-06-02 01:01:06 00:02:48 49 178.26 49 188.48 27.10 80
10AV2OBS2008-06-02 00:58:412008-06-02 01:00:33 00:01:52 49 179.72 49 186.53 0.00 -
11PSMOB12008-06-02 01:01:332008-06-02 01:09:45 00:08:12 49 190.12 49 220.02 1.20 -
12PSRFBD2008-06-02 01:40:542008-06-02 01:48:18 00:07:24 49 333.68 95 0.61 34.30 43
13AV2OBS2008-06-02 02:16:572008-06-02 02:18:35 00:01:38 95 105.15 95 111.10 0.00 -
14PSRWB12008-06-02 02:19:572008-06-02 02:21:37 00:01:40 95 116.03 95 122.10 27.10 80
15PSMOB22008-06-02 02:22:052008-06-02 02:28:19 00:06:14 95 123.81 95 146.54 0.00 -
16PSMOB12008-06-02 02:31:012008-06-02 02:45:13 00:14:12 95 156.38 95 208.17 1.20 -
17AV2OBS2008-06-02 02:33:462008-06-02 02:36:34 00:02:48 95 166.41 95 176.62 0.00 -
18PSRFBD2008-06-02 03:21:392008-06-02 03:30:33 00:08:54 95 341.03 141 13.49 34.30 43
19PSRFBD2008-06-02 03:34:582008-06-02 03:39:42 00:04:44 141 29.60 141 46.86 34.30 43
20AV2OBS2008-06-02 04:01:532008-06-02 04:12:12 00:10:19 141 127.76 141 165.38 0.00 -
21PSRWB12008-06-02 04:30:092008-06-02 04:32:01 00:01:52 141 230.84 141 237.65 27.10 80
22PSRFBD2008-06-02 05:11:302008-06-02 05:18:26 00:06:56 187 21.64 187 46.92 34.30 43
23PSRWB12008-06-02 05:36:012008-06-02 05:38:59 00:02:58 187 111.10 187 121.92 27.10 80
24PSMOB12008-06-02 05:39:512008-06-02 05:50:47 00:10:56 187 125.02 187 164.89 1.20 -
25AV2OBS2008-06-02 05:43:232008-06-02 05:45:47 00:02:24 187 137.97 187 146.72 0.00 -
26PSRFBS2008-06-02 07:01:432008-06-02 07:06:11 00:04:28 233 63.57 233 79.86 34.30 7
27PSRWB12008-06-02 07:06:562008-06-02 07:10:44 00:03:48 233 82.60 233 96.46 27.10 80
28PSMOB12008-06-02 07:16:242008-06-02 07:31:34 00:15:10 233 117.12 233 172.43 1.20 -
29AV2OBS2008-06-02 07:23:032008-06-02 07:31:29 00:08:26 233 141.37 233 172.13 0.00 -
30AV2OBS2008-06-02 07:34:122008-06-02 07:39:52 00:05:40 233 182.03 233 202.70 -34.30 -
31PSRFBS2008-06-02 07:42:342008-06-02 07:45:52 00:03:18 233 212.54 233 224.58 34.30 7
32PSRWB12008-06-02 08:36:062008-06-02 08:41:33 00:05:27 279 47.77 279 67.65 27.10 80
33AV2OBS2008-06-02 08:50:092008-06-02 08:52:03 00:01:54 279 99.01 279 105.94 0.00 -
34PSMOB12008-06-02 08:54:242008-06-02 09:04:14 00:09:50 279 114.51 279 150.37 1.20 -
35AV2OBS2008-06-02 09:00:232008-06-02 09:03:27 00:03:04 279 136.33 279 147.51 0.00 -
36AV2OBS2008-06-02 09:06:542008-06-02 09:08:46 00:01:52 279 160.09 279 166.90 0.00 -
37AV2OBS2008-06-02 09:13:112008-06-02 09:19:01 00:05:50 279 183.01 279 204.28 0.00 -
38PSRFBD2008-06-02 10:14:332008-06-02 10:16:39 00:02:06 325 46.80 325 54.46 34.30 43
39PSRFBD2008-06-02 10:17:432008-06-02 10:21:37 00:03:54 325 58.35 325 72.57 34.30 43
40PSMOB12008-06-02 10:29:482008-06-02 10:41:30 00:11:42 325 102.41 325 145.08 1.20 -
41AV2OBS2008-06-02 10:37:082008-06-02 10:39:00 00:01:52 325 129.16 325 135.96 -21.50 -
42PSRWB12008-06-02 10:45:162008-06-02 10:50:36 00:05:20 325 158.82 325 178.26 27.10 80
43PSRFBS2008-06-02 11:28:262008-06-02 11:30:18 00:01:52 325 316.23 325 323.04 34.30 7
44PSRFBD2008-06-02 11:53:002008-06-02 11:55:20 00:02:20 371 45.83 371 54.34 34.30 43
45PSRPLR2008-06-02 11:59:122008-06-02 12:01:04 00:01:52 371 68.44 371 75.24 21.50 127
46PSRWB12008-06-02 12:03:322008-06-02 12:12:08 00:08:36 371 84.24 371 115.60 27.10 80
47AV2OBS2008-06-02 12:24:272008-06-02 12:26:19 00:01:52 371 160.52 371 167.32 34.30 -
48PSRWB12008-06-02 12:58:132008-06-02 13:00:57 00:02:44 371 283.66 371 293.62 27.10 80
49PSRFBS2008-06-02 13:02:442008-06-02 13:04:36 00:01:52 371 300.13 371 306.93 34.30 7
50PSRFBD2008-06-02 13:07:472008-06-02 13:13:39 00:05:52 371 318.54 371 339.94 34.30 43
51PSRPLR2008-06-02 13:15:372008-06-02 13:17:29 00:01:52 371 347.11 371 353.92 21.50 127
52PSRFBD2008-06-02 13:20:372008-06-02 13:22:29 00:01:52 417 5.35 417 12.16 34.30 43
53PSRFBD2008-06-02 13:27:152008-06-02 13:34:29 00:07:14 417 29.54 417 55.92 34.30 43
54PSRWB12008-06-02 13:38:392008-06-02 13:48:10 00:09:31 417 71.11 417 105.82 27.10 80
55PSMOB12008-06-02 13:46:022008-06-02 13:50:40 00:04:38 417 98.04 417 114.93 1.20 -
56AV2OBS2008-06-02 13:46:542008-06-02 13:50:06 00:03:12 417 101.14 417 112.81 0.00 -
57AV2OBS2008-06-02 14:15:042008-06-02 14:16:56 00:01:52 417 203.91 417 210.72 -41.50 -
58PSRFBD2008-06-02 14:21:322008-06-02 14:23:46 00:02:14 417 227.50 417 235.64 34.30 43
59PSRFBD2008-06-02 15:02:352008-06-02 15:12:07 00:09:32 463 17.20 463 51.97 34.30 43
60AV2OBS2008-06-02 15:23:242008-06-02 15:28:40 00:05:16 463 93.11 463 112.32 0.00 -
61AV2OBS2008-06-02 15:30:172008-06-02 15:36:11 00:05:54 463 118.15 463 139.67 0.00 -
62PSRFBS2008-06-02 15:35:422008-06-02 15:37:34 00:01:52 463 137.91 463 144.71 34.30 7
63AV2OBS2008-06-02 15:39:332008-06-02 15:45:55 00:06:22 463 151.95 463 175.17 0.00 -
64PSMOB12008-06-02 15:44:152008-06-02 15:49:47 00:05:32 463 169.15 463 189.33 1.20 -
65PSRFBD2008-06-02 16:41:132008-06-02 16:50:51 00:09:38 509 16.84 509 51.97 34.30 43
66PSRWB12008-06-02 16:52:102008-06-02 16:54:42 00:02:32 509 56.77 509 66.01 27.10 80
67PSMOB12008-06-02 17:00:242008-06-02 17:10:20 00:09:56 509 86.79 509 123.02 1.20 -
68AV2OBS2008-06-02 17:07:532008-06-02 17:21:41 00:13:48 509 114.08 509 164.41 0.00 -
69PSRFBD2008-06-02 18:21:132008-06-02 18:26:07 00:04:54 555 21.58 555 39.45 34.30 43
70PSMOB12008-06-02 18:39:022008-06-02 18:55:58 00:16:56 555 86.49 555 148.24 1.20 -
71AV2OBS2008-06-02 18:51:282008-06-02 18:55:54 00:04:26 555 131.83 555 148.00 -23.10 -
72PSRFBD2008-06-02 19:52:412008-06-02 20:06:37 00:13:56 555 355.07 601 45.89 34.30 43
73PSRPLR2008-06-02 20:08:492008-06-02 20:11:01 00:02:12 601 53.91 601 61.93 21.50 127
74PSRFBD2008-06-02 20:14:152008-06-02 20:16:45 00:02:30 601 73.72 601 82.84 34.30 43
75PSMOB12008-06-02 20:17:452008-06-02 20:28:25 00:10:40 601 86.49 601 125.39 1.20 -
76PSMOB12008-06-02 20:43:052008-06-02 20:45:45 00:02:40 601 178.93 601 188.66 1.20 -
77AV2OBS2008-06-02 20:43:512008-06-02 20:45:43 00:01:52 601 181.73 601 188.54 0.00 -
78PSRFBD2008-06-02 21:25:162008-06-02 21:40:34 00:15:18 601 332.70 647 28.51 34.30 43
79PSRFBD2008-06-02 21:42:582008-06-02 21:50:08 00:07:10 647 37.26 647 63.39 34.30 43
80PSRPLR2008-06-02 21:52:242008-06-02 21:55:24 00:03:00 647 71.66 647 82.60 21.50 127
81PSMOB12008-06-02 21:56:292008-06-02 21:59:13 00:02:44 647 86.55 647 96.52 1.20 -
82PSMOB12008-06-02 22:00:592008-06-02 22:08:09 00:07:10 647 102.96 647 129.09 1.20 -
83AV2OBS2008-06-02 22:01:452008-06-02 22:06:07 00:04:22 647 105.82 647 121.74 0.00 -
84PSMOB12008-06-02 22:25:492008-06-02 22:28:25 00:02:36 647 193.52 647 203.00 1.20 -
85AV2OBS2008-06-02 22:26:152008-06-02 22:28:07 00:01:52 647 195.10 647 201.91 0.00 -
86AV2OBS2008-06-02 22:40:402008-06-02 22:42:46 00:02:06 647 247.67 647 255.33 0.00 -
87PSRFBD2008-06-02 23:11:352008-06-02 23:19:37 00:08:02 22 0.43 22 29.72 34.30 43
88PSRPLR2008-06-02 23:31:052008-06-02 23:34:17 00:03:12 22 71.54 22 83.21 24.20 129
89PSMOB12008-06-02 23:40:152008-06-02 23:43:25 00:03:10 22 104.97 22 116.51 1.20 -
90AV2OBS2008-06-02 23:41:352008-06-02 23:47:09 00:05:34 22 109.83 22 130.13 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
3 -1.366542008-06-01 22:30:40166.293672008-06-01 23:20:02
49-26.046122008-06-02 00:09:23141.614092008-06-02 00:58:45
95-50.725702008-06-02 01:48:06116.934512008-06-02 02:37:28
141-75.405292008-06-02 03:26:50 92.254922008-06-02 04:16:11
187-100.084872008-06-02 05:05:33 67.575342008-06-02 05:54:54
233-124.764452008-06-02 06:44:16 42.895762008-06-02 07:33:37
279-149.444032008-06-02 08:22:59 18.216172008-06-02 09:12:20
325-174.123622008-06-02 10:01:42 -6.463412008-06-02 10:51:04
371161.196802008-06-02 11:40:25-31.142992008-06-02 12:29:47
417136.517222008-06-02 13:19:08-55.822572008-06-02 14:08:30
463111.837632008-06-02 14:57:51-80.502162008-06-02 15:47:13
509 87.158052008-06-02 16:36:34-105.181742008-06-02 17:25:56
555 62.478472008-06-02 18:15:17-129.861322008-06-02 19:04:39
601 37.798892008-06-02 19:54:01-154.540902008-06-02 20:43:22
647 13.119302008-06-02 21:32:44-179.220492008-06-02 22:22:05
22-11.560282008-06-02 23:11:27156.099932008-06-03 00:00:48
