ALOS-2/PALSAR-2 Observation Results on Wildfire in Canada

Responding to an emergency observation requests from the International Charter of Space and Major Disasters, the Japan Aerospace Exploration Agency (JAXA) performed an emergency observation for the wildfire in Canada by means of the Phased Array type L-band Synthetic Aperture Radar-2 (PALSAR-2) aboard the Advanced Land Observing Satellite-2 (ALOS-2, "DAICHI-2") on May 9, 2016.
Fig.1 : Area of the PALSAR-2 observation on May 9, 2016
Fig.1 : Area of the PALSAR-2 observation on May 9, 2016

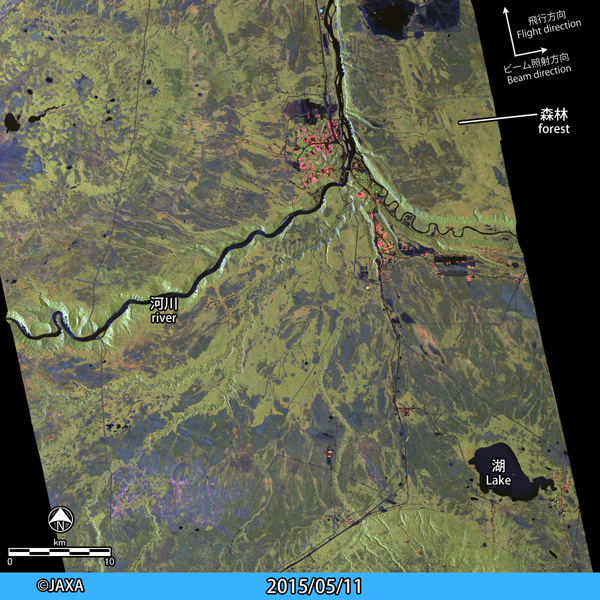

Fig. 1 shows the area of the observation on May 9, 2016. Figure 2 is an interactive image comparison between post-disaster (May 9, 2016) and pre-disaster (May 11, 2015). Both data were acquired by high-resolution (6m) fully-polarimetric mode, and the images are pseudo-color composite of red: HH-VV, green: HV and blue: HH+VV polarization. Damaged areas changed from green to red in the images probably due to a change of scattering mechanism caused by the wildfire.

Drag a slider over the image or click an arbitrary position in the images to compare the images.
Fig.2 Fig.2
Show only after

High-resolution images:May 9, 2016 (after wildfire)

Show only before

High-resolution images:May 11, 2015 (before wildfire)

Fig.2: Interactive comparison of images around Fort McMurray, Alberta.
Fig. 3 is a difference image of HH-VV polarization, which describes change of double-bounce scattering. Red color in this image represents increase of HH-VV scattering and roughly corresponding to damaged forest area.
Fig.3: Change of HH-VV polarization. Estimated area of damaged forest is enclosed by green line.
