>ALOS Data Take Simulation(Mar. 16, 2011)

Observation Area

PRISM

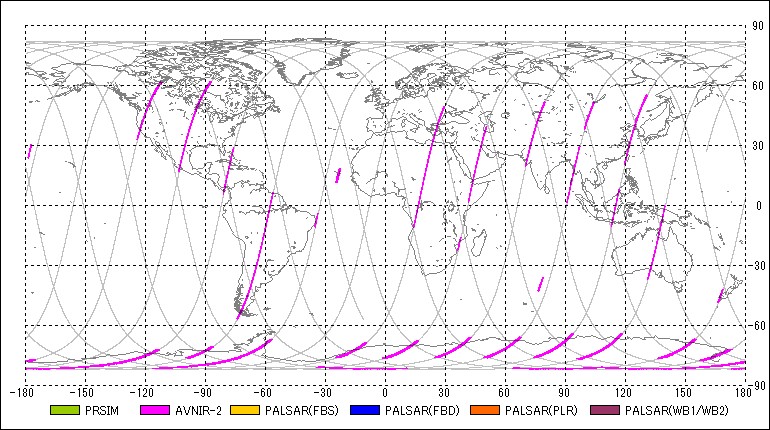

AVNIR-2

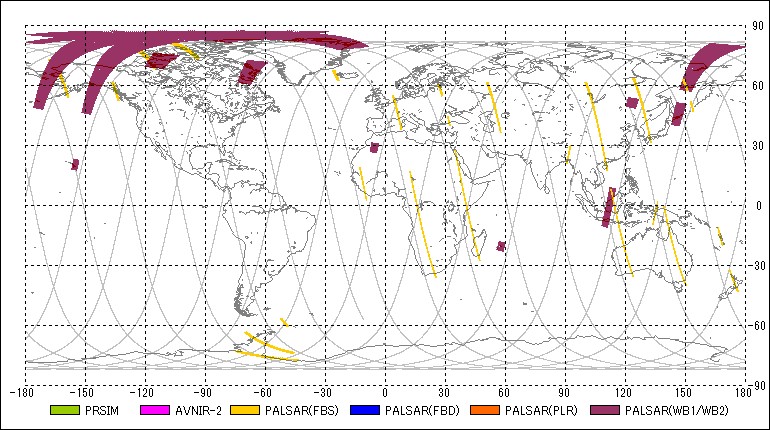

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2011-03-16 00:38:24	2011-03-16 00:49:41	00:11:17	52	82.23	52	123.38	27.10	80
2	PSR	WB1	2011-03-16 00:50:50	2011-03-16 00:54:30	00:03:40	52	127.58	52	140.95	27.10	80
3	PSR	FBS	2011-03-16 01:04:30	2011-03-16 01:08:18	00:03:48	52	177.41	52	191.27	34.30	7
4	AV2	OBS	2011-03-16 01:05:17	2011-03-16 01:15:29	00:10:12	52	180.27	52	217.47	0.00	-
5	PSM	OB2	2011-03-16 01:05:19	2011-03-16 01:15:31	00:10:12	52	180.39	52	217.59	0.00	-
6	PSM	OB1	2011-03-16 01:22:19	2011-03-16 01:31:01	00:08:42	52	242.39	52	274.11	-1.20	-
7	AV2	OBS	2011-03-16 01:23:05	2011-03-16 01:27:05	00:04:00	52	245.18	52	259.77	0.00	-
8	AV2	OBS	2011-03-16 02:28:36	2011-03-16 02:38:16	00:09:40	98	124.17	98	159.42	0.00	-
9	PSM	OB2	2011-03-16 02:28:40	2011-03-16 02:38:50	00:10:10	98	124.35	98	161.43	0.00	-
10	PSR	WB1	2011-03-16 02:28:51	2011-03-16 02:30:45	00:01:54	98	125.02	98	131.95	27.10	80
11	PSM	OB2	2011-03-16 02:40:37	2011-03-16 02:47:37	00:07:00	98	167.93	98	193.46	0.00	-
12	PSR	WB1	2011-03-16 02:41:15	2011-03-16 02:47:15	00:06:00	98	170.24	98	192.12	27.10	80
13	AV2	OBS	2011-03-16 02:41:46	2011-03-16 02:46:50	00:05:04	98	172.19	98	190.66	0.00	-
14	PSM	OB1	2011-03-16 03:01:01	2011-03-16 03:09:45	00:08:44	98	242.33	98	274.17	-1.20	-
15	AV2	OBS	2011-03-16 03:01:48	2011-03-16 03:05:30	00:03:42	98	245.18	98	258.68	0.00	-
16	PSR	FBS	2011-03-16 03:15:28	2011-03-16 03:17:20	00:01:52	98	295.02	98	301.83	34.30	7
17	PSR	FBS	2011-03-16 03:52:57	2011-03-16 03:55:59	00:03:02	144	71.72	144	82.78	34.30	7
18	AV2	OBS	2011-03-16 04:08:19	2011-03-16 04:12:11	00:03:52	144	127.76	144	141.86	0.00	-
19	PSR	FBS	2011-03-16 04:14:11	2011-03-16 04:17:19	00:03:08	144	149.15	144	160.58	34.30	7
20	AV2	OBS	2011-03-16 04:14:28	2011-03-16 04:22:20	00:07:52	144	150.18	144	178.87	0.00	-
21	PSM	OB2	2011-03-16 04:14:28	2011-03-16 04:20:52	00:06:24	144	150.18	144	173.52	0.00	-
22	AV2	OBS	2011-03-16 04:32:50	2011-03-16 04:34:42	00:01:52	144	217.10	144	223.91	-21.50	-
23	AV2	OBS	2011-03-16 04:41:00	2011-03-16 04:44:14	00:03:14	144	246.95	144	258.74	0.00	-
24	PSM	OB1	2011-03-16 04:45:47	2011-03-16 04:48:35	00:02:48	144	264.39	144	274.60	-1.20	-
25	AV2	OBS	2011-03-16 04:46:40	2011-03-16 04:48:32	00:01:52	144	267.61	144	274.42	0.00	-
26	PSR	FBS	2011-03-16 04:49:41	2011-03-16 04:53:59	00:04:18	144	278.61	144	294.29	34.30	7
27	PSR	FBS	2011-03-16 05:30:22	2011-03-16 05:33:44	00:03:22	190	66.98	190	79.26	34.30	7
28	PSM	OB1	2011-03-16 05:46:16	2011-03-16 05:56:52	00:10:36	190	124.96	190	163.62	-1.20	-
29	AV2	OBS	2011-03-16 05:47:02	2011-03-16 05:56:04	00:09:02	190	127.76	190	160.70	0.00	-
30	PSR	WB1	2011-03-16 06:06:09	2011-03-16 06:08:01	00:01:52	190	197.47	190	204.28	27.10	80
31	AV2	OBS	2011-03-16 06:19:46	2011-03-16 06:22:56	00:03:10	190	247.13	190	258.68	0.00	-
32	PSM	OB1	2011-03-16 06:23:23	2011-03-16 06:25:59	00:02:36	190	260.32	190	269.80	-1.20	-
33	PSR	FBS	2011-03-16 06:26:23	2011-03-16 06:29:29	00:03:06	190	271.26	190	282.56	34.30	7
34	PSR	FBS	2011-03-16 07:04:32	2011-03-16 07:07:44	00:03:12	236	50.39	236	62.06	34.30	7
35	PSM	OB1	2011-03-16 07:28:31	2011-03-16 07:42:23	00:13:52	236	137.85	236	188.41	-1.20	-
36	AV2	OBS	2011-03-16 07:29:15	2011-03-16 07:39:37	00:10:22	236	140.52	236	178.33	0.00	-
37	AV2	OBS	2011-03-16 07:44:28	2011-03-16 07:46:20	00:01:52	236	196.01	236	202.82	0.00	-
38	PSM	OB1	2011-03-16 07:58:14	2011-03-16 08:02:46	00:04:32	236	246.22	236	262.75	-1.20	-
39	AV2	OBS	2011-03-16 07:59:00	2011-03-16 08:01:48	00:02:48	236	248.95	236	259.16	0.00	-
40	PSR	FBS	2011-03-16 08:43:45	2011-03-16 08:49:41	00:05:56	282	52.15	282	73.79	34.30	7
41	AV2	OBS	2011-03-16 09:05:05	2011-03-16 09:21:54	00:16:49	282	130.01	282	191.33	0.00	-
42	PSM	OB1	2011-03-16 09:06:20	2011-03-16 09:09:26	00:03:06	282	134.56	282	145.87	-1.20	-
43	PSM	OB1	2011-03-16 09:37:27	2011-03-16 09:44:37	00:07:10	282	247.98	282	274.11	-1.20	-
44	AV2	OBS	2011-03-16 09:38:02	2011-03-16 09:40:22	00:02:20	282	250.17	282	258.68	0.00	-
45	PSM	OB2	2011-03-16 10:45:30	2011-03-16 10:47:22	00:01:52	328	136.14	328	142.95	0.00	-
46	PSR	WB1	2011-03-16 10:48:40	2011-03-16 10:50:32	00:01:52	328	147.69	328	154.50	27.10	80
47	PSM	OB1	2011-03-16 10:51:39	2011-03-16 10:57:31	00:05:52	328	158.57	328	179.97	-1.20	-
48	PSM	OB1	2011-03-16 11:17:58	2011-03-16 11:23:20	00:05:22	328	254.54	328	274.11	-1.20	-
49	PSR	FBS	2011-03-16 11:34:13	2011-03-16 11:37:55	00:03:42	328	313.80	328	327.29	34.30	7
50	PSR	FBS	2011-03-16 11:40:37	2011-03-16 11:43:49	00:03:12	328	337.20	328	348.87	34.30	7
51	PSR	FBS	2011-03-16 11:59:06	2011-03-16 12:01:16	00:02:10	374	44.61	374	52.51	34.30	7
52	PSR	FBS	2011-03-16 12:02:07	2011-03-16 12:04:17	00:02:10	374	55.61	374	63.51	34.30	7
53	AV2	OBS	2011-03-16 12:30:50	2011-03-16 12:32:42	00:01:52	374	160.33	374	167.14	41.50	-
54	PSM	OB1	2011-03-16 12:36:36	2011-03-16 12:39:32	00:02:56	374	181.30	374	192.00	-1.20	-
55	AV2	OBS	2011-03-16 12:37:22	2011-03-16 12:39:14	00:01:52	374	184.10	374	190.91	0.00	-
56	PSM	OB1	2011-03-16 12:54:10	2011-03-16 13:02:04	00:07:54	374	245.36	374	274.17	-1.20	-
57	AV2	OBS	2011-03-16 12:54:56	2011-03-16 13:00:26	00:05:30	374	248.16	374	268.22	0.00	-
58	PSR	FBS	2011-03-16 13:13:47	2011-03-16 13:25:27	00:11:40	374	316.96	374	359.51	34.30	7
59	PSR	FBS	2011-03-16 13:33:35	2011-03-16 13:43:11	00:09:36	420	29.17	420	64.18	34.30	7
60	AV2	OBS	2011-03-16 14:13:12	2011-03-16 14:30:45	00:17:33	420	173.58	420	237.59	0.00	-
61	PSM	OB1	2011-03-16 14:33:59	2011-03-16 14:40:49	00:06:50	420	249.38	420	274.30	-1.20	-
62	AV2	OBS	2011-03-16 14:34:45	2011-03-16 14:36:37	00:01:52	420	252.17	420	258.98	0.00	-
63	PSR	FBS	2011-03-16 14:53:46	2011-03-16 15:06:26	00:12:40	420	321.58	466	7.78	34.30	7
64	PSR	FBS	2011-03-16 15:08:27	2011-03-16 15:21:21	00:12:54	466	15.13	466	62.18	34.30	7
65	PSR	WB1	2011-03-16 15:33:21	2011-03-16 15:37:09	00:03:48	466	105.94	466	119.80	27.10	80
66	AV2	OBS	2011-03-16 15:45:45	2011-03-16 15:52:09	00:06:24	466	151.10	466	174.44	0.00	-
67	PSM	OB1	2011-03-16 16:13:12	2011-03-16 16:19:30	00:06:18	466	251.20	466	274.17	-1.20	-
68	AV2	OBS	2011-03-16 16:13:57	2011-03-16 16:18:43	00:04:46	466	254.00	466	271.38	0.00	-
69	PSM	OB1	2011-03-16 17:14:26	2011-03-16 17:28:34	00:14:08	512	114.51	512	166.05	-1.20	-
70	AV2	OBS	2011-03-16 17:15:12	2011-03-16 17:27:48	00:12:36	512	117.30	512	163.25	0.00	-
71	PSM	OB1	2011-03-16 17:52:31	2011-03-16 17:58:13	00:05:42	512	253.39	512	274.17	-1.20	-
72	PSR	FBS	2011-03-16 18:31:10	2011-03-16 18:38:48	00:07:38	558	34.34	558	62.18	34.30	7
73	PSR	WB1	2011-03-16 18:49:47	2011-03-16 18:52:23	00:02:36	558	102.23	558	111.71	27.10	80
74	PSM	OB1	2011-03-16 18:53:09	2011-03-16 19:02:03	00:08:54	558	114.57	558	147.02	-1.20	-
75	AV2	OBS	2011-03-16 18:53:56	2011-03-16 19:02:02	00:08:06	558	117.36	558	146.90	0.00	-
76	PSM	OB1	2011-03-16 19:31:59	2011-03-16 19:36:51	00:04:52	558	256.18	558	273.93	-1.20	-
77	AV2	OBS	2011-03-16 19:33:01	2011-03-16 19:36:49	00:03:48	558	259.89	558	273.75	0.00	-
78	PSR	FBS	2011-03-16 19:52:10	2011-03-16 20:08:00	00:15:50	558	329.73	604	27.47	34.30	7
79	PSR	FBS	2011-03-16 20:10:49	2011-03-16 20:12:41	00:01:52	604	37.74	604	44.55	34.30	7
80	PSR	FBS	2011-03-16 20:14:55	2011-03-16 20:17:11	00:02:16	604	52.70	604	60.96	34.30	7
81	PSR	WB1	2011-03-16 20:24:13	2011-03-16 20:37:32	00:13:19	604	86.61	604	135.17	27.10	80
82	PSR	WB1	2011-03-16 20:43:15	2011-03-16 20:45:17	00:02:02	604	156.02	604	163.43	25.90	76
83	PSM	OB1	2011-03-16 21:09:24	2011-03-16 21:15:38	00:06:14	604	251.38	604	274.11	-1.20	-
84	AV2	OBS	2011-03-16 21:10:03	2011-03-16 21:11:55	00:01:52	604	253.75	604	260.56	0.00	-
85	PSR	FBS	2011-03-16 21:28:32	2011-03-16 21:43:52	00:15:20	604	321.16	650	17.08	34.30	7
86	PSR	FBS	2011-03-16 21:49:00	2011-03-16 21:54:20	00:05:20	650	35.80	650	55.25	34.30	7
87	PSR	WB1	2011-03-16 22:00:32	2011-03-16 22:15:33	00:15:01	650	77.80	650	132.56	27.10	80
88	AV2	OBS	2011-03-16 22:20:18	2011-03-16 22:22:10	00:01:52	650	149.94	650	156.75	-21.50	-
89	PSM	OB1	2011-03-16 22:39:30	2011-03-16 22:42:44	00:03:14	650	219.96	650	231.75	-1.20	-
90	AV2	OBS	2011-03-16 22:40:09	2011-03-16 22:42:01	00:01:52	650	222.33	650	229.14	0.00	-
91	AV2	OBS	2011-03-16 22:47:13	2011-03-16 22:50:17	00:03:04	650	248.10	650	259.28	0.00	-
92	AV2	OBS	2011-03-16 22:52:10	2011-03-16 22:54:02	00:01:52	650	266.09	650	272.90	0.00	-
93	PSR	FBS	2011-03-16 23:17:52	2011-03-16 23:23:04	00:05:12	650	359.87	25	18.84	34.30	7
94	PSR	FBS	2011-03-16 23:34:31	2011-03-16 23:36:39	00:02:08	25	60.54	25	68.32	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
6	-2.97608	2011-03-15 22:37:07	164.68413	2011-03-15 23:26:28
52	-27.65566	2011-03-16 00:15:50	140.00455	2011-03-16 01:05:11
98	-52.33524	2011-03-16 01:54:33	115.32497	2011-03-16 02:43:54
144	-77.01482	2011-03-16 03:33:16	90.64538	2011-03-16 04:22:37
190	-101.69441	2011-03-16 05:11:59	65.96580	2011-03-16 06:01:21
236	-126.37399	2011-03-16 06:50:42	41.28622	2011-03-16 07:40:04
282	-151.05357	2011-03-16 08:29:25	16.60664	2011-03-16 09:18:47
328	-175.73315	2011-03-16 10:08:08	-8.07295	2011-03-16 10:57:30
374	159.58726	2011-03-16 11:46:51	-32.75253	2011-03-16 12:36:13
420	134.90768	2011-03-16 13:25:34	-57.43211	2011-03-16 14:14:56
466	110.22810	2011-03-16 15:04:18	-82.11169	2011-03-16 15:53:39
512	85.54851	2011-03-16 16:43:01	-106.79128	2011-03-16 17:32:22
558	60.86893	2011-03-16 18:21:44	-131.47086	2011-03-16 19:11:05
604	36.18935	2011-03-16 20:00:27	-156.15044	2011-03-16 20:49:48
650	11.50977	2011-03-16 21:39:10	179.16997	2011-03-16 22:28:32
25	-13.16982	2011-03-16 23:17:53	154.49039	2011-03-17 00:07:15
