>ALOS Data Take Simulation(Mar. 03, 2011)

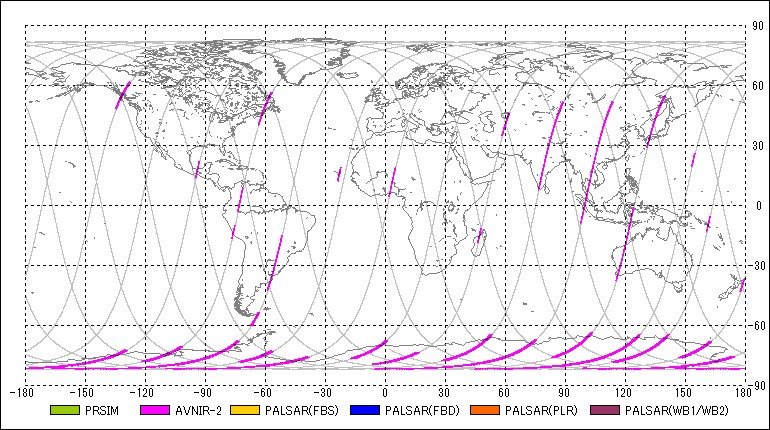

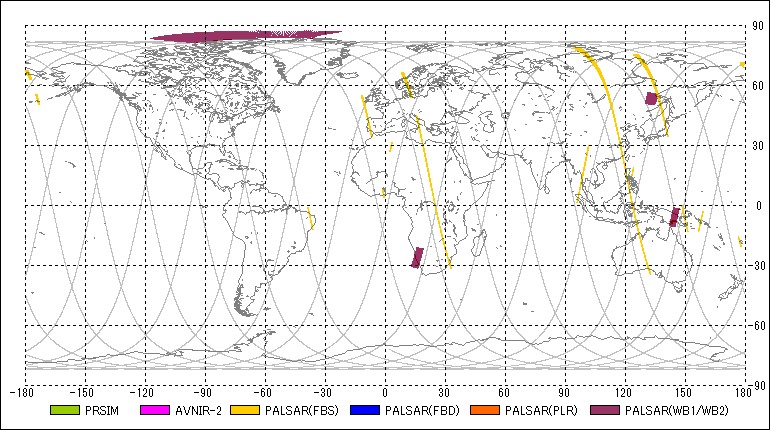

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB1	2011-03-03 00:20:46	2011-03-03 00:23:22	00:02:36	35	150.97	35	160.46	-1.20	-
2	AV2	OBS	2011-03-03 00:21:31	2011-03-03 00:23:23	00:01:52	35	153.71	35	160.52	0.00	-
3	PSM	OB2	2011-03-03 00:28:36	2011-03-03 00:40:38	00:12:02	35	179.54	35	223.42	0.00	-
4	PSR	WB1	2011-03-03 00:28:50	2011-03-03 00:31:58	00:03:08	35	180.39	35	191.82	27.10	80
5	PSM	OB1	2011-03-03 00:45:56	2011-03-03 00:51:48	00:05:52	35	242.75	35	264.15	-1.20	-
6	AV2	OBS	2011-03-03 00:46:42	2011-03-03 00:53:46	00:07:04	35	245.55	35	271.32	0.00	-
7	PSR	FBS	2011-03-03 01:14:02	2011-03-03 01:17:44	00:03:42	35	345.22	35	358.72	34.30	7
8	PSR	WB1	2011-03-03 01:51:38	2011-03-03 01:53:50	00:02:12	81	122.35	81	130.37	27.10	80
9	PSM	OB2	2011-03-03 01:51:48	2011-03-03 02:00:00	00:08:12	81	122.96	81	152.86	0.00	-
10	AV2	OBS	2011-03-03 01:52:12	2011-03-03 01:59:28	00:07:16	81	124.41	81	150.91	0.00	-
11	PSR	FBS	2011-03-03 02:02:02	2011-03-03 02:03:44	00:01:42	81	160.27	81	166.47	34.30	7
12	PSM	OB2	2011-03-03 02:04:12	2011-03-03 02:18:30	00:14:18	81	168.18	81	220.32	0.00	-
13	AV2	OBS	2011-03-03 02:07:47	2011-03-03 02:17:47	00:10:00	81	181.24	81	217.71	0.00	-
14	PSM	OB1	2011-03-03 02:24:26	2011-03-03 02:30:16	00:05:50	81	241.96	81	263.23	-1.20	-
15	AV2	OBS	2011-03-03 02:25:09	2011-03-03 02:29:01	00:03:52	81	244.57	81	258.68	0.00	-
16	AV2	OBS	2011-03-03 03:31:49	2011-03-03 03:48:37	00:16:48	127	127.70	127	188.96	0.00	-
17	PSR	FBS	2011-03-03 03:37:41	2011-03-03 03:46:15	00:08:34	127	149.09	127	180.33	34.30	7
18	PSM	OB2	2011-03-03 03:43:34	2011-03-03 03:47:42	00:04:08	127	170.49	127	185.56	0.00	-
19	PSM	OB1	2011-03-03 04:04:08	2011-03-03 04:08:44	00:04:36	127	245.55	127	262.32	-1.20	-
20	AV2	OBS	2011-03-03 04:04:55	2011-03-03 04:11:13	00:06:18	127	248.40	127	271.38	0.00	-
21	PSM	OB1	2011-03-03 05:09:47	2011-03-03 05:23:39	00:13:52	173	124.96	173	175.53	-1.20	-
22	AV2	OBS	2011-03-03 05:10:32	2011-03-03 05:22:52	00:12:20	173	127.70	173	172.67	0.00	-
23	PSM	OB1	2011-03-03 05:42:09	2011-03-03 05:47:15	00:05:06	173	242.99	173	261.59	-1.20	-
24	AV2	OBS	2011-03-03 05:42:51	2011-03-03 05:46:59	00:04:08	173	245.55	173	260.62	0.00	-
25	AV2	OBS	2011-03-03 06:50:52	2011-03-03 06:53:56	00:03:04	219	133.59	219	144.78	0.00	-
26	PSM	OB1	2011-03-03 07:06:06	2011-03-03 07:08:32	00:02:26	219	189.14	219	198.02	-1.20	-
27	AV2	OBS	2011-03-03 07:06:45	2011-03-03 07:08:47	00:02:02	219	191.51	219	198.93	0.00	-
28	PSM	OB1	2011-03-03 07:21:45	2011-03-03 07:25:57	00:04:12	219	246.15	219	261.47	-1.20	-
29	AV2	OBS	2011-03-03 07:24:19	2011-03-03 07:26:27	00:02:08	219	255.58	219	263.36	0.00	-
30	PSM	OB1	2011-03-03 08:28:41	2011-03-03 08:31:55	00:03:14	265	130.25	265	142.04	-1.20	-
31	PSR	WB1	2011-03-03 08:47:55	2011-03-03 08:51:17	00:03:22	265	200.39	265	212.67	27.10	80
32	AV2	OBS	2011-03-03 09:01:14	2011-03-03 09:04:04	00:02:50	265	248.95	265	259.28	0.00	-
33	PSR	FBS	2011-03-03 09:44:57	2011-03-03 09:46:59	00:02:02	311	48.38	311	55.80	34.30	7
34	PSR	FBS	2011-03-03 09:48:23	2011-03-03 09:51:25	00:03:02	311	60.96	311	72.02	34.30	7
35	PSR	FBS	2011-03-03 10:12:06	2011-03-03 10:13:58	00:01:52	311	147.45	311	154.26	34.30	7
36	PSM	OB1	2011-03-03 10:15:10	2011-03-03 10:20:42	00:05:32	311	158.57	311	178.75	-1.20	-
37	AV2	OBS	2011-03-03 10:15:51	2011-03-03 10:19:53	00:04:02	311	161.06	311	175.77	0.00	-
38	AV2	OBS	2011-03-03 10:42:28	2011-03-03 10:46:20	00:03:52	311	258.19	311	272.29	0.00	-
39	PSR	FBS	2011-03-03 11:04:02	2011-03-03 11:06:04	00:02:02	311	336.84	311	344.25	34.30	7
40	AV2	OBS	2011-03-03 11:54:41	2011-03-03 11:56:33	00:01:52	357	161.49	357	168.30	-21.50	-
41	PSM	OB1	2011-03-03 12:19:29	2011-03-03 12:22:05	00:02:36	357	251.99	357	261.47	-1.20	-
42	AV2	OBS	2011-03-03 12:20:15	2011-03-03 12:22:07	00:01:52	357	254.79	357	261.59	0.00	-
43	PSR	FBS	2011-03-03 12:44:49	2011-03-03 12:49:07	00:04:18	357	344.37	403	0.06	34.30	7
44	PSR	FBS	2011-03-03 12:57:55	2011-03-03 13:10:03	00:12:08	403	32.15	403	76.40	34.30	7
45	AV2	OBS	2011-03-03 13:42:35	2011-03-03 13:50:16	00:07:41	403	194.98	403	223.00	0.00	-
46	AV2	OBS	2011-03-03 13:53:19	2011-03-03 13:55:11	00:01:52	403	234.12	403	240.93	0.00	-
47	PSM	OB1	2011-03-03 13:56:43	2011-03-03 14:00:49	00:04:06	403	246.58	403	261.53	-1.20	-
48	AV2	OBS	2011-03-03 13:57:27	2011-03-03 14:04:15	00:06:48	403	249.19	403	273.99	0.00	-
49	PSR	FBS	2011-03-03 14:17:37	2011-03-03 14:49:47	00:32:10	403	322.74	449	80.05	34.30	7
50	PSM	OB1	2011-03-03 15:00:44	2011-03-03 15:06:08	00:05:24	449	120.04	449	139.73	-1.20	-
51	AV2	OBS	2011-03-03 15:01:30	2011-03-03 15:06:06	00:04:36	449	122.77	449	139.55	0.00	-
52	AV2	OBS	2011-03-03 15:14:48	2011-03-03 15:18:08	00:03:20	449	171.28	449	183.43	0.00	-
53	AV2	OBS	2011-03-03 15:19:58	2011-03-03 15:21:50	00:01:52	449	190.12	449	196.92	0.00	-
54	PSM	OB1	2011-03-03 15:36:49	2011-03-03 15:39:33	00:02:44	449	251.56	449	261.53	-1.20	-
55	AV2	OBS	2011-03-03 15:36:59	2011-03-03 15:39:27	00:02:28	449	252.17	449	261.17	0.00	-
56	AV2	OBS	2011-03-03 16:49:48	2011-03-03 16:52:08	00:02:20	495	157.72	495	166.23	0.00	-
57	AV2	OBS	2011-03-03 17:16:15	2011-03-03 17:21:27	00:05:12	495	254.18	495	273.14	0.00	-
58	PSM	OB1	2011-03-03 18:16:40	2011-03-03 18:27:48	00:11:08	541	114.57	541	155.17	-1.20	-
59	PSR	WB1	2011-03-03 19:47:48	2011-03-03 19:50:35	00:02:47	587	86.79	587	96.94	27.10	80
60	PSM	OB1	2011-03-03 19:55:24	2011-03-03 20:00:00	00:04:36	587	114.57	587	131.34	-1.20	-
61	AV2	OBS	2011-03-03 19:56:10	2011-03-03 20:00:02	00:03:52	587	117.36	587	131.46	0.00	-
62	AV2	OBS	2011-03-03 20:34:44	2011-03-03 20:38:46	00:04:02	587	258.01	587	272.72	0.00	-
63	PSR	FBS	2011-03-03 20:53:18	2011-03-03 21:15:06	00:21:48	587	325.71	633	45.22	34.30	7
64	PSR	FBS	2011-03-03 21:16:54	2011-03-03 21:21:04	00:04:10	633	51.78	633	66.98	34.30	7
65	PSM	OB1	2011-03-03 22:01:22	2011-03-03 22:03:58	00:02:36	633	213.94	633	223.42	-1.20	-
66	AV2	OBS	2011-03-03 22:02:08	2011-03-03 22:04:02	00:01:54	633	216.74	633	223.67	0.00	-
67	PSM	OB1	2011-03-03 22:10:22	2011-03-03 22:17:52	00:07:30	633	246.76	633	274.11	-1.20	-
68	AV2	OBS	2011-03-03 22:11:08	2011-03-03 22:13:38	00:02:30	633	249.56	633	258.68	0.00	-
69	PSR	FBS	2011-03-03 22:41:50	2011-03-03 22:43:42	00:01:52	8	1.52	8	8.33	34.30	7
70	PSR	FBS	2011-03-03 22:50:12	2011-03-03 22:56:34	00:06:22	8	31.97	8	55.19	34.30	7
71	PSR	FBS	2011-03-03 23:31:26	2011-03-03 23:34:48	00:03:22	8	182.40	8	194.68	34.30	7
72	AV2	OBS	2011-03-03 23:32:18	2011-03-03 23:34:26	00:02:08	8	185.50	8	193.28	0.00	-
73	PSM	OB2	2011-03-03 23:32:18	2011-03-03 23:35:12	00:02:54	8	185.50	8	196.07	0.00	-
74	PSM	OB1	2011-03-03 23:48:02	2011-03-03 23:56:36	00:08:34	8	242.87	8	274.11	-1.20	-
75	AV2	OBS	2011-03-03 23:48:49	2011-03-03 23:53:11	00:04:22	8	245.79	8	261.71	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
35	-18.53494	2011-03-02 23:39:21	149.12527	2011-03-03 00:28:42
81	-43.21453	2011-03-03 01:18:04	124.44568	2011-03-03 02:07:25
127	-67.89411	2011-03-03 02:56:47	99.76610	2011-03-03 03:46:08
173	-92.57369	2011-03-03 04:35:30	75.08652	2011-03-03 05:24:52
219	-117.25327	2011-03-03 06:14:13	50.40693	2011-03-03 07:03:35
265	-141.93286	2011-03-03 07:52:56	25.72735	2011-03-03 08:42:18
311	-166.61244	2011-03-03 09:31:39	1.04777	2011-03-03 10:21:01
357	168.70798	2011-03-03 11:10:22	-23.63181	2011-03-03 11:59:44
403	144.02839	2011-03-03 12:49:06	-48.31140	2011-03-03 13:38:27
449	119.34881	2011-03-03 14:27:49	-72.99098	2011-03-03 15:17:10
495	94.66923	2011-03-03 16:06:32	-97.67056	2011-03-03 16:55:53
541	69.98965	2011-03-03 17:45:15	-122.35014	2011-03-03 18:34:36
587	45.31006	2011-03-03 19:23:58	-147.02973	2011-03-03 20:13:19
633	20.63048	2011-03-03 21:02:41	-171.70931	2011-03-03 21:52:03
8	-4.04910	2011-03-03 22:41:24	163.61111	2011-03-03 23:30:46
