>ALOS Data Take Simulation(Feb. 28, 2011)

Observation Area

PRISM

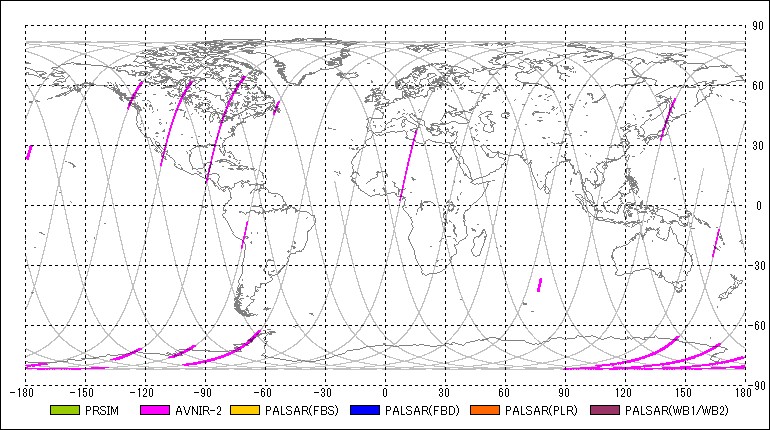

AVNIR-2

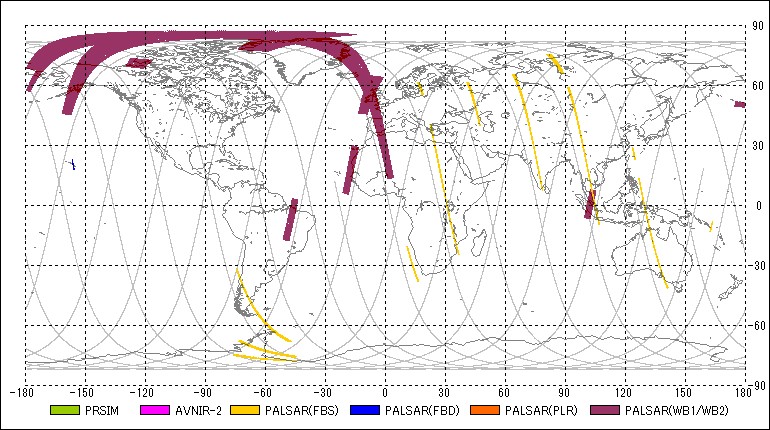

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	AV2	OBS	2011-02-28 01:29:01	2011-02-28 01:34:51	00:05:50	70	125.93	70	147.21	0.00	-
2	PSR	WB1	2011-02-28 03:20:08	2011-02-28 03:24:40	00:04:32	116	171.21	116	187.75	27.10	80
3	PSR	FBS	2011-02-28 03:51:44	2011-02-28 04:03:02	00:11:18	116	286.39	116	327.60	34.30	7
4	AV2	OBS	2011-02-28 05:11:04	2011-02-28 05:12:56	00:01:52	162	215.70	162	222.51	34.30	-
5	PSR	FBS	2011-02-28 05:27:23	2011-02-28 05:31:15	00:03:52	162	275.21	162	289.31	34.30	7
6	PSR	FBS	2011-02-28 07:04:29	2011-02-28 07:07:15	00:02:46	208	269.31	208	279.40	34.30	7
7	PSR	FBD	2011-02-28 09:12:05	2011-02-28 09:14:11	00:02:06	300	14.65	300	22.31	50.80	53
8	PSM	OB1	2011-02-28 09:45:34	2011-02-28 09:48:10	00:02:36	300	136.75	300	146.23	-1.20	-
9	AV2	OBS	2011-02-28 09:47:08	2011-02-28 09:56:52	00:09:44	300	142.41	300	177.90	0.00	-
10	PSR	WB1	2011-02-28 11:17:57	2011-02-28 11:23:52	00:05:55	346	113.66	346	135.23	27.10	80
11	PSR	WB1	2011-02-28 11:27:46	2011-02-28 11:34:54	00:07:08	346	149.39	346	175.41	27.10	80
12	PSR	WB1	2011-02-28 13:13:43	2011-02-28 13:20:03	00:06:20	392	175.83	392	198.93	27.10	80
13	AV2	OBS	2011-02-28 13:32:17	2011-02-28 13:37:51	00:05:34	392	243.54	392	263.84	0.00	-
14	PSR	FBS	2011-02-28 13:52:02	2011-02-28 14:07:56	00:15:54	392	315.56	438	13.55	34.30	7
15	PSR	FBS	2011-02-28 14:09:54	2011-02-28 14:12:10	00:02:16	438	20.73	438	28.99	34.30	7
16	PSM	OB1	2011-02-28 14:38:23	2011-02-28 14:41:47	00:03:24	438	124.60	438	137.00	-1.20	-
17	AV2	OBS	2011-02-28 14:39:09	2011-02-28 14:41:01	00:01:52	438	127.39	438	134.20	0.00	-
18	AV2	OBS	2011-02-28 14:55:44	2011-02-28 14:59:33	00:03:49	438	187.87	438	201.79	0.00	-
19	AV2	OBS	2011-02-28 15:13:16	2011-02-28 15:15:10	00:01:54	438	251.75	438	258.68	0.00	-
20	AV2	OBS	2011-02-28 15:17:17	2011-02-28 15:19:09	00:01:52	438	266.39	438	273.20	0.00	-
21	PSR	FBS	2011-02-28 15:39:35	2011-02-28 15:59:11	00:19:36	438	347.78	484	59.26	34.30	7
22	PSR	FBS	2011-02-28 16:00:31	2011-02-28 16:03:57	00:03:26	484	64.06	484	76.58	34.30	7
23	PSR	WB1	2011-02-28 16:08:36	2011-02-28 16:11:02	00:02:26	484	93.60	484	102.47	27.10	80
24	AV2	OBS	2011-02-28 16:14:22	2011-02-28 16:29:06	00:14:44	484	114.57	484	168.30	0.00	-
25	PSM	OB1	2011-02-28 16:51:44	2011-02-28 16:58:02	00:06:18	484	250.90	484	273.87	-1.20	-
26	AV2	OBS	2011-02-28 16:52:25	2011-02-28 16:54:17	00:01:52	484	253.39	484	260.19	0.00	-
27	PSR	FBS	2011-02-28 17:22:58	2011-02-28 17:39:46	00:16:48	530	4.80	530	66.07	34.30	7
28	PSM	OB1	2011-02-28 17:53:05	2011-02-28 18:05:37	00:12:32	530	114.57	530	160.27	-1.20	-
29	AV2	OBS	2011-02-28 17:53:49	2011-02-28 18:05:35	00:11:46	530	117.24	530	160.15	0.00	-
30	PSM	OB1	2011-02-28 18:31:49	2011-02-28 18:36:51	00:05:02	530	255.82	530	274.17	-1.20	-
31	AV2	OBS	2011-02-28 18:33:40	2011-02-28 18:36:04	00:02:24	530	262.63	530	271.38	0.00	-
32	PSR	FBS	2011-02-28 19:10:46	2011-02-28 19:17:24	00:06:38	576	37.93	576	62.12	34.30	7
33	PSR	WB1	2011-02-28 19:29:05	2011-02-28 19:30:57	00:01:52	576	104.66	576	111.47	27.10	80
34	PSM	OB1	2011-02-28 19:31:48	2011-02-28 19:36:56	00:05:08	576	114.57	576	133.29	-1.20	-
35	AV2	OBS	2011-02-28 19:32:34	2011-02-28 19:36:26	00:03:52	576	117.36	576	131.46	0.00	-
36	PSM	OB1	2011-02-28 20:10:31	2011-02-28 20:15:29	00:04:58	576	255.82	576	273.93	-1.20	-
37	AV2	OBS	2011-02-28 20:11:14	2011-02-28 20:15:28	00:04:14	576	258.37	576	273.81	0.00	-
38	PSR	FBS	2011-02-28 20:31:40	2011-02-28 20:50:16	00:18:36	576	332.89	622	40.72	34.30	7
39	PSR	FBS	2011-02-28 20:53:47	2011-02-28 20:56:07	00:02:20	622	53.55	622	62.06	34.30	7
40	PSR	WB1	2011-02-28 21:02:15	2011-02-28 21:16:12	00:13:57	622	84.42	622	135.29	27.10	80
41	PSM	OB1	2011-02-28 21:47:03	2011-02-28 21:54:17	00:07:14	622	247.80	622	274.17	-1.20	-
42	AV2	OBS	2011-02-28 21:47:48	2011-02-28 21:53:30	00:05:42	622	250.59	622	271.38	0.00	-
43	PSR	FBS	2011-02-28 22:06:36	2011-02-28 22:12:10	00:05:34	622	319.09	622	339.39	34.30	7
44	PSR	WB1	2011-02-28 22:20:57	2011-02-28 22:53:55	00:32:58	668	11.43	668	131.65	27.10	80
45	AV2	OBS	2011-02-28 22:58:33	2011-02-28 23:00:25	00:01:52	668	148.54	668	155.35	41.50	-
46	PSR	FBS	2011-02-28 23:09:12	2011-02-28 23:11:12	00:02:00	668	187.38	668	194.68	34.30	7
47	PSM	OB1	2011-02-28 23:09:51	2011-02-28 23:14:13	00:04:22	668	189.75	668	205.68	-1.20	-
48	AV2	OBS	2011-02-28 23:10:30	2011-02-28 23:14:14	00:03:44	668	192.12	668	205.74	0.00	-
49	PSM	OB1	2011-02-28 23:24:42	2011-02-28 23:32:14	00:07:32	668	243.91	668	271.38	-1.20	-
50	AV2	OBS	2011-02-28 23:25:29	2011-02-28 23:30:29	00:05:00	668	246.76	668	265.00	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
24	-12.63330	2011-02-27 23:15:44	155.02690	2011-02-28 00:05:06
70	-37.31289	2011-02-28 00:54:27	130.34732	2011-02-28 01:43:49
116	-61.99247	2011-02-28 02:33:11	105.66774	2011-02-28 03:22:32
162	-86.67205	2011-02-28 04:11:54	80.98816	2011-02-28 05:01:15
208	-111.35163	2011-02-28 05:50:37	56.30857	2011-02-28 06:39:58
254	-136.03122	2011-02-28 07:29:20	31.62899	2011-02-28 08:18:41
300	-160.71080	2011-02-28 09:08:03	6.94941	2011-02-28 09:57:24
346	174.60962	2011-02-28 10:46:46	-17.73017	2011-02-28 11:36:08
392	149.93003	2011-02-28 12:25:29	-42.40976	2011-02-28 13:14:51
438	125.25045	2011-02-28 14:04:12	-67.08934	2011-02-28 14:53:34
484	100.57087	2011-02-28 15:42:55	-91.76892	2011-02-28 16:32:17
530	75.89129	2011-02-28 17:21:38	-116.44851	2011-02-28 18:11:00
576	51.21170	2011-02-28 19:00:22	-141.12809	2011-02-28 19:49:43
622	26.53212	2011-02-28 20:39:05	-165.80767	2011-02-28 21:28:26
668	1.85254	2011-02-28 22:17:48	169.51275	2011-02-28 23:07:09
43	-22.82704	2011-02-28 23:56:31	144.83316	2011-03-01 00:45:52
