>ALOS Data Take Simulation(Feb. 27, 2011)

Observation Area

PRISM

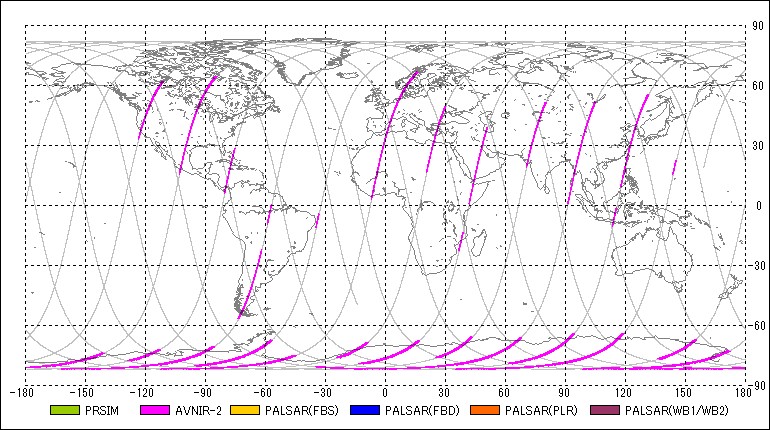

AVNIR-2

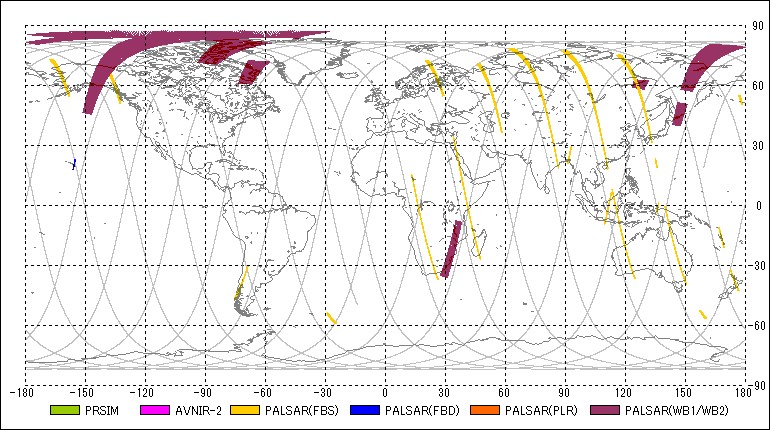

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2011-02-27 00:36:30	2011-02-27 00:47:31	00:11:01	51	83.15	51	123.32	27.10	80
2	PSR	WB1	2011-02-27 00:48:41	2011-02-27 00:52:21	00:03:40	51	127.58	51	140.95	27.10	80
3	AV2	OBS	2011-02-27 00:56:54	2011-02-27 00:58:46	00:01:52	51	157.54	51	164.35	0.00	-
4	PSM	OB2	2011-02-27 00:56:54	2011-02-27 00:58:46	00:01:52	51	157.54	51	164.35	0.00	-
5	PSR	FBS	2011-02-27 01:02:28	2011-02-27 01:04:28	00:02:00	51	177.84	51	185.13	34.30	7
6	PSM	OB2	2011-02-27 01:03:16	2011-02-27 01:13:22	00:10:06	51	180.76	51	217.59	0.00	-
7	PSM	OB1	2011-02-27 01:20:13	2011-02-27 01:23:01	00:02:48	51	242.57	51	252.78	-1.20	-
8	AV2	OBS	2011-02-27 01:20:55	2011-02-27 01:28:07	00:07:12	51	245.12	51	271.38	0.00	-
9	PSR	FBS	2011-02-27 01:35:02	2011-02-27 01:37:18	00:02:16	51	296.60	51	304.87	34.30	7
10	PSR	WB1	2011-02-27 02:24:07	2011-02-27 02:25:57	00:01:50	97	115.60	97	122.29	27.10	80
11	AV2	OBS	2011-02-27 02:26:25	2011-02-27 02:39:15	00:12:50	97	123.99	97	170.79	0.00	-
12	PSM	OB2	2011-02-27 02:34:18	2011-02-27 02:37:56	00:03:38	97	152.74	97	165.99	0.00	-
13	PSR	FBS	2011-02-27 02:39:43	2011-02-27 02:44:53	00:05:10	97	172.49	97	191.33	34.30	7
14	AV2	OBS	2011-02-27 02:42:05	2011-02-27 02:44:43	00:02:38	97	181.12	97	190.72	0.00	-
15	PSM	OB2	2011-02-27 02:42:11	2011-02-27 02:45:27	00:03:16	97	181.49	97	193.40	0.00	-
16	PSM	OB1	2011-02-27 02:58:53	2011-02-27 03:05:21	00:06:28	97	242.39	97	265.97	-1.20	-
17	AV2	OBS	2011-02-27 02:59:36	2011-02-27 03:04:28	00:04:52	97	244.94	97	262.69	0.00	-
18	AV2	OBS	2011-02-27 04:06:10	2011-02-27 04:20:15	00:14:05	143	127.70	143	179.05	0.00	-
19	PSM	OB2	2011-02-27 04:08:35	2011-02-27 04:19:31	00:10:56	143	136.57	143	176.44	0.00	-
20	PSR	FBS	2011-02-27 04:12:02	2011-02-27 04:15:10	00:03:08	143	149.09	143	160.52	34.30	7
21	PSM	OB1	2011-02-27 04:38:09	2011-02-27 04:42:51	00:04:42	143	244.39	143	261.53	-1.20	-
22	AV2	OBS	2011-02-27 04:38:55	2011-02-27 04:46:27	00:07:32	143	247.19	143	274.66	0.00	-
23	PSM	OB1	2011-02-27 05:44:10	2011-02-27 05:54:50	00:10:40	189	125.08	189	163.98	-1.20	-
24	AV2	OBS	2011-02-27 05:44:57	2011-02-27 05:54:03	00:09:06	189	127.94	189	161.13	0.00	-
25	PSM	OB1	2011-02-27 06:16:53	2011-02-27 06:21:49	00:04:56	189	244.39	189	262.38	-1.20	-
26	AV2	OBS	2011-02-27 06:17:35	2011-02-27 06:20:49	00:03:14	189	246.95	189	258.74	0.00	-
27	PSR	FBS	2011-02-27 07:02:00	2011-02-27 07:08:30	00:06:30	235	48.93	235	72.63	34.30	7
28	PSM	OB1	2011-02-27 07:26:30	2011-02-27 07:39:26	00:12:56	235	138.27	235	185.44	-1.20	-
29	AV2	OBS	2011-02-27 07:27:13	2011-02-27 07:37:45	00:10:32	235	140.95	235	179.36	0.00	-
30	PSR	WB1	2011-02-27 07:39:54	2011-02-27 07:48:12	00:08:18	235	187.14	235	217.41	27.10	80
31	PSM	OB1	2011-02-27 07:41:33	2011-02-27 07:44:19	00:02:46	235	193.22	235	203.31	-1.20	-
32	AV2	OBS	2011-02-27 07:41:40	2011-02-27 07:44:08	00:02:28	235	193.64	235	202.64	0.00	-
33	AV2	OBS	2011-02-27 07:56:52	2011-02-27 08:00:40	00:03:48	235	249.01	235	262.87	0.00	-
34	PSR	FBS	2011-02-27 08:41:39	2011-02-27 08:47:33	00:05:54	281	52.33	281	73.85	34.30	7
35	AV2	OBS	2011-02-27 09:02:59	2011-02-27 09:12:07	00:09:08	281	130.19	281	163.50	0.00	-
36	PSM	OB1	2011-02-27 09:04:08	2011-02-27 09:20:30	00:16:22	281	134.32	281	194.01	-1.20	-
37	AV2	OBS	2011-02-27 09:35:50	2011-02-27 09:38:14	00:02:24	281	249.98	281	258.74	0.00	-
38	PSR	FBS	2011-02-27 10:19:17	2011-02-27 10:21:13	00:01:56	327	48.44	327	55.49	34.30	7
39	AV2	OBS	2011-02-27 10:36:44	2011-02-27 10:54:32	00:17:48	327	112.08	327	176.99	0.00	-
40	PSM	OB2	2011-02-27 10:43:21	2011-02-27 10:45:13	00:01:52	327	136.14	327	142.95	0.00	-
41	AV2	OBS	2011-02-27 11:16:35	2011-02-27 11:20:25	00:03:50	327	257.34	327	271.32	0.00	-
42	PSR	FBS	2011-02-27 11:32:07	2011-02-27 11:35:49	00:03:42	327	314.05	327	327.54	34.30	7
43	PSR	FBS	2011-02-27 11:38:10	2011-02-27 11:41:40	00:03:30	327	336.05	327	348.81	34.30	7
44	PSM	OB1	2011-02-27 12:34:30	2011-02-27 12:37:10	00:02:40	373	181.49	373	191.21	-1.20	-
45	AV2	OBS	2011-02-27 12:35:16	2011-02-27 12:37:08	00:01:52	373	184.28	373	191.09	0.00	-
46	PSM	OB1	2011-02-27 12:52:11	2011-02-27 12:56:27	00:04:16	373	245.97	373	261.53	-1.20	-
47	AV2	OBS	2011-02-27 12:52:53	2011-02-27 12:57:19	00:04:26	373	248.59	373	264.75	0.00	-
48	PSR	FBS	2011-02-27 13:06:49	2011-02-27 13:08:41	00:01:52	373	299.34	373	306.14	34.30	7
49	PSR	FBS	2011-02-27 13:11:49	2011-02-27 13:23:15	00:11:26	373	317.57	373	359.26	34.30	7
50	PSR	FBS	2011-02-27 13:28:00	2011-02-27 13:29:52	00:01:52	419	16.59	419	23.40	34.30	7
51	PSR	FBS	2011-02-27 13:31:27	2011-02-27 13:44:21	00:12:54	419	29.17	419	76.22	34.30	7
52	AV2	OBS	2011-02-27 14:12:39	2011-02-27 14:15:27	00:02:48	419	179.42	419	189.63	0.00	-
53	AV2	OBS	2011-02-27 14:18:55	2011-02-27 14:28:35	00:09:40	419	202.27	419	237.52	0.00	-
54	PSR	FBS	2011-02-27 14:20:57	2011-02-27 14:26:21	00:05:24	419	209.69	419	229.38	34.30	7
55	PSM	OB1	2011-02-27 14:31:53	2011-02-27 14:35:09	00:03:16	419	249.56	419	261.47	-1.20	-
56	AV2	OBS	2011-02-27 14:32:36	2011-02-27 14:37:52	00:05:16	419	252.17	419	271.38	0.00	-
57	PSR	FBS	2011-02-27 14:51:18	2011-02-27 15:04:20	00:13:02	419	320.37	465	7.90	34.30	7
58	PSR	FBS	2011-02-27 15:06:30	2011-02-27 15:23:38	00:17:08	465	15.80	465	78.28	34.30	7
59	PSR	WB1	2011-02-27 15:31:09	2011-02-27 15:35:03	00:03:54	465	105.69	465	119.92	27.10	80
60	AV2	OBS	2011-02-27 15:43:43	2011-02-27 15:49:59	00:06:16	465	151.52	465	174.37	0.00	-
61	PSM	OB1	2011-02-27 16:11:03	2011-02-27 16:13:53	00:02:50	465	251.20	465	261.53	-1.20	-
62	AV2	OBS	2011-02-27 16:11:49	2011-02-27 16:13:41	00:01:52	465	254.00	465	260.80	0.00	-
63	PSR	FBS	2011-02-27 16:45:19	2011-02-27 17:02:45	00:17:26	511	16.11	511	79.68	34.30	7
64	PSR	WB1	2011-02-27 17:06:51	2011-02-27 17:10:56	00:04:05	511	94.69	511	109.58	27.10	80
65	AV2	OBS	2011-02-27 17:12:14	2011-02-27 17:25:58	00:13:44	511	114.33	511	164.41	0.00	-
66	AV2	OBS	2011-02-27 17:51:02	2011-02-27 17:55:24	00:04:22	511	255.82	511	271.74	0.00	-
67	PSR	FBS	2011-02-27 18:29:02	2011-02-27 18:39:12	00:10:10	557	34.40	557	71.48	34.30	7
68	PSM	OB1	2011-02-27 18:51:01	2011-02-27 18:59:57	00:08:56	557	114.57	557	147.15	-1.20	-
69	AV2	OBS	2011-02-27 18:51:46	2011-02-27 18:59:52	00:08:06	557	117.30	557	146.84	0.00	-
70	PSM	OB1	2011-02-27 19:32:05	2011-02-27 19:34:43	00:02:38	557	264.33	557	273.93	-1.20	-
71	AV2	OBS	2011-02-27 19:32:48	2011-02-27 19:34:40	00:01:52	557	266.94	557	273.75	0.00	-
72	PSR	FBS	2011-02-27 19:50:08	2011-02-27 20:07:44	00:17:36	557	330.15	603	34.34	34.30	7
73	PSR	FBS	2011-02-27 20:12:46	2011-02-27 20:18:24	00:05:38	603	52.70	603	73.24	34.30	7
74	PSR	WB1	2011-02-27 20:22:04	2011-02-27 20:35:23	00:13:19	603	86.61	603	135.17	27.10	80
75	PSR	FBD	2011-02-27 20:41:06	2011-02-27 20:43:06	00:02:00	603	156.02	603	163.31	34.30	43
76	PSM	OB1	2011-02-27 21:07:32	2011-02-27 21:12:28	00:04:56	603	252.35	603	270.34	-1.20	-
77	AV2	OBS	2011-02-27 21:08:09	2011-02-27 21:12:45	00:04:36	603	254.66	603	271.44	0.00	-
78	PSR	FBS	2011-02-27 21:26:03	2011-02-27 21:41:13	00:15:10	603	319.94	649	15.26	34.30	7
79	AV2	OBS	2011-02-27 22:45:09	2011-02-27 22:48:13	00:03:04	649	248.34	649	259.53	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
5	-2.43956	2011-02-26 22:34:58	165.22065	2011-02-26 23:24:19
51	-27.11915	2011-02-27 00:13:41	140.54106	2011-02-27 01:03:02
97	-51.79873	2011-02-27 01:52:24	115.86148	2011-02-27 02:41:46
143	-76.47831	2011-02-27 03:31:07	91.18190	2011-02-27 04:20:29
189	-101.15789	2011-02-27 05:09:50	66.50231	2011-02-27 05:59:12
235	-125.83748	2011-02-27 06:48:33	41.82273	2011-02-27 07:37:55
281	-150.51706	2011-02-27 08:27:16	17.14315	2011-02-27 09:16:38
327	-175.19664	2011-02-27 10:06:00	-7.53643	2011-02-27 10:55:21
373	160.12377	2011-02-27 11:44:43	-32.21602	2011-02-27 12:34:04
419	135.44419	2011-02-27 13:23:26	-56.89560	2011-02-27 14:12:47
465	110.76461	2011-02-27 15:02:09	-81.57518	2011-02-27 15:51:30
511	86.08503	2011-02-27 16:40:52	-106.25476	2011-02-27 17:30:13
557	61.40544	2011-02-27 18:19:35	-130.93435	2011-02-27 19:08:57
603	36.72586	2011-02-27 19:58:18	-155.61393	2011-02-27 20:47:40
649	12.04628	2011-02-27 21:37:01	179.70649	2011-02-27 22:26:23
24	-12.63330	2011-02-27 23:15:44	155.02690	2011-02-28 00:05:06
