>ALOS Data Take Simulation(Feb. 16, 2011)

Observation Area

PRISM

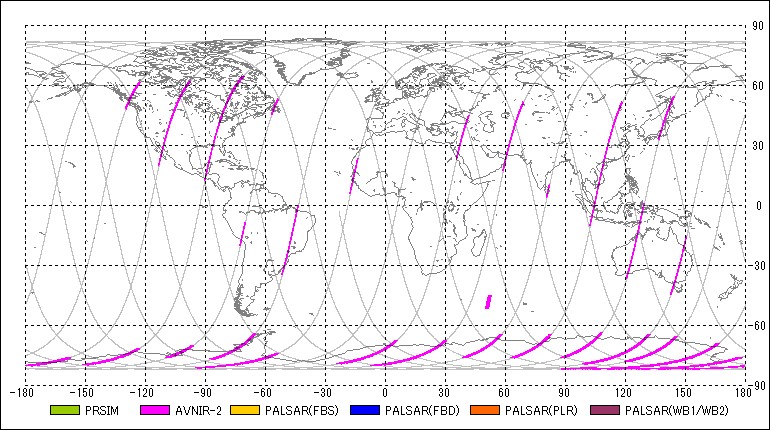

AVNIR-2

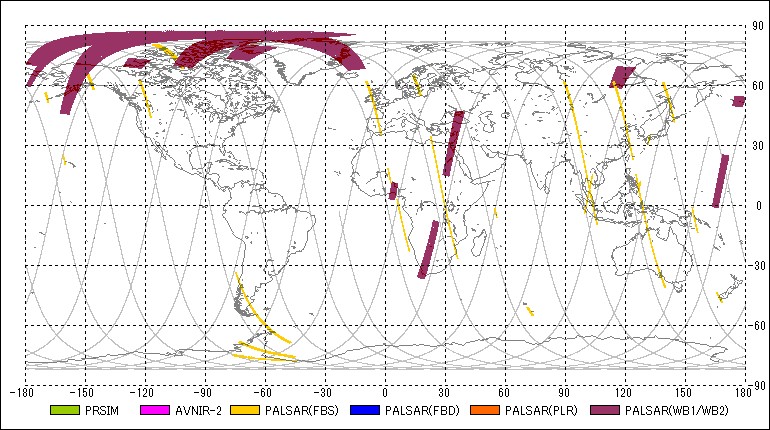

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB2	2011-02-16 00:09:44	2011-02-16 00:22:06	00:12:22	26	181.18	26	226.28	0.00	-
2	AV2	OBS	2011-02-16 00:13:41	2011-02-16 00:21:47	00:08:06	26	195.59	26	225.13	0.00	-
3	PSM	OB1	2011-02-16 00:26:40	2011-02-16 00:35:12	00:08:32	26	242.93	26	274.05	-1.20	-
4	AV2	OBS	2011-02-16 00:27:23	2011-02-16 00:32:11	00:04:48	26	245.55	26	263.05	0.00	-
5	AV2	OBS	2011-02-16 01:33:01	2011-02-16 01:39:05	00:06:04	72	124.90	72	147.02	0.00	-
6	PSM	OB2	2011-02-16 01:33:02	2011-02-16 01:39:48	00:06:46	72	124.96	72	149.64	0.00	-
7	PSR	FBS	2011-02-16 01:38:14	2011-02-16 01:40:12	00:01:58	72	143.92	72	151.10	34.30	7
8	PSR	FBS	2011-02-16 01:44:38	2011-02-16 01:46:36	00:01:58	72	167.26	72	174.44	34.30	7
9	PSM	OB2	2011-02-16 01:47:04	2011-02-16 01:59:04	00:12:00	72	176.14	72	219.90	0.00	-
10	AV2	OBS	2011-02-16 01:47:55	2011-02-16 01:58:17	00:10:22	72	179.24	72	217.04	0.00	-
11	PSM	OB1	2011-02-16 02:05:10	2011-02-16 02:13:56	00:08:46	72	242.14	72	274.11	-1.20	-
12	AV2	OBS	2011-02-16 02:05:53	2011-02-16 02:09:43	00:03:50	72	244.76	72	258.74	0.00	-
13	PSR	WB1	2011-02-16 03:07:20	2011-02-16 03:10:56	00:03:36	118	108.86	118	121.98	27.10	80
14	AV2	OBS	2011-02-16 03:12:30	2011-02-16 03:29:41	00:17:11	118	127.70	118	190.36	0.00	-
15	PSM	OB2	2011-02-16 03:12:32	2011-02-16 03:30:10	00:17:38	118	127.76	118	192.06	0.00	-
16	PSR	FBS	2011-02-16 03:22:21	2011-02-16 03:28:25	00:06:04	118	163.62	118	185.74	34.30	7
17	PSM	OB1	2011-02-16 03:44:15	2011-02-16 03:49:53	00:05:38	118	243.42	118	263.96	-1.20	-
18	AV2	OBS	2011-02-16 03:44:53	2011-02-16 03:48:27	00:03:34	118	245.79	118	258.80	0.00	-
19	PSR	FBS	2011-02-16 03:55:48	2011-02-16 04:06:54	00:11:06	118	285.60	118	326.08	34.30	7
20	PSR	FBS	2011-02-16 04:34:34	2011-02-16 04:38:36	00:04:02	164	66.98	164	81.69	34.30	7
21	PSM	OB1	2011-02-16 04:50:28	2011-02-16 05:05:00	00:14:32	164	124.96	164	177.96	-1.20	-
22	AV2	OBS	2011-02-16 05:02:38	2011-02-16 05:04:30	00:01:52	164	169.33	164	176.14	0.00	-
23	AV2	OBS	2011-02-16 05:23:32	2011-02-16 05:27:08	00:03:36	164	245.55	164	258.68	0.00	-
24	PSM	OB1	2011-02-16 05:27:36	2011-02-16 05:30:38	00:03:02	164	260.38	164	271.44	-1.20	-
25	PSR	FBS	2011-02-16 05:31:37	2011-02-16 05:35:21	00:03:44	164	275.02	164	288.64	34.30	7
26	PSR	FBS	2011-02-16 06:06:23	2011-02-16 06:12:15	00:05:52	210	41.82	210	63.21	34.30	7
27	PSM	OB1	2011-02-16 06:29:14	2011-02-16 06:39:32	00:10:18	210	125.08	210	162.64	-1.20	-
28	AV2	OBS	2011-02-16 06:29:58	2011-02-16 06:39:32	00:09:34	210	127.76	210	162.64	0.00	-
29	AV2	OBS	2011-02-16 06:56:28	2011-02-16 06:58:20	00:01:52	210	224.40	210	231.20	41.50	-
30	PSM	OB1	2011-02-16 07:02:26	2011-02-16 07:06:48	00:04:22	210	246.15	210	262.08	-1.20	-
31	AV2	OBS	2011-02-16 07:03:12	2011-02-16 07:07:30	00:04:18	210	248.95	210	264.63	0.00	-
32	PSR	FBS	2011-02-16 07:08:40	2011-02-16 07:11:30	00:02:50	210	268.95	210	279.28	34.30	7
33	PSR	FBS	2011-02-16 07:48:56	2011-02-16 07:52:40	00:03:44	256	55.80	256	69.41	34.30	7
34	PSR	WB1	2011-02-16 08:09:47	2011-02-16 08:19:17	00:09:30	256	131.77	256	166.41	27.10	80
35	AV2	OBS	2011-02-16 08:10:31	2011-02-16 08:16:41	00:06:10	256	134.50	256	156.99	0.00	-
36	PSM	OB1	2011-02-16 08:12:39	2011-02-16 08:17:25	00:04:46	256	142.28	256	159.67	-1.20	-
37	PSR	WB1	2011-02-16 08:24:59	2011-02-16 08:33:27	00:08:28	256	187.20	256	218.07	27.10	80
38	AV2	OBS	2011-02-16 08:41:54	2011-02-16 08:45:42	00:03:48	256	248.95	256	262.81	0.00	-
39	PSR	FBS	2011-02-16 09:17:15	2011-02-16 09:19:07	00:01:52	302	17.81	302	24.62	41.50	10
40	PSR	FBS	2011-02-16 09:25:58	2011-02-16 09:27:54	00:01:56	302	49.60	302	56.65	34.30	7
41	PSM	OB1	2011-02-16 09:55:51	2011-02-16 10:01:43	00:05:52	302	158.57	302	179.97	-1.20	-
42	PSR	WB1	2011-02-16 09:58:23	2011-02-16 10:01:15	00:02:52	302	167.81	302	178.26	27.10	80
43	PSM	OB1	2011-02-16 10:22:33	2011-02-16 10:27:31	00:04:58	302	255.94	302	274.05	-1.20	-
44	AV2	OBS	2011-02-16 11:34:02	2011-02-16 11:38:54	00:04:52	348	156.63	348	174.37	0.00	-
45	PSM	OB1	2011-02-16 11:34:33	2011-02-16 11:38:23	00:03:50	348	158.51	348	172.49	-1.20	-
46	PSM	OB1	2011-02-16 12:00:33	2011-02-16 12:06:15	00:05:42	348	253.39	348	274.17	-1.20	-
47	AV2	OBS	2011-02-16 12:01:20	2011-02-16 12:04:18	00:02:58	348	256.18	348	267.00	0.00	-
48	PSR	FBS	2011-02-16 12:15:32	2011-02-16 12:17:38	00:02:06	348	307.97	348	315.63	34.30	7
49	PSR	FBS	2011-02-16 12:25:24	2011-02-16 12:29:30	00:04:06	348	343.95	348	358.90	34.30	7
50	PSR	FBS	2011-02-16 12:40:33	2011-02-16 12:46:49	00:06:16	394	39.20	394	62.06	34.30	7
51	AV2	OBS	2011-02-16 13:19:09	2011-02-16 13:28:45	00:09:36	394	179.97	394	214.98	0.00	-
52	PSM	OB1	2011-02-16 13:36:43	2011-02-16 13:45:05	00:08:22	394	244.03	394	274.54	-1.20	-
53	AV2	OBS	2011-02-16 13:37:02	2011-02-16 13:41:02	00:04:00	394	245.18	394	259.77	0.00	-
54	PSR	FBS	2011-02-16 13:56:27	2011-02-16 14:12:41	00:16:14	394	315.99	440	15.19	34.30	7
55	PSR	FBS	2011-02-16 14:14:06	2011-02-16 14:25:34	00:11:28	440	20.36	440	62.18	34.30	7
56	PSM	OB1	2011-02-16 14:42:24	2011-02-16 14:46:04	00:03:40	440	123.56	440	136.94	-1.20	-
57	AV2	OBS	2011-02-16 14:43:07	2011-02-16 14:45:19	00:02:12	440	126.18	440	134.20	0.00	-
58	AV2	OBS	2011-02-16 15:00:14	2011-02-16 15:03:28	00:03:14	440	188.60	440	200.39	0.00	-
59	PSM	OB1	2011-02-16 15:00:49	2011-02-16 15:04:05	00:03:16	440	190.72	440	202.64	-1.20	-
60	PSM	OB1	2011-02-16 15:16:48	2011-02-16 15:23:42	00:06:54	440	249.01	440	274.17	-1.20	-
61	AV2	OBS	2011-02-16 15:17:33	2011-02-16 15:19:27	00:01:54	440	251.75	440	258.68	0.00	-
62	PSR	FBS	2011-02-16 15:43:57	2011-02-16 16:04:19	00:20:22	440	348.02	486	62.30	34.30	7
63	PSR	WB1	2011-02-16 16:14:02	2011-02-16 16:16:38	00:02:36	486	97.73	486	107.21	27.10	80
64	AV2	OBS	2011-02-16 16:18:35	2011-02-16 16:33:13	00:14:38	486	114.33	486	167.69	0.00	-
65	PSM	OB1	2011-02-16 16:56:00	2011-02-16 17:02:20	00:06:20	486	250.77	486	273.87	-1.20	-
66	AV2	OBS	2011-02-16 16:56:43	2011-02-16 16:59:33	00:02:50	486	253.39	486	263.72	0.00	-
67	PSR	WB1	2011-02-16 17:51:34	2011-02-16 17:56:25	00:04:51	532	93.42	532	111.10	27.10	80
68	PSM	OB1	2011-02-16 17:57:21	2011-02-16 18:09:49	00:12:28	532	114.51	532	159.97	-1.20	-
69	AV2	OBS	2011-02-16 17:58:08	2011-02-16 18:09:50	00:11:42	532	117.30	532	159.97	0.00	-
70	PSM	OB1	2011-02-16 18:36:19	2011-02-16 18:41:07	00:04:48	532	256.61	532	274.11	-1.20	-
71	AV2	OBS	2011-02-16 18:36:52	2011-02-16 18:40:24	00:03:32	532	258.61	532	271.50	0.00	-
72	PSR	FBS	2011-02-16 18:48:32	2011-02-16 18:50:24	00:01:52	532	301.16	532	307.97	34.30	7
73	PSR	FBS	2011-02-16 19:02:18	2011-02-16 19:04:10	00:01:52	532	351.36	532	358.17	34.30	7
74	PSR	WB1	2011-02-16 19:33:22	2011-02-16 19:35:14	00:01:52	578	104.66	578	111.47	27.10	80
75	PSM	OB1	2011-02-16 19:36:06	2011-02-16 19:40:58	00:04:52	578	114.57	578	132.32	-1.20	-
76	AV2	OBS	2011-02-16 19:36:52	2011-02-16 19:40:44	00:03:52	578	117.36	578	131.46	0.00	-
77	PSM	OB1	2011-02-16 20:14:45	2011-02-16 20:19:47	00:05:02	578	255.58	578	273.93	-1.20	-
78	AV2	OBS	2011-02-16 20:15:32	2011-02-16 20:19:42	00:04:10	578	258.43	578	273.63	0.00	-
79	PSR	FBS	2011-02-16 20:35:18	2011-02-16 20:52:54	00:17:36	578	330.52	624	34.70	34.30	7
80	PSR	FBS	2011-02-16 20:57:52	2011-02-16 21:01:20	00:03:28	624	52.76	624	65.40	34.30	7
81	PSR	WB1	2011-02-16 21:06:30	2011-02-16 21:20:28	00:13:58	624	84.30	624	135.23	27.10	80
82	PSM	OB1	2011-02-16 21:51:17	2011-02-16 21:58:35	00:07:18	624	247.55	624	274.17	-1.20	-
83	AV2	OBS	2011-02-16 21:52:03	2011-02-16 21:57:49	00:05:46	624	250.35	624	271.38	0.00	-
84	PSR	FBS	2011-02-16 22:14:59	2011-02-16 22:22:45	00:07:46	624	334.04	670	2.37	41.50	10
85	PSR	FBS	2011-02-16 22:24:33	2011-02-16 22:27:13	00:02:40	670	8.93	670	18.66	34.30	7
86	PSR	FBS	2011-02-16 22:31:15	2011-02-16 22:39:11	00:07:56	670	33.37	670	62.30	34.30	7
87	PSR	WB1	2011-02-16 22:40:22	2011-02-16 22:58:07	00:17:45	670	66.61	670	131.34	27.10	80
88	PSR	WB1	2011-02-16 23:04:17	2011-02-16 23:12:03	00:07:46	670	153.83	670	182.15	27.10	80
89	AV2	OBS	2011-02-16 23:29:44	2011-02-16 23:33:44	00:04:00	670	246.58	670	261.17	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
26	-13.70633	2011-02-15 23:20:02	153.95388	2011-02-16 00:09:23
72	-38.38591	2011-02-16 00:58:45	129.27430	2011-02-16 01:48:06
118	-63.06549	2011-02-16 02:37:28	104.59471	2011-02-16 03:26:50
164	-87.74508	2011-02-16 04:16:11	79.91513	2011-02-16 05:05:33
210	-112.42466	2011-02-16 05:54:54	55.23555	2011-02-16 06:44:16
256	-137.10424	2011-02-16 07:33:37	30.55597	2011-02-16 08:22:59
302	-161.78383	2011-02-16 09:12:20	5.87638	2011-02-16 10:01:42
348	173.53659	2011-02-16 10:51:04	-18.80320	2011-02-16 11:40:25
394	148.85701	2011-02-16 12:29:47	-43.48278	2011-02-16 13:19:08
440	124.17743	2011-02-16 14:08:30	-68.16237	2011-02-16 14:57:51
486	99.49784	2011-02-16 15:47:13	-92.84195	2011-02-16 16:36:34
532	74.81826	2011-02-16 17:25:56	-117.52153	2011-02-16 18:15:17
578	50.13868	2011-02-16 19:04:39	-142.20111	2011-02-16 19:54:01
624	25.45910	2011-02-16 20:43:22	-166.88070	2011-02-16 21:32:44
670	0.77951	2011-02-16 22:22:05	168.43972	2011-02-16 23:11:27
