>ALOS Data Take Simulation(Jan. 13, 2011)

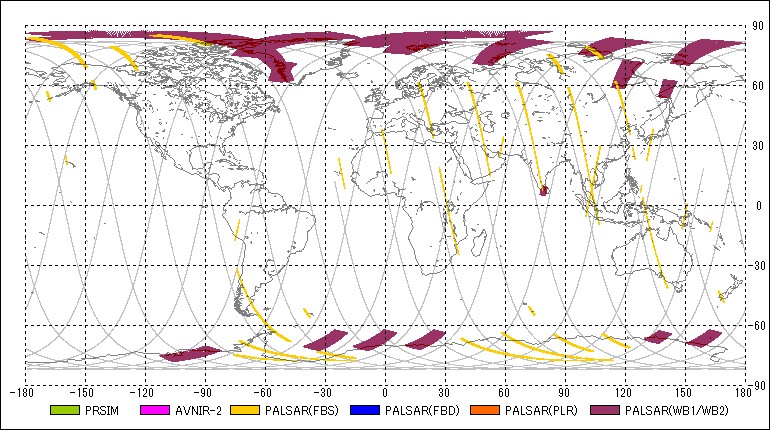

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2011-01-13 00:04:41	2011-01-13 00:08:49	00:04:08	24	178.39	24	193.46	34.30	7
2	PSM	OB2	2011-01-13 00:05:33	2011-01-13 00:18:03	00:12:30	24	181.55	24	227.13	0.00	-
3	AV2	OBS	2011-01-13 00:08:12	2011-01-13 00:17:23	00:09:11	24	191.27	24	224.76	0.00	-
4	PSR	WB1	2011-01-13 01:10:58	2011-01-13 01:24:38	00:13:40	70	60.17	70	110.01	27.10	80
5	PSR	WB1	2011-01-13 01:26:15	2011-01-13 01:29:15	00:03:00	70	115.84	70	126.78	27.10	80
6	PSM	OB1	2011-01-13 01:28:22	2011-01-13 01:32:12	00:03:50	70	123.56	70	137.54	1.20	-
7	AV2	OBS	2011-01-13 01:32:46	2011-01-13 01:38:34	00:05:48	70	139.61	70	160.76	0.00	-
8	PSR	FBS	2011-01-13 01:33:03	2011-01-13 01:38:07	00:05:04	70	140.64	70	159.12	34.30	7
9	PSR	FBS	2011-01-13 01:40:50	2011-01-13 01:42:26	00:01:36	70	169.03	70	174.86	34.30	7
10	PSM	OB2	2011-01-13 01:42:54	2011-01-13 01:54:48	00:11:54	70	176.56	70	219.96	0.00	-
11	AV2	OBS	2011-01-13 01:43:13	2011-01-13 01:55:17	00:12:04	70	177.78	70	221.78	0.00	-
12	PSR	FBS	2011-01-13 02:16:49	2011-01-13 02:18:41	00:01:52	70	300.25	70	307.06	34.30	7
13	PSR	FBS	2011-01-13 02:54:47	2011-01-13 02:57:09	00:02:22	116	78.77	116	87.40	34.30	7
14	PSR	WB1	2011-01-13 03:02:15	2011-01-13 03:06:41	00:04:26	116	105.94	116	122.10	27.10	80
15	AV2	OBS	2011-01-13 03:08:13	2011-01-13 03:25:30	00:17:17	116	127.76	116	190.79	0.00	-
16	PSM	OB2	2011-01-13 03:08:14	2011-01-13 03:26:00	00:17:46	116	127.76	116	192.55	0.00	-
17	PSR	FBS	2011-01-13 03:14:03	2011-01-13 03:24:27	00:10:24	116	148.97	116	186.90	34.30	7
18	PSR	FBS	2011-01-13 03:48:17	2011-01-13 03:50:33	00:02:16	116	273.81	116	282.08	34.30	7
19	PSR	FBS	2011-01-13 03:51:43	2011-01-13 04:03:01	00:11:18	116	286.39	116	327.60	34.30	7
20	PSR	WB1	2011-01-13 04:37:41	2011-01-13 04:40:45	00:03:04	162	94.03	162	105.21	27.10	80
21	PSM	OB1	2011-01-13 04:46:12	2011-01-13 04:57:16	00:11:04	162	125.02	162	165.38	1.20	-
22	AV2	OBS	2011-01-13 04:46:57	2011-01-13 04:56:33	00:09:36	162	127.76	162	162.77	0.00	-
23	PSR	WB1	2011-01-13 04:58:23	2011-01-13 05:00:15	00:01:52	162	169.51	162	176.32	27.10	80
24	AV2	OBS	2011-01-13 05:11:06	2011-01-13 05:12:58	00:01:52	162	215.83	162	222.63	34.30	-
25	PSR	FBS	2011-01-13 05:25:29	2011-01-13 05:31:15	00:05:46	162	268.28	162	289.31	34.30	7
26	PSR	FBS	2011-01-13 06:08:42	2011-01-13 06:12:44	00:04:02	208	65.88	208	80.59	34.30	7
27	PSM	OB1	2011-01-13 06:24:55	2011-01-13 06:34:13	00:09:18	208	125.02	208	158.94	1.20	-
28	AV2	OBS	2011-01-13 06:25:39	2011-01-13 06:34:03	00:08:24	208	127.70	208	158.33	0.00	-
29	PSR	FBS	2011-01-13 06:30:18	2011-01-13 06:33:42	00:03:24	208	144.65	208	157.05	34.30	7
30	PSM	OB1	2011-01-13 06:40:00	2011-01-13 06:42:36	00:02:36	208	180.03	208	189.51	1.20	-
31	AV2	OBS	2011-01-13 06:40:44	2011-01-13 06:42:36	00:01:52	208	182.70	208	189.51	0.00	-
32	PSR	WB1	2011-01-13 06:57:30	2011-01-13 07:00:46	00:03:16	208	243.91	208	255.82	27.10	80
33	PSR	FBS	2011-01-13 07:04:29	2011-01-13 07:07:15	00:02:46	208	269.31	208	279.40	34.30	7
34	PSR	FBS	2011-01-13 07:44:42	2011-01-13 07:46:34	00:01:52	254	55.98	254	62.78	34.30	7
35	PSR	FBS	2011-01-13 07:47:49	2011-01-13 07:52:53	00:05:04	254	67.34	254	85.82	34.30	7
36	PSR	WB1	2011-01-13 07:55:08	2011-01-13 07:59:34	00:04:26	254	94.03	254	110.19	27.10	80
37	PSM	OB1	2011-01-13 08:05:33	2011-01-13 08:29:27	00:23:54	254	132.01	254	219.17	1.20	-
38	AV2	OBS	2011-01-13 08:06:17	2011-01-13 08:25:25	00:19:08	254	134.69	254	204.46	0.00	-
39	PSR	WB1	2011-01-13 08:36:14	2011-01-13 08:39:40	00:03:26	254	243.91	254	256.43	27.10	80
40	PSR	FBS	2011-01-13 09:12:54	2011-01-13 09:14:46	00:01:52	300	17.63	300	24.43	41.50	10
41	PSR	FBS	2011-01-13 09:21:43	2011-01-13 09:23:47	00:02:04	300	49.78	300	57.31	34.30	7
42	PSM	OB1	2011-01-13 09:47:02	2011-01-13 09:57:38	00:10:36	300	142.10	300	180.76	1.20	-
43	AV2	OBS	2011-01-13 09:47:08	2011-01-13 09:56:53	00:09:45	300	142.41	300	177.96	0.00	-
44	PSR	WB1	2011-01-13 10:14:57	2011-01-13 10:18:23	00:03:26	300	243.91	300	256.43	27.10	80
45	PSR	WB1	2011-01-13 11:12:40	2011-01-13 11:15:18	00:02:38	346	94.39	346	103.99	27.10	80
46	PSM	OB1	2011-01-13 11:26:18	2011-01-13 11:34:24	00:08:06	346	144.11	346	173.65	1.20	-
47	AV2	OBS	2011-01-13 11:27:01	2011-01-13 11:33:39	00:06:38	346	146.72	346	170.91	0.00	-
48	PSR	FBS	2011-01-13 12:11:14	2011-01-13 12:13:32	00:02:18	346	307.97	346	316.35	34.30	7
49	PSR	WB1	2011-01-13 12:49:17	2011-01-13 12:52:57	00:03:40	392	86.73	392	100.10	27.10	80
50	PSM	OB1	2011-01-13 13:14:11	2011-01-13 13:24:01	00:09:50	392	177.54	392	213.40	1.20	-
51	AV2	OBS	2011-01-13 13:14:57	2011-01-13 13:24:50	00:09:53	392	180.33	392	216.37	0.00	-
52	PSR	WB1	2011-01-13 13:35:06	2011-01-13 13:38:02	00:02:56	392	253.81	392	264.51	27.10	80
53	PSR	FBS	2011-01-13 13:52:02	2011-01-13 14:05:20	00:13:18	392	315.56	438	4.07	34.30	7
54	PSR	FBS	2011-01-13 14:09:54	2011-01-13 14:12:10	00:02:16	438	20.73	438	28.99	34.30	7
55	PSR	FBS	2011-01-13 14:13:15	2011-01-13 14:21:21	00:08:06	438	32.94	438	62.48	34.30	7
56	PSR	FBS	2011-01-13 14:23:47	2011-01-13 14:26:17	00:02:30	438	71.35	438	80.47	34.30	7
57	PSR	WB1	2011-01-13 14:33:24	2011-01-13 14:36:44	00:03:20	438	106.42	438	118.58	27.10	80
58	PSM	OB1	2011-01-13 14:38:29	2011-01-13 14:41:45	00:03:16	438	124.96	438	136.87	1.20	-
59	AV2	OBS	2011-01-13 14:39:09	2011-01-13 14:41:01	00:01:52	438	127.39	438	134.20	0.00	-
60	AV2	OBS	2011-01-13 14:47:54	2011-01-13 14:59:33	00:11:39	438	159.30	438	201.79	0.00	-
61	PSR	FBS	2011-01-13 14:55:18	2011-01-13 14:58:54	00:03:36	438	186.29	438	199.42	34.30	7
62	PSR	FBS	2011-01-13 15:39:35	2011-01-13 15:59:11	00:19:36	438	347.78	484	59.26	34.30	7
63	PSR	FBS	2011-01-13 16:00:31	2011-01-13 16:03:57	00:03:26	484	64.06	484	76.58	34.30	7
64	PSR	WB1	2011-01-13 16:07:38	2011-01-13 16:11:56	00:04:18	484	90.07	484	105.76	27.10	80
65	AV2	OBS	2011-01-13 16:14:22	2011-01-13 16:29:06	00:14:44	484	114.57	484	168.30	0.00	-
66	PSR	FBS	2011-01-13 17:00:25	2011-01-13 17:03:25	00:03:00	484	282.50	484	293.44	34.30	7
67	PSR	FBS	2011-01-13 17:22:58	2011-01-13 17:38:42	00:15:44	530	4.80	530	62.18	34.30	7
68	AV2	OBS	2011-01-13 17:49:09	2011-01-13 17:51:01	00:01:52	530	100.29	530	107.09	0.00	-
69	PSM	OB1	2011-01-13 17:53:05	2011-01-13 18:05:37	00:12:32	530	114.57	530	160.27	1.20	-
70	AV2	OBS	2011-01-13 17:53:50	2011-01-13 18:05:36	00:11:46	530	117.30	530	160.21	0.00	-
71	PSR	FBS	2011-01-13 18:38:23	2011-01-13 18:41:57	00:03:34	530	279.83	530	292.83	34.30	7
72	PSR	FBS	2011-01-13 18:44:17	2011-01-13 18:46:09	00:01:52	530	301.34	530	308.15	34.30	7
73	PSR	FBS	2011-01-13 19:03:39	2011-01-13 19:17:25	00:13:46	576	11.97	576	62.18	34.30	7
74	PSM	OB1	2011-01-13 19:31:48	2011-01-13 19:37:02	00:05:14	576	114.57	576	133.65	1.20	-
75	AV2	OBS	2011-01-13 19:32:34	2011-01-13 19:36:26	00:03:52	576	117.36	576	131.46	0.00	-
76	PSR	FBS	2011-01-13 20:14:28	2011-01-13 20:21:00	00:06:32	576	270.16	576	293.99	34.30	7
77	PSR	FBS	2011-01-13 20:31:40	2011-01-13 20:44:14	00:12:34	576	332.89	622	18.72	34.30	7
78	PSR	FBS	2011-01-13 20:47:35	2011-01-13 20:56:07	00:08:32	622	30.94	622	62.06	34.30	7
79	AV2	OBS	2011-01-13 21:33:02	2011-01-13 21:34:54	00:01:52	622	196.74	622	203.55	0.00	-
80	PSM	OB2	2011-01-13 21:33:02	2011-01-13 21:35:00	00:01:58	622	196.74	622	203.91	0.00	-
81	PSR	WB1	2011-01-13 21:45:58	2011-01-13 21:48:50	00:02:52	622	243.91	622	254.36	27.10	80
82	PSR	FBS	2011-01-13 21:52:17	2011-01-13 21:58:49	00:06:32	622	266.88	622	290.71	34.30	7
83	PSR	FBS	2011-01-13 22:21:30	2011-01-13 22:28:18	00:06:48	668	13.43	668	38.23	34.30	7
84	PSM	OB2	2011-01-13 23:04:05	2011-01-13 23:06:33	00:02:28	668	168.72	668	177.72	0.00	-
85	PSR	FBS	2011-01-13 23:09:12	2011-01-13 23:11:12	00:02:00	668	187.38	668	194.68	34.30	7
86	PSM	OB1	2011-01-13 23:09:44	2011-01-13 23:14:12	00:04:28	668	189.33	668	205.62	1.20	-
87	AV2	OBS	2011-01-13 23:10:30	2011-01-13 23:14:14	00:03:44	668	192.12	668	205.74	0.00	-
88	PSR	WB1	2011-01-13 23:24:46	2011-01-13 23:26:58	00:02:12	668	244.15	668	252.17	27.10	80
89	PSM	OB1	2011-01-13 23:28:19	2011-01-13 23:30:55	00:02:36	668	257.10	668	266.58	1.20	-
90	AV2	OBS	2011-01-13 23:29:06	2011-01-13 23:30:58	00:01:52	668	259.95	668	266.76	0.00	-
91	PSR	FBS	2011-01-13 23:58:08	2011-01-14 00:02:56	00:04:48	43	5.83	43	23.34	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
24	-12.63330	2011-01-12 23:15:44	155.02690	2011-01-13 00:05:06
70	-37.31289	2011-01-13 00:54:27	130.34732	2011-01-13 01:43:49
116	-61.99247	2011-01-13 02:33:11	105.66774	2011-01-13 03:22:32
162	-86.67205	2011-01-13 04:11:54	80.98816	2011-01-13 05:01:15
208	-111.35163	2011-01-13 05:50:37	56.30857	2011-01-13 06:39:58
254	-136.03122	2011-01-13 07:29:20	31.62899	2011-01-13 08:18:41
300	-160.71080	2011-01-13 09:08:03	6.94941	2011-01-13 09:57:24
346	174.60962	2011-01-13 10:46:46	-17.73017	2011-01-13 11:36:08
392	149.93003	2011-01-13 12:25:29	-42.40976	2011-01-13 13:14:51
438	125.25045	2011-01-13 14:04:12	-67.08934	2011-01-13 14:53:34
484	100.57087	2011-01-13 15:42:55	-91.76892	2011-01-13 16:32:17
530	75.89129	2011-01-13 17:21:38	-116.44851	2011-01-13 18:11:00
576	51.21170	2011-01-13 19:00:22	-141.12809	2011-01-13 19:49:43
622	26.53212	2011-01-13 20:39:05	-165.80767	2011-01-13 21:28:26
668	1.85254	2011-01-13 22:17:48	169.51275	2011-01-13 23:07:09
43	-22.82704	2011-01-13 23:56:31	144.83316	2011-01-14 00:45:52
