>ALOS Data Take Simulation(Dec. 11, 2010)

Observation Area

PRISM

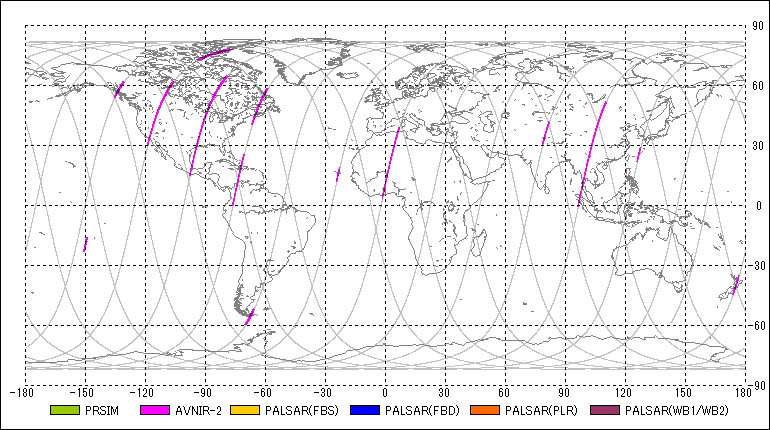

AVNIR-2

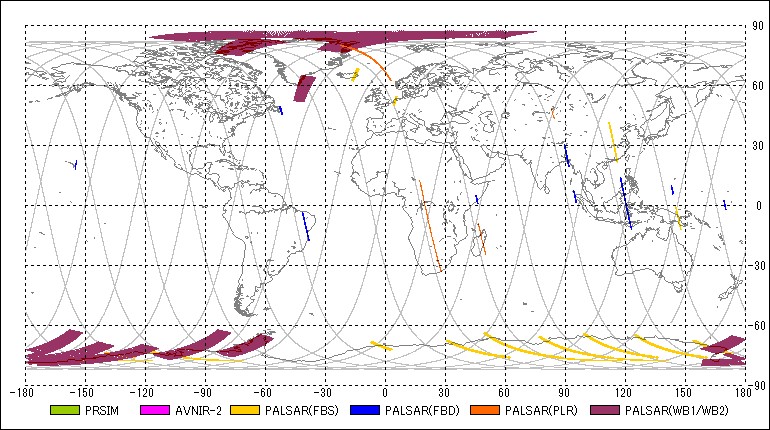

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-12-11 01:09:18	2010-12-11 01:11:22	00:02:04	41	281.04	41	288.58	34.30	7
2	PSR	FBD	2010-12-11 01:25:23	2010-12-11 01:29:57	00:04:34	41	339.63	41	356.29	34.30	43
3	PSR	FBD	2010-12-11 01:42:48	2010-12-11 01:44:40	00:01:52	87	43.21	87	50.02	34.30	43
4	AV2	OBS	2010-12-11 02:12:24	2010-12-11 02:14:16	00:01:52	87	151.16	87	157.96	0.00	-
5	AV2	OBS	2010-12-11 03:44:42	2010-12-11 03:59:15	00:14:33	133	127.76	133	180.82	0.00	-
6	PSM	OB2	2010-12-11 03:44:42	2010-12-11 03:59:54	00:15:12	133	127.70	133	183.13	0.00	-
7	AV2	OBS	2010-12-11 05:26:13	2010-12-11 05:29:27	00:03:14	179	137.97	179	149.76	0.00	-
8	PSR	FBS	2010-12-11 09:19:15	2010-12-11 09:23:29	00:04:14	271	267.73	271	283.17	34.30	7
9	PSR	FBS	2010-12-11 10:18:37	2010-12-11 10:20:29	00:01:52	317	124.23	317	131.04	34.30	7
10	AV2	OBS	2010-12-11 10:23:08	2010-12-11 10:32:54	00:09:46	317	140.70	317	176.32	0.00	-
11	PSR	FBS	2010-12-11 10:59:48	2010-12-11 11:01:44	00:01:56	317	274.42	317	281.47	34.30	7
12	PSR	FBD	2010-12-11 11:22:04	2010-12-11 11:23:56	00:01:52	317	355.62	363	2.43	34.30	43
13	PSR	FBS	2010-12-11 11:53:28	2010-12-11 11:55:50	00:02:22	363	110.07	363	118.70	34.30	7
14	AV2	OBS	2010-12-11 12:07:27	2010-12-11 12:09:19	00:01:52	363	161.13	363	167.93	0.00	-
15	PSR	WB1	2010-12-11 12:30:55	2010-12-11 12:34:43	00:03:48	363	246.70	363	260.56	27.10	80
16	PSR	FBS	2010-12-11 12:36:28	2010-12-11 12:39:34	00:03:06	363	266.94	363	278.25	34.30	7
17	PSR	FBS	2010-12-11 12:57:55	2010-12-11 13:01:49	00:03:54	363	345.16	363	359.39	34.30	7
18	PSR	FBD	2010-12-11 13:02:52	2010-12-11 13:04:44	00:01:52	409	3.22	409	10.03	34.30	43
19	PSR	WB1	2010-12-11 13:25:45	2010-12-11 13:30:11	00:04:26	409	86.67	409	102.84	27.10	80
20	PSR	WB1	2010-12-11 13:33:10	2010-12-11 13:37:20	00:04:10	409	113.72	409	128.91	27.10	80
21	AV2	OBS	2010-12-11 14:05:42	2010-12-11 14:07:58	00:02:16	409	232.36	409	240.62	0.00	-
22	PSR	WB1	2010-12-11 14:08:52	2010-12-11 14:14:02	00:05:10	409	243.91	409	262.75	27.10	80
23	PSR	FBS	2010-12-11 14:15:24	2010-12-11 14:17:30	00:02:06	409	267.67	409	275.33	34.30	7
24	PSR	FBS	2010-12-11 14:18:16	2010-12-11 14:21:22	00:03:06	409	278.19	409	289.49	34.30	7
25	PSR	FBD	2010-12-11 14:36:40	2010-12-11 14:44:30	00:07:50	409	345.29	455	13.86	34.30	43
26	PSR	FBS	2010-12-11 14:45:58	2010-12-11 14:52:10	00:06:12	455	19.21	455	41.82	34.30	7
27	PSR	WB1	2010-12-11 15:04:30	2010-12-11 15:07:12	00:02:42	455	86.79	455	96.64	27.10	80
28	PSM	OB1	2010-12-11 15:13:03	2010-12-11 15:19:19	00:06:16	455	117.97	455	140.82	-1.20	-
29	AV2	OBS	2010-12-11 15:13:49	2010-12-11 15:18:59	00:05:10	455	120.71	455	139.55	0.00	-
30	PSM	OB1	2010-12-11 15:22:15	2010-12-11 15:34:15	00:12:00	455	151.46	455	195.22	-1.20	-
31	AV2	OBS	2010-12-11 15:23:01	2010-12-11 15:30:07	00:07:06	455	154.32	455	180.21	0.00	-
32	PSR	WB1	2010-12-11 15:49:59	2010-12-11 15:55:01	00:05:02	455	252.66	455	271.01	27.10	80
33	PSR	FBS	2010-12-11 15:55:58	2010-12-11 16:01:00	00:05:02	455	274.42	455	292.77	34.30	7
34	PSR	FBD	2010-12-11 16:19:06	2010-12-11 16:21:22	00:02:16	455	358.84	501	7.11	34.30	43
35	PSR	FBD	2010-12-11 16:24:06	2010-12-11 16:27:48	00:03:42	501	17.02	501	30.51	34.30	43
36	PSR	PLR	2010-12-11 16:30:50	2010-12-11 16:32:50	00:02:00	501	41.63	501	48.93	23.10	128
37	PSR	WB1	2010-12-11 16:45:12	2010-12-11 16:48:10	00:02:58	501	93.96	501	104.78	27.10	80
38	AV2	OBS	2010-12-11 16:50:43	2010-12-11 17:04:45	00:14:02	501	114.14	501	165.32	0.00	-
39	PSR	WB1	2010-12-11 17:28:19	2010-12-11 17:33:55	00:05:36	501	251.20	501	271.62	27.10	80
40	PSR	FBS	2010-12-11 17:34:40	2010-12-11 17:39:56	00:05:16	501	274.42	501	293.62	34.30	7
41	AV2	OBS	2010-12-11 18:25:13	2010-12-11 18:27:05	00:01:52	547	98.71	547	105.51	0.00	-
42	PSM	OB1	2010-12-11 18:29:33	2010-12-11 18:39:47	00:10:14	547	114.57	547	151.89	-1.20	-
43	AV2	OBS	2010-12-11 18:30:18	2010-12-11 18:39:06	00:08:48	547	117.30	547	149.39	0.00	-
44	PSR	WB1	2010-12-11 19:05:01	2010-12-11 19:10:15	00:05:14	547	243.91	547	262.99	27.10	80
45	PSR	FBS	2010-12-11 19:11:33	2010-12-11 19:18:05	00:06:32	547	267.67	547	291.50	34.30	7
46	PSR	PLR	2010-12-11 19:29:26	2010-12-11 19:34:30	00:05:04	547	332.95	547	351.42	21.50	127
47	PSR	FBD	2010-12-11 19:36:27	2010-12-11 19:38:09	00:01:42	547	358.54	593	4.74	34.30	43
48	PSR	WB1	2010-12-11 20:00:38	2010-12-11 20:03:14	00:02:36	593	86.73	593	96.21	27.10	80
49	PSM	OB1	2010-12-11 20:08:17	2010-12-11 20:11:49	00:03:32	593	114.57	593	127.45	-1.20	-
50	AV2	OBS	2010-12-11 20:09:03	2010-12-11 20:11:13	00:02:10	593	117.36	593	125.27	0.00	-
51	PSR	FBD	2010-12-11 20:20:02	2010-12-11 20:21:54	00:01:52	593	157.42	593	164.22	50.80	53
52	PSM	OB2	2010-12-11 20:28:20	2010-12-11 20:30:18	00:01:58	593	187.69	593	194.86	0.00	-
53	AV2	OBS	2010-12-11 20:30:25	2010-12-11 20:32:17	00:01:52	593	195.34	593	202.15	34.30	-
54	PSR	WB1	2010-12-11 20:44:27	2010-12-11 20:47:43	00:03:16	593	246.46	593	258.37	27.10	80
55	PSR	FBS	2010-12-11 20:50:09	2010-12-11 20:57:27	00:07:18	593	267.25	593	293.87	34.30	7
56	PSR	PLR	2010-12-11 21:05:51	2010-12-11 21:19:03	00:13:12	593	324.50	639	12.64	21.50	127
57	PSR	PLR	2010-12-11 21:32:18	2010-12-11 21:38:10	00:05:52	639	60.96	639	82.36	21.50	127
58	PSM	OB1	2010-12-11 22:13:55	2010-12-11 22:18:05	00:04:10	639	212.73	639	227.92	-1.20	-
59	AV2	OBS	2010-12-11 22:14:40	2010-12-11 22:17:18	00:02:38	639	215.46	639	225.06	0.00	-
60	PSR	FBS	2010-12-11 22:30:48	2010-12-11 22:34:56	00:04:08	639	274.36	639	289.43	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
41	-21.75402	2010-12-10 23:52:13	145.90619	2010-12-11 00:41:35
87	-46.43360	2010-12-11 01:30:56	121.22661	2010-12-11 02:20:18
133	-71.11318	2010-12-11 03:09:39	96.54702	2010-12-11 03:59:01
179	-95.79277	2010-12-11 04:48:23	71.86744	2010-12-11 05:37:44
225	-120.47235	2010-12-11 06:27:06	47.18786	2010-12-11 07:16:27
271	-145.15193	2010-12-11 08:05:49	22.50828	2010-12-11 08:55:10
317	-169.83152	2010-12-11 09:44:32	-2.17131	2010-12-11 10:33:53
363	165.48890	2010-12-11 11:23:15	-26.85089	2010-12-11 12:12:37
409	140.80932	2010-12-11 13:01:58	-51.53047	2010-12-11 13:51:20
455	116.12974	2010-12-11 14:40:41	-76.21006	2010-12-11 15:30:03
501	91.45015	2010-12-11 16:19:24	-100.88964	2010-12-11 17:08:46
547	66.77057	2010-12-11 17:58:07	-125.56922	2010-12-11 18:47:29
593	42.09099	2010-12-11 19:36:50	-150.24880	2010-12-11 20:26:12
639	17.41141	2010-12-11 21:15:34	-174.92839	2010-12-11 22:04:55
14	-7.26818	2010-12-11 22:54:17	160.39203	2010-12-11 23:43:38
